XKC605-TQVMY (2021)
Toyota Dyna Hv

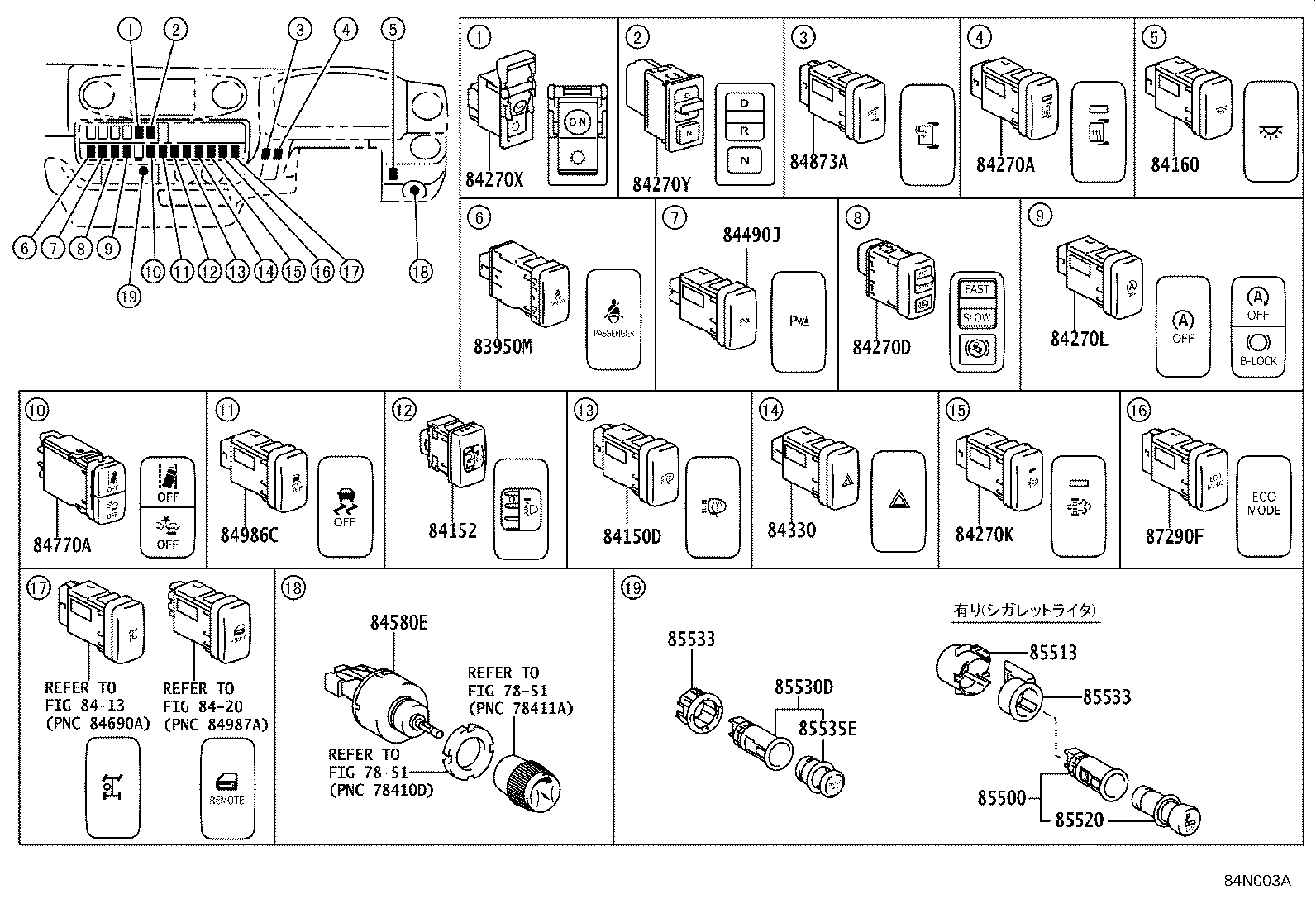

ILLUST NO. 6 OF 9(2103- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-37030 |
XKC605,XKU605,645,655 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-37011 |
XKC605,XKU605,645,655 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37081 |
XKC605,XKU605,645,655 |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84270-37260 |
XKC605,XKU605,645,655 ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED) |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37240 |
XKC605,XKU605 ｱｳﾀﾐﾗｰ−*DRP & *57 & *SHS & *HEA |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37320 |
XKC605,XKU605,645,655 |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37460 |
XKC605,XKU605,645,655 |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XKC605,XKU605,645,655 |
1 | ||
| 84270X - SWITCH ASSY, AMT MAIN | ||||
| 84270-37470 |
XKC605,XKU605,645,655 |
1 | ||
| 84270Y - SWITCH ASSY, AMT | ||||
| 84270-37500 |
XKC605,XKU605,645,655 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
XKC605,XKU605,645,655 |
1 | ||
| 84490J - SWITCH ASSY, CLEARANCE SONAR | ||||
| 84270-37490 |
XKC605,XKU605,645,655 |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37030 |
XKC605,XKU605,655..CBU ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動) |
1 | ||
| 84581-37030 |
XKC605,XKU605,655..CBU,IV5 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ付き) |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84270-37510 |
XKC605,XKU605,645,655 |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37030 |
XKC605,XKU605 ｱｳﾀﾐﾗｰ−*DRP & *57 & *SHS & *HEA |
1 | ||
| 84873-37030 |
XKC605,XKU605 ｱｳﾀﾐﾗｰ−*PAS(*TM) & *57 & *SHS |
1 | ||
| 84873-37030 |
XKC605,XKU605 ｱｳﾀﾐﾗｰ−*PAS & *57 & *SHS |
1 | ||
| 84986C - SWITCH, VSC OFF | ||||
| 84270-37300 |
XKC605,XKU605,645,655 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37060 |
XKC605,XKU605,645,655 灰皿−有り |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XKC605,XKU605,645,655 灰皿−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XKC605,XKU605,645,655 灰皿−有り |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-37020 |
XKC605,XKU605,645,655 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XKC605,XKU605,645,655 灰皿−有り |
1 | ||
| 85533-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XKC605,XKU605,645,655 灰皿−有り |
1 | ||
| 85533-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-37020 |
XKC605,XKU605,645,655 |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 84270-37280 |
XKC605,XKU605,645,655 |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||
| 8413 | ||||
| 8420 | ||||

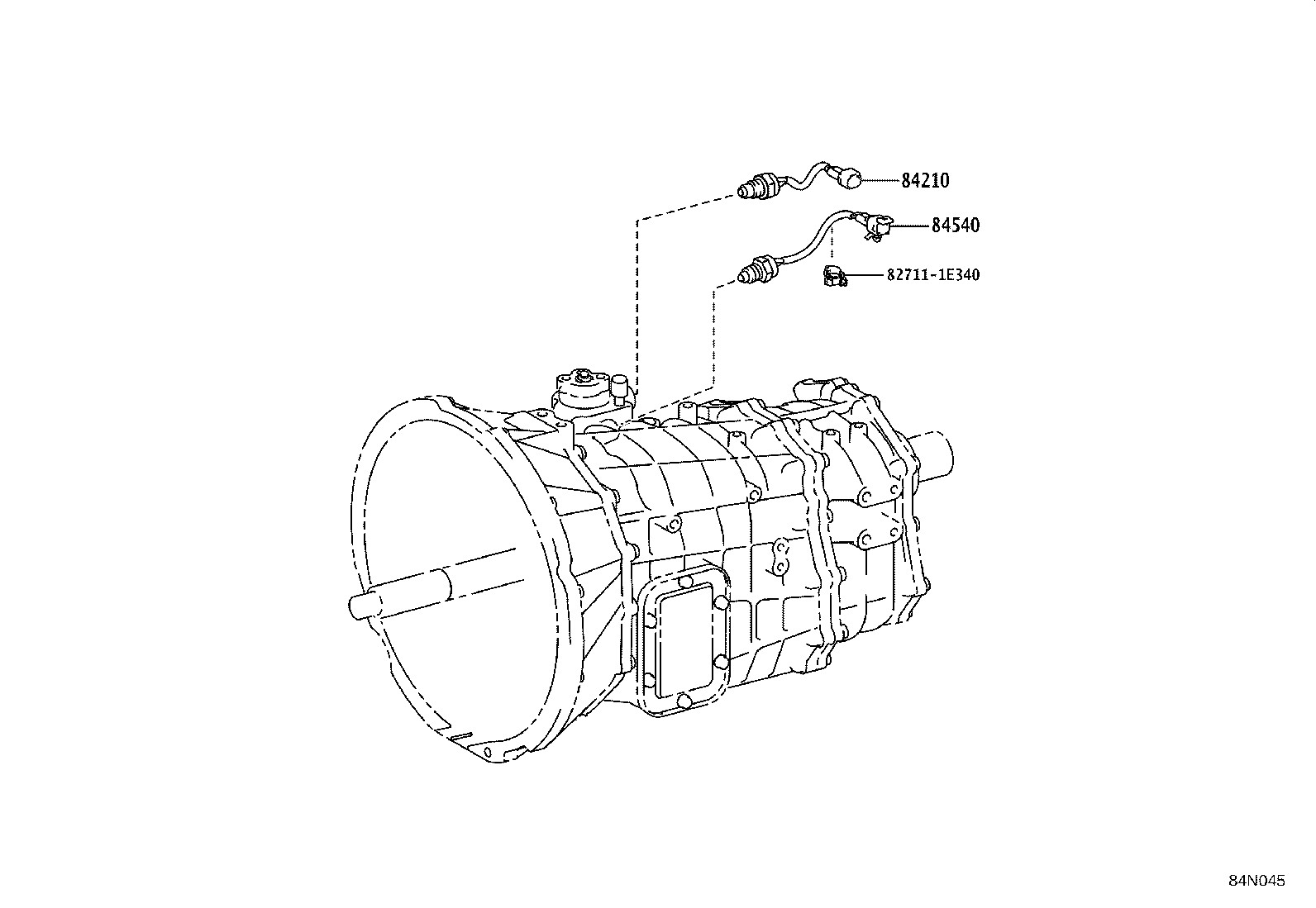

ILLUST NO. 2 OF 9(2103- )
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37050 |
XKC605,XKU605,645,655 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37090 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||

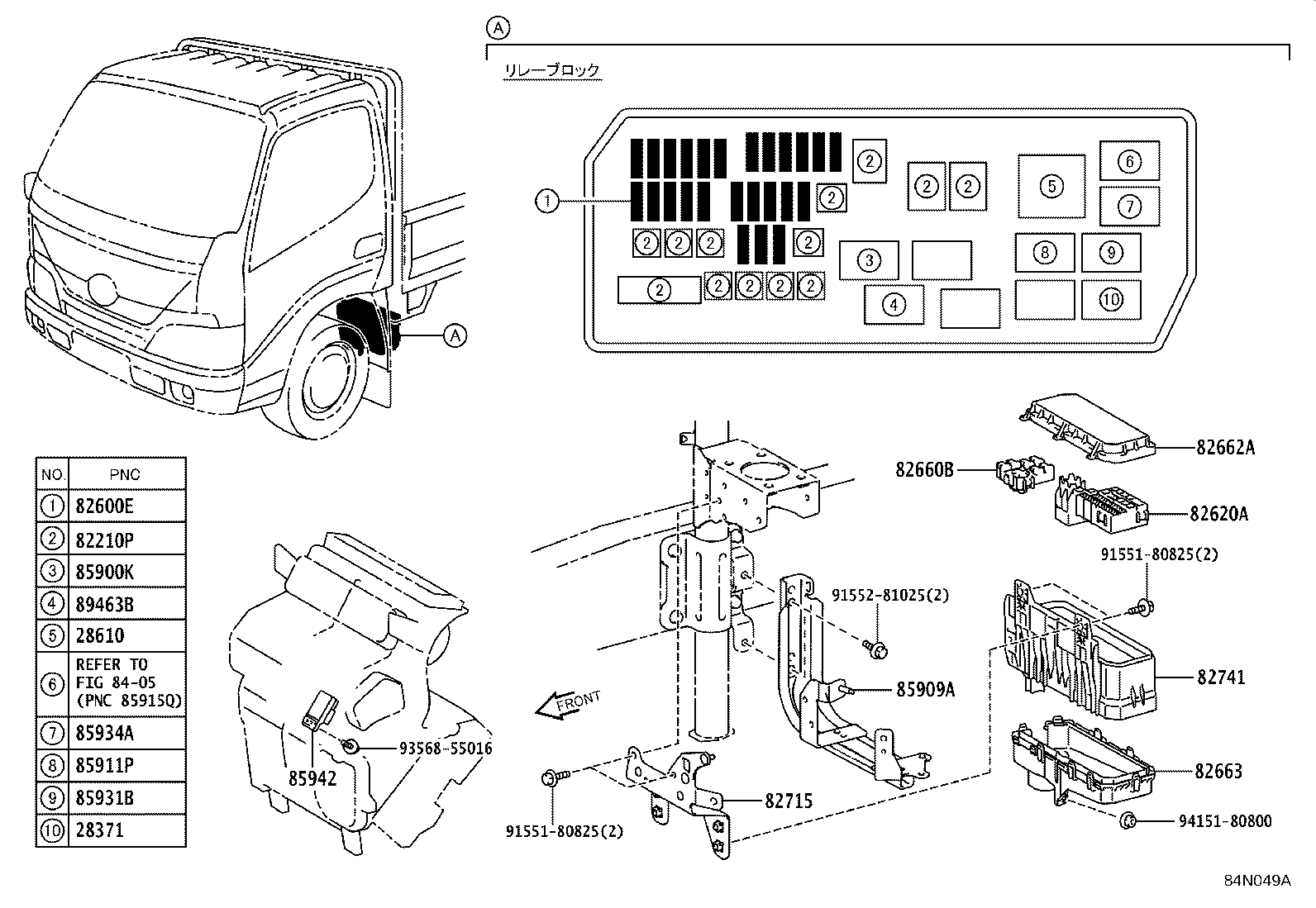

ILLUST NO. 3 OF 9(2103- )
ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85900-37150 |
N04C..XKC605,XKU605,645,655 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-E0010 |
N04C..XKC605,XKU605,645,655 寒冷地仕様−有り |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 82627-37030 |
XKC605,XKU605,645,655 20A,ﾒｽ端子 |
1 | ||
| 90982-08274 |
XKC605,XKU605,645,655 120A,ｵｽ端子,白 |
1 | ||
| 90982-08294 |
XKC605,XKU605,645,655 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
XKC605,XKU605,645,655 50A,ﾒｽ端子,赤 |
1 | ||
| 82627-37040 |
XKC605,XKU605,645,655 60A,ﾒｽ端子 |
1 | ||
| 90982-08300 |
XKC605,XKU605,645,655 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
XKC605,XKU605,645,655 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
XKC605,XKU605,645,655 80A,ｵｽ端子,黒 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
XKC605,XKU605,645,655 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
XKC605,XKU605,645,655 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
XKC605,XKU605,645,655 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
XKC605,XKU605,645,655 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-37200 |
XKC605,XKU605,645,655 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-37220 |
XKC605,XKU605,645,655 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37690 |
XKC605,XKU605,645,655 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37180 |
XKC605,XKU605,645,655 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-3VU90 |
XKC605,XKU605,645,655 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37040 |
XKC605,XKU605,645,655 |
1 | ||
| 85900K - RELAY ASSY, CONTROL UNIT (FOR ELECTRIC PARKING BRAKE) | ||||
| 85900-37150 |
XKC605,XKU605,645,655 |
1 | ||
| 85900-37150 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 82760-37361 |
XKC605,XKU605,645,655 |
1 | ||
| 85911P - RELAY, ACTUATOR POWER | ||||
| 85900-37150 |
XKC605,XKU605,645,655 |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 85900-37150 |
XKC605,XKU605,645,655 ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02017 |
XKC605,XKU605,645,655 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85270-37020 |
XKC605,XKU605,645,655 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 89463B - RELAY, NITROGEN OXIDES | ||||
| 85900-37150 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 93568-55016 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8405 | ||||

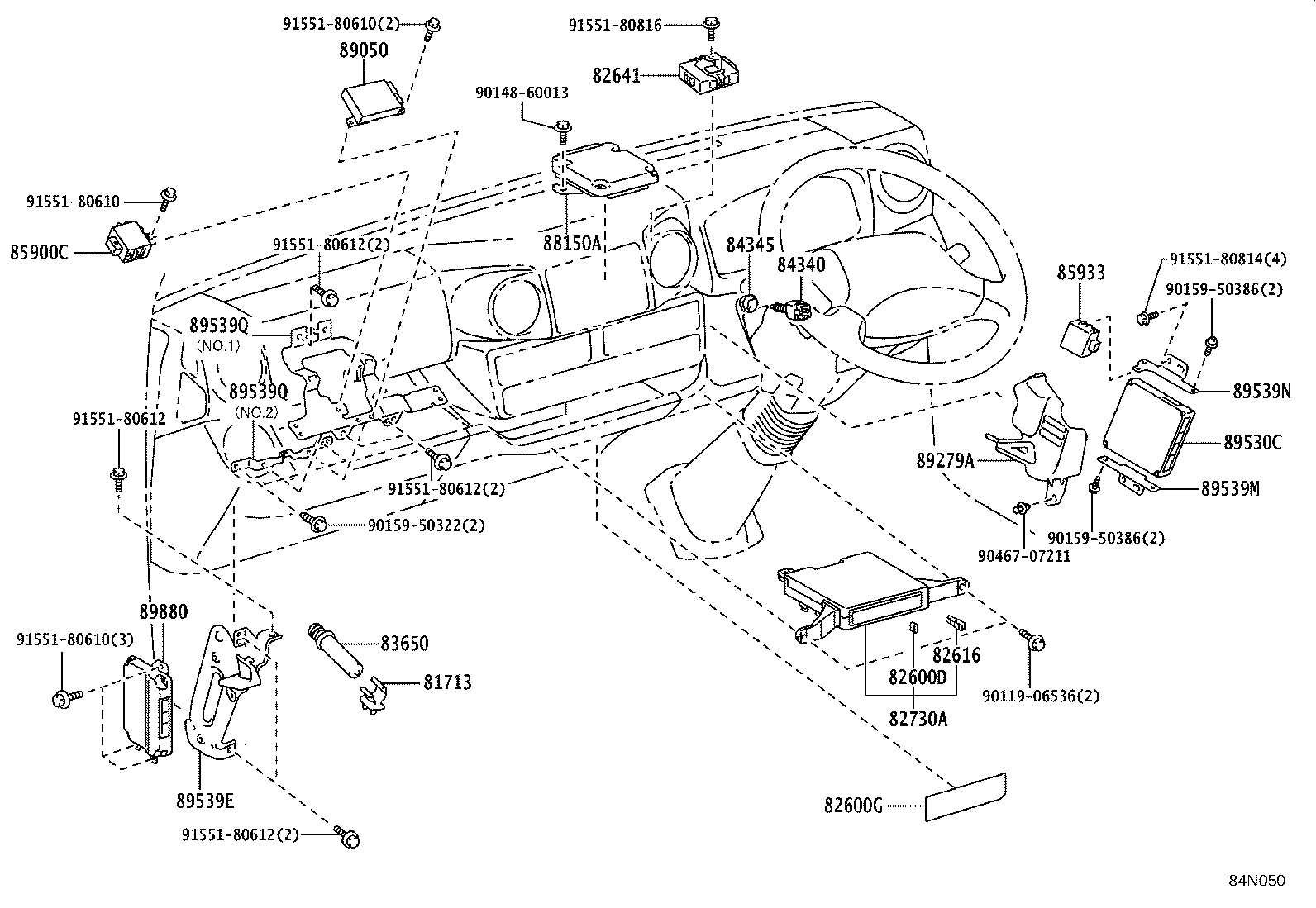

ILLUST NO. 4 OF 9(2103- )
ｶｳﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81713 - HOLDER, FUSEE | ||||
| SZ950-79033 |
XKC605,XKU605,645,655 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
XKC605,XKU605,645,655 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
XKC605,XKU605,645,655 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
XKC605,XKU605,645,655 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09021 |
XKC605,XKU605,645,655 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37480 |
XKC605,XKU605,645,655 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XKC605,XKU605,645,655 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-37110 |
XKC605,XKU605,645,655 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-37291 |
XKC605,XKU605,645,655 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XKC605,XKU605,645,655 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37060 |
XKC605,XKU605,645,655 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
XKC605,XKU605,645,655 |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-37020 |
XKC605,XKU605,645,655 |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-37061 |
XKC605,XKU605,645,655 |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-37030 |
XKC605,XKU605,645,655 |
1 | ||
| 89050-37030 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 55641-37021 |
XKC605,XKU605,645,655 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-37333 |
XKC605,XKU605,645,655 |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-37131 |
XKC605,XKU605,645,655 |
1 | ||
| 89539M - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | ||||
| 89539-37041 |
XKC605,XKU605,645,655 |
1 | ||
| 89539N - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | ||||
| 89539-37050 |
XKC605,XKU605,645,655 |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-37062 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.1 |
1 | ||
| 89539-37062 |
XKC605,XKU605,645,655 NO.1 |
1 | ||
| 89539-37070 |
XKC605,XKU605,645,655 NO.2 |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-37062 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.1 |
1 | ||
| 89539-37062 |
XKC605,XKU605,645,655 NO.1 |
1 | ||
| 89539-37070 |
XKC605,XKU605,645,655 NO.2 |
1 | ||
| 89880 - COMPUTER ASSY, ELECTRIC VEHICLE CONTROL | ||||
| 89880-37G95 |
XKC605,XKU605,645,655 ﾃﾞｭﾄﾛ専用&寒冷地仕様−有り |
1 | ||
| 89880-3V172 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37G95 |
XKC605,XKU605,645,655..CBU,IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37G95 |
XKC605,XKU605,645,655..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-3V192 |
XKC605,XKU605,645,655..CBU,IV3 寒冷地仕様−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-3V232 |
XKC605,XKU605,645,655 寒冷地仕様−有り |
1 | ||
| 89880-37G95 |
XKC605,XKU605,645,655 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-3V212 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 90119-06536 | ||||
| 90148-60013 | ||||
| 90159-50322 | ||||
| 90159-50386 | ||||
| 90467-07211 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||

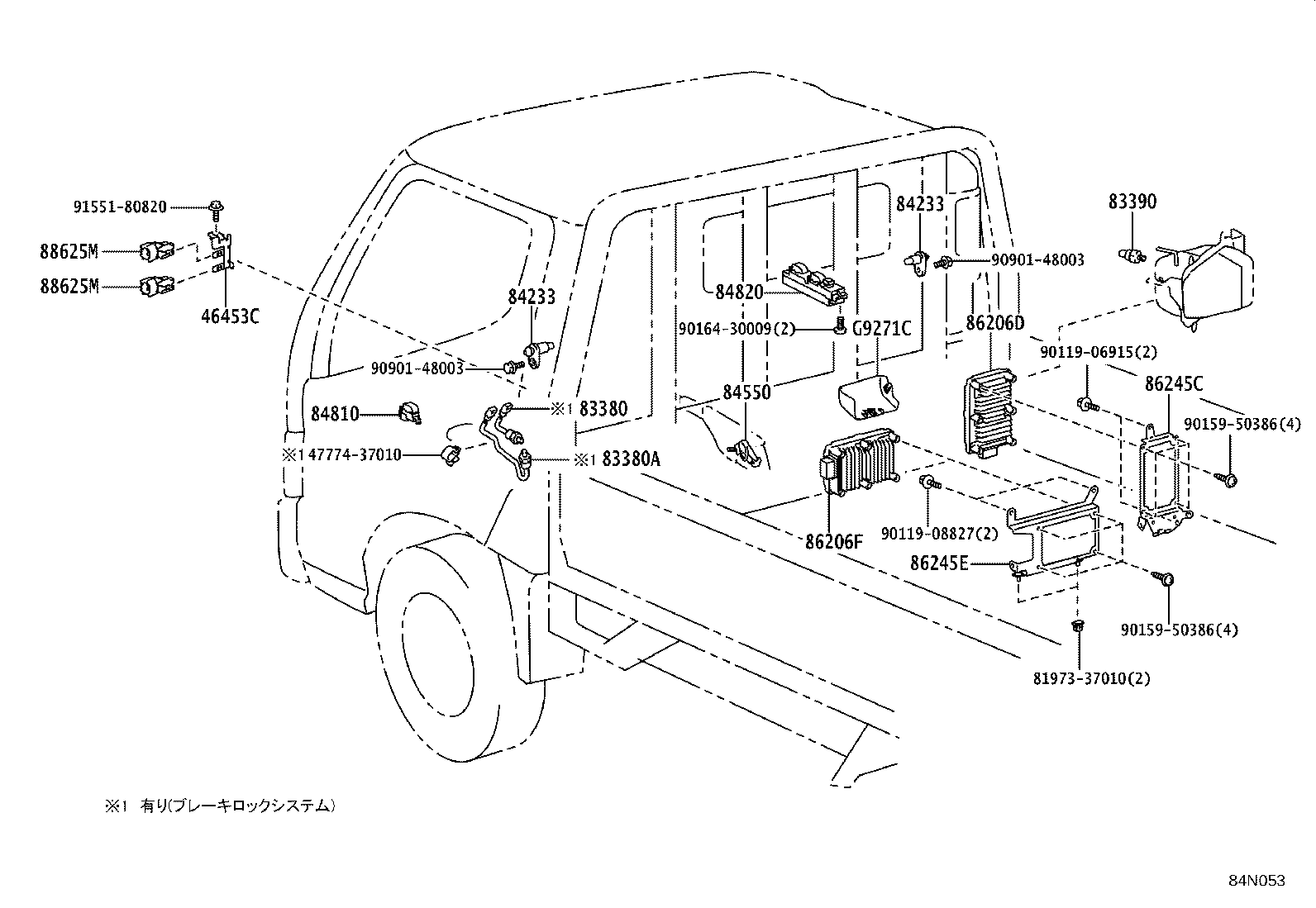

ILLUST NO. 8 OF 9(2103- )
ﾄﾞｱ,ﾙｰﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46453C - BRACKET, HOLDER | ||||
| 46453-37351 |
XKC605,XKU605,645,655 |
1 | ||
| 46453-37351 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
XKC605,XKU605,645,655 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XKC605,XKU605,645,655 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XKC605,XKU605,645,655 |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37070 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
XKC605,XKU605,645,655 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37034 |
XKC605,XKU605,645,655 |
1 | ||
| 86206D - CONVERTER SUB-ASSY, VOLTAGE | ||||
| 86206-37140 |
XKC605,XKU605,645,655 |
1 | ||
| 86206F - CONVERTER SUB-ASSY, VOLTAGE, NO.2 | ||||
| 86206-37160 |
XKC605,XKU605,645,655 |
1 | ||
| 86245C - BRACKET, VOLTAGE CONVERTER | ||||
| 86245-37221 |
XKC605,XKU605,645,655 |
1 | ||
| 86245E - BRACKET, VOLTAGE CONVERTER, NO.3 | ||||
| 86245-37240 |
XKC605,XKU605,645,655 |
1 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 88625-32171 |
XKC605,XKU605,645,655 |
2 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 88625-32171 |
XKC605,XKU605,645,655 |
2 | ||
| G9271C - COVER, CONVERTER | ||||
| G9271-37010 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 47774-37010 | ||||
| 81973-37010 | ||||
| 90119-06915 | ||||
| 90119-08827 | ||||
| 90159-50386 | ||||
| 90164-30009 | ||||
| 90901-48003 | ||||
| 91551-80820 | ||||

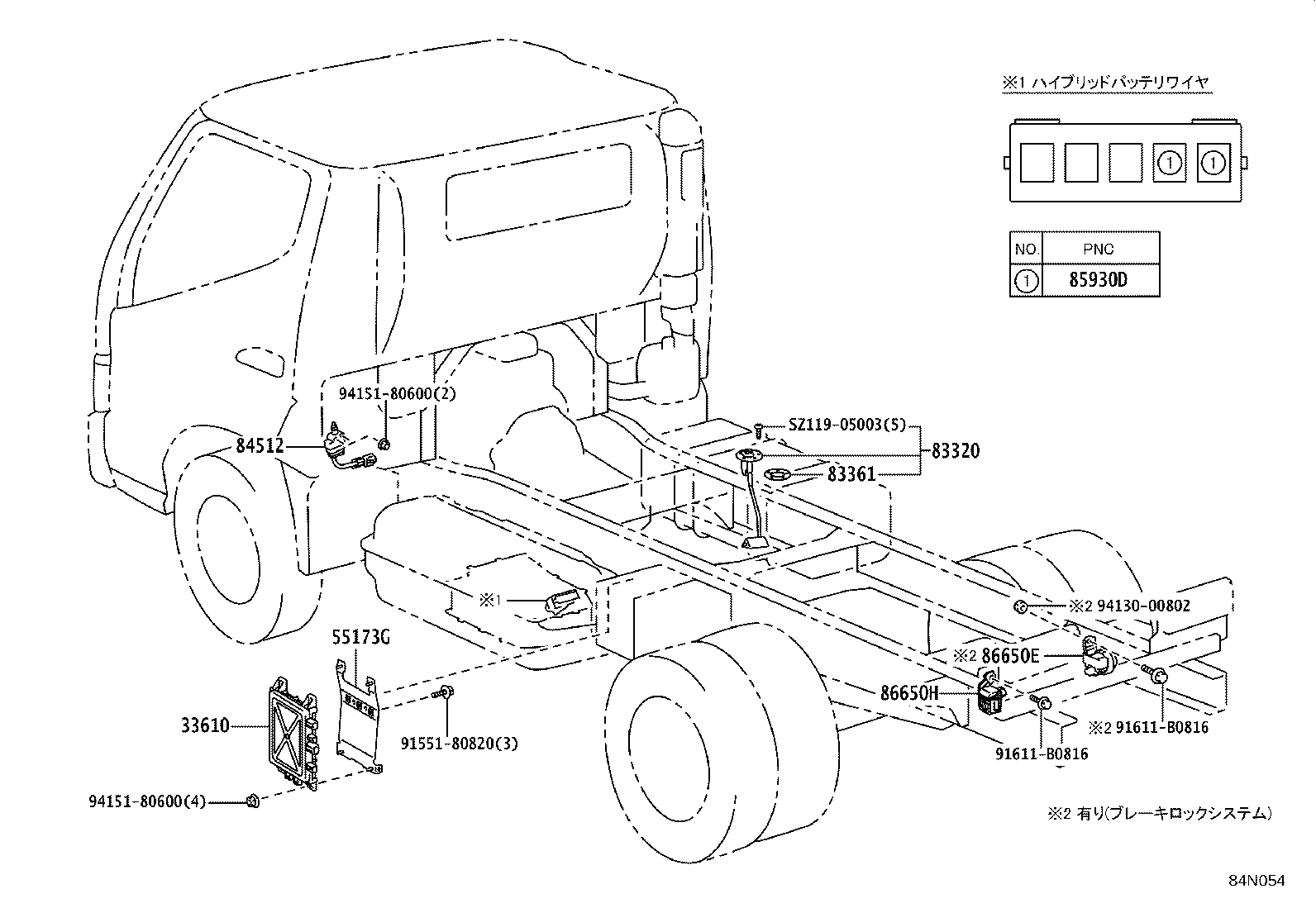

ILLUST NO. 9 OF 9(2103- )
ﾘﾔﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33610 - CONTROL ASSY, TRANSMISSION, FRONT | ||||
| 26362-E0050 |
XKC605,XKU605,645,655 |
1 | ||
| 55173G - BRACKET, ELECTRICAL PART, NO.2 | ||||
| 55173-37870 |
XKC605,XKU605,645,655 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80533 |
XKC605,XKU605,645,655 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-E0100 |
XKC605,XKU605,645,655 |
1 | ||
| 84512 - SWITCH, TILT CAB CONTROL | ||||
| 84512-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 85930D - RELAY | ||||
| 90987-02017 |
XKC605,XKU605,645,655 |
2 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-37181 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 91551-80820 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94151-80600 | ||||
| SZ119-05003 | ||||

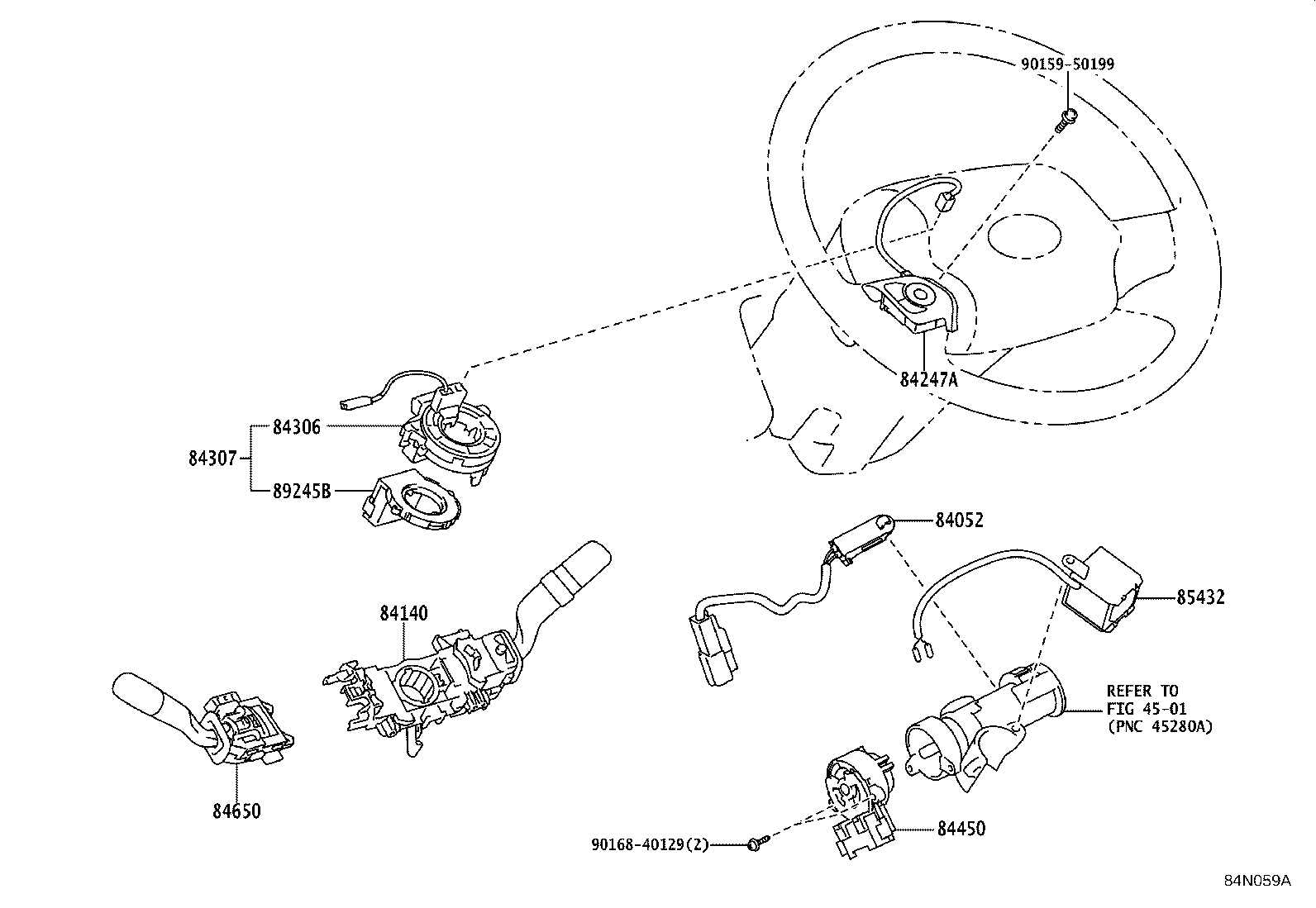

ILLUST NO. 7 OF 9(2103- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37121 |
XKC605,XKU605,645,655 |
1 | ||
| 84140-37131 |
XKC605,XKU605,645,655 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 84247-37020 |
XKC605,XKU605,645,655 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37050 |
XKC605,XKU605,645,655 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-37020 |
XKC605,XKU605,645,655 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-E0020 |
XKC605,XKU605,645,655 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37350 |
XKC605,XKU605,645,655 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-37040 |
XKC605,XKU605,645,655 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

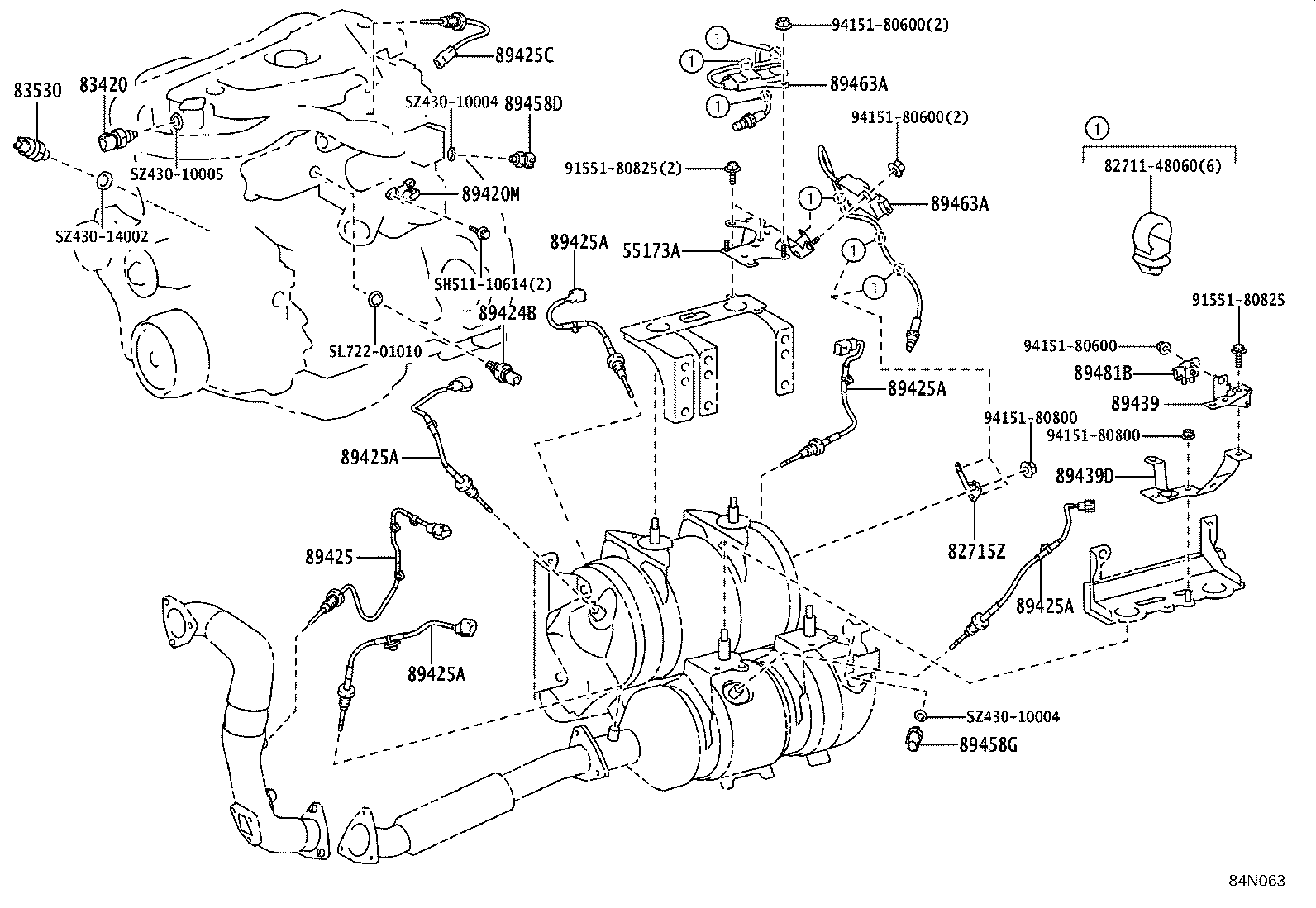

ILLUST NO. 1 OF 9(2103- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55173A - BRACKET | ||||
| 55173-37711 |
XKC605,XKU605,645,655 |
1 | ||
| 82715Z - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-3VW80 |
XKC605,XKU605,645,655 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XKC605,XKU605,645,655 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0250 |
XKC605,XKU605,645,655 |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XKC605,XKU605,645,655 |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-37020 |
XKC605,XKU605,645,655 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37300 |
XKC605,XKU605,645,655 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XKC605,XKU605,645,655 |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XKC605,XKU605,645,655 |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XKC605,XKU605,645,655 |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XKC605,XKU605,645,655 |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XKC605,XKU605,645,655 |
5 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-37360 |
XKC605,XKU605,645,655 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-37330 |
XKC605,XKU605,645,655 |
1 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-37440 |
XKC605,XKU605,645,655 |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0050 |
XKC605,XKU605,645,655 |
1 | ||
| 89458G - SENSOR, FUEL PRESSURE, NO.2 | ||||
| 89458-E0050 |
XKC605,XKU605,645,655 |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0611 |
XKC605,XKU605,645,655 |
2 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0611 |
XKC605,XKU605,645,655 |
2 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-E0021 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 82711-48060 | ||||
| 91551-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SL722-01010 | ||||
| SZ430-10004 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||

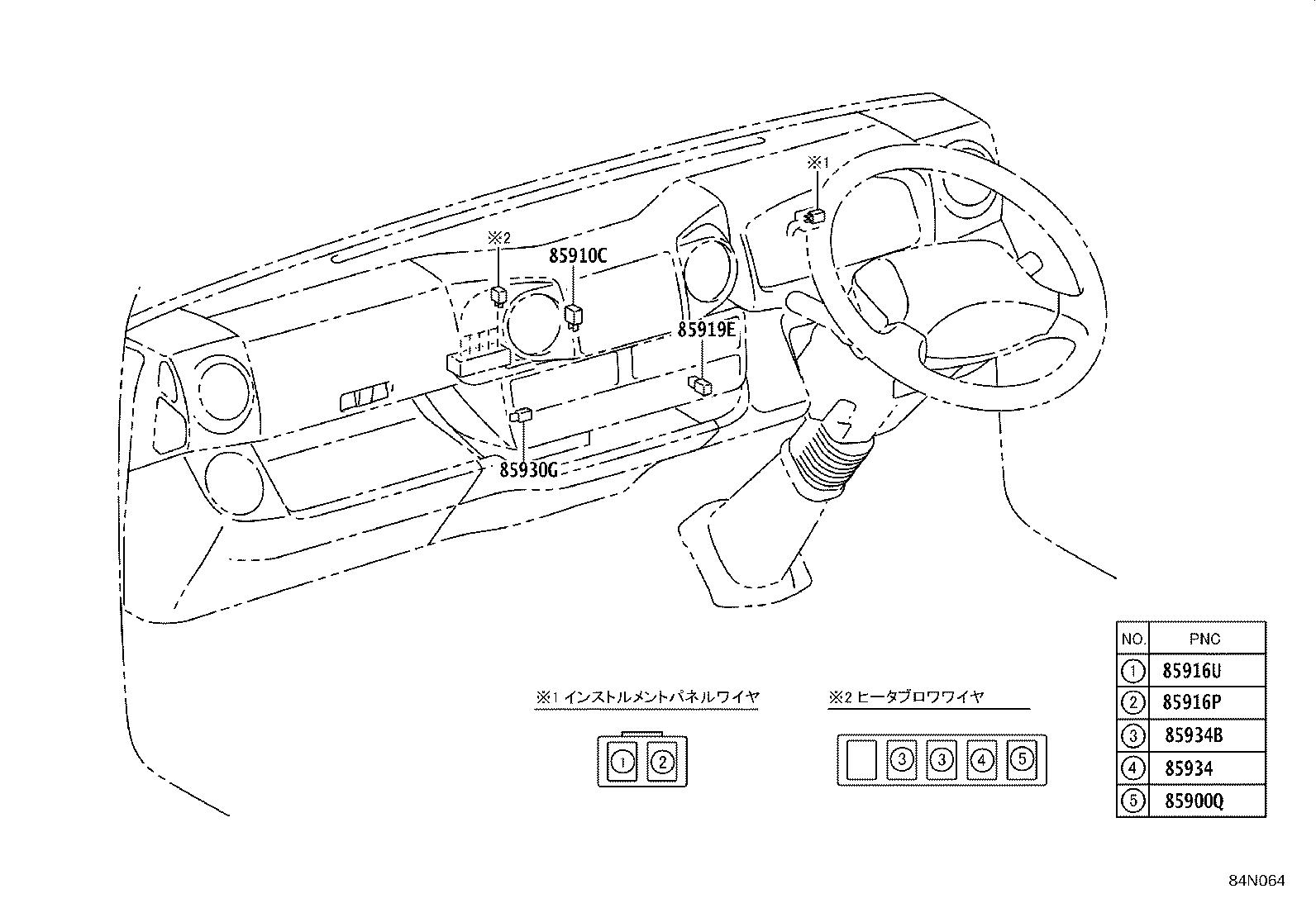

ILLUST NO. 5 OF 9(2103- )
ｶｳﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85900Q - RELAY, TAIL | ||||
| 85900-37150 |
XKC605,XKU605,645,655 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XKC605,XKU605,645,655 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XKC605,XKU605,645,655 |
1 | ||
| 85916U - RELAY, HEADLAMP, NO.2 | ||||
| 85900-37150 |
XKC605,XKU605,645,655 |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| S8592-02570 |
XKC605,XKU605,645,655 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 85900-37150 |
XKC605,XKU605,645,655 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XKC605,XKU605,645,655 |
1 | ||
| 85934B - RELAY, IDLE STOP | ||||
| 90987-04008 |
XKC605,XKU605,645,655 |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
