XKC605-TQVMY (2021)
Toyota Dyna Hv

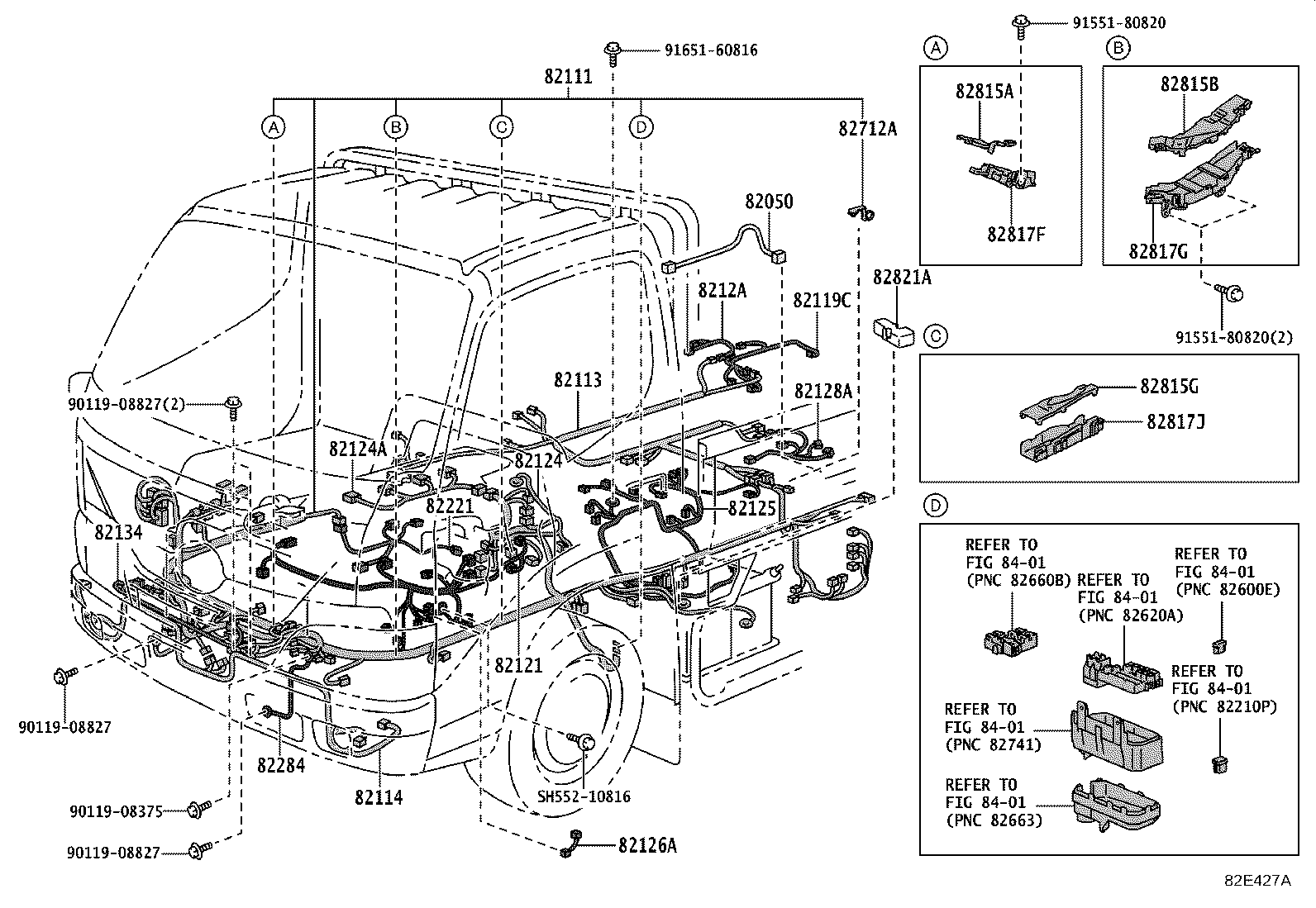

ILLUST NO. 1 OF 8(2103- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-37010 |
XKC605,XKU605,645,655..CBU,IV3 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ付き) |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-37X70 |
XKC605,XKU605,645,655 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37P20 |
XKC605,XKU605 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37270 |
XKC605,XKU605,645,655 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 82114-37290 |
XKC605,XKU605,645,655 |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-37050 |
XKC605,XKU605,645,655 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-37L90 |
XKC605,XKU605,645,655 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82121-37K70 |
XKC605,XKU605,645,655 寒冷地仕様−有り |
1 | ||
| 82121-37K60 |
XKC605,XKU605,645,655 |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82121-37L50 |
XKC605,XKU605,645,655 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-37650 |
XKC605,XKU605,645,655 |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82121-37M00 |
XKC605,XKU605,645,655 |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 8212A - WIRE, ENGINE, NO.9 | ||||
| 8212A-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-37211 |
XKC605,XKU605,645,655 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-37230 |
XKC605,XKU605,645,655 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-37560 |
XKC605,XKU605,645,655 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-37130 |
XKC605,XKU605,645,655 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-37150 |
XKC605,XKU605,645,655 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-37170 |
XKC605,XKU605,645,655 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-37500 |
XKC605,XKU605,645,655 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-37510 |
XKC605,XKU605,645,655 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-37520 |
XKC605,XKU605,645,655 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-37071 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 91551-80820 | ||||
| 91651-60816 | ||||
| SH552-10816 | ||||
| Linked diagrams | ||||
| 8401 | ||||

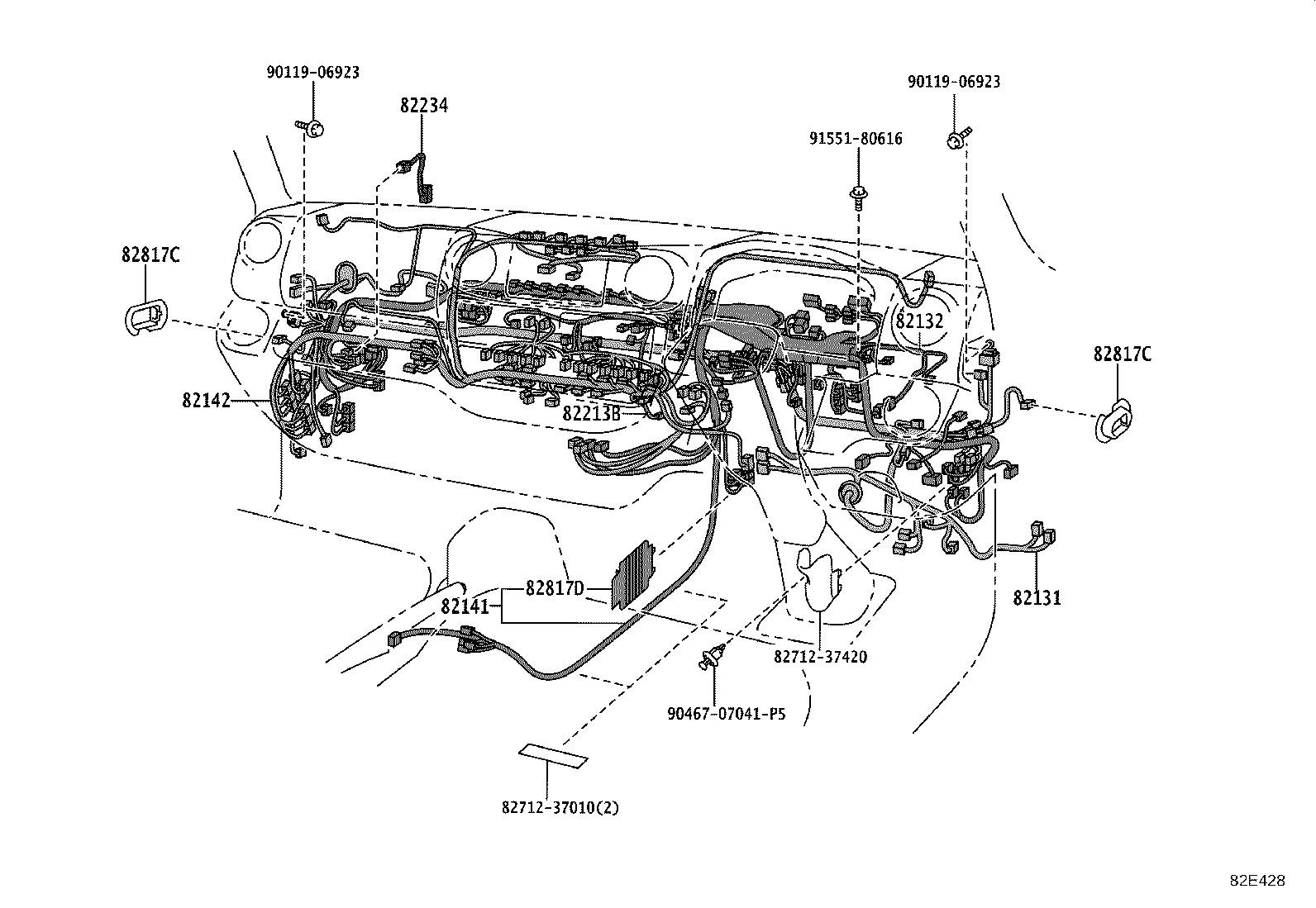

ILLUST NO. 3 OF 8(2103- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82148-37B20 |
XKC605,XKU605,645,655 |
1 | ||
| 82148-37B70 |
XKC605,XKU605 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*PAS(*TM) &*57 & *SHS |
1 | ||
| 82148-37B70 |
XKC605,XKU605 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*PAS & *57 & *SHS |
1 | ||
| 82148-37B30 |
XKC605,XKU605,645,655 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82148-37B60 |
XKC605,XKU605 ｱｳﾀﾐﾗｰ−*PAS(*TM) & *57 & *SHS |
1 | ||
| 82148-37C00 |
XKC605,XKU605 ｱｳﾀﾐﾗｰ−*DRP & *57 & *SHS & *HEA |
1 | ||
| 82148-37C10 |
XKC605,XKU605 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRP & *57 & *SHS & *HEA |
1 | ||
| 82148-37B60 |
XKC605,XKU605 ｱｳﾀﾐﾗｰ−*PAS & *57 & *SHS |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-37320 |
XKC605 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3VV50 |
XKC605,XKU605,645,655 |
1 | ||
| 82141-3VV60 |
XKC605,XKU605,645,655 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-3V521 |
XKC605,XKU605,645,655 |
1 | ||
| 82142-3V530 |
XKC605,XKU605,645,655 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82142-3V501 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82142-3V510 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-37330 |
XKC605,XKU605,645,655 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82213-37280 |
XKC605,XKU605,645,655 |
1 | ||
| 82234 - WIRE, COMPUTER, NO.2 | ||||
| 82234-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
XKC605,XKU605,645,655 |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
XKC605,XKU605,645,655 |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-37440 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 82712-37010 | ||||
| 82712-37420 | ||||
| 90119-06923 | ||||
| 90467-07041P5 | ||||
| 91551-80616 | ||||

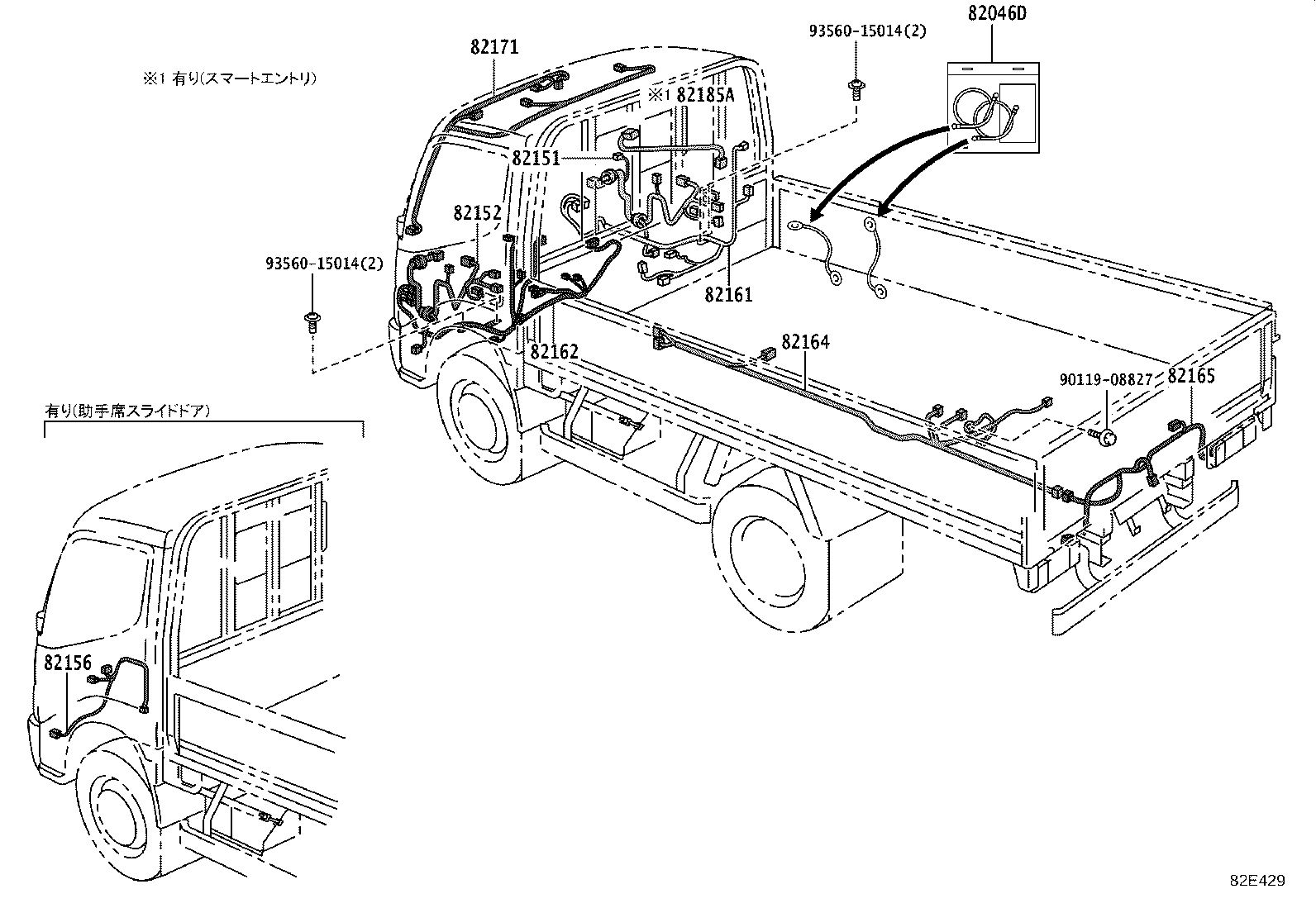

ILLUST NO. 4 OF 8(2103- )
ﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046D - WIRE, BODY GROUND | ||||
| 82046-37192 |
XKC605,XKU605,645,655 |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37B31 |
XKC605,XKU605 ｱｳﾀﾐﾗｰ−*DRP & *57 & *SHS & *HEA |
1 | ||
| 82151-37B11 |
XKC605,XKU605,645,655 |
1 | ||
| 82151-37J90 |
XKC605,XKU605,645,655 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82151-37K20 |
XKC605,XKU605 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｱｳﾀﾐﾗｰ−*DRP & *57 & *SHS & *HEA |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37A10 |
XKC605,XKU605,645,655 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37M10 |
XKC605,XKU605,645,655 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-37G00 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-37M00 |
XKC605,XKU605,645,655 |
1 | ||
| 82161-37B60 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-37F50 |
XKC605,XKU605,645,655..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82162-37F60 |
XKC605,XKU605,645,655 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-3VJ60 |
XKC605,XKU605..CBU ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 82164-3VM90 |
XKC605,XKU605..CBU |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-37830 |
XKC605,XKU605..CBU ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 82165-37840 |
XKC605,XKU605..CBU |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37J50 |
XKC605,XKU605,645,655 ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED) |
1 | ||
| 82171-37E90 |
XKC605,XKU605,645,655 |
1 | ||
| 82185A - WIRE, SMART DOOR, FRONT RH | ||||
| 82185-37070 |
XKC605,XKU605,645,655 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| Common parts | ||||
| 90119-08827 | ||||
| 93560-15014 | ||||

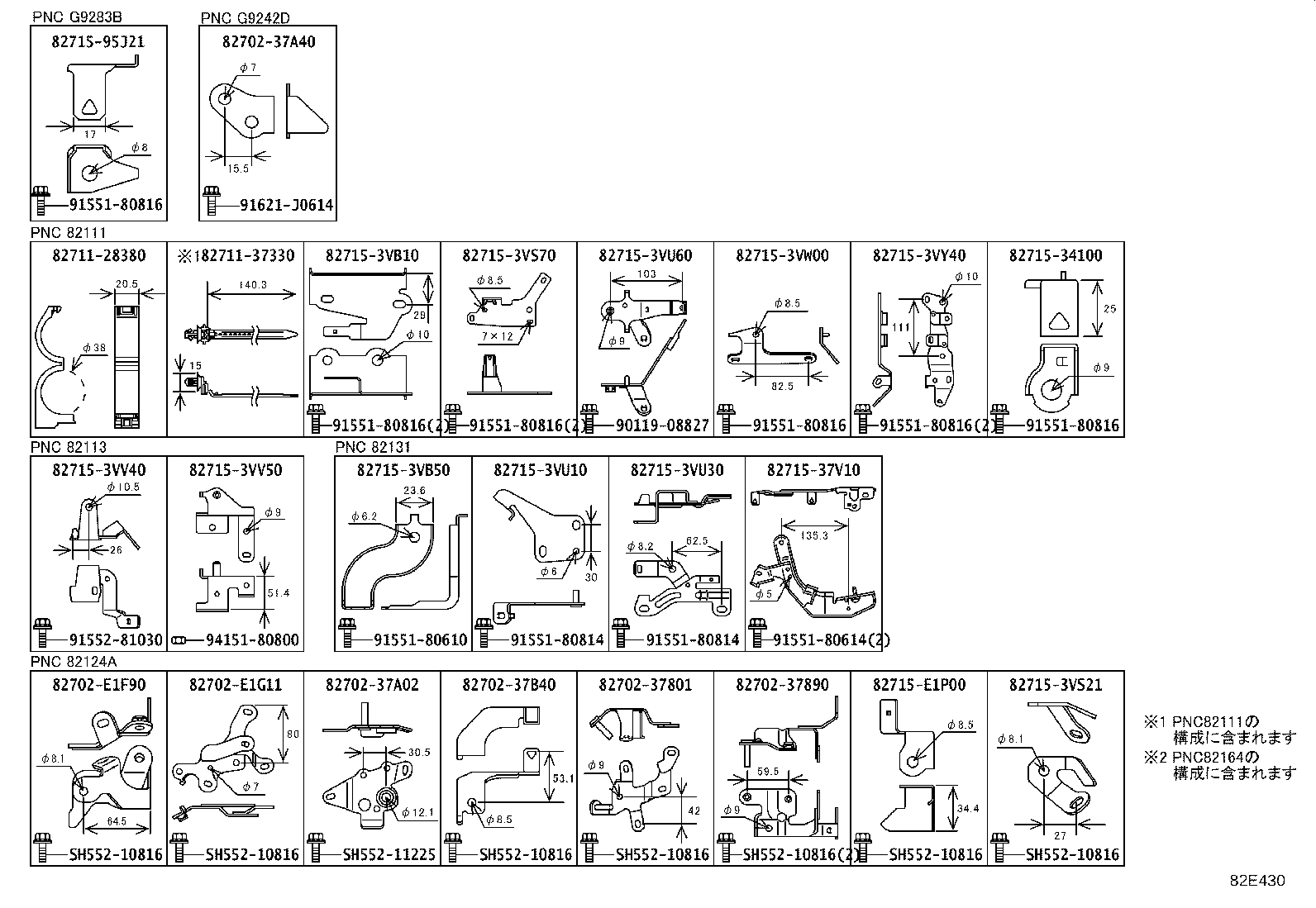

ILLUST NO. 5 OF 8(2103- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37801 | ||||
| 82702-37890 | ||||
| 82702-37A02 | ||||
| 82702-37A40 | ||||
| 82702-37B40 | ||||
| 82702-E1F90 | ||||
| 82702-E1G11 | ||||
| 82711-28380 | ||||
| 82711-37330 | ||||
| 82715-34100 | ||||
| 82715-37V10 | ||||
| 82715-3VB10 | ||||
| 82715-3VB50 | ||||
| 82715-3VS21 | ||||
| 82715-3VS70 | ||||
| 82715-3VU10 | ||||
| 82715-3VU30 | ||||
| 82715-3VU60 | ||||
| 82715-3VV40 | ||||
| 82715-3VV50 | ||||
| 82715-3VW00 | ||||
| 82715-3VY40 | ||||
| 82715-95J21 | ||||
| 82715-E1P00 | ||||
| 90119-08827 | ||||
| 91551-80610 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91552-81030 | ||||
| 91621-J0614 | ||||
| 94151-80800 | ||||
| SH552-10816 | ||||
| SH552-11225 | ||||

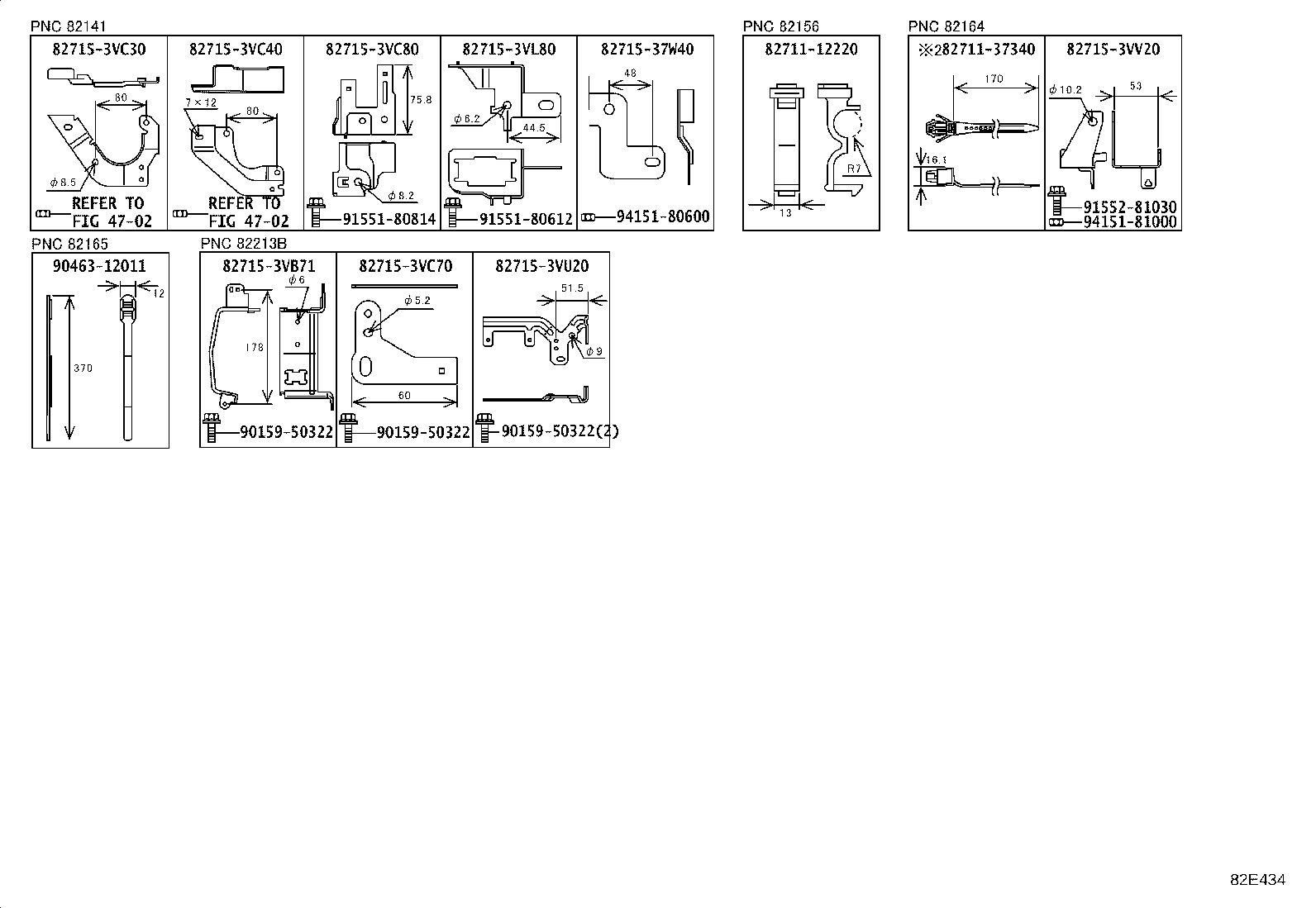

ILLUST NO. 6 OF 8(2103- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12220 | ||||
| 82711-37340 | ||||
| 82715-37W40 | ||||
| 82715-3VB71 | ||||
| 82715-3VC30 | ||||
| 82715-3VC40 | ||||
| 82715-3VC70 | ||||
| 82715-3VC80 | ||||
| 82715-3VL80 | ||||
| 82715-3VU20 | ||||
| 82715-3VV20 | ||||
| 90159-50322 | ||||
| 90463-12011 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91552-81030 | ||||
| 94151-80600 | ||||
| 94151-81000 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 2 OF 8(2103- )

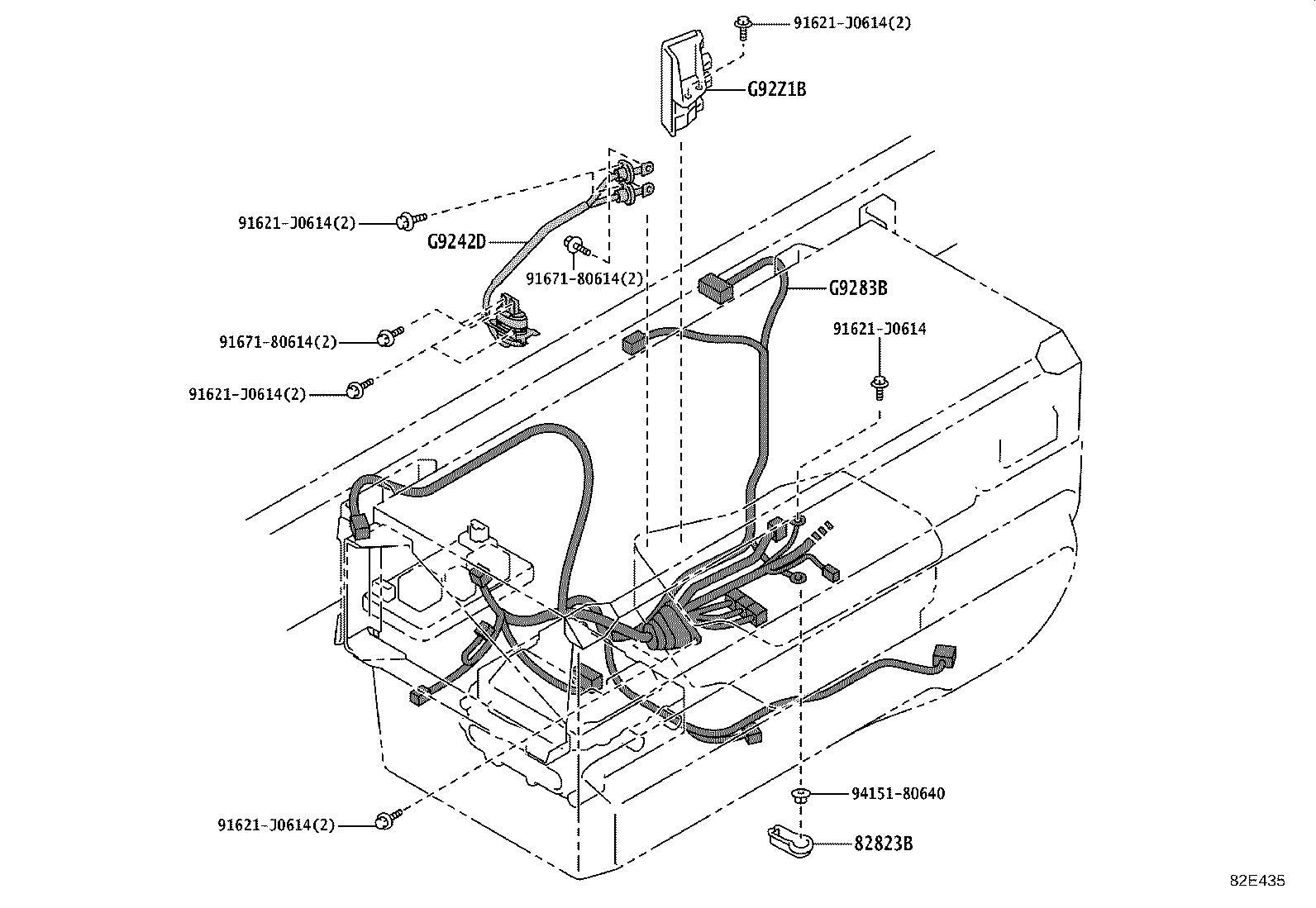

ﾊｲﾌﾞﾘｯﾄﾞ ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-22050 |
XKC605,XKU605,645,655 |
1 | ||
| G9242D - CABLE, MAIN BATTERY, NO.1 | ||||
| G9242-37040 |
XKC605,XKU605,645,655 |
1 | ||
| G9283B - WIRE, HYBRID BATTERY | ||||
| G9283-37060 |
XKC605,XKU605,645,655 |
1 | ||
| G92Z1B - BLOCK, HV BATTERY JUNCTION | ||||
| G92Z1-37020 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 91621-J0614 | ||||
| 91671-80614 | ||||
| 94151-80640 | ||||

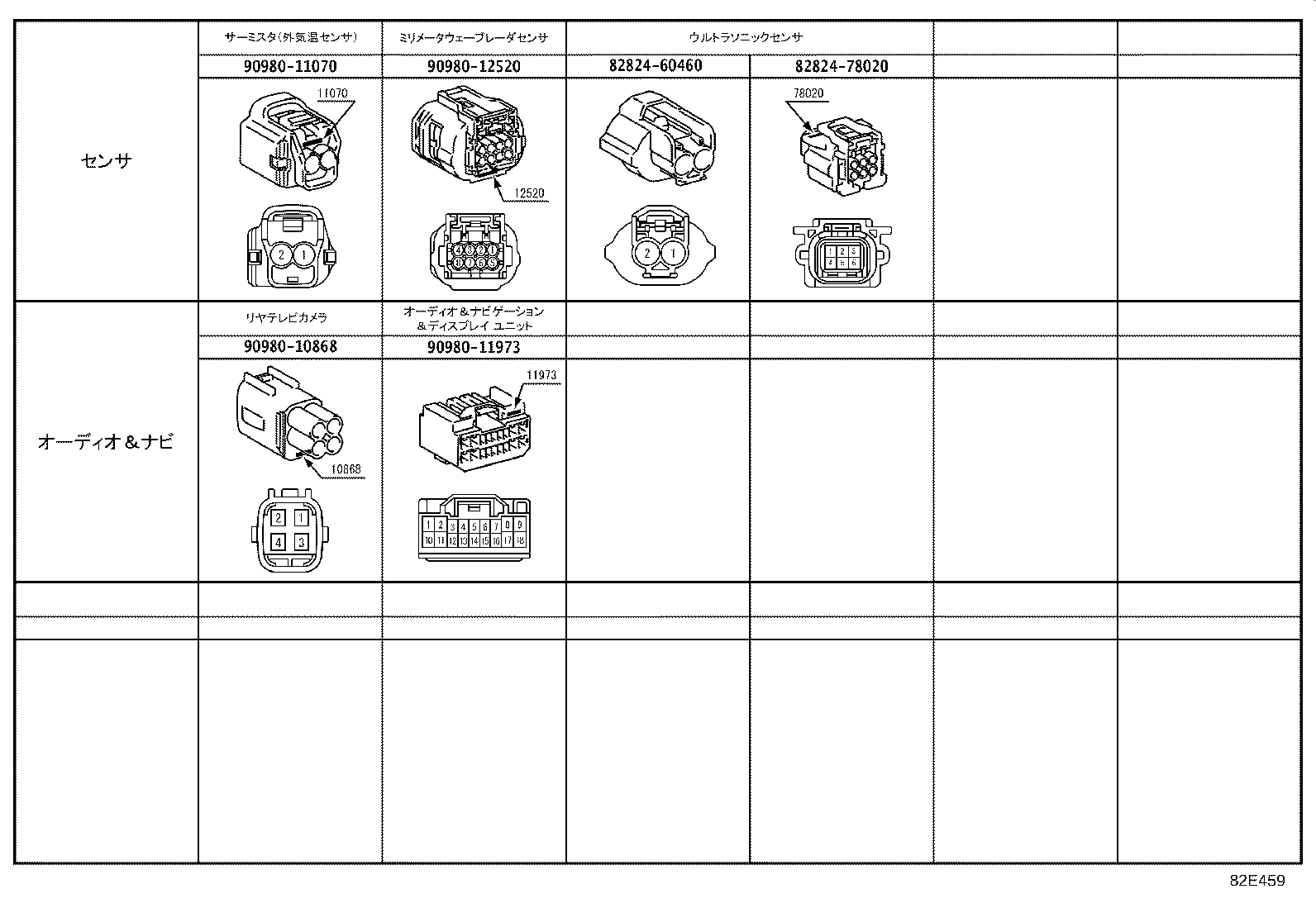

ILLUST NO. 8 OF 8(2103- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 82824-78020 | ||||
| 90980-10868 | ||||
| 90980-11070 | ||||
| 90980-11973 | ||||
| 90980-12520 | ||||

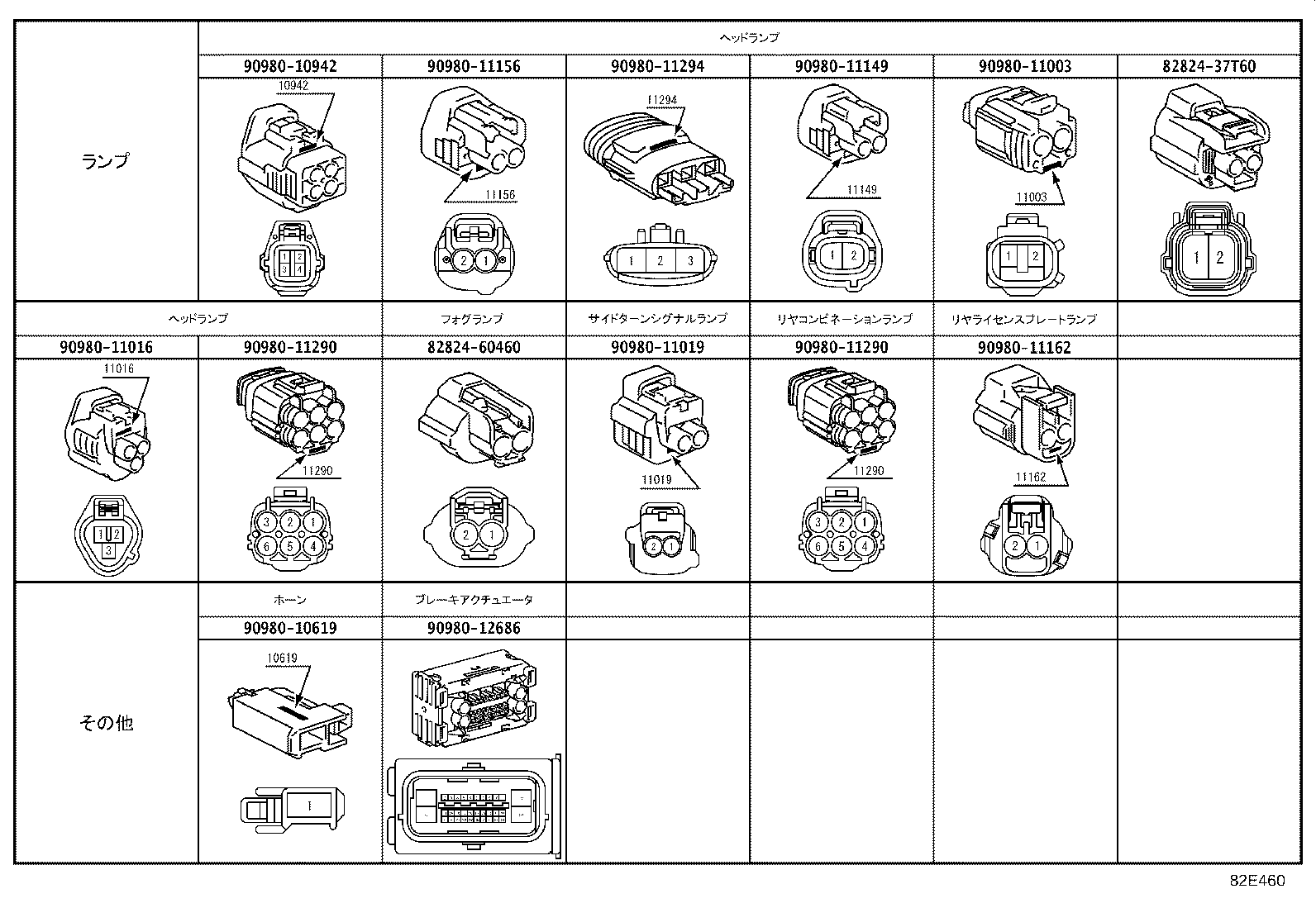

ILLUST NO. 7 OF 8(2103- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-37T60 | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10942 | ||||
| 90980-11003 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11290 | ||||
| 90980-11294 | ||||
| 90980-12686 | ||||
