XKC605-TQVMY (2021)
Toyota Dyna Hv
Production
Mar 2021
-
Sep 9999
Engine
N04C
Transmission
6F AMT
Displacement
2500cc
Power
168 HP (125 kW)
(2103- )XKC605

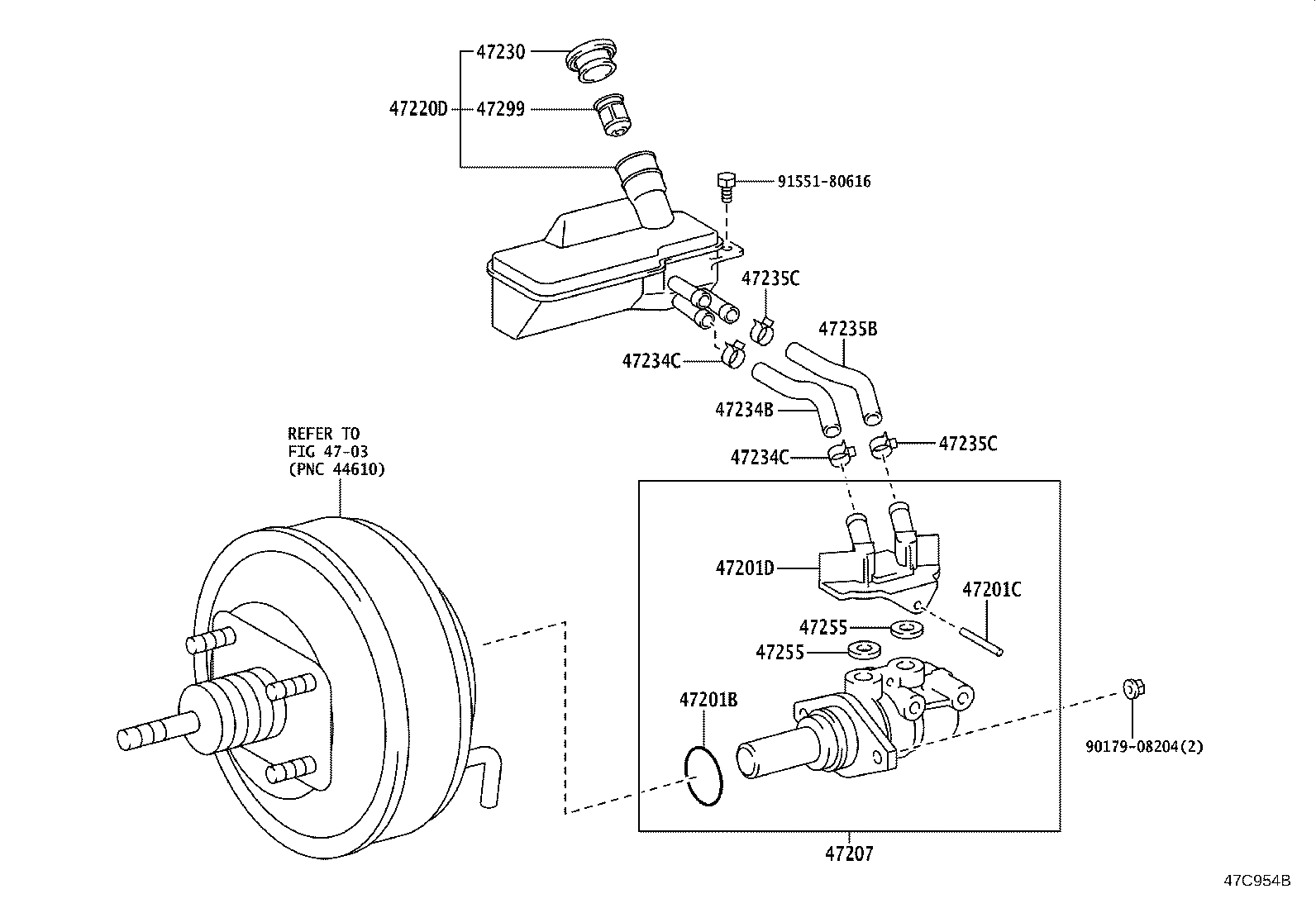

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
XKC605 |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15803 |
XKC605 |
1 | ||
| 47201D - UNION, BRAKE MASTER CYLINDER, NO.1 | ||||
| 90015-AM007 |
XKC605 |
1 | ||
| 47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK | ||||
| 47207-37151 |
XKC605 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-37160 |
XKC605,XKU605,645,655 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-37020 |
XKC605,XKU605,645,655 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-37180 |
XKC605 |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96133-41500 |
XKC605,XKU605,645,655 |
2 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96133-41500 |
XKC605,XKU605,645,655 |
2 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-37170 |
XKC605 |
1 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 96133-41500 |
XKC605,XKU605,645,655 |
2 | ||
| 47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) | ||||
| 96133-41500 |
XKC605,XKU605,645,655 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
XKC605 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
XKC605 |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-28010 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91551-80616 | ||||
| Linked diagrams | ||||
| 4703 | ||||
