XZU130A-TMMQS3 (1995)

Toyota Dyna 200/Toyoace G25

Production Oct 1995 - May 1999
Engine J05C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

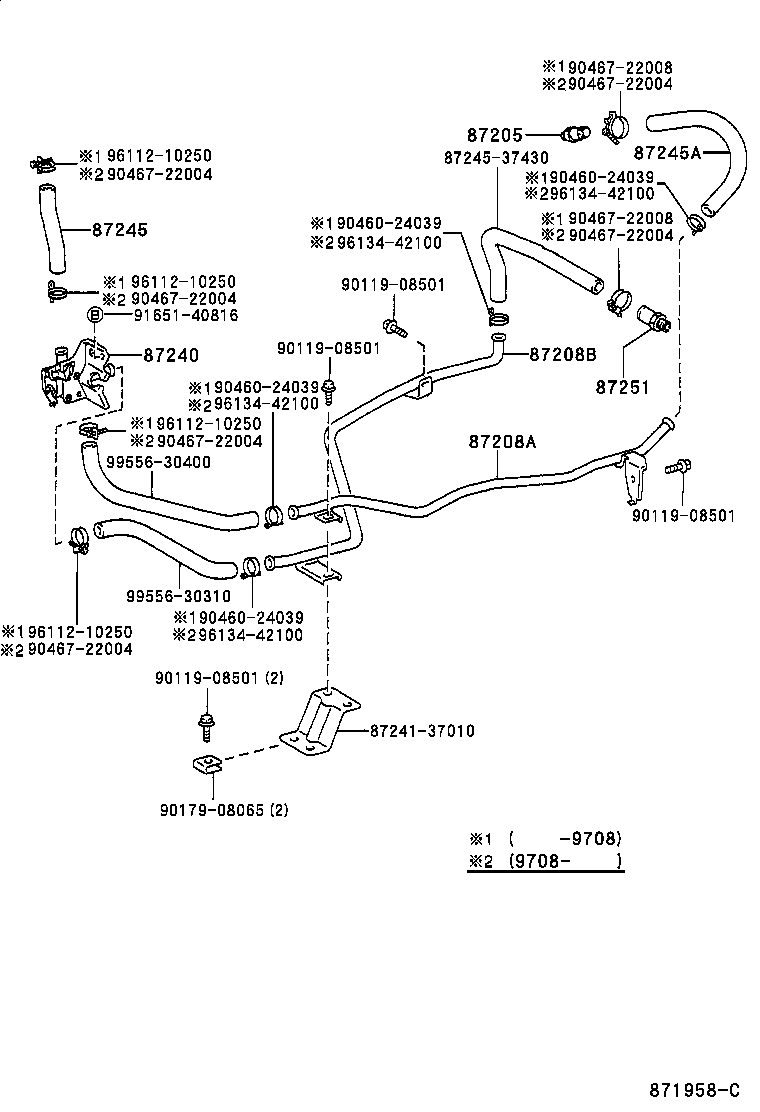

ILLUST NO. 1 OF 2(9510- )XZU130,140

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 87205 87208A 87208B 87240 8724137010 87245 8724537430 87245A 87251 9011908501 9011908501 9011908501 9011908501 9017908065 9046024039 9046024039 9046024039 9046024039 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722008 9046722008 9165140816 9611210250 9611210250 9611210250 9611210250 9613442100 9613442100 9613442100 9613442100 9955630310 9955630400
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87248-89135

XZU130,140

 1
87251-30200

BU10#,112,12#,13#,14#,202,212,222..DSL,TD

 1
87208-89151

XZU130

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-37221

XZU130,140

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-37230

XZU130,140

 1
87240 - VALVE ASSY, HEATER WATER
87240-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
87245 - HOSE, HEATER WATER, INLET
87245-37360

XZU140;BU172,XZU130..DM7,TW1

 1
99556-30100

BU297;BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..02S,03S,06S,07S

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30500

XZU130,140

*H,L=380

 1
99556-30300

BU10#,12#,13#,14#..DSL

*H,L=230

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
87248-89135

XZU130,140

 1
87251-30200

BU10#,112,120,13#,14#,202,212,222,297,RZU100..DSL,LPGB,TD

 1
87208-89151

XZU130

 1
Common parts
87241-37010
87245-37430
90119-08501
90179-08065
90460-24039
90467-22004
90467-22008
91651-40816
96112-10250
96134-42100
99556-30310
99556-30400
