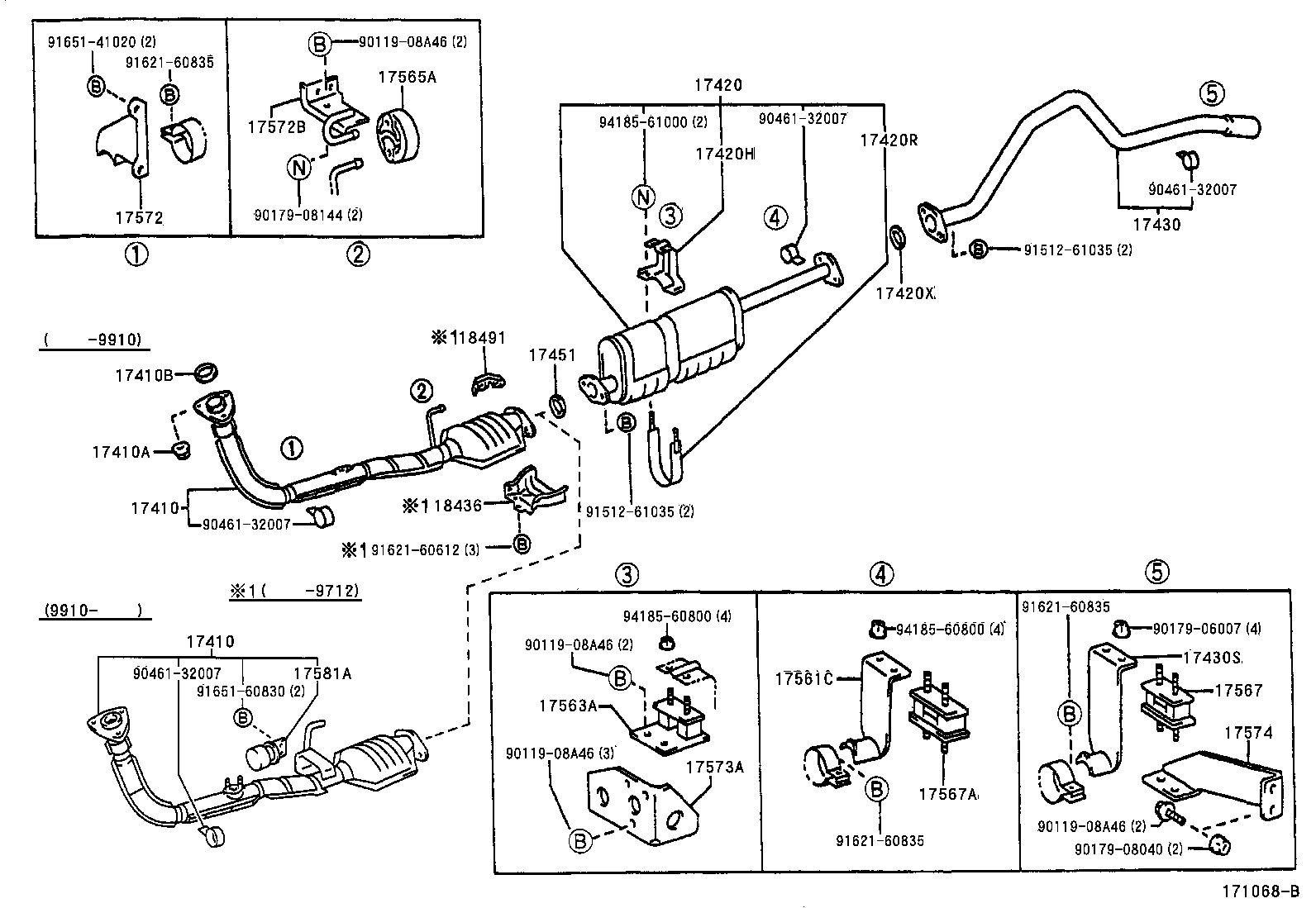

RZU140-TQMMK3 (1997)
Toyota Dyna 200/Toyoace G25
(9708- )3RZFE..RZU140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-75080 |
3RZFE..RZU100,140 |
1 | ||
| 17410-75081 |
3RZFE..RZU100,140 |
1 | ||
| 17410-75280 |
3RZFE..RZU100,140 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-75080 |
3RZFE..RZU100,140 |
1 | ||
| 17410-75081 |
3RZFE..RZU100,140 |
1 | ||
| 17410-75280 |
3RZFE..RZU100,140 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140 |
3 | ||
| 90179-10070 |
15BFP,3RZ#..RZU100,140 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06066 |
3RZ#..RZU100,140 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-75160 |
3RZFE..RZU140 |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-58030 |
15BF,15BFP,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,RZU100 |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-58020 |
15BF,15BFP,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,RZU100 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06042 |
15BFP..BU142;J05C,15BFT,15BF,3B,3RZFE..BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU140,XZU130 |
1 | ||
| 90917-06042 |
3RZFE..RZU140 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58480 |
J05C,15BF,3B,3RZFE..BU140,142,182,RZU140,XZU140..T3,T4,TW4 |
1 | ||
| 17430-58480 |
3RZFE..RZU140 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-47010 |
15BFP,3RZ#..RZU100,140 |
1 | ||
| 17561-47010 |
J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06045 |
3RZ#..RZU100,140 |
1 | ||
| 17561C - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-58050 |
3RZFE..RZU140 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17563-58010 |
15BF,15BFP,3B,3RZ#..BU10#,12#,13#,162,172,RZU100,140 |
1 | ||
| 17563-58010 |
15BFP,3RZ#..RZU100,140 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63030 |
3RZ#..RZU100,140 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-17010 |
15BFP,3RZ#..RZU100,140 |
1 | ||
| 17567-17010 |
J05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-58010 |
3RZFE..RZU140 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-75030 |
3RZ#..RZU100,140 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-58040 |
15BF..BU107,13#,142,147,182;15BF,15BFP,3B,3RZ#..BU100,102,105,140,142,145,RZU100..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT |
1 | ||
| 17573-58050 |
3RZFE..RZU140;15BF,3RZFE..BU102,RZU100..DM2,DM5 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-58040 |
15BFP..RZU100..T3;3RZ#..RZU100,140..DM5,T2,T4,TW4 |
1 | ||
| 17574-58040 |
15BF..BU132..TL4;3RZFE..RZU100..DM5,T2,T4,TW4;15BF..BU142,147,212..ALV,T3,T4,TW1,TW4;15BF,15BFP..BU102,RZU100..T3..(275T,30T);15BFP,15BFT,3B..BU140,142,145,212..T3,T4;15BF,3B,3RZFP..BU100,102,RZU100..(DM2,T2,T4,TW4)..20T;J05C,15BFT,15BF,3B,3RZFE..BU105,107,182,202,222,RZU140,XZU140 |
1 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-17010 |
3RZ#..RZU100,140 |
1 | ||
| 18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1 | ||||
| 18436-74020 |
15BFP,3RZ#..BU142,RZU100,140 |
1 | ||
| 18491 - FLANGE, THERMOSENSOR INLET | ||||
| 18491-16010 |
15BFP,3RZ#..BU142,RZU100,140 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06007 | ||||
| 90179-08040 | ||||
| 90179-08144 | ||||
| 90461-32007 | ||||
| 91512-61035 | ||||
| 91621-60612 | ||||
| 91621-60835 | ||||
| 91651-41020 | ||||
| 91651-60830 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
