RZU100H-TKMQC3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 2000
Engine 3RZFP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )TR..LPG..IV3

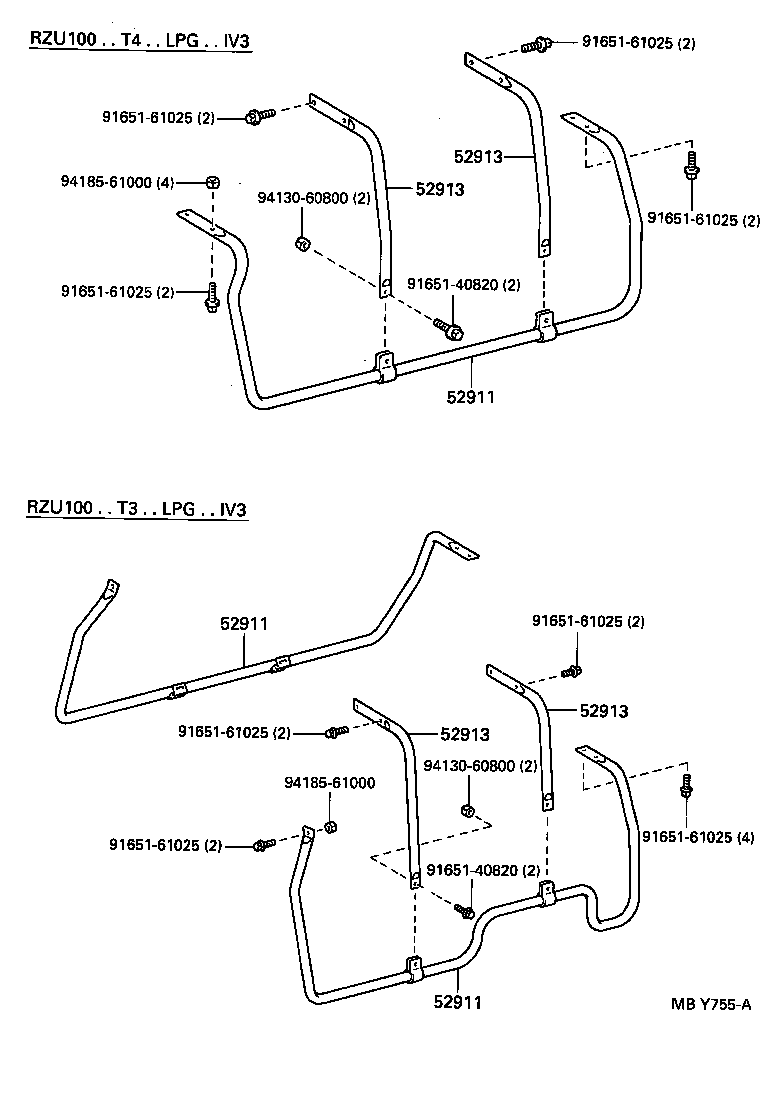

Click highlighted areas on diagram

ﾗﾂﾄｸﾘﾌ ﾊﾟﾜ-ｹﾞ-ﾄ

diagram 52911 52911 52911 52913 52913 52913 52913 9165140820 9165140820 9165161025 9165161025 9165161025 9165161025 9165161025 9165161025 9165161025 9165161025 9413060800 9413060800 9418561000 9418561000
Part # Description Qty Price
52911 - BAR, SIDE BUMPER
52091-37300

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ(5 ｶｲﾎｳ ﾀｲﾌﾟ),右側

 1
52092-37310

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ(5 ｶｲﾎｳ ﾀｲﾌﾟ),左側

 1
52911 - BAR, SIDE BUMPER
52091-37300

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ(5 ｶｲﾎｳ ﾀｲﾌﾟ),右側

 1
52092-37310

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ(5 ｶｲﾎｳ ﾀｲﾌﾟ),左側

 1
52911 - BAR, SIDE BUMPER
52091-37300

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ(5 ｶｲﾎｳ ﾀｲﾌﾟ),右側

 1
52092-37310

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ(5 ｶｲﾎｳ ﾀｲﾌﾟ),左側

 1
52913 - STAY, SIDE BUMPER, NO.1
52913-37390

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ ｼﾔ,右側

 1
52914-37280

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ ｼﾔ,左側

 1
52913 - STAY, SIDE BUMPER, NO.1
52913-37390

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ ｼﾔ,右側

 1
52914-37280

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ ｼﾔ,左側

 1
52913 - STAY, SIDE BUMPER, NO.1
52913-37390

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ ｼﾔ,右側

 1
52914-37280

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ ｼﾔ,左側

 1
52913 - STAY, SIDE BUMPER, NO.1
52913-37390

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ ｼﾔ,右側

 1
52914-37280

RZU100..30T..LPG..IV3

TECS=ﾗﾂﾄ ｸﾘﾌ ｼﾔ,左側

 1
Common parts
91651-40820
91651-61025
94130-60800
94185-61000
