RZU100H-TKMQC3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 2000
Engine 3RZFP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3RZFP

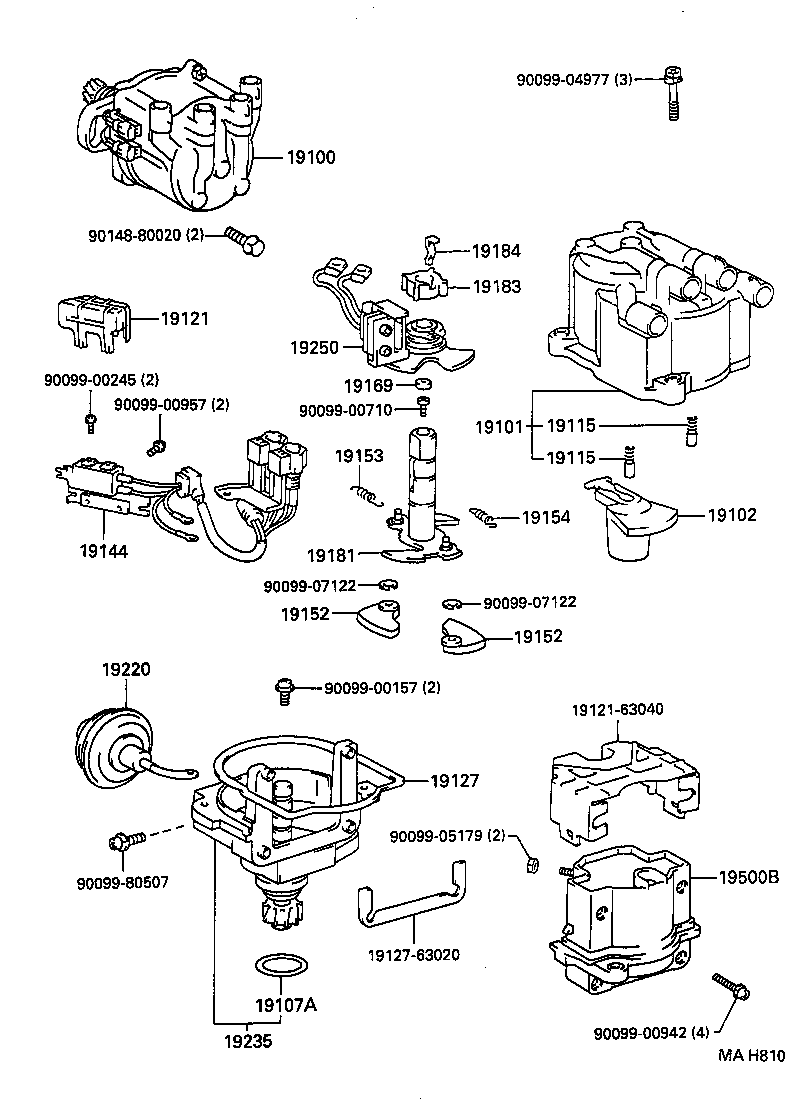

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19115 19121 1912163040 19127 1912763020 19144 19152 19152 19153 19154 19169 19181 19183 19184 19220 19235 19250 19500B 9009900157 9009900245 9009900710 9009900942 9009900957 9009904977 9009905179 9009907122 9009907122 9009980507 9014880020
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19050-75051

3RZFP..RZU100

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-75030

3RZFP..RZU100

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-73021

3RZFP..RZU100

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14127

3RZ#..RZU100,140

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

3RZ#..RZU100,140

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

3RZ#..RZU100,140

 2
19121 - COVER, DUST PROOF
19121-15090

3RZFP..RZU100

 1
19127 - PACKING, DUST PROOF
19127-75010

3RZFP..RZU100

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-75080

3RZFP..RZU100

 1
19152 - WEIGHT, GOVERNOR
19152-15160

3RZFP..RZU100

 2
19152 - WEIGHT, GOVERNOR
19152-15160

3RZFP..RZU100

 2
19153 - SPRING, GOVERNOR, A
19153-75070

3RZFP..RZU100

 1
19154 - SPRING, GOVERNOR, B
19154-75070

3RZFP..RZU100

 1
19169 - STOPPER, CAM GREASE
19169-63011

3RZFP..RZU100

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-75070

3RZFP..RZU100

 1
19183 - ROTOR, SIGNAL
19183-63010

3RZFP..RZU100

 1
19184 - SPRING, ROTOR SET
19184-63010

3RZFP..RZU100

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-75050

3RZFP..RZU100

 1
19235 - HOUSING, DISTRIBUTOR
19235-75070

3RZFP..RZU100

 1
19250 - GENERATOR ASSY, SIGNAL
19251-16100

3RZFP..RZU100

 1
19500B - COIL ASSY, IGNITION
90919-02135

3RZFP..RZU100

 1
Common parts
19121-63040
19127-63020
90099-00157
90099-00245
90099-00710
90099-00942
90099-00957
90099-04977
90099-05179
90099-07122
90099-80507
90148-80020
