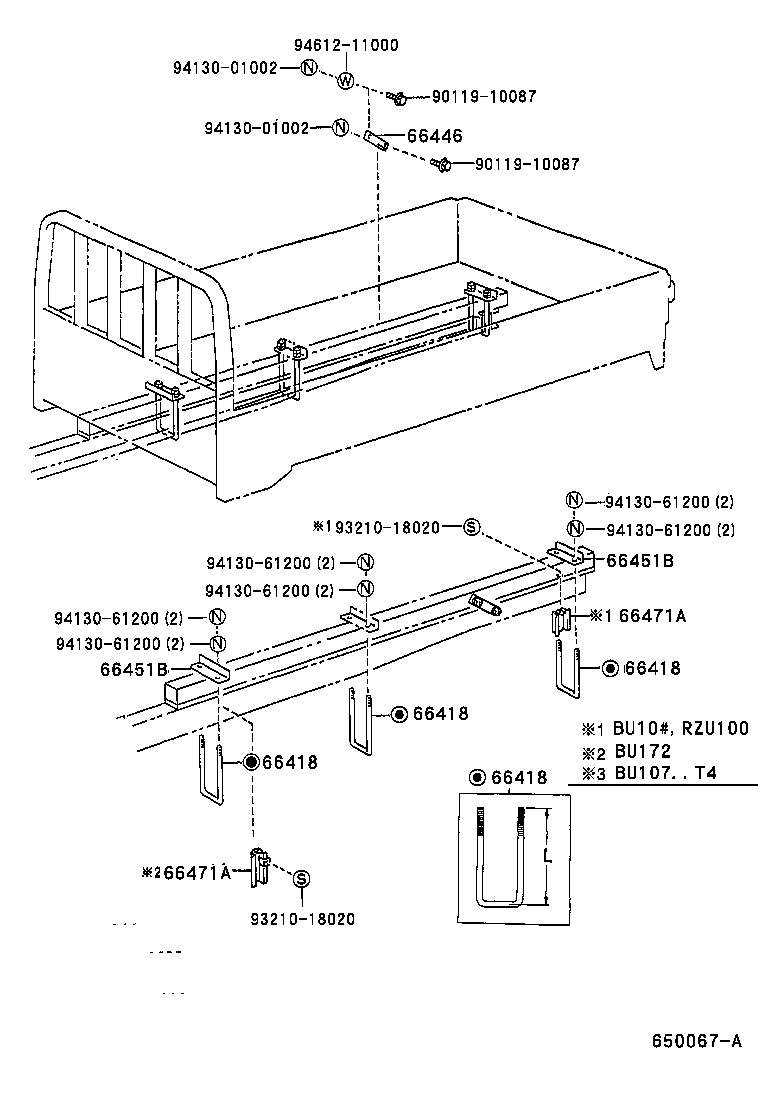

RZU100H-TKMQC (1995)
Toyota Dyna 200/Toyoace G25
(9505- )BU147..T4,TW4 ; (9505- )RZU100..T3,T4,TW4..EFI,LPG ; (9505- )BU10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418 - BOLT, MOUNTING | ||||
| 90117-12021 |
BU102..T5..CBU;BU10#..T3..20T..CBU;RZU100..(T3,TW1)..CBU L=346 |
2 | ||
| 90117-12021 |
BU102..T5..CBU;BU10#..T3..20T..CBU;RZU100..(T3,TW1)..CBU L=346 |
2 | ||
| 66461-92820 |
RZU100..T3..CBU;BU100,102,172,212..(T3,T5,TW1)..(02S,03S,06S)..CBU L=363 |
2 | ||
| 66461-92820 |
RZU100..T3..CBU;BU100,102,172,212..(T3,T5,TW1)..(02S,03S,06S)..CBU L=363 |
2 | ||
| 66463-92707 |
BU102..T5..CBU;BU142,172,RZU100..T3..CBU;BU10#,140,145,147,212..(T3,TW1)..20T..CBU L=336 |
2 | ||
| 66463-92707 |
BU102..T5..CBU;BU142,172,RZU100..T3..CBU;BU10#,140,145,147,212..(T3,TW1)..20T..CBU L=336 |
2 | ||
| 66462-92820 |
BU102..T5..CBU;BU100,102..T3..20T..CBU;BU132,162..03S..CBU..5F;BU172,RZU100..(T3,TW1)..CBU L=317 |
2 | ||
| 66462-92820 |
BU102..T5..CBU;BU100,102..T3..20T..CBU;BU132,162..03S..CBU..5F;BU172,RZU100..(T3,TW1)..CBU L=317 |
2 | ||
| 66462-92820 |
RZU100..30T..LPG..CBU TECS=ﾗﾂﾄ ｸﾘﾌ,L=315 |
2 | ||
| 66462-92820 |
RZU100..30T..LPG..CBU TECS=ﾗﾂﾄ ｸﾘﾌ,L=315 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90117-12021 |
BU102..T5..CBU;BU10#..T3..20T..CBU;RZU100..(T3,TW1)..CBU L=346 |
2 | ||
| 90117-12021 |
BU102..T5..CBU;BU10#..T3..20T..CBU;RZU100..(T3,TW1)..CBU L=346 |
2 | ||
| 66461-92820 |
RZU100..T3..CBU;BU100,102,172,212..(T3,T5,TW1)..(02S,03S,06S)..CBU L=363 |
2 | ||
| 66461-92820 |
RZU100..T3..CBU;BU100,102,172,212..(T3,T5,TW1)..(02S,03S,06S)..CBU L=363 |
2 | ||
| 66463-92707 |
BU102..T5..CBU;BU142,172,RZU100..T3..CBU;BU10#,140,145,147,212..(T3,TW1)..20T..CBU L=336 |
2 | ||
| 66463-92707 |
BU102..T5..CBU;BU142,172,RZU100..T3..CBU;BU10#,140,145,147,212..(T3,TW1)..20T..CBU L=336 |
2 | ||
| 66462-92820 |
BU102..T5..CBU;BU100,102..T3..20T..CBU;BU132,162..03S..CBU..5F;BU172,RZU100..(T3,TW1)..CBU L=317 |
2 | ||
| 66462-92820 |
BU102..T5..CBU;BU100,102..T3..20T..CBU;BU132,162..03S..CBU..5F;BU172,RZU100..(T3,TW1)..CBU L=317 |
2 | ||
| 66462-92820 |
RZU100..30T..LPG..CBU TECS=ﾗﾂﾄ ｸﾘﾌ,L=315 |
2 | ||
| 66462-92820 |
RZU100..30T..LPG..CBU TECS=ﾗﾂﾄ ｸﾘﾌ,L=315 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90117-12021 |
BU102..T5..CBU;BU10#..T3..20T..CBU;RZU100..(T3,TW1)..CBU L=346 |
2 | ||
| 90117-12021 |
BU102..T5..CBU;BU10#..T3..20T..CBU;RZU100..(T3,TW1)..CBU L=346 |
2 | ||
| 66461-92820 |
RZU100..T3..CBU;BU100,102,172,212..(T3,T5,TW1)..(02S,03S,06S)..CBU L=363 |
2 | ||
| 66461-92820 |
RZU100..T3..CBU;BU100,102,172,212..(T3,T5,TW1)..(02S,03S,06S)..CBU L=363 |
2 | ||
| 66463-92707 |
BU102..T5..CBU;BU142,172,RZU100..T3..CBU;BU10#,140,145,147,212..(T3,TW1)..20T..CBU L=336 |
2 | ||
| 66463-92707 |
BU102..T5..CBU;BU142,172,RZU100..T3..CBU;BU10#,140,145,147,212..(T3,TW1)..20T..CBU L=336 |
2 | ||
| 66462-92820 |
BU102..T5..CBU;BU100,102..T3..20T..CBU;BU132,162..03S..CBU..5F;BU172,RZU100..(T3,TW1)..CBU L=317 |
2 | ||
| 66462-92820 |
BU102..T5..CBU;BU100,102..T3..20T..CBU;BU132,162..03S..CBU..5F;BU172,RZU100..(T3,TW1)..CBU L=317 |
2 | ||
| 66462-92820 |
RZU100..30T..LPG..CBU TECS=ﾗﾂﾄ ｸﾘﾌ,L=315 |
2 | ||
| 66462-92820 |
RZU100..30T..LPG..CBU TECS=ﾗﾂﾄ ｸﾘﾌ,L=315 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90117-12021 |
BU102..T5..CBU;BU10#..T3..20T..CBU;RZU100..(T3,TW1)..CBU L=346 |
2 | ||
| 90117-12021 |
BU102..T5..CBU;BU10#..T3..20T..CBU;RZU100..(T3,TW1)..CBU L=346 |
2 | ||
| 66461-92820 |
RZU100..T3..CBU;BU100,102,172,212..(T3,T5,TW1)..(02S,03S,06S)..CBU L=363 |
2 | ||
| 66461-92820 |
RZU100..T3..CBU;BU100,102,172,212..(T3,T5,TW1)..(02S,03S,06S)..CBU L=363 |
2 | ||
| 66463-92707 |
BU102..T5..CBU;BU142,172,RZU100..T3..CBU;BU10#,140,145,147,212..(T3,TW1)..20T..CBU L=336 |
2 | ||
| 66463-92707 |
BU102..T5..CBU;BU142,172,RZU100..T3..CBU;BU10#,140,145,147,212..(T3,TW1)..20T..CBU L=336 |
2 | ||
| 66462-92820 |
BU102..T5..CBU;BU100,102..T3..20T..CBU;BU132,162..03S..CBU..5F;BU172,RZU100..(T3,TW1)..CBU L=317 |
2 | ||
| 66462-92820 |
BU102..T5..CBU;BU100,102..T3..20T..CBU;BU132,162..03S..CBU..5F;BU172,RZU100..(T3,TW1)..CBU L=317 |
2 | ||
| 66462-92820 |
RZU100..30T..LPG..CBU TECS=ﾗﾂﾄ ｸﾘﾌ,L=315 |
2 | ||
| 66462-92820 |
RZU100..30T..LPG..CBU TECS=ﾗﾂﾄ ｸﾘﾌ,L=315 |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-92803 |
BU137..CBU;BU102..T5..CBU;BU100,105,107,RZU100..(T3,TW1)..WT..CBU |
2 | ||
| 66446-92803 |
BU137..CBU;BU102..T5..CBU;BU100,105,107,RZU100..(T3,TW1)..WT..CBU |
2 | ||
| 66447-92803 |
RZU100..LPG..CBU TECS=ﾗﾂﾄ ｸﾘﾌ |
2 | ||
| 66447-92803 |
RZU100..LPG..CBU TECS=ﾗﾂﾄ ｸﾘﾌ |
2 | ||
| 66451B - PLATE, U BOLT | ||||
| 66466-92580 |
BU102,105,107..T4..CBU;RZU100..(T3,T4,TW4)..CBU;BU147,172..(02S,06S)..CBU;BU100,102,202,212..(T3,T4,TW1,TW4)..20T..CBU |
4 | ||
| 66466-92580 |
BU102,105,107..T4..CBU;RZU100..(T3,T4,TW4)..CBU;BU147,172..(02S,06S)..CBU;BU100,102,202,212..(T3,T4,TW1,TW4)..20T..CBU |
4 | ||
| 66466-92580 |
BU102..ST..CBU;BU102..(T4,T5)..CBU;BU142,147..06S..CBU;BU212..(T3,T4,TW1,TW4)..CBU;BU100,107,172,202,RZU100..(T3,T4)..CBU |
4 | ||
| 66466-92580 |
BU102..ST..CBU;BU102..(T4,T5)..CBU;BU142,147..06S..CBU;BU212..(T3,T4,TW1,TW4)..CBU;BU100,107,172,202,RZU100..(T3,T4)..CBU |
4 | ||
| 66466-92580 |
BU102,105,107..T4..CBU;RZU100..(T3,T4,TW4)..CBU;BU147,172..(02S,06S)..CBU;BU100,102,137,202,212..(T3,T4,TW1,TW4)..20T..CBU |
4 | ||
| 66466-92580 |
BU102,105,107..T4..CBU;RZU100..(T3,T4,TW4)..CBU;BU147,172..(02S,06S)..CBU;BU100,102,137,202,212..(T3,T4,TW1,TW4)..20T..CBU |
4 | ||
| 66451B - PLATE, U BOLT | ||||
| 66466-92580 |
BU102,105,107..T4..CBU;RZU100..(T3,T4,TW4)..CBU;BU147,172..(02S,06S)..CBU;BU100,102,202,212..(T3,T4,TW1,TW4)..20T..CBU |
4 | ||
| 66466-92580 |
BU102,105,107..T4..CBU;RZU100..(T3,T4,TW4)..CBU;BU147,172..(02S,06S)..CBU;BU100,102,202,212..(T3,T4,TW1,TW4)..20T..CBU |
4 | ||
| 66466-92580 |
BU102..ST..CBU;BU102..(T4,T5)..CBU;BU142,147..06S..CBU;BU212..(T3,T4,TW1,TW4)..CBU;BU100,107,172,202,RZU100..(T3,T4)..CBU |
4 | ||
| 66466-92580 |
BU102..ST..CBU;BU102..(T4,T5)..CBU;BU142,147..06S..CBU;BU212..(T3,T4,TW1,TW4)..CBU;BU100,107,172,202,RZU100..(T3,T4)..CBU |
4 | ||
| 66466-92580 |
BU102,105,107..T4..CBU;RZU100..(T3,T4,TW4)..CBU;BU147,172..(02S,06S)..CBU;BU100,102,137,202,212..(T3,T4,TW1,TW4)..20T..CBU |
4 | ||
| 66466-92580 |
BU102,105,107..T4..CBU;RZU100..(T3,T4,TW4)..CBU;BU147,172..(02S,06S)..CBU;BU100,102,137,202,212..(T3,T4,TW1,TW4)..20T..CBU |
4 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-92701 |
BU10#,RZU100..(T3,T4,T5,TW1)..CBU |
2 | ||
| 66471-92701 |
BU10#,RZU100..(T3,T4,T5,TW1)..CBU |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-92701 |
BU10#,RZU100..(T3,T4,T5,TW1)..CBU |
2 | ||
| 66471-92701 |
BU10#,RZU100..(T3,T4,T5,TW1)..CBU |
2 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 93210-18020 | ||||
| 94130-01002 | ||||
| 94130-61200 | ||||
| 94612-11000 | ||||
