RZU100H-TKMQC (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 2000
Engine 3RZFP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

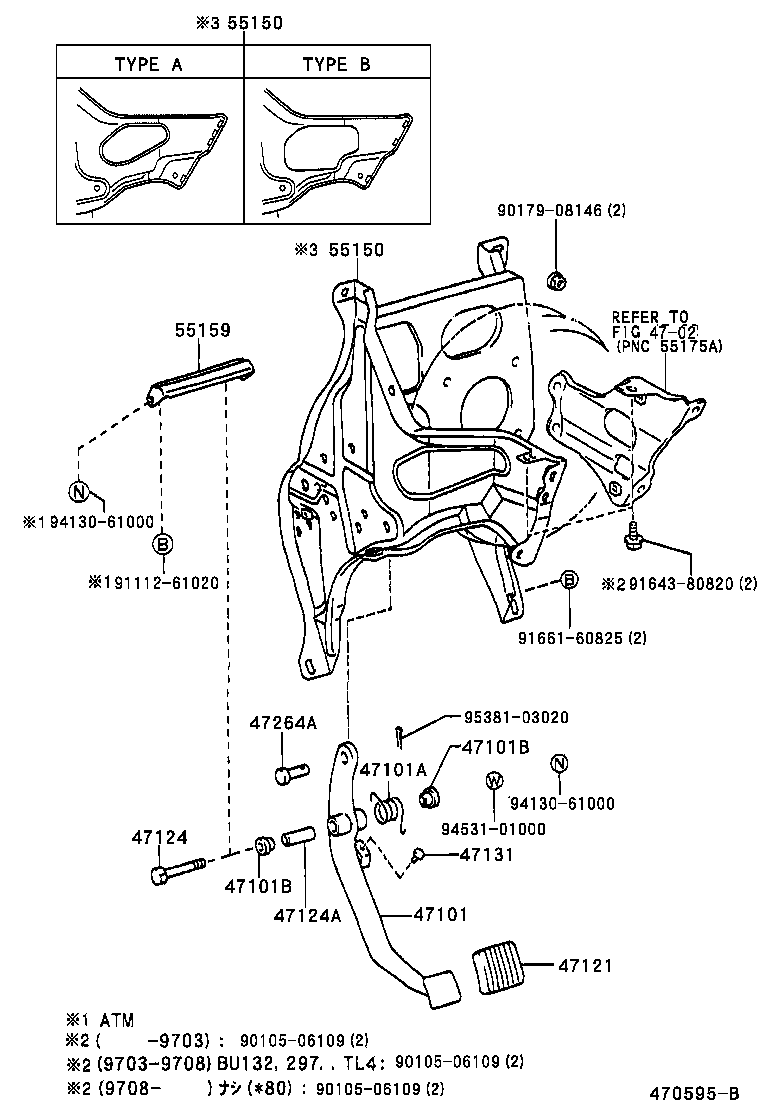

Click highlighted areas on diagram

diagram 4702 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55150 55150 55159 9010506109 9010506109 9010506109 9017908146 9111261020 9164380820 9166160825 9413061000 9413061000 9453101000 9538103020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-37040

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35324

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
47121 - PAD, BRAKE PEDAL
31321-14020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
47124 - SHAFT, BRAKE PEDAL
91121-51070

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
47264A - PIN(FOR PUSH ROD)
90240-10015

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
55150 - BRACKET ASSY, PEDAL
55150-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55150-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55150-37030

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,RZU100,XZU130

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55150-37030

BU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(*80)

 1
55150-37020

BU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55150 - BRACKET ASSY, PEDAL
55150-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55150-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55150-37030

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,RZU100,XZU130

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55150-37030

BU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(*80)

 1
55150-37020

BU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55159 - STAY, PEDAL BRACKET
55159-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
Common parts
90105-06109
90179-08146
91112-61020
91643-80820
91661-60825
94130-61000
94531-01000
95381-03020
Linked diagrams
4702
