RZU100H-TKMQC (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 2000
Engine 3RZFP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3RZFP

Click highlighted areas on diagram

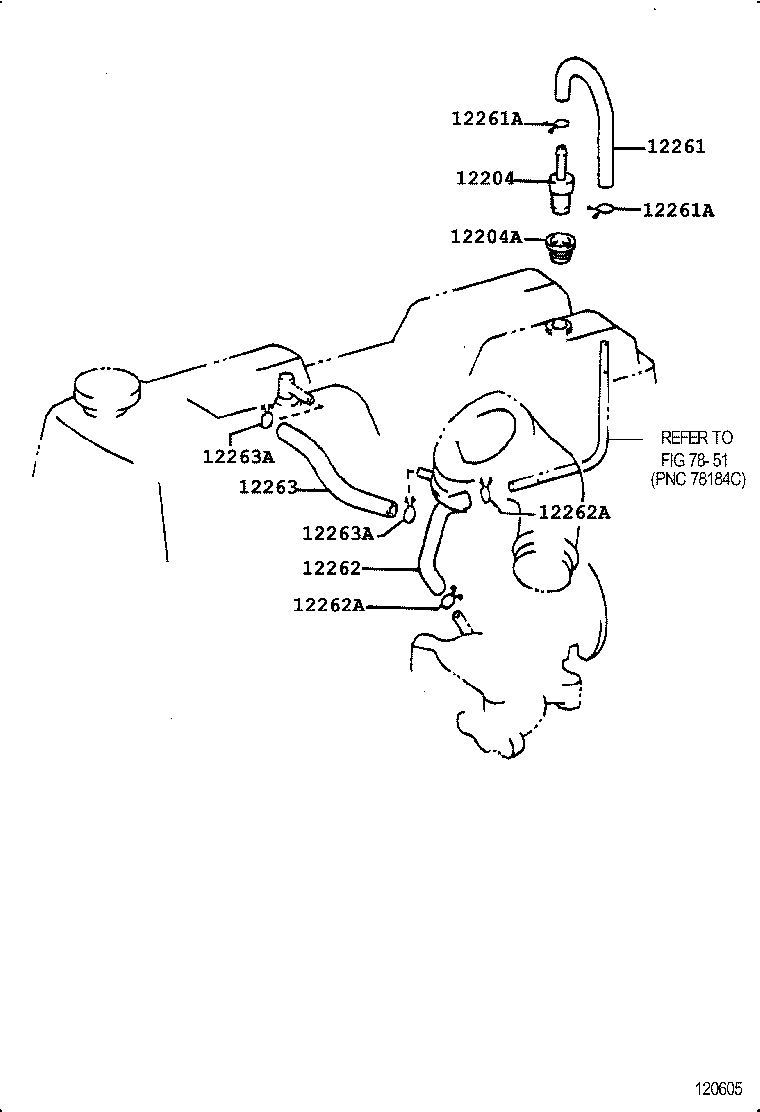

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A 7851
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-75010

3RZ#..RZU100,140

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

15BFP,3RZ#..RZU100,140

 1
12261 - HOSE, VENTILATION
12261-75050

3RZFP..RZU100

 1
12261-75051

3RZFP..RZU100

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

15BFP,3RZ#..RZU100,140

 2
90467-14001

15BFP,3RZFP..RZU100

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

15BFP,3RZ#..RZU100,140

 2
90467-14001

15BFP,3RZFP..RZU100

 2
12262 - HOSE, VENTILATION, NO.2
12262-75060

3RZFP..RZU100

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

3RZFP..RZU100

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

3RZFP..RZU100

 2
12263 - HOSE, VENTILATION, NO.3
12263-75030

3RZFP..RZU100

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-14001

3RZFP..RZU100

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-14001

3RZFP..RZU100

 2
Linked diagrams
7851
