RZU100A-TYMMK3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 2000
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S

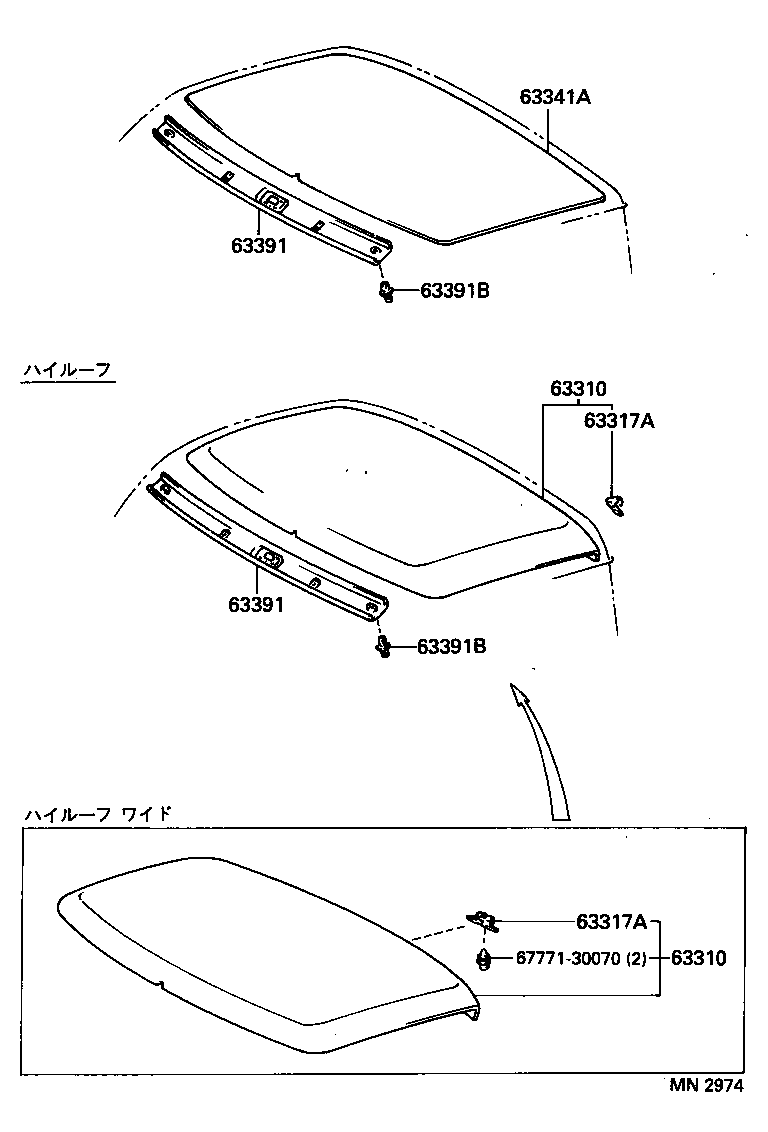

Click highlighted areas on diagram

diagram 63310 63310 63317A 63317A 63341A 63391 63391 63391B 63391B 6777130070
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-25010B0

BU107..T3..IV3;BU105..03S..IV3;RZU100..LPG,LPGB;RZU100..DM6..EFI;BU100,102,XZU130..DM6,DM7;BU102,112,XZU140..275T,30T;BU13#,14#,172,182,RZU140..02S,03S

LT. GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-25010B0

BU107..T3..IV3;BU105..03S..IV3;RZU100..LPG,LPGB;RZU100..DM6..EFI;BU100,102,XZU130..DM6,DM7;BU102,112,XZU140..275T,30T;BU13#,14#,172,182,RZU140..02S,03S

LT. GRAY,TRIM1#

 1
63317A - RETAINER, ROOF HEADLINING
63317-25010

BU102..275T,30T;BU10#,RZU100,XZU130..DM6,DM7;BU132,14#,172,182,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB)

 3
63317-25010

BU107..T3..IV3;BU105..03S..IV3;RZU100..LPG,LPGB;BU102..(DM6,T2,T4)..20T;BU102,112,XZU140..275T,30T;BU13#,14#,172,182,RZU140..02S,03S;BU100,RZU100,XZU130..(DM6,DM7)..(DSL,EFI)

 3
63317A - RETAINER, ROOF HEADLINING
63317-25010

BU102..275T,30T;BU10#,RZU100,XZU130..DM6,DM7;BU132,14#,172,182,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB)

 3
63317-25010

BU107..T3..IV3;BU105..03S..IV3;RZU100..LPG,LPGB;BU102..(DM6,T2,T4)..20T;BU102,112,XZU140..275T,30T;BU13#,14#,172,182,RZU140..02S,03S;BU100,RZU100,XZU130..(DM6,DM7)..(DSL,EFI)

 3
63341A - SILENCER, ROOF, NO.1
63341-95409B0

BU102..T5..IV3;BU102..ST..CBU;RZU100..DM6..LPG;BU102..03S..(20T,275T)..IV3;BU14#,172,182..(02S,03S)..IV3;BU102..(DM2,DM3,DM5,T2,T4,T5)..CBU;BU100,112,132,162,RZU100..(02S,03S)..(DSL,EFI)

LT. GRAY,TRIM1#

 1
63341-95409B0

BU102..ST..CBU;BU102..T3..LPGB;BU142..03S..IV3;BU102..T3..IV3..4FC;RZU100..20T..LPG..IV3;BU102..(DM2,DM3,DM5,T5)..CBU;BU102,112..(DM7,T4,T5)..30T..IV3;BU102,140,145,147..03S..(20T,275T)..IV3;BU100,105,107,112,137,162..(02S,03S)..20T;BU132,RZU100..(DM5,DM6,T2,T3,T4)..(DSL,EFI,LPGB)

LT. GRAY,TRIM1#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-25010B0

BU102,14#..IV3;BU102..ST..CBU;BU112..30T..IV3;RZU100..20T..LPG..IV3;BU102,147..(DM2,DM3,DM5,T5,TW4)..CBU;BU100,105,107,112,12#,137,162..175T,20T;BU132,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)

ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
63391-25020B0

BU112..30T;RZU100..LPG..CBU;BU102..(T2,T4)..IV3;RZU100..(DM6,T4)..IV3;RZU100..30T..LPG..IV3;BU102..(DM6,T3,T5,TW1)..WT;BU100,107,162..03S..WT..IV3;BU13#,14#,172,182,XZU130..02S,03S,05S

ｱﾘ(ﾁﾙﾄ ﾊｲﾙ-ﾌ),LT.GRAY,TRIM1#

 1
63391-25010B0

BU102..ST..CBU;BU142..06S..CBU;RZU100..DM6..LPG;BU102,14#,172,182..(02S,03S,06S)..IV3;BU100,112,12#,132,162,RZU100..DSL,EFI;BU102..(DM2,DM3,DM5,T2,T4,T5,TW4)..CBU

ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
63391-25020B0

RZU100..LPG..CBU;BU100,XZU130..DMP;BU105,107..03S..IV3;RZU100..30T..LPG..IV3;BU102,112,XZU140..275T,30T;RZU100..(DM6,T4)..(EFI,LPG)..IV3;BU13#,14#,172,182,RZU140..02S,03S,05S;BU102,162..(DM6,T2,T4,TW1)..20T..(IV3,IV4)

ｱﾘ(ﾁﾙﾄ ﾊｲﾙ-ﾌ),LT.GRAY,TRIM1#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-25010B0

BU102,14#..IV3;BU102..ST..CBU;BU112..30T..IV3;RZU100..20T..LPG..IV3;BU102,147..(DM2,DM3,DM5,T5,TW4)..CBU;BU100,105,107,112,12#,137,162..175T,20T;BU132,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)

ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
63391-25020B0

BU112..30T;RZU100..LPG..CBU;BU102..(T2,T4)..IV3;RZU100..(DM6,T4)..IV3;RZU100..30T..LPG..IV3;BU102..(DM6,T3,T5,TW1)..WT;BU100,107,162..03S..WT..IV3;BU13#,14#,172,182,XZU130..02S,03S,05S

ｱﾘ(ﾁﾙﾄ ﾊｲﾙ-ﾌ),LT.GRAY,TRIM1#

 1
63391-25010B0

BU102..ST..CBU;BU142..06S..CBU;RZU100..DM6..LPG;BU102,14#,172,182..(02S,03S,06S)..IV3;BU100,112,12#,132,162,RZU100..DSL,EFI;BU102..(DM2,DM3,DM5,T2,T4,T5,TW4)..CBU

ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
63391-25020B0

RZU100..LPG..CBU;BU100,XZU130..DMP;BU105,107..03S..IV3;RZU100..30T..LPG..IV3;BU102,112,XZU140..275T,30T;RZU100..(DM6,T4)..(EFI,LPG)..IV3;BU13#,14#,172,182,RZU140..02S,03S,05S;BU102,162..(DM6,T2,T4,TW1)..20T..(IV3,IV4)

ｱﾘ(ﾁﾙﾄ ﾊｲﾙ-ﾌ),LT.GRAY,TRIM1#

 1
63391B - CLIP, ROOF HEADLINING TRIM
90467-07043B1

BU212..06S,07S;BU10#,112,12#,13#,14#,162,172,182,297,RZU100,140,XZU130,140

LIGHT GRAY,TRIM1#

 2
63391B - CLIP, ROOF HEADLINING TRIM
90467-07043B1

BU212..06S,07S;BU10#,112,12#,13#,14#,162,172,182,297,RZU100,140,XZU130,140

LIGHT GRAY,TRIM1#

 2
Common parts
67771-30070
