RZU100A-TYMMK3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 2000
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

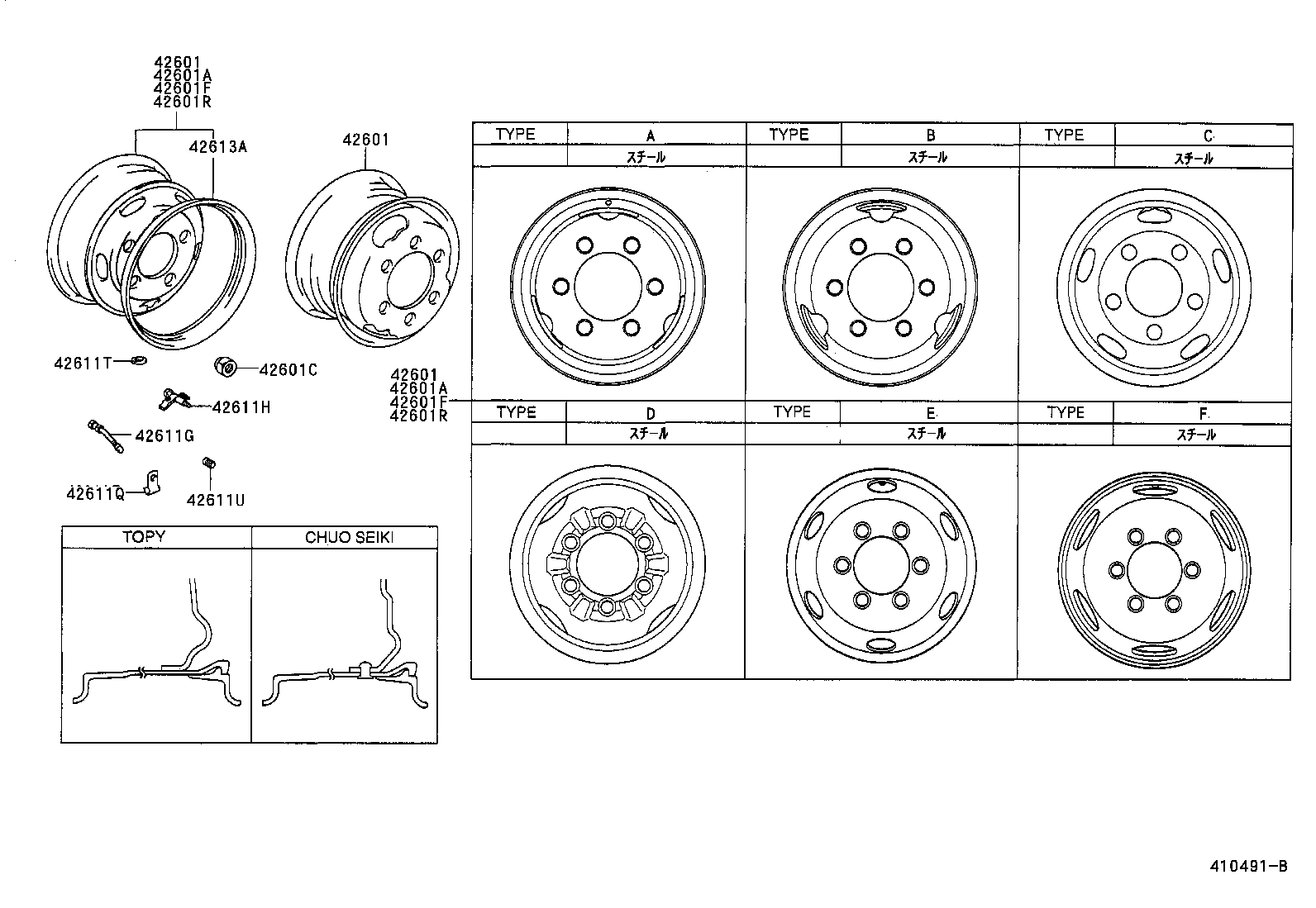

ILLUST NO. 1 OF 4(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

Click highlighted areas on diagram

diagram 42601 42601 42601 42601A 42601A 42601C 42601F 42601F 42601R 42601R 42611G 42611H 42611Q 42611T 42611U 42613A
Part # Description Qty Price
42601 - WHEEL, DISC
42610-36230

RZU100..DM6..(EFI,LPG);BU102..T4..30T..DSL..IV3..5F;BU102,132,XZU140..T3..(275T,30T);BU100,102,162,XZU130..DM6,DM7,TW1;BU142,172,182,212,222,RZU100..(ALV,DM6,T3,TW1)..(DSL,LPGB,TD)

AFJ 16X5.50F,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾀｲﾔ ｻｲｽﾞ 7.00R16)

 7
42601-36510

BU102..(T4,T5)..30T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,112,140,142..(DM6,T3)..WT..20T

5.25X17.5,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK

 7
42601 - WHEEL, DISC
42610-36230

RZU100..DM6..(EFI,LPG);BU102..T4..30T..DSL..IV3..5F;BU102,132,XZU140..T3..(275T,30T);BU100,102,162,XZU130..DM6,DM7,TW1;BU142,172,182,212,222,RZU100..(ALV,DM6,T3,TW1)..(DSL,LPGB,TD)

AFJ 16X5.50F,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾀｲﾔ ｻｲｽﾞ 7.00R16)

 7
42601-36510

BU102..(T4,T5)..30T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,112,140,142..(DM6,T3)..WT..20T

5.25X17.5,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK

 7
42601 - WHEEL, DISC
42610-36230

RZU100..DM6..(EFI,LPG);BU102..T4..30T..DSL..IV3..5F;BU102,132,XZU140..T3..(275T,30T);BU100,102,162,XZU130..DM6,DM7,TW1;BU142,172,182,212,222,RZU100..(ALV,DM6,T3,TW1)..(DSL,LPGB,TD)

AFJ 16X5.50F,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾀｲﾔ ｻｲｽﾞ 7.00R16)

 7
42601-36510

BU102..(T4,T5)..30T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,112,140,142..(DM6,T3)..WT..20T

5.25X17.5,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK

 7
42601C - NUT, HUB (FOR AXLE)
90942-01023

BU142..30T;BU102..T4..30T;BU142..T3..20T;BU202,212,222..ALV,T3,T4,TW1,TW4;BU10#,112,132,140,145,147,162,172,182,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT

ﾌﾛﾝﾄ右側

 5
90942-01093

RZU100..LPGB;RZU100..T3..20T..CBU;BU102,142,212..ALV,T3;RZU100..30T..(EFI,LPG);RZU100..DM6..(EFI,LPG)

ﾌﾛﾝﾄ右側

 5
90942-01024

BU142..30T;BU102..T4..30T;BU142..T3..20T;BU202,212,222..ALV,T3,T4,TW1,TW4;BU10#,112,132,140,145,147,162,172,182,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT

ﾌﾛﾝﾄ左側

 5
90942-01094

RZU100..LPGB;RZU100..T3..20T..CBU;BU102,142,212..ALV,T3;RZU100..30T..(EFI,LPG);RZU100..DM6..(EFI,LPG)

ﾌﾛﾝﾄ左側

 5
42633-55030

BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT

ﾘﾔ右側

 5
90942-01108

RZU100..LPGB;RZU100..(DM6,T3,TW1)..(EFI,LPG)

ﾌﾛﾝﾄ左側

 5
42634-55030

BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT

ﾘﾔ左側

 5
90942-01107

RZU100..LPGB;RZU100..(DM6,T3,TW1)..(EFI,LPG)

ﾌﾛﾝﾄ右側

 5
42611G - VALVE (FOR TUBELESS TIRE)
90942-05019

BU102..(T4,T5)..30T;BU212,222..ALV,T4,TW4;BU132,142..(T3,T4)..30T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,RZU100..(DM6,T3,T4)..(DSL,LPGB)

 7
42611Q - CLIP (FOR TUBE)
90468-10014

BU142..T3..MTM..30T;BU142,RZU100..(DM6,T3,TW1)..20T..(DSL,EFI,LPG);BU100,102,112,132,140,212,222,RZU100..(DM6,T3,TW1)..WT..(DSL,LPGB,TD)..(CBU,IV3)

 7
42611T - WASHER (FOR TUBE)
90201-11009

BU142..T3..MTM..30T;BU142,RZU100..(DM6,T3,TW1)..20T..(DSL,EFI,LPG);BU100,102,112,132,140,212,222,RZU100..(DM6,T3,TW1)..WT..(DSL,LPGB,TD)..(CBU,IV3)

 7
42613A - RING, DISC WHEEL SIDE
42613-36080

BU102..T4..30T..DSL..IV3..5F;RZU100..(DM6,T3,TW1)..20T..(EFI,LPG);BU100,102,112,132,140,142,162,172,182,212,222,RZU100,XZU130,140..(ALV,DM3,DM6,DM7,DM8,T3,TW1)..WT..(DSL,LPGB,TD)

 7

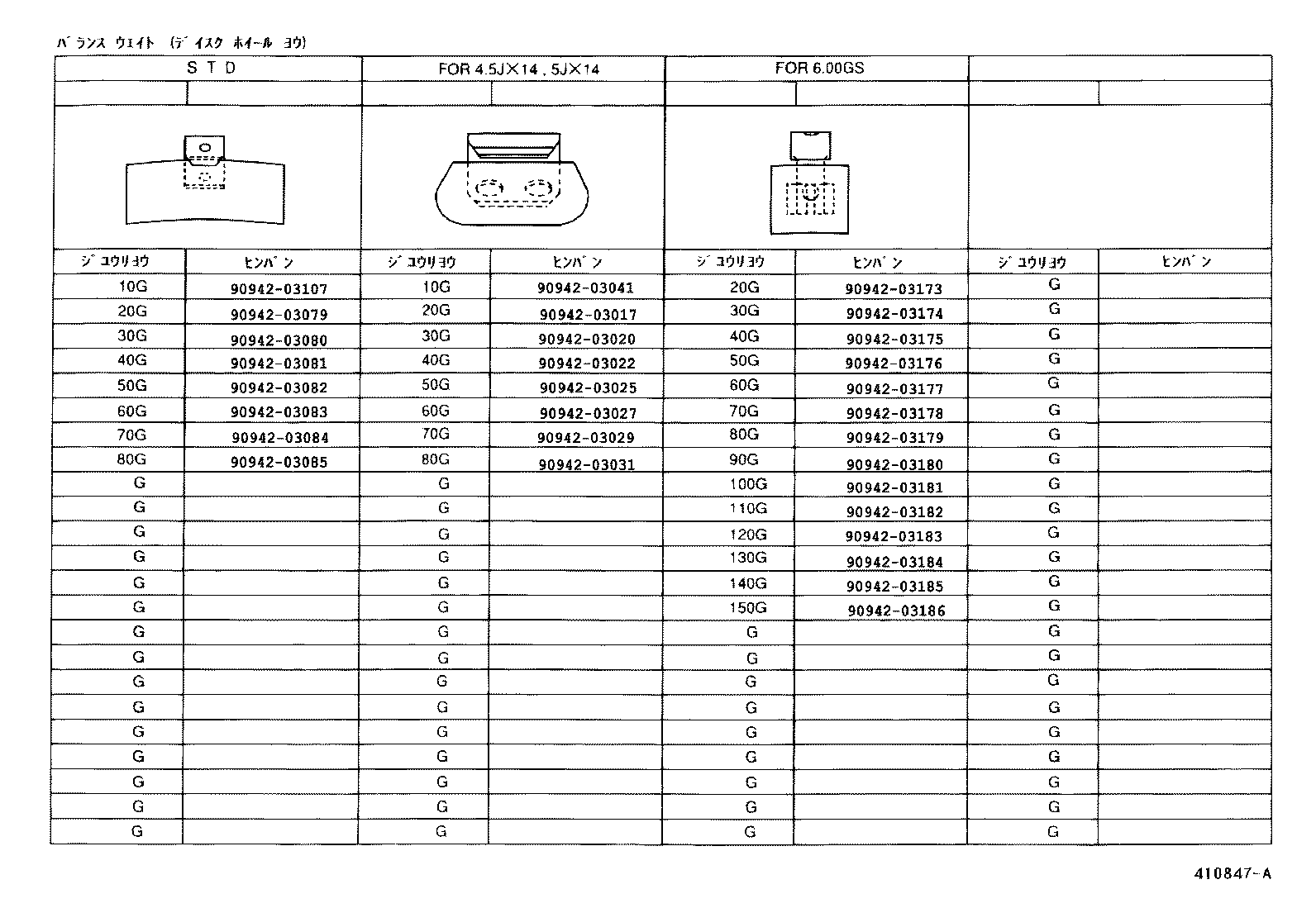

ILLUST NO. 3 OF 4(9505- )

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203029 9094203031 9094203041 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203107 9094203173 9094203174 9094203175 9094203176 9094203177 9094203178 9094203179 9094203180 9094203181 9094203182 9094203183 9094203184 9094203185 9094203186
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03107
90942-03173
90942-03174
90942-03175
90942-03176
90942-03177
90942-03178
90942-03179
90942-03180
90942-03181
90942-03182
90942-03183
90942-03184
90942-03185
90942-03186

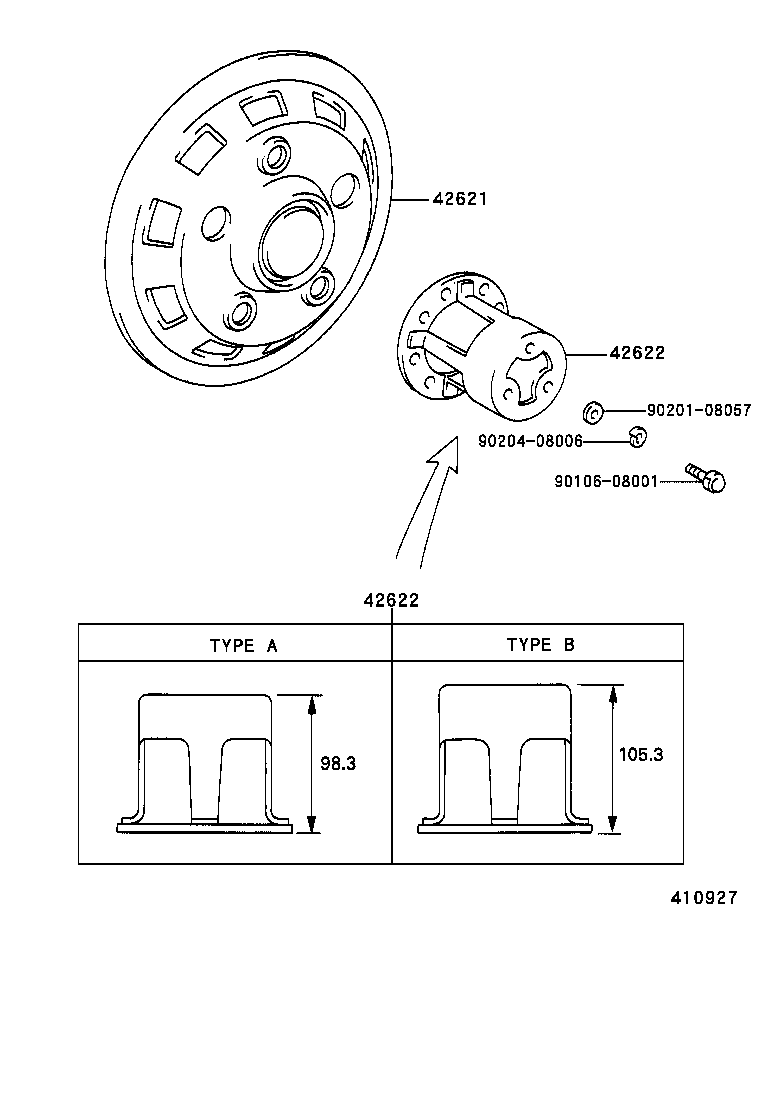

ILLUST NO. 2 OF 4(9505- )BU100,102,112,132,140,142,212,222,RZU100,XZU130,140

Click highlighted areas on diagram

diagram 42621 42622 42622 9010608001 9020108057 9020408006
Part # Description Qty Price
42621 - CAP, WHEEL
42623-36011

BU100,102,112,132,140,142,212,222,RZU100,XZU130,140..(ALV,DM6,DM7,DM8,T3,TW1)..WT

ﾘﾔ

 2
42621-36131

BU100,102,112,132,140,142,212,222,RZU100,XZU130,140..(ALV,DM6,DM7,DM8,T3,TW1)..WT

ﾌﾛﾝﾄ

 2
42622 - HOLDER, WHEEL CAP
42622-36020

RZU100..DM6..(EFI,LPG);BU100,102,XZU130..DM6,DM7,TW1;BU102,132,XZU140..T3..(275T,30T);BU142,212,222,RZU100..(ALV,DM6,T3)..(DSL,LPGB,TD)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
42622 - HOLDER, WHEEL CAP
42622-36020

RZU100..DM6..(EFI,LPG);BU100,102,XZU130..DM6,DM7,TW1;BU102,132,XZU140..T3..(275T,30T);BU142,212,222,RZU100..(ALV,DM6,T3)..(DSL,LPGB,TD)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
Common parts
90106-08001
90201-08057
90204-08006

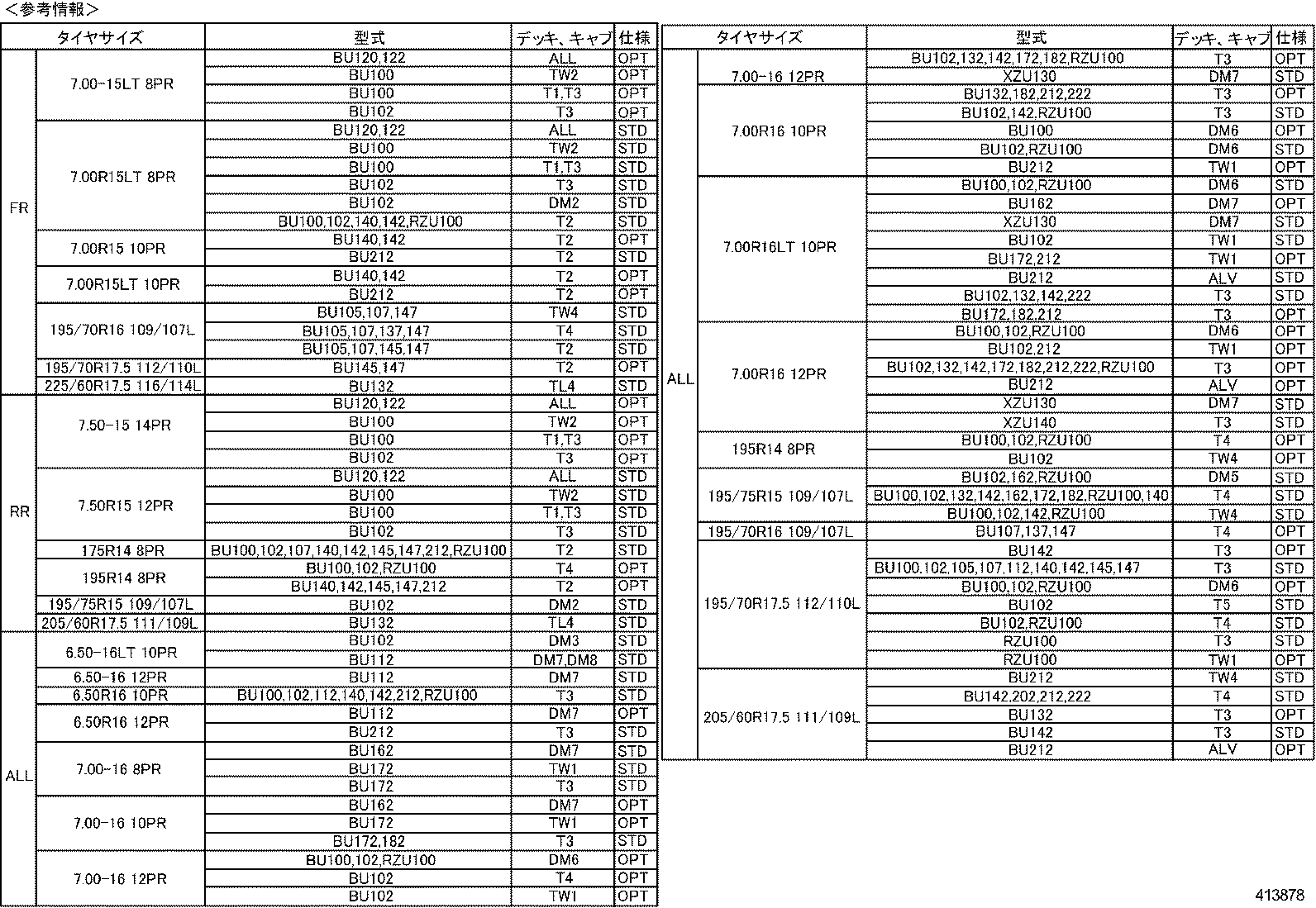

ILLUST NO. 4 OF 4(9505- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
