RZU100A-TYMMK3 (1995)
Toyota Dyna 200/Toyoace G25

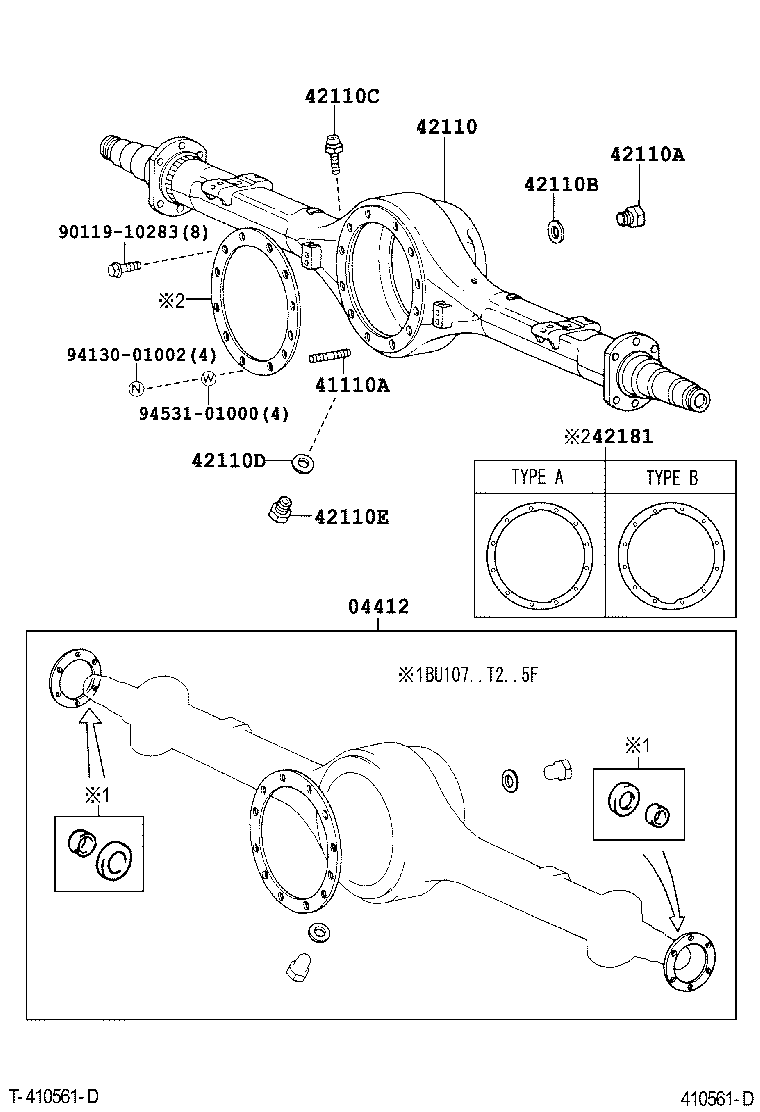

ILLUST NO. 2 OF 2(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-36080 |
BU142..30T;BU222..TD..5F;BU172,182..T3,TW1;BU102..T4..30T..IV3;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU102..T4..30T..CBU..4FC;BU212..(T4,TW4)..(4FC,5F);BU142,147,212..(T3,TW1)..20T;BU102,132,XZU140..(T3,T5,TL4)..(275T,30T);BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 PNC42181=TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 04412-36090 |
BU137,147;BU105..T2;BU142..30T;XZU140..CBU;BU107..T2..4FC;BU142..T3..20T;BU102..T3..LPGB;RZU100..DM6..EFI;BU172,182..T3,TW1;BU212..T3,T4,TW1,TW4;BU102,132,RZU100..(275T,30T)..(DSL,EFI);BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(ABS) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10059 |
BU212..TD..5F;BU147,172,182..T3,TW1;BU222,RZU100..LPGB,TD;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ﾈｼﾞ部長さ=19&12,長さ=57 |
2 | ||
| 90119-10283 |
BU212,222..TD;BU172,182..T3,TW1;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU102,132,142,212,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ﾈｼﾞ部長さ=26.8,長さ=36.7 |
8 | ||
| 90119-10283 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ﾈｼﾞ部長さ=26.8,長さ=36.7 |
8 | ||
| 90116-10060 |
BU212..TD..5F;BU147,172,182..T3,TW1;BU222,RZU100..LPGB,TD;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ﾈｼﾞ部長さ=19&12,長さ=46 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-3B010 |
BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU100,102,112..DM3,DM6,DM7,DM8,T5 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36070 |
BU142..30T;BU222..TD..5F;BU172,182..T3,TW1;BU222..T3..TD..6F;BU102..T4..30T..IV3;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU102..T4..30T..CBU..4FC;BU212..(T4,TW4)..(4FC,5F);BU142,147,212..(T3,TW1)..20T;BU102,132,XZU140..(T3,T5,TL4)..(275T,30T);BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||

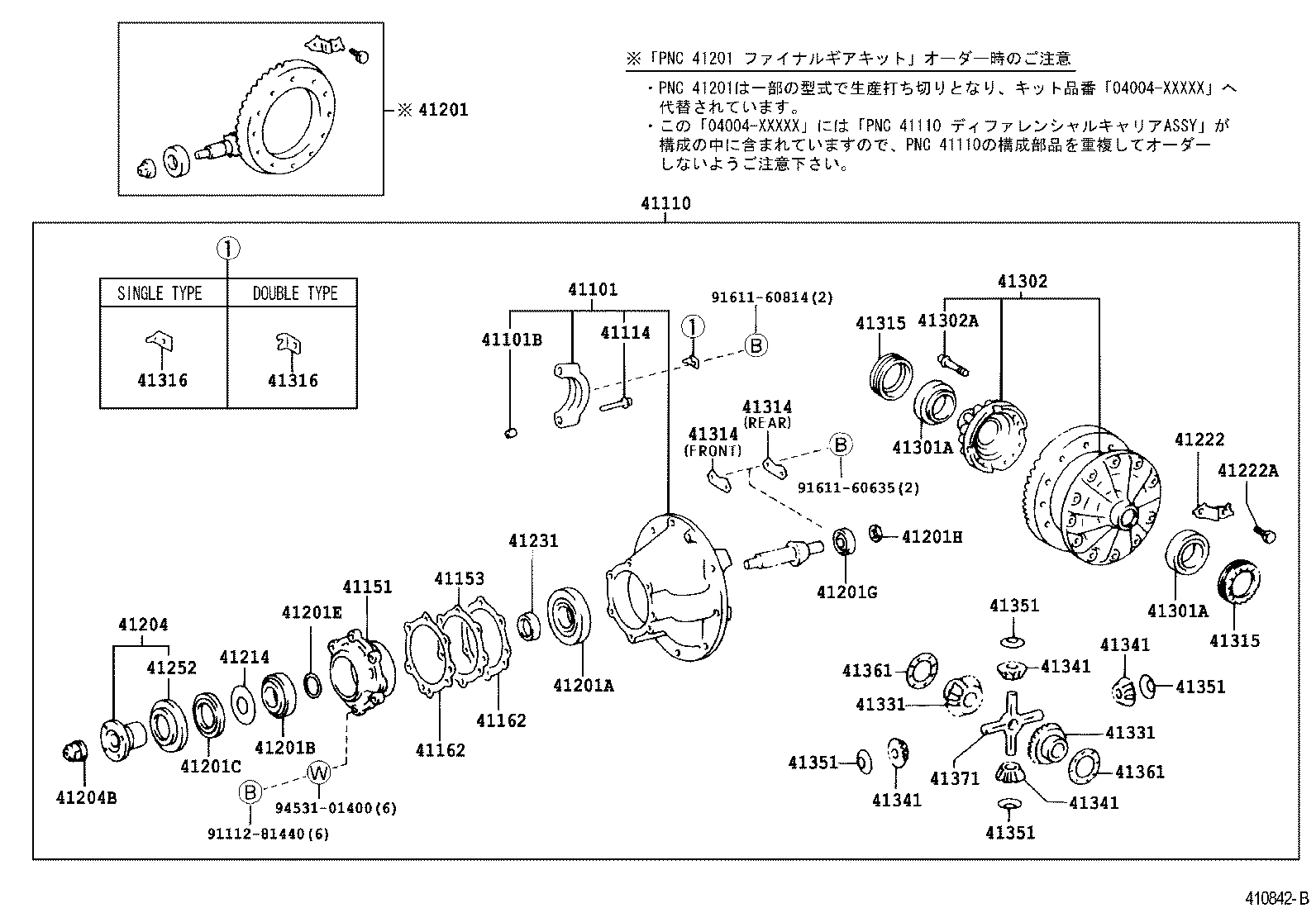

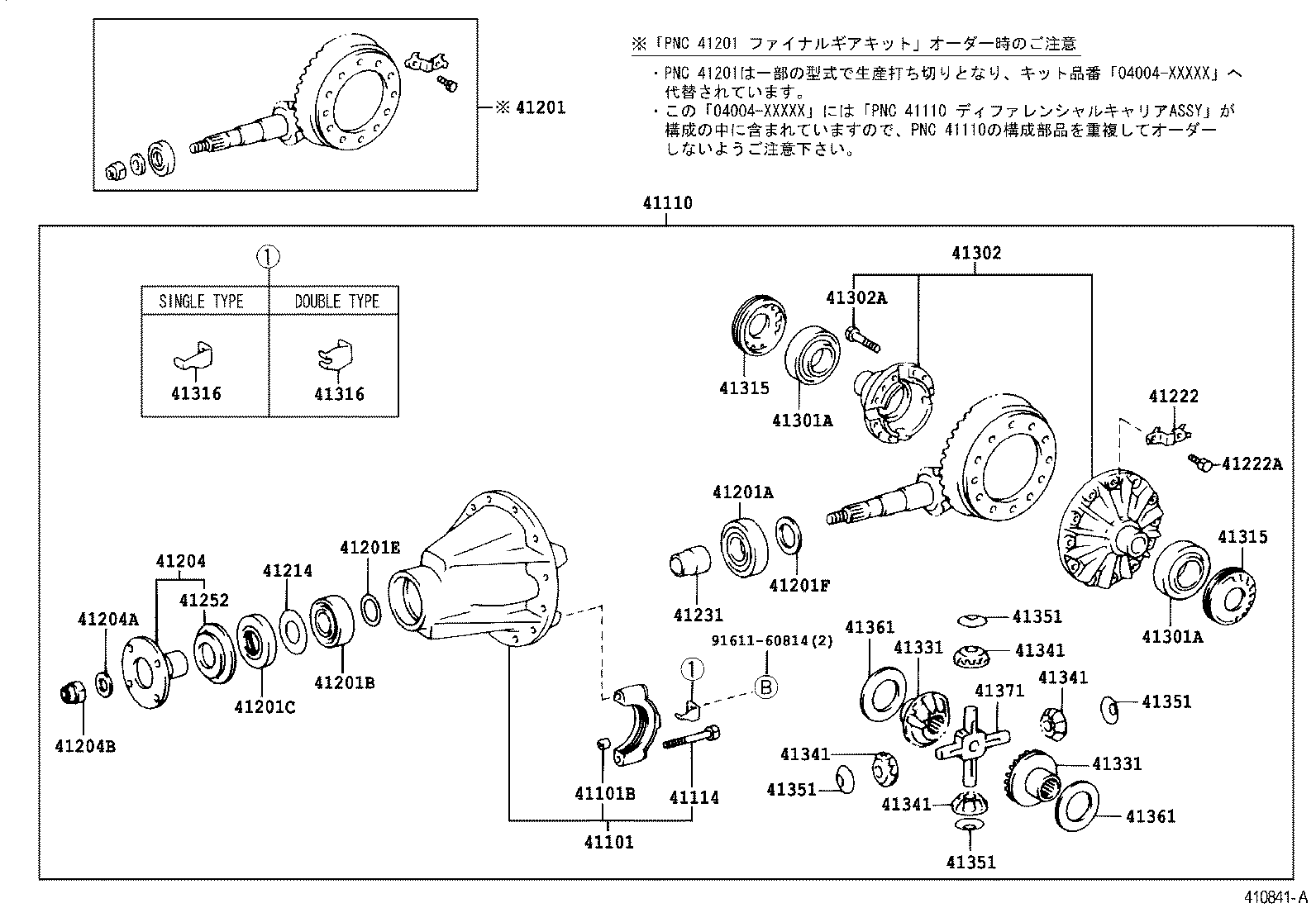

ILLUST NO. 1 OF 2(9505- )
10.5ｲﾝﾁ ﾃﾞｨﾌｧﾚﾝｼｬﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-36040 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41101-36040 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90253-22002 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 90253-22002 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-36500 |
BU112..30T..4FC;RZU100..DM6..EFI;RZU100..30T..EFI *FGR=39:6=6.500 |
1 | ||
| 41110-36501 |
RZU100..DM6..EFI;RZU100..30T..EFI *FGR=39:6=6.500 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16009 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 90105-16009 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39495 |
BU112..30T..4FC;RZU100..DM6..EFI;RZU100..30T..EFI *FGR=39:6=6.500 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-49001 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 90366-49001 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-45001 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 90366-45001 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-58010 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 90311-58002 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-45021 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.82 |
1 | ||
| 90564-45020 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.80 |
1 | ||
| 90564-45022 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.84 |
1 | ||
| 90564-45024 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.88 |
1 | ||
| 90564-45026 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.00 |
1 | ||
| 90564-45023 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.86 |
1 | ||
| 90564-45025 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.90 |
1 | ||
| 90564-45028 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.20 |
1 | ||
| 90564-45029 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.30 |
1 | ||
| 90564-45031 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.50 |
1 | ||
| 90564-45027 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.10 |
1 | ||
| 90564-45030 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.40 |
1 | ||
| 90564-45032 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.60 |
1 | ||
| 90564-45033 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.70 |
1 | ||
| 90564-45034 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.80 |
1 | ||
| 90564-45035 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.90 |
1 | ||
| 90564-45036 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=3.00 |
1 | ||
| 90564-45038 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=3.20 |
1 | ||
| 90564-45049 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.87 |
1 | ||
| 90564-45039 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=3.30 |
1 | ||
| 90564-45050 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.89 |
1 | ||
| 90564-45048 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.85 |
1 | ||
| 90564-45037 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=3.10 |
1 | ||
| 90564-45047 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.83 |
1 | ||
| 90564-45046 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.81 |
1 | ||
| 90564-45020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.80 |
1 | ||
| 90564-45021 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.82 |
1 | ||
| 90564-45022 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.84 |
1 | ||
| 90564-45024 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.88 |
1 | ||
| 90564-45026 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.00 |
1 | ||
| 90564-45028 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.20 |
1 | ||
| 90564-45027 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.10 |
1 | ||
| 90564-45031 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.50 |
1 | ||
| 90564-45032 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.60 |
1 | ||
| 90564-45030 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.40 |
1 | ||
| 90564-45023 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.86 |
1 | ||
| 90564-45025 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.90 |
1 | ||
| 90564-45036 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=3.00 |
1 | ||
| 90564-45033 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.70 |
1 | ||
| 90564-45034 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.80 |
1 | ||
| 90564-45029 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.30 |
1 | ||
| 90564-45038 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=3.20 |
1 | ||
| 90564-45035 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.90 |
1 | ||
| 90564-45049 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.87 |
1 | ||
| 90564-45047 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.83 |
1 | ||
| 90564-45037 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=3.10 |
1 | ||
| 90564-45050 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.89 |
1 | ||
| 90564-45048 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.85 |
1 | ||
| 90564-45039 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=3.30 |
1 | ||
| 90564-45046 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.81 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90201-40551 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.05 |
1 | ||
| 90201-40552 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.10 |
1 | ||
| 90201-40558 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.40 |
1 | ||
| 90201-40556 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.30 |
1 | ||
| 90201-40557 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.35 |
1 | ||
| 90201-40553 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.15 |
1 | ||
| 90201-40560 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.50 |
1 | ||
| 90201-40559 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.45 |
1 | ||
| 90201-40555 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.25 |
1 | ||
| 90201-40554 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.20 |
1 | ||
| 90201-40561 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.55 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37020 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41204-36060 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-24001 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 90179-24001 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41214-36020 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36030 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
6 | ||
| 41222-36030 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-16015 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
12 | ||
| 90101-16015 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36050 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41231-36050 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41252-37030 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 90366-60001 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 90366-60001 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36040 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41301-36040 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12047 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
12 | ||
| 90105-12047 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
12 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41315-36020 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41315-36020 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-36020 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41317-36020 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41316-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41317-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-36020 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41317-36020 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41316-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41317-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41331-36031 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41331-36031 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341-36011 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341-36011 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341-36011 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341-36011 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351-36010 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351-36010 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351-36010 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351-36010 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.90 |
2 | ||
| 41361-60010 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.60 |
2 | ||
| 41361-60040 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=2.05 |
2 | ||
| 41361-36030 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.6 |
2 | ||
| 41361-60020 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.75 |
2 | ||
| 41361-36010 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.4 |
2 | ||
| 41361-36020 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.5 |
2 | ||
| 41361-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.4 |
2 | ||
| 41361-36040 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.7 |
2 | ||
| 41361-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.5 |
2 | ||
| 41361-36040 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.7 |
2 | ||
| 41361-36030 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.6 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.90 |
2 | ||
| 41361-60010 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.60 |
2 | ||
| 41361-60040 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=2.05 |
2 | ||
| 41361-36030 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.6 |
2 | ||
| 41361-60020 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.75 |
2 | ||
| 41361-36010 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.4 |
2 | ||
| 41361-36020 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.5 |
2 | ||
| 41361-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.4 |
2 | ||
| 41361-36040 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.7 |
2 | ||
| 41361-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.5 |
2 | ||
| 41361-36040 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.7 |
2 | ||
| 41361-36030 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.6 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41371-36020 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(9505- )
12ｲﾝﾁ ﾃﾞｨﾌｧﾚﾝｼｬﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-36040 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41101-36040 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90253-22002 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 90253-22002 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-36500 |
BU112..30T..4FC;RZU100..DM6..EFI;RZU100..30T..EFI *FGR=39:6=6.500 |
1 | ||
| 41110-36501 |
RZU100..DM6..EFI;RZU100..30T..EFI *FGR=39:6=6.500 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16009 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 90105-16009 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 41151-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=0.15 |
1 | ||
| 41153-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=0.10 |
1 | ||
| 41153-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=0.15 |
1 | ||
| 41153-36030 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=0.25 |
1 | ||
| 41153-36040 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=0.45 |
1 | ||
| 41153-36030 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=0.25 |
1 | ||
| 41153-36040 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=0.45 |
1 | ||
| 41153-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=0.10 |
1 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41162-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
2 | ||
| 41162-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) |
2 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41162-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
2 | ||
| 41162-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) |
2 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39495 |
BU112..30T..4FC;RZU100..DM6..EFI;RZU100..30T..EFI *FGR=39:6=6.500 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-49001 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 90366-49001 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-45001 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 90366-45001 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-58010 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 90311-58002 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-45021 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.82 |
1 | ||
| 90564-45020 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.80 |
1 | ||
| 90564-45022 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.84 |
1 | ||
| 90564-45024 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.88 |
1 | ||
| 90564-45026 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.00 |
1 | ||
| 90564-45023 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.86 |
1 | ||
| 90564-45025 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.90 |
1 | ||
| 90564-45028 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.20 |
1 | ||
| 90564-45029 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.30 |
1 | ||
| 90564-45031 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.50 |
1 | ||
| 90564-45027 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.10 |
1 | ||
| 90564-45030 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.40 |
1 | ||
| 90564-45032 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.60 |
1 | ||
| 90564-45033 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.70 |
1 | ||
| 90564-45034 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.80 |
1 | ||
| 90564-45035 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=2.90 |
1 | ||
| 90564-45036 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=3.00 |
1 | ||
| 90564-45038 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=3.20 |
1 | ||
| 90564-45049 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.87 |
1 | ||
| 90564-45039 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=3.30 |
1 | ||
| 90564-45050 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.89 |
1 | ||
| 90564-45048 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.85 |
1 | ||
| 90564-45037 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=3.10 |
1 | ||
| 90564-45047 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.83 |
1 | ||
| 90564-45046 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) 厚さ=1.81 |
1 | ||
| 90564-45020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.80 |
1 | ||
| 90564-45021 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.82 |
1 | ||
| 90564-45022 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.84 |
1 | ||
| 90564-45024 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.88 |
1 | ||
| 90564-45026 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.00 |
1 | ||
| 90564-45028 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.20 |
1 | ||
| 90564-45027 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.10 |
1 | ||
| 90564-45031 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.50 |
1 | ||
| 90564-45032 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.60 |
1 | ||
| 90564-45030 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.40 |
1 | ||
| 90564-45023 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.86 |
1 | ||
| 90564-45025 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.90 |
1 | ||
| 90564-45036 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=3.00 |
1 | ||
| 90564-45033 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.70 |
1 | ||
| 90564-45034 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.80 |
1 | ||
| 90564-45029 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.30 |
1 | ||
| 90564-45038 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=3.20 |
1 | ||
| 90564-45035 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=2.90 |
1 | ||
| 90564-45049 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.87 |
1 | ||
| 90564-45047 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.83 |
1 | ||
| 90564-45037 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=3.10 |
1 | ||
| 90564-45050 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.89 |
1 | ||
| 90564-45048 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.85 |
1 | ||
| 90564-45039 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=3.30 |
1 | ||
| 90564-45046 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.81 |
1 | ||
| 41201G - BEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER | ||||
| 90365-25030 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) |
1 | ||
| 90365-25015 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90520-23034 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 90520-23034 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37020 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41204-36060 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-24001 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 90179-24001 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41214-36020 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36030 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
6 | ||
| 41222-36030 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-16015 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
12 | ||
| 90101-16015 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36050 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41231-36050 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41252-37030 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 90366-60001 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 90366-60001 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36040 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41301-36040 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12047 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
12 | ||
| 90105-12047 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
12 | ||
| 41314 - RETAINER, DRIVE PINION BEARING | ||||
| 41304-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ﾌﾛﾝﾄ |
1 | ||
| 41304-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ﾌﾛﾝﾄ |
1 | ||
| 41314-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ﾘﾔ |
1 | ||
| 41314-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ﾘﾔ |
1 | ||
| 41314 - RETAINER, DRIVE PINION BEARING | ||||
| 41304-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ﾌﾛﾝﾄ |
1 | ||
| 41304-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ﾌﾛﾝﾄ |
1 | ||
| 41314-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ﾘﾔ |
1 | ||
| 41314-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ﾘﾔ |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41315-36020 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41315-36020 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-36020 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41317-36020 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41316-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41317-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-36020 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41317-36020 |
RZU100..DM6;BU132..CBU..5F;BU132..30T..IV3;BU212,222..TD..5F;BU172,182..T3,TW1;BU142..30T..(4FC,5F);BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL;BU102,212,RZU100..(ALV,T3,T5)..MTM..(275T,30T)..(DSL,EFI,LPG) ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41316-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41317-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41331-36031 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41331-36031 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341-36011 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341-36011 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341-36011 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41341-36011 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351-36010 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351-36010 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351-36010 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41351-36010 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.90 |
2 | ||
| 41361-60010 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.60 |
2 | ||
| 41361-60040 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=2.05 |
2 | ||
| 41361-36030 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.6 |
2 | ||
| 41361-60020 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.75 |
2 | ||
| 41361-36010 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.4 |
2 | ||
| 41361-36020 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.5 |
2 | ||
| 41361-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.4 |
2 | ||
| 41361-36040 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.7 |
2 | ||
| 41361-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.5 |
2 | ||
| 41361-36040 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.7 |
2 | ||
| 41361-36030 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.6 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.90 |
2 | ||
| 41361-60010 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.60 |
2 | ||
| 41361-60040 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=2.05 |
2 | ||
| 41361-36030 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.6 |
2 | ||
| 41361-60020 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,202,212,222,RZU100..(TR,V)..(175T,20T)..(DSL,EFI,LPG) 厚さ=1.75 |
2 | ||
| 41361-36010 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.4 |
2 | ||
| 41361-36020 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.5 |
2 | ||
| 41361-36010 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.4 |
2 | ||
| 41361-36040 |
BU222..TD;RZU100..DM6;BU212..TD..5F;BU147,172,182..T3,TW1;BU212..(ALV,T3,T4,TW1,TW4)..6F;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 厚さ=1.7 |
2 | ||
| 41361-36020 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.5 |
2 | ||
| 41361-36040 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.7 |
2 | ||
| 41361-36030 |
RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) 厚さ=1.6 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-36020 |
BU222..TD;RZU100..DM6;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,132,142,RZU100,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| 41371-36020 |
RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG) ｱﾘ(12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) |
1 | ||
| Common parts | ||||
| 91112-81440 | ||||
| 91611-60635 | ||||
| 91611-60814 | ||||
| 94531-01400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
