RZU100A-TYMMC3 (1995)
Toyota Dyna 200/Toyoace G25
(9505- )MTM

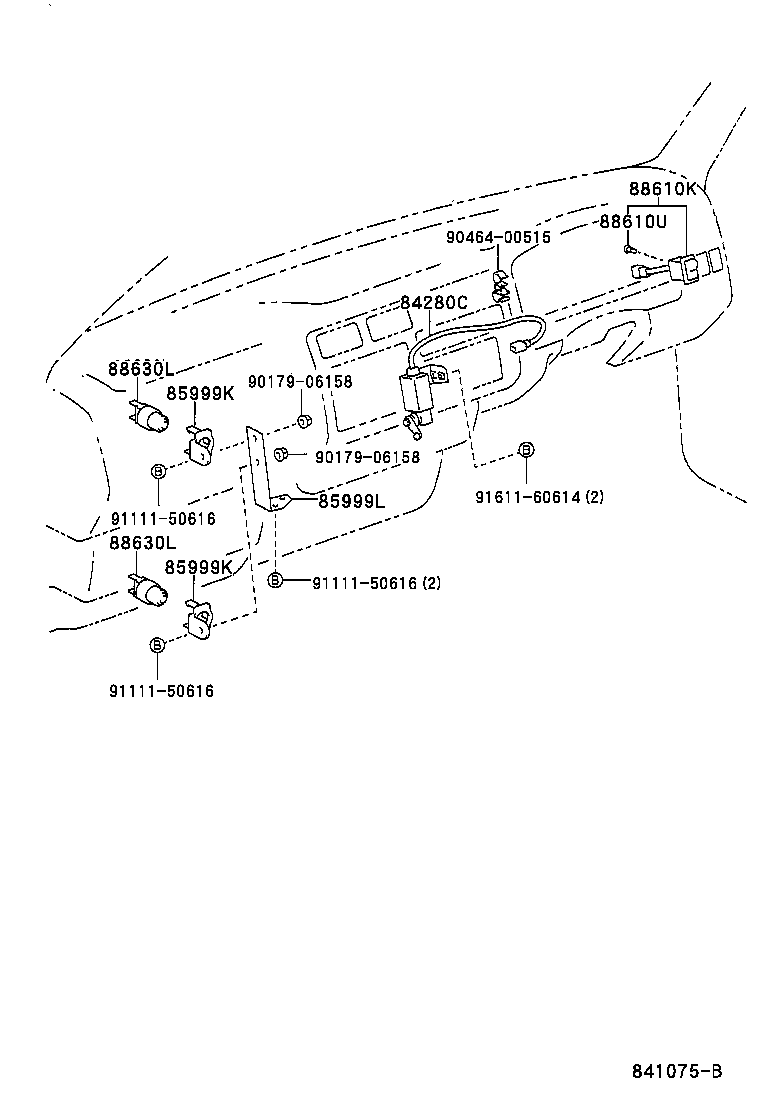

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84280C - SWITCH ASSY, POWER TAKE-OFF CLUTCH | ||||
| 84280-93102 |
BU100,105,140,145,RZU100,140..(DM6,T1,T2,T3,T4,TW1,TW2,TW4)..(DSL,EFI,LPG) |
1 | ||
| 84280-93102 |
BU100,140;RZU100..03S |
1 | ||
| 85999K - BRACKET, POWER TAKE-OFF RELAY, NO.1 | ||||
| 85999-12050 |
RZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..5F |
2 | ||
| 85999-12050 |
RZU100,XZU130..02S,03S;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..5F |
2 | ||
| 85999-12050 |
BU102..T4..CBU..4FC;BU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3) |
2 | ||
| 85999-12050 |
RZU100,XZU130..02S,03S;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)..5F |
2 | ||
| 85999K - BRACKET, POWER TAKE-OFF RELAY, NO.1 | ||||
| 85999-12050 |
RZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..5F |
2 | ||
| 85999-12050 |
RZU100,XZU130..02S,03S;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..5F |
2 | ||
| 85999-12050 |
BU102..T4..CBU..4FC;BU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3) |
2 | ||
| 85999-12050 |
RZU100,XZU130..02S,03S;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)..5F |
2 | ||
| 85999L - BRACKET, POWER TAKE-OFF RELAY, NO.2 | ||||
| 85999-93102 |
RZU100..03S;BU102..DM5..IV3;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..5F |
1 | ||
| 85999-93102 |
BU100,105,107,13#,14#,XZU130..MTM;BU102,112,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3) 12V |
1 | ||
| 85999-93105 |
RZU100,XZU130..02S,03S;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)..5F 24V |
1 | ||
| 85999-93102 |
RZU100,XZU130..02S,03S;BU10#,112,132,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..5F |
1 | ||
| 85999-93102 |
RZU100,XZU130..02S,03S;BU10#,112,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3)..5F |
1 | ||
| 85999-93105 |
BU102..T4..CBU..4FC;BU100,105,107,137,14#,XZU130..MTM;BU102,112,132,162,172,182,202,212,222,RZU100,140,XZU140..(DM6,T2,T3,T4,TW1,TW4)..MTM..(02S,03S,06S,07S)..(CBU,IV3) 24V |
1 | ||
| 88610K - SWITCH ASSY, POWER TAKE-OFF CONTROL | ||||
| 88610-93103 |
BU142,RZU100..03S..(EFI,LPG,LPGB) |
1 | ||
| 88610-93103 |
BU102,142,RZU100,140..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG,LPGB) |
1 | ||
| 88630L - RELAY, POWER TAKE-OFF CONTROL | ||||
| 90987-02004 |
BU142,RZU100..03S..(EFI,LPG,LPGB) |
2 | ||
| 90987-02004 |
BU102,142,RZU100,140..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG,LPGB) |
2 | ||
| 88630L - RELAY, POWER TAKE-OFF CONTROL | ||||
| 90987-02004 |
BU142,RZU100..03S..(EFI,LPG,LPGB) |
2 | ||
| 90987-02004 |
BU102,142,RZU100,140..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG,LPGB) |
2 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90464-00515 | ||||
| 91111-50616 | ||||
| 91611-60614 | ||||
(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR | ||||
| 84240-93100 |
BU112..T3..5F;BU132..TL4..5F;RZU100,XZU130..02S,03S;BU10#,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84240-93100 |
BU102..DM5..IV3;BU112,RZU100..(DM6,T2,T3,T4)..5F;BU10#,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4,TW2,TW4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84240-93100 |
BU112..T3..5F;BU132..TL4..5F;BU102..IV3..4FC;BU102..T3..CBU..4FC;BU100,102,XZU130..(DM6,DM7,T1,T2,T3,T4,TW1,TW2,TW4)..5F;BU105,107,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..(02S,03S,06S,07S) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR | ||||
| 84240-93100 |
BU112..T3..5F;BU132..TL4..5F;RZU100,XZU130..02S,03S;BU10#,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84240-93100 |
BU102..DM5..IV3;BU112,RZU100..(DM6,T2,T3,T4)..5F;BU10#,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4,TW2,TW4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84240-93100 |
BU112..T3..5F;BU132..TL4..5F;BU102..IV3..4FC;BU102..T3..CBU..4FC;BU100,102,XZU130..(DM6,DM7,T1,T2,T3,T4,TW1,TW2,TW4)..5F;BU105,107,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..(02S,03S,06S,07S) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR | ||||
| 84240-93100 |
BU112..T3..5F;BU132..TL4..5F;RZU100,XZU130..02S,03S;BU10#,13#,14#,162,172,182,202,212,222..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(02S,03S,06S,07S)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84240-93100 |
BU102..DM5..IV3;BU112,RZU100..(DM6,T2,T3,T4)..5F;BU10#,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4,TW2,TW4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84240-93100 |
BU112..T3..5F;BU132..TL4..5F;BU102..IV3..4FC;BU102..T3..CBU..4FC;BU100,102,XZU130..(DM6,DM7,T1,T2,T3,T4,TW1,TW2,TW4)..5F;BU105,107,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T2,T3,T4,TW1,TW4)..(02S,03S,06S,07S) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
