RZU100-TQMMK (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 2000
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )EFI,LPG

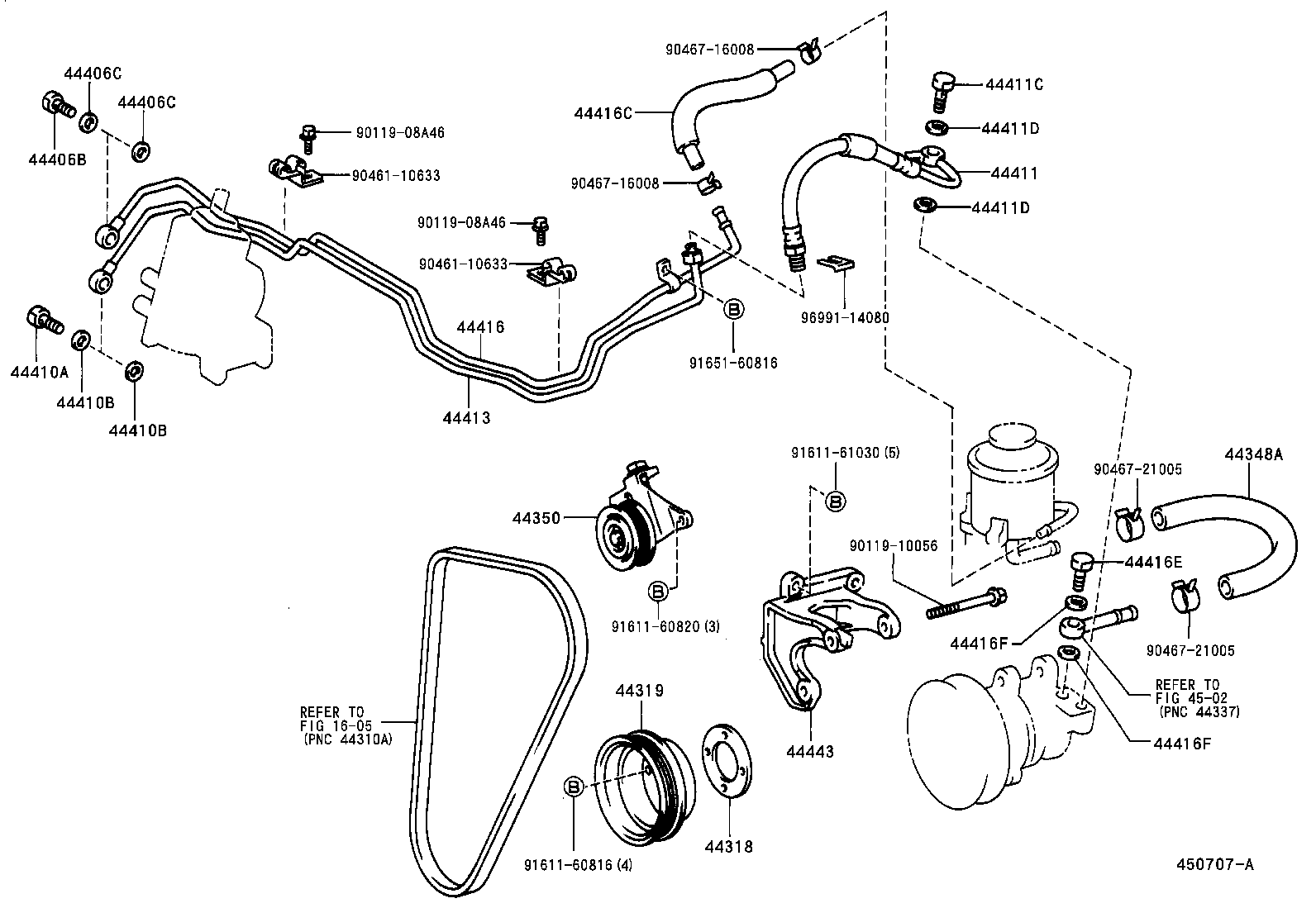

Click highlighted areas on diagram

diagram 1605 44318 44319 44348A 44350 44406B 44406C 44406C 44410A 44410B 44410B 44411 44411C 44411D 44411D 44413 44416 44416C 44416E 44416F 44416F 44443 4502 9011908A46 9011908A46 9011910056 9046110633 9046110633 9046716008 9046716008 9046721005 9046721005 9161160816 9161160820 9161161030 9165160816 9699114080
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26020

RZU100,140..EFI,LPG

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-34010

RZU100,140..EFI,LPG

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-37020

RZU100,140..EFI,LPG

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-34010

RZU100,140..EFI,LPG

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-14003

BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
44406C - GASKET(FOR RETURN TUBE)
90430-14235

BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
44406C - GASKET(FOR RETURN TUBE)
90430-14235

BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-14003

BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
44411 - HOSE, PRESSURE FEED
44411-37040

RZU100,140..EFI,LPG

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,140..DSL,EFI,LPGB,TD

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
44413 - TUBE, PRESSURE FEED, NO.1
44413-37020

BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T)

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37100

RZU100,140..(DM5,T2,T3,T4,TW1,TW4)..20T

 1
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90447-18028

RZU100,140..EFI,LPG

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-22003

RZU100,140..EFI,LPG

 1
44416F - GASKET(FOR RETURN TUBE)
90430-22001

RZU100,140..EFI,LPG

 2
44416F - GASKET(FOR RETURN TUBE)
90430-22001

RZU100,140..EFI,LPG

 2
44443 - BRACKET, PUMP
44443-37021

RZU100,140..EFI,LPG

 1
Common parts
90119-08A46
90119-10056
90461-10633
90467-16008
90467-21005
91611-60816
91611-60820
91611-61030
91651-60816
96991-14080
Linked diagrams
1605
4502
