RZU100-TKMMK3 (1995)
Toyota Dyna 200/Toyoace G25
Production
May 1995
-
May 2000
Engine
3RZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )EFI,LPG

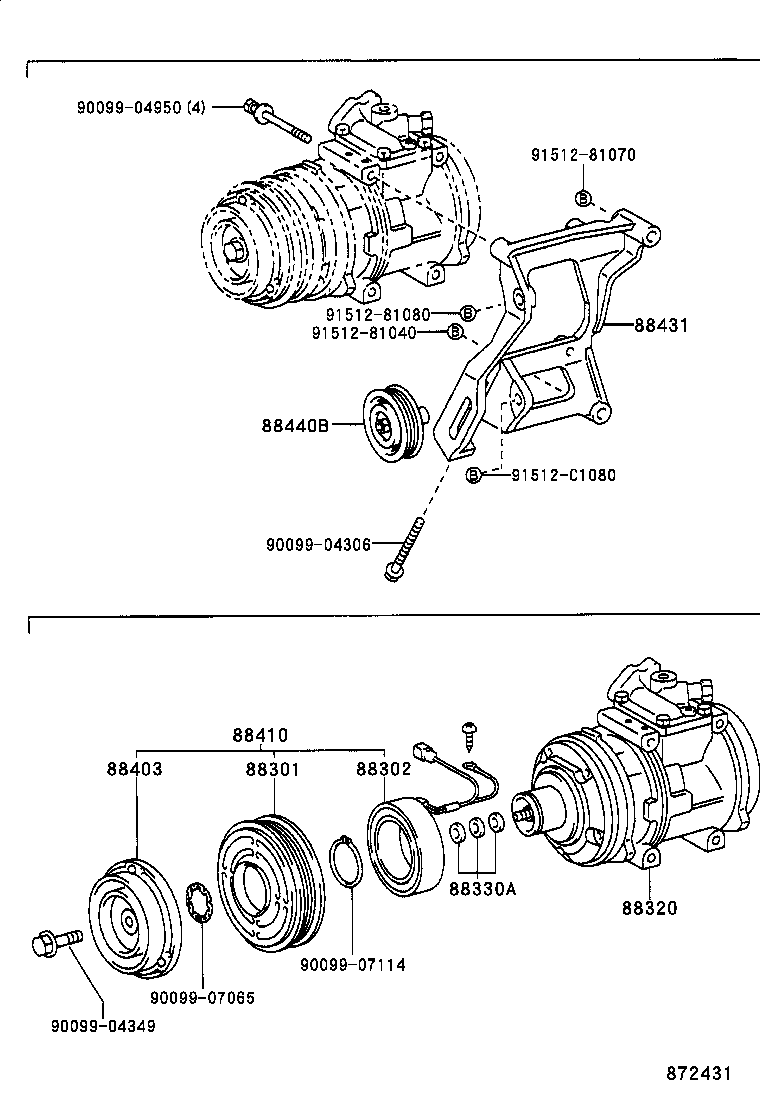

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-95J00 |
RZU100,140..EFI,LPG |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22310 |
RZU100 |
1 | ||
| 88411-2A030 |
RZU100,140..EFI,LPG |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37050 |
RZU100,140..EFI,LPG |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
BU162,172,182,297,RZU100,140..DSL,EFI,LPG,TD |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
BU162,172,182,297,RZU100,140..DSL,EFI,LPG,TD |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-34020 |
RZU100,140..EFI,LPG |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-34020 |
RZU100,140..EFI,LPG |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-20160 |
RZU100,140..EFI,LPG |
1 | ||
| Common parts | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 91512-81040 | ||||
| 91512-81070 | ||||
| 91512-81080 | ||||
| 91512-C1080 | ||||
