RZU100-TKMMK3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 2000
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9703- )

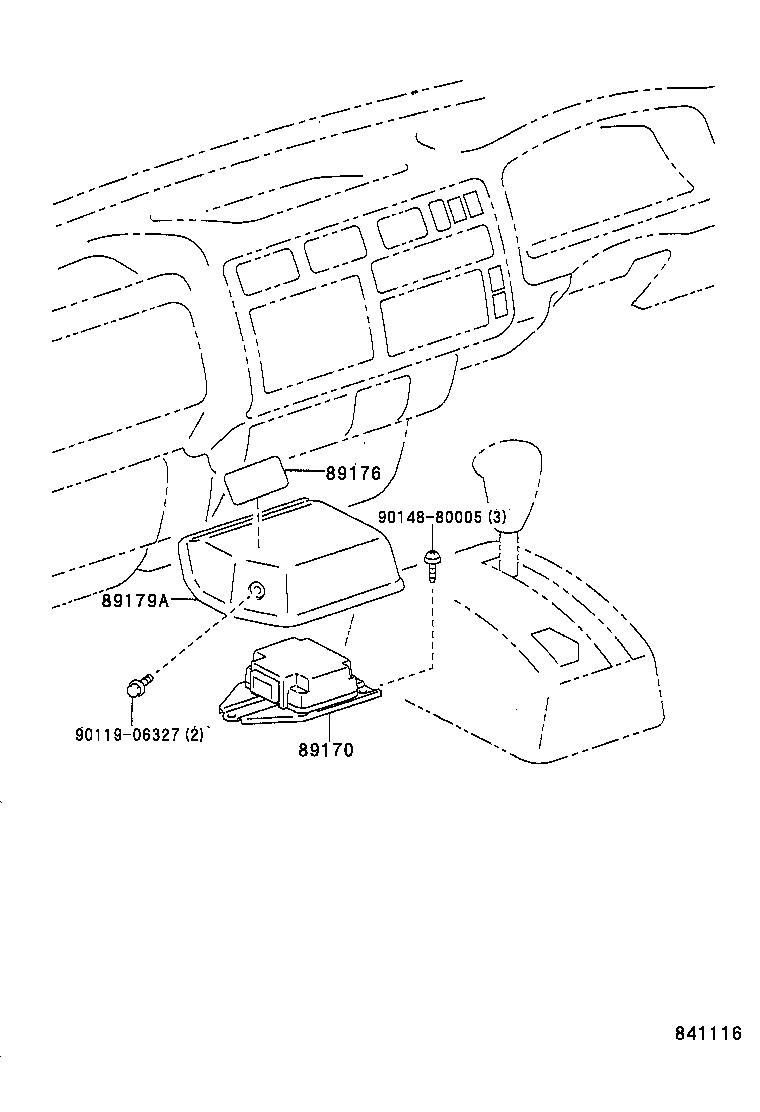

Click highlighted areas on diagram

diagram 89170 89176 89179A 9011906327 9014880005
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-37030

BU102..(DM6,T3)..LPGB;BU142,RZU100,140..EFI,LPG,LPGB

 1
89176 - LABEL, AIR BAG SENSOR COVER CAUTION
89176-37010

BU102,132,142..DM2,DM3,DM5,DM6,T3,T5,TW1;BU100,107,112,12#,137,140,147,162,172,182,202,212,222,RZU100,XZU130

 1
89176-37010

RZU100,140

 1
89176-37010

BU132..T3,T4;BU10#,112,120,137,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
89179A - COVER, AIR BAG SENSOR
89179-37010B0

BU132..T3,T4;BU10#,112,120,137,14#,162,172,182,RZU100,140,XZU130,140

BLUISH GRAY,TRIM1#

 1
Common parts
90119-06327
90148-80005
