RZU100-PQMMK (1995)
Toyota Dyna 200/Toyoace G25

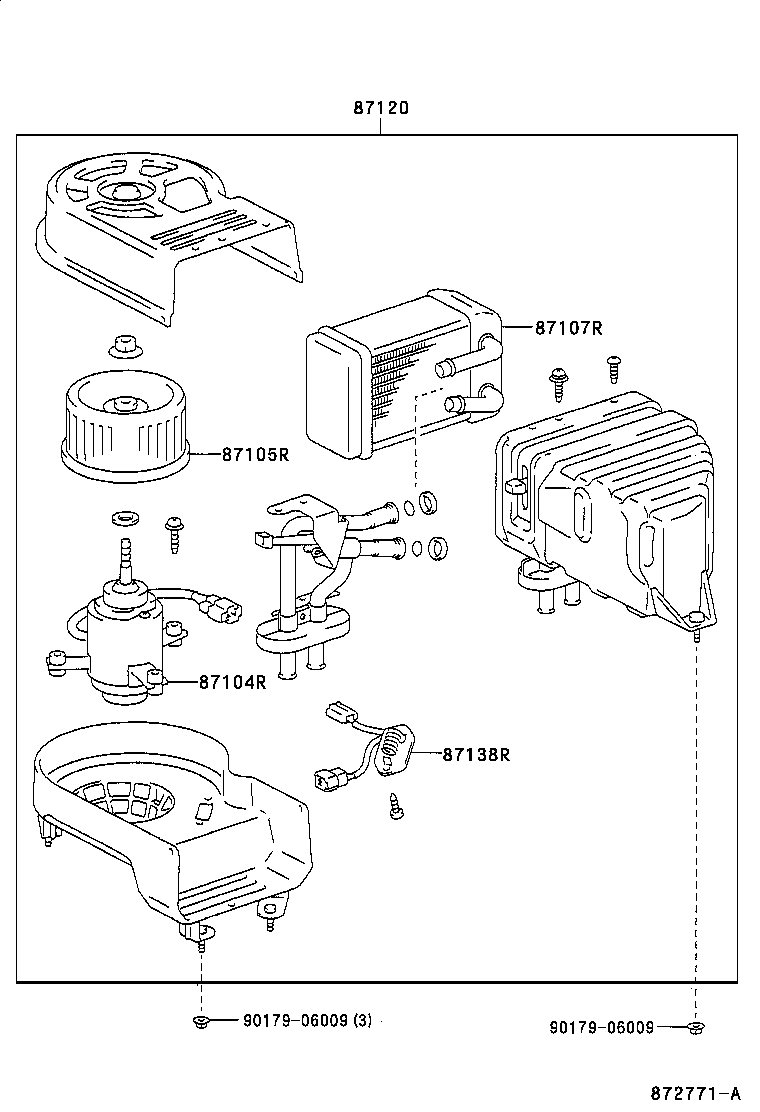

ILLUST NO. 2 OF 2(9505- )
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-87003 |
RZU100..06S |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-87002 |
BU107..06S..4FC;BU105,172,212,RZU100..TW1,TW4 |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-60330 |
BU102..06S..IV3;BU100,105,107,142,147,172,212,RZU100..05S,06S,07S |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-37040 |
RZU100..06S |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-95012 |
RZU100..06S |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||

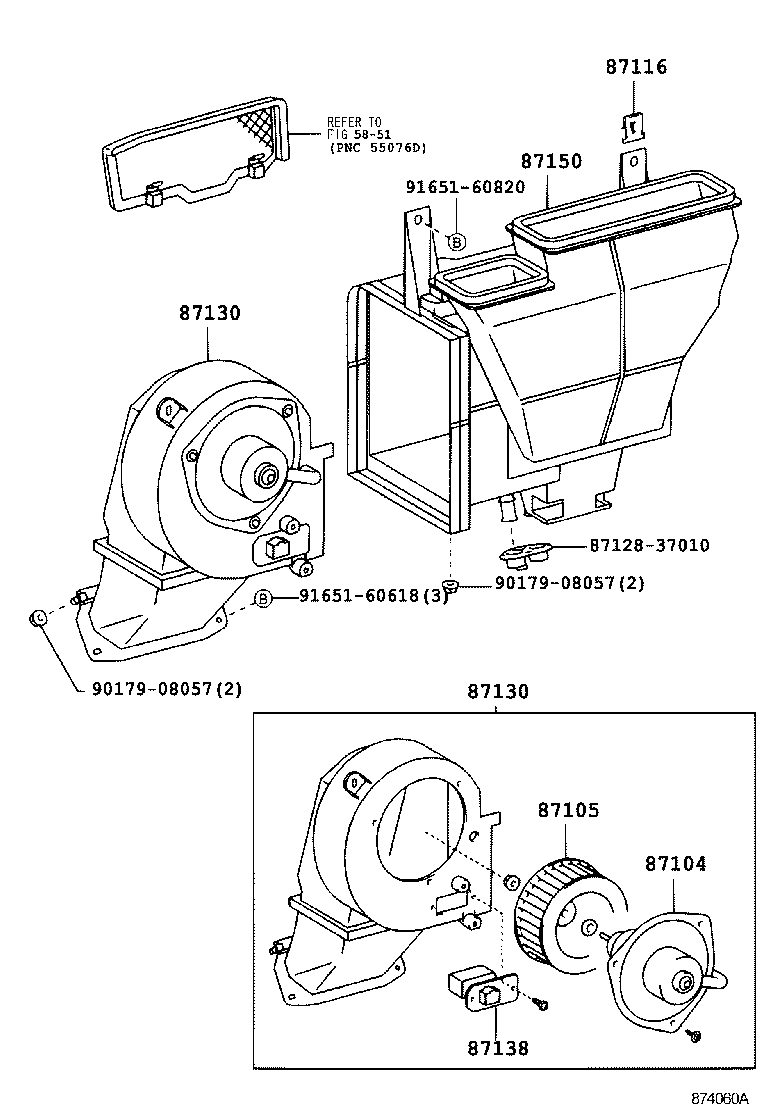

ILLUST NO. 1 OF 2(9505- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-37070 |
BU142..LPGB;RZU100..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG) ｱﾘ(ﾌﾞ-ｽﾄﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 87105-14030 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130 |
1 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-37061 |
BU142..LPGB;RZU100..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG) ｱﾘ(ﾌﾞ-ｽﾄﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 87130-37060 |
BU142,RZU100..EFI,LPG,LPGB ｱﾘ(ﾌﾞ-ｽﾄﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-37061 |
BU142..LPGB;RZU100..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG) ｱﾘ(ﾌﾞ-ｽﾄﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 87130-37060 |
BU142,RZU100..EFI,LPG,LPGB ｱﾘ(ﾌﾞ-ｽﾄﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-37080 |
BU142..LPGB;RZU100..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG) ｱﾘ(ﾌﾞ-ｽﾄﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-37050 |
BU10#,112,132,14#,162,172,182,RZU100..(02S,03S,06S)..(CBU,IV3) ｱﾘ(ｶﾝﾚｲﾁ ｱｲﾄﾞﾙ ｱﾂﾌﾟ) |
1 | ||
| 87150-37030 |
BU10#,112,13#,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 87150-37130 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,TW1,TW2,TW4 ｱﾘ(*80) |
1 | ||
| 87150-37031 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 87150-37050 |
BU10#,112,13#,14#,162,172,182,RZU100 ｱﾘ(ｶﾝﾚｲﾁ ｱｲﾄﾞﾙ ｱﾂﾌﾟ) |
1 | ||
| 87150-37051 |
BU10#,112,120,13#,14#,162,172,182,RZU100,140,XZU130,140 ｱﾘ(ｶﾝﾚｲﾁ ｱｲﾄﾞﾙ ｱﾂﾌﾟ) |
1 | ||
| 87150-37140 |
BU132..T3,T4;BU10#,112,120,137,14#,162,172,182,RZU100,140,XZU140 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｶﾝﾚｲﾁ ｱｲﾄﾞﾙ ｱﾂﾌﾟ) |
1 | ||
| Common parts | ||||
| 87128-37010 | ||||
| 90179-08057 | ||||
| 91651-60618 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 5851 | ||||
