RZU100-PQMMK (1995)
Toyota Dyna 200/Toyoace G25
Production
May 1995
-
May 2000
Engine
3RZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )RZU100,140

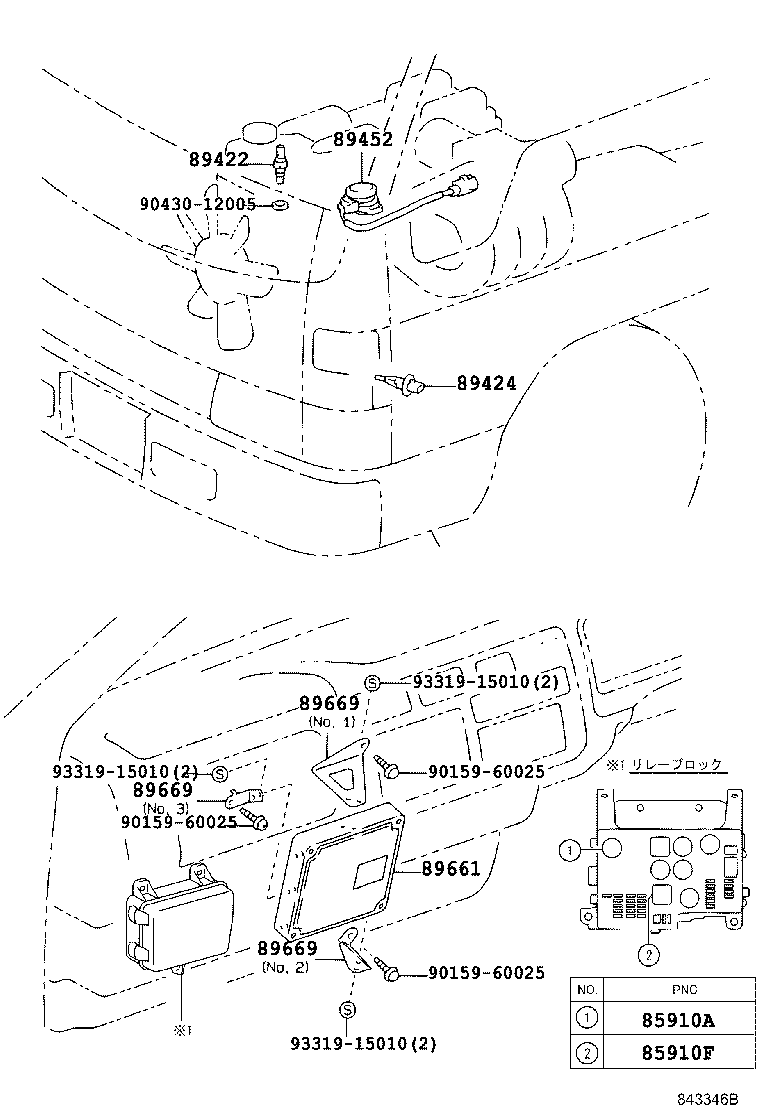

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02004 |
RZU100,140..EFI |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02009 |
RZU100,140..EFI |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-35010 |
RZU100,140..EFI |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
RZU100,140..EFI |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-22080 |
RZU100,140..EFI |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-37010 |
RZU100..EFI |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89559-37020 |
RZU100..EFI NO.2 |
1 | ||
| 89559-37060 |
RZU100..EFI NO.3 |
1 | ||
| 89559-37010 |
RZU100..EFI NO.1 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89559-37020 |
RZU100..EFI NO.2 |
1 | ||
| 89559-37060 |
RZU100..EFI NO.3 |
1 | ||
| 89559-37010 |
RZU100..EFI NO.1 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89559-37020 |
RZU100..EFI NO.2 |
1 | ||
| 89559-37060 |
RZU100..EFI NO.3 |
1 | ||
| 89559-37010 |
RZU100..EFI NO.1 |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90430-12005 | ||||
| 93319-15010 | ||||
