RZU100-PQMMK (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 2000
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU172,RZU100..05S,06S..CBU

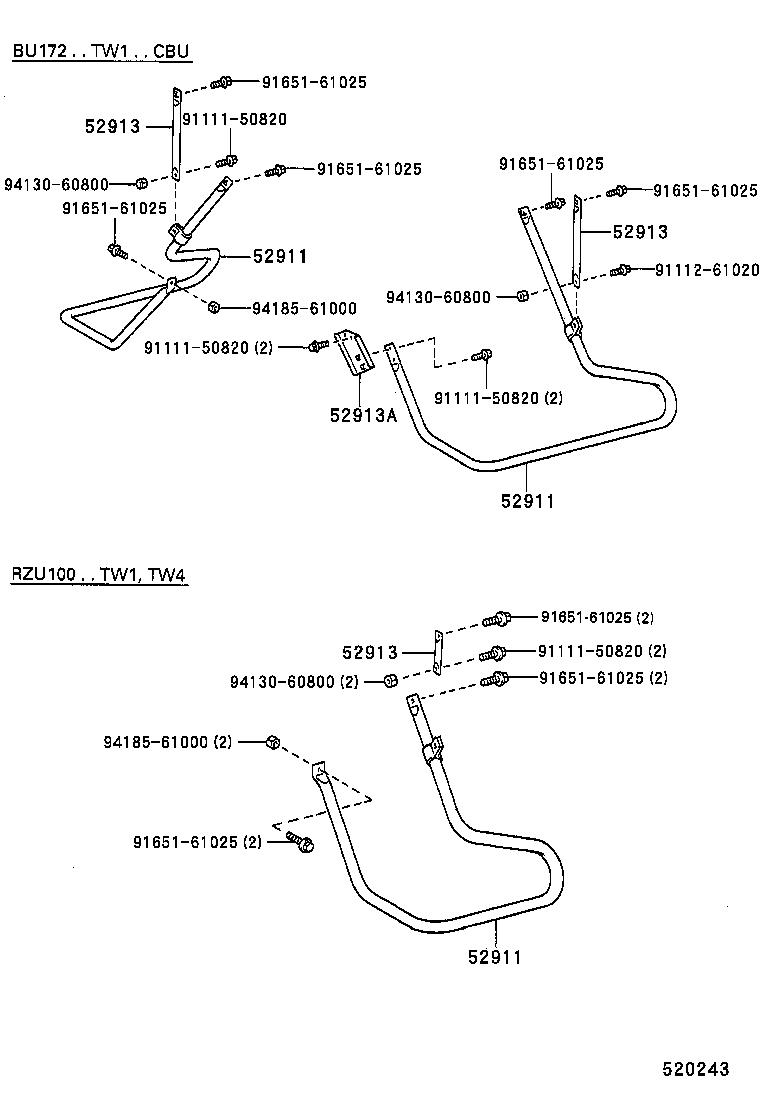

Click highlighted areas on diagram

diagram 52911 52911 52911 52913 52913 52913 52913A 9111150820 9111150820 9111150820 9111150820 9111261020 9165161025 9165161025 9165161025 9165161025 9165161025 9165161025 9165161025 9413060800 9413060800 9413060800 9418561000 9418561000
Part # Description Qty Price
52911 - BAR, SIDE BUMPER
52092-37281

RZU100..TW4

左側

 1
52091-37271

RZU100..TW4

右側

 1
52091-37360

RZU100..TW4

右側

 1
52092-37120

RZU100..TW4

左側

 1
52911 - BAR, SIDE BUMPER
52092-37281

RZU100..TW4

左側

 1
52091-37271

RZU100..TW4

右側

 1
52091-37360

RZU100..TW4

右側

 1
52092-37120

RZU100..TW4

左側

 1
52911 - BAR, SIDE BUMPER
52092-37281

RZU100..TW4

左側

 1
52091-37271

RZU100..TW4

右側

 1
52091-37360

RZU100..TW4

右側

 1
52092-37120

RZU100..TW4

左側

 1
52913 - STAY, SIDE BUMPER, NO.1
52913-92801

RZU100..06S;RZU100..LPG..CBU

 2
52913-92801

RZU100..TW4

ﾌﾛﾝﾄ

 1
52913-92701

RZU100..TW4

ﾘﾔ

 1
52913 - STAY, SIDE BUMPER, NO.1
52913-92801

RZU100..06S;RZU100..LPG..CBU

 2
52913-92801

RZU100..TW4

ﾌﾛﾝﾄ

 1
52913-92701

RZU100..TW4

ﾘﾔ

 1
52913 - STAY, SIDE BUMPER, NO.1
52913-92801

RZU100..06S;RZU100..LPG..CBU

 2
52913-92801

RZU100..TW4

ﾌﾛﾝﾄ

 1
52913-92701

RZU100..TW4

ﾘﾔ

 1
Common parts
91111-50820
91112-61020
91651-61025
94130-60800
94185-61000
