RZU100-PQMMK (1995)
Toyota Dyna 200/Toyoace G25
(9505- )WT

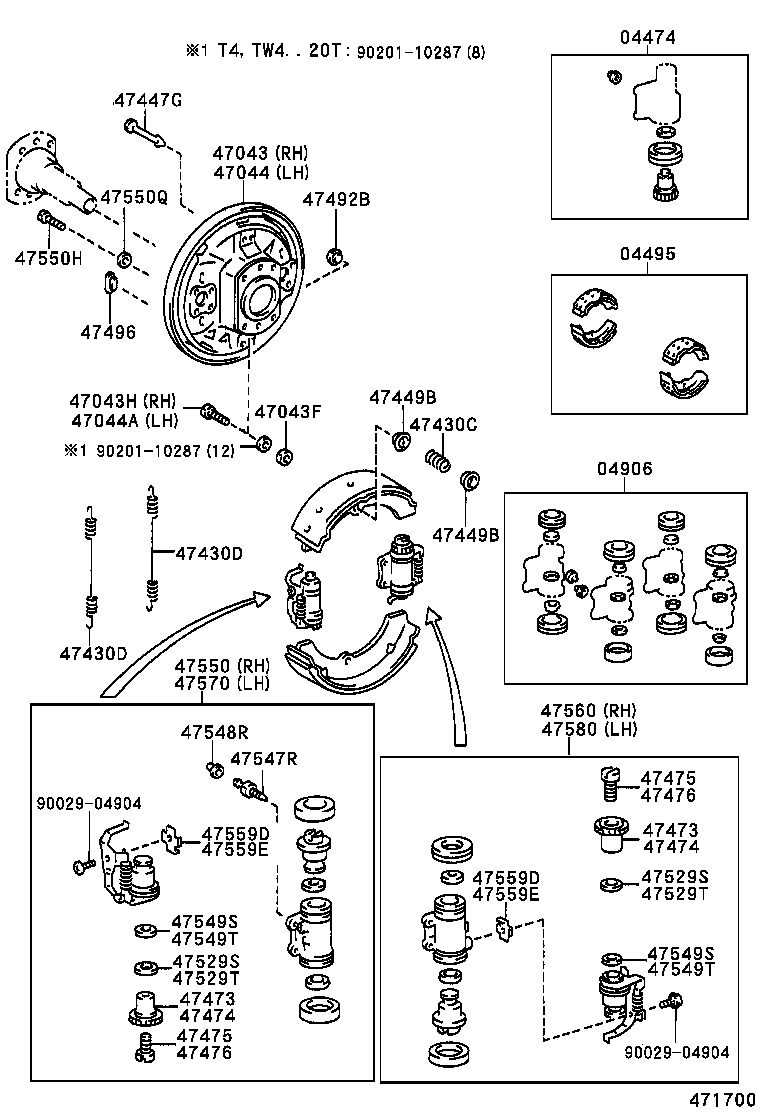

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36110 |
BU102..06S;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),左側 |
2 | ||
| 04474-36111 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),左側 |
2 | ||
| 04474-36100 |
BU102..06S;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),右側 |
2 | ||
| 04474-36101 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),右側 |
2 | ||
| 04474-36111 |
BU137..4FC;BU107..06S..4FC;RZU100..(T4,TW4)..EFI;BU105,145,RZU140..T2,T4,TW4;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),左側 |
2 | ||
| 04474-36101 |
BU137..4FC;BU107..06S..4FC;RZU100..(T4,TW4)..EFI;BU105,145,RZU140..T2,T4,TW4;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),右側 |
2 | ||
| 04474-36080 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F 右側 |
2 | ||
| 04474-36090 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F 左側 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36150 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
1 | ||
| 04496-36090 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T REBUILT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36210 |
BU102..06S;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 04906-36211 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 04906-36211 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 04906-36200 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36100 |
BU212..T2;BU10#,132,14#,162,RZU100..DM2,DM5,T2,T4,TW4 |
1 | ||
| 47043-25110 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
8 | ||
| 90170-10178 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10019 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 90114-10063 |
RZU100,140..(DM5,T2,T4,TW4)..20T |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36100 |
BU212..T2;BU10#,132,14#,162,RZU100..DM2,DM5,T2,T4,TW4 |
1 | ||
| 47044-25080 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10019 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 90114-10063 |
RZU100,140..(DM5,T2,T4,TW4)..20T |
4 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD) |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47553-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47553-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47553-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47553-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
8 | ||
| 47491-36010 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
8 | ||
| 47491-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47491-36010 |
RZU100..LPGB;BU10#,142,162,182,212,RZU140;RZU100..(DM5,T2,T4,TW4)..20T |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47547-27020 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
2 | ||
| 47547-12010 |
RZU100..T3..20T..IV3;RZU100,140..(DM5,T2,T4,TW4)..20T |
2 | ||
| 47547-12010 |
BU10#,142,162,182,212,RZU140;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47550-36171 |
RZU100,140..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47550-37100 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| 47550-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;BU10#,14#,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;BU10#,14#,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD) |
2 | ||
| 47555-36051 |
BU100,102..(DM2,DM3,DM5,T1,T2,T3,T4,T5,TW1,TW2,TW4)..5F;BU112,12#,132,140,142,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD) |
2 | ||
| 47555-36051 |
BU100,102..(DM2,DM3,DM5,T1,T2,T3,T4,T5,TW1,TW2,TW4)..5F;BU112,12#,132,140,142,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102..(DM2,DM3,DM5,T1,T2,T3,T4,T5,TW1,TW2,TW4)..5F;BU112,12#,132,140,142,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102..(DM2,DM3,DM5,T1,T2,T3,T4,T5,TW1,TW2,TW4)..5F;BU112,12#,132,140,142,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD) |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47560-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47560-37071 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| 47560-36171 |
RZU100,140..T4,TW4;BU100..(T4,TW4)..CBU;BU100,102,142..06S..20T..IV3 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚｰｷ) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47570-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47570-36171 |
RZU100,140..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47570-37060 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47580-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47580-36171 |
RZU100,140..T4,TW4;BU100..(T4,TW4)..CBU;BU100,102,142..06S..20T..IV3 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚｰｷ) |
1 | ||
| 47580-37061 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
(9505-9905)WT ; (9905- )T4..LPGB ; (9905-)BU10#,142,162,182,212
ｱﾘ(ｵ-ﾄｱｼﾞﾔｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36110 |
BU102..06S;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),左側 |
2 | ||
| 04474-36111 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),左側 |
2 | ||
| 04474-36100 |
BU102..06S;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),右側 |
2 | ||
| 04474-36101 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),右側 |
2 | ||
| 04474-36111 |
BU137..4FC;BU107..06S..4FC;RZU100..(T4,TW4)..EFI;BU105,145,RZU140..T2,T4,TW4;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),左側 |
2 | ||
| 04474-36101 |
BU137..4FC;BU107..06S..4FC;RZU100..(T4,TW4)..EFI;BU105,145,RZU140..T2,T4,TW4;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),右側 |
2 | ||
| 04474-36080 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F 右側 |
2 | ||
| 04474-36090 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F 左側 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36150 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
1 | ||
| 04496-36090 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T REBUILT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36210 |
BU102..06S;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 04906-36211 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 04906-36211 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 04906-36200 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36100 |
BU212..T2;BU10#,132,14#,162,RZU100..DM2,DM5,T2,T4,TW4 |
1 | ||
| 47043-25110 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
8 | ||
| 90170-10178 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10019 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 90114-10063 |
RZU100,140..(DM5,T2,T4,TW4)..20T |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36100 |
BU212..T2;BU10#,132,14#,162,RZU100..DM2,DM5,T2,T4,TW4 |
1 | ||
| 47044-25080 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10019 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 90114-10063 |
RZU100,140..(DM5,T2,T4,TW4)..20T |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47506-36010 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47506-36020 |
BU102..T3;BU142,212..6F;RZU100,140..DM6,T3,T4,TW1,TW4 |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47506-36010 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47506-36020 |
BU102..T3;BU142,212..6F;RZU100,140..DM6,T3,T4,TW1,TW4 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47507-36020 |
BU102..T3;BU142,212..6F;RZU100,140..DM6,T3,T4,TW1,TW4 |
2 | ||
| 47507-36010 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47507-36020 |
BU102..T3;BU142,212..6F;RZU100,140..DM6,T3,T4,TW1,TW4 |
2 | ||
| 47507-36010 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47553-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47553-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47553-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47553-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
8 | ||
| 47491-36010 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
8 | ||
| 47491-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47491-36010 |
RZU100..LPGB;BU10#,142,162,182,212,RZU140;RZU100..(DM5,T2,T4,TW4)..20T |
8 | ||
| 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH | ||||
| 47529-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47529-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH | ||||
| 47529-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47529-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH | ||||
| 47529-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47529-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH | ||||
| 47529-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47529-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47532A - INSERT, REAR WHEEL CYLINDER PISTON, RH | ||||
| 47532-36020 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47532-36020 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47532-36020 |
BU102..4FC;RZU100,140..T4,TW4 |
2 | ||
| 47532A - INSERT, REAR WHEEL CYLINDER PISTON, RH | ||||
| 47532-36020 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47532-36020 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47532-36020 |
BU102..4FC;RZU100,140..T4,TW4 |
2 | ||
| 47532B - INSERT, REAR WHEEL CYLINDER PISTON, LH | ||||
| 47532-36020 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47532-36020 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47532-36020 |
BU102..4FC;RZU100,140..T4,TW4 |
2 | ||
| 47532B - INSERT, REAR WHEEL CYLINDER PISTON, LH | ||||
| 47532-36020 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47532-36020 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47532-36020 |
BU102..4FC;RZU100,140..T4,TW4 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47547-27020 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
2 | ||
| 47547-12010 |
RZU100..T3..20T..IV3;RZU100,140..(DM5,T2,T4,TW4)..20T |
2 | ||
| 47547-12010 |
BU10#,142,162,182,212,RZU140;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47549-37091 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
2 | ||
| 47549-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI)..5F |
2 | ||
| 47549-36010 |
BU102,142,212..4FC,6F;BU102,RZU100..T3..20T;RZU100,140..T4,TW1,TW4 |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47549-37091 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
2 | ||
| 47549-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI)..5F |
2 | ||
| 47549-36010 |
BU102,142,212..4FC,6F;BU102,RZU100..T3..20T;RZU100,140..T4,TW1,TW4 |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI)..5F |
2 | ||
| 47549-37091 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47549-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47549-36010 |
BU102,142,212..4FC,6F;BU102,RZU100..T3..20T;RZU100,140..T4,TW1,TW4 |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI)..5F |
2 | ||
| 47549-37091 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47549-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47549-36010 |
BU102,142,212..4FC,6F;BU102,RZU100..T3..20T;RZU100,140..T4,TW1,TW4 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47550-36171 |
RZU100,140..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47550-37100 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| 47550-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;BU10#,14#,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;BU10#,14#,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH | ||||
| 47559-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47559-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH | ||||
| 47559-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47559-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH | ||||
| 47559-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47559-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH | ||||
| 47559-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47559-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47560-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47560-37071 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| 47560-36171 |
RZU100,140..T4,TW4;BU100..(T4,TW4)..CBU;BU100,102,142..06S..20T..IV3 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚｰｷ) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47570-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47570-36171 |
RZU100,140..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47570-37060 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47580-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47580-36171 |
RZU100,140..T4,TW4;BU100..(T4,TW4)..CBU;BU100,102,142..06S..20T..IV3 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚｰｷ) |
1 | ||
| 47580-37061 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
(9905- )RZU100,140
ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36110 |
BU102..06S;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),左側 |
2 | ||
| 04474-36111 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),左側 |
2 | ||
| 04474-36100 |
BU102..06S;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),右側 |
2 | ||
| 04474-36101 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),右側 |
2 | ||
| 04474-36111 |
BU137..4FC;BU107..06S..4FC;RZU100..(T4,TW4)..EFI;BU105,145,RZU140..T2,T4,TW4;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),左側 |
2 | ||
| 04474-36101 |
BU137..4FC;BU107..06S..4FC;RZU100..(T4,TW4)..EFI;BU105,145,RZU140..T2,T4,TW4;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),右側 |
2 | ||
| 04474-36080 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F 右側 |
2 | ||
| 04474-36090 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F 左側 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36150 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
1 | ||
| 04496-36090 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T REBUILT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36210 |
BU102..06S;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 04906-36211 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 04906-36211 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 04906-36200 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36100 |
BU212..T2;BU10#,132,14#,162,RZU100..DM2,DM5,T2,T4,TW4 |
1 | ||
| 47043-25110 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
8 | ||
| 90170-10178 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10019 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 90114-10063 |
RZU100,140..(DM5,T2,T4,TW4)..20T |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36100 |
BU212..T2;BU10#,132,14#,162,RZU100..DM2,DM5,T2,T4,TW4 |
1 | ||
| 47044-25080 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10019 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 90114-10063 |
RZU100,140..(DM5,T2,T4,TW4)..20T |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47506-36010 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47506-36020 |
BU102..T3;BU142,212..6F;RZU100,140..DM6,T3,T4,TW1,TW4 |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47506-36010 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47506-36020 |
BU102..T3;BU142,212..6F;RZU100,140..DM6,T3,T4,TW1,TW4 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47507-36020 |
BU102..T3;BU142,212..6F;RZU100,140..DM6,T3,T4,TW1,TW4 |
2 | ||
| 47507-36010 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
BU102..TW4;BU212..T2..4FC;RZU100..T4,TW4;BU102..T4..CBU..5F;BU102,142..(T2,T4)..4FC;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F |
2 | ||
| 47507-36020 |
BU102..T3;BU142,212..6F;RZU100,140..DM6,T3,T4,TW1,TW4 |
2 | ||
| 47507-36010 |
BU212..T2..4FC;RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU102,142..(T2,T4)..20T..4FC;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU;BU105,107,137,145,147,RZU140..T2,T4,TW4 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47553-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47553-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47553-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47553-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36070 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
2 | ||
| 47554-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
8 | ||
| 47491-36010 |
RZU100..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
8 | ||
| 47491-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47491-36010 |
RZU100..LPGB;BU10#,142,162,182,212,RZU140;RZU100..(DM5,T2,T4,TW4)..20T |
8 | ||
| 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH | ||||
| 47529-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47529-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH | ||||
| 47529-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47529-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH | ||||
| 47529-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47529-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH | ||||
| 47529-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47529-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47547-27020 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
2 | ||
| 47547-12010 |
RZU100..T3..20T..IV3;RZU100,140..(DM5,T2,T4,TW4)..20T |
2 | ||
| 47547-12010 |
BU10#,142,162,182,212,RZU140;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47549-37091 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
2 | ||
| 47549-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI)..5F |
2 | ||
| 47549-36010 |
BU102,142,212..4FC,6F;BU102,RZU100..T3..20T;RZU100,140..T4,TW1,TW4 |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47549-37091 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
2 | ||
| 47549-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI)..5F |
2 | ||
| 47549-36010 |
BU102,142,212..4FC,6F;BU102,RZU100..T3..20T;RZU100,140..T4,TW1,TW4 |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI)..5F |
2 | ||
| 47549-37091 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47549-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47549-36010 |
BU102,142,212..4FC,6F;BU102,RZU100..T3..20T;RZU100,140..T4,TW1,TW4 |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI)..5F |
2 | ||
| 47549-37091 |
RZU100,140..DM6,T3,T4,TW1,TW4 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47549-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47549-36010 |
BU102,142,212..4FC,6F;BU102,RZU100..T3..20T;RZU100,140..T4,TW1,TW4 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47550-36171 |
RZU100,140..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47550-37100 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| 47550-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;BU10#,14#,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;BU10#,14#,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH | ||||
| 47559-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47559-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH | ||||
| 47559-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47559-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH | ||||
| 47559-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47559-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH | ||||
| 47559-36010 |
BU142..30T..5F;BU142..06S..IV3;BU102..T4..CBU..5F;BU212..T3..TD..IV3;BU102,112,142,212..4FC;BU212..(T4,TW4)..IV3..5F;BU102..(DM6,T3,T5,TW4)..WT;BU100,132..(DM6,T3,TW4)..WT..IV3;BU100,142,212..(T3,T4,TW4)..WT..20T..CBU..5F;BU112,140,202,222,RZU100..(DM6,T3,T4,TW1,TW4)..5F |
2 | ||
| 47559-36010 |
BU142..06S;BU142..30T..5F;BU102..20T..4FC;RZU100..LPG..CBU;BU132,212..(T2,TL4)..4FC;BU212..(T4,TW1,TW4)..IV3..5F;BU102,132..(T3,T4,T5)..(275T,30T);BU105,107,137,145,147,202,222,RZU140;BU100,102..(DM6,T3,TW4)..WT..20T..IV3;BU212,RZU100..(DM6,T3)..(LPG,TD)..IV3..5F;BU100,142,212..(T3,T4,TW1,TW4)..WT..20T..CBU..5F;BU112,142,212..(ALV,DM7,T3,T4,TW1,TW4)..(4FC,6F);BU112,140,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,EFI,LPGB)..5F |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47560-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47560-37071 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| 47560-36171 |
RZU100,140..T4,TW4;BU100..(T4,TW4)..CBU;BU100,102,142..06S..20T..IV3 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚｰｷ) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47570-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47570-36171 |
RZU100,140..(T4,TW4)..EFI;BU100,102,142..06S..20T..IV3;BU100,RZU100..(T4,TW4)..(DSL,LPG)..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47570-37060 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36171 |
BU102..TW4;RZU100..T4,TW4;BU102..T4..CBU..5F;BU100,142..06S..20T..IV3;BU100,142..(T4,TW4)..CBU..5F ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47580-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47580-36171 |
RZU100,140..T4,TW4;BU100..(T4,TW4)..CBU;BU100,102,142..06S..20T..IV3 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚｰｷ) |
1 | ||
| 47580-37061 |
RZU100,140..(T4,TW4)..20T ｱﾘ(ﾌﾛﾝﾄﾃﾞｨｽｸ ﾌﾞﾚｰｷ & ﾘﾔﾄﾞﾗﾑ ﾌﾞﾚｰｷ(ｵｰﾄ ｱｼﾞｬｽﾀ) |
1 | ||
| Common parts | ||||
| 90029-04904 | ||||
| 90201-10287 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
