RZU100-PKMMK (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 2000
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

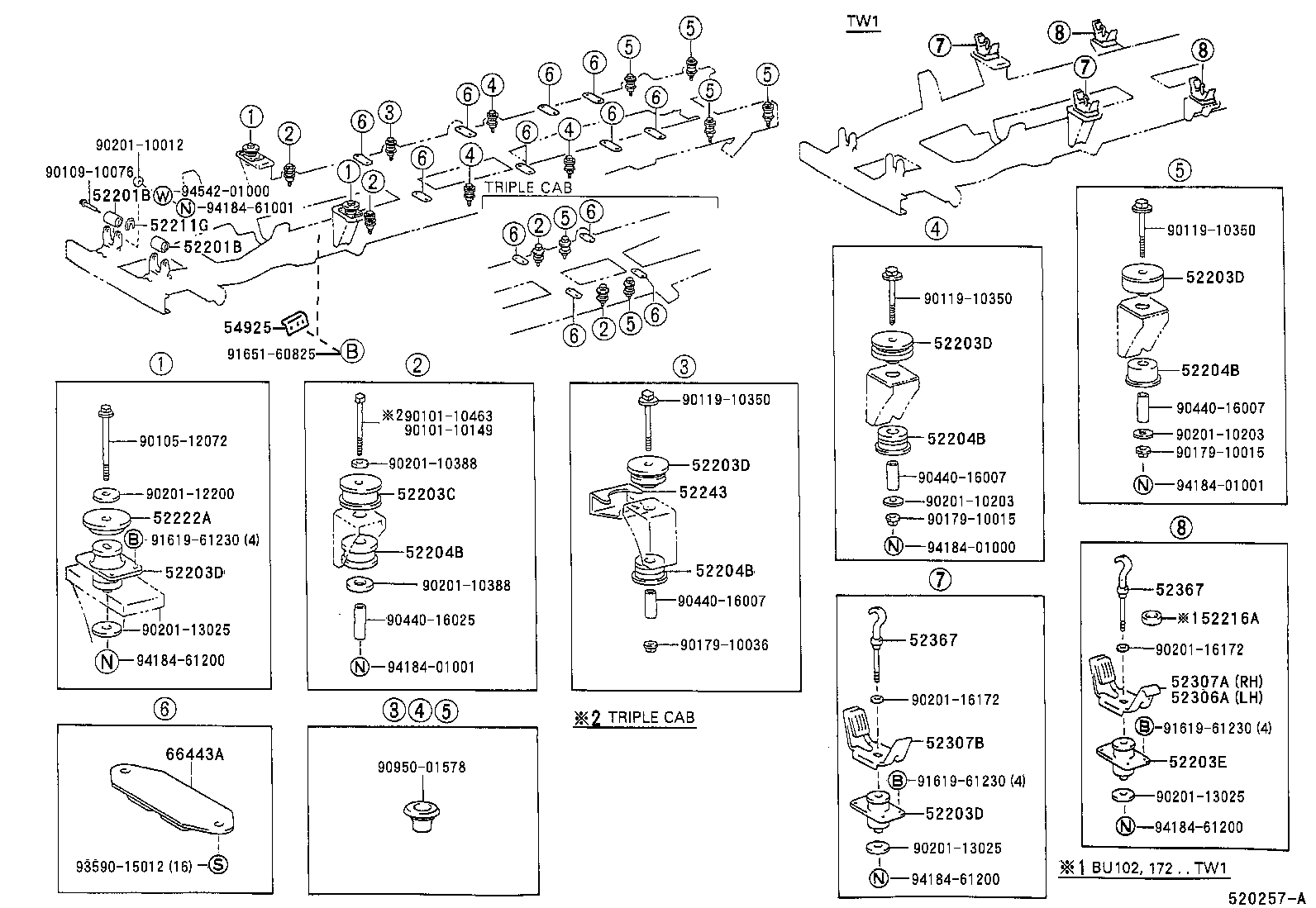

ILLUST NO. 1 OF 2(9505- )BU12#,RZU100..DSL,LPGB ; (9505- )BU10#,142,147,172,212,RZU100..05S,06

Click highlighted areas on diagram

diagram 52201B 52201B 52203C 52203D 52203D 52203D 52203D 52203D 52203E 52204B 52204B 52204B 52204B 52211G 52216A 52222A 52243 52306A 52307A 52307B 52367 52367 54925 66443A 9010110149 9010110463 9010512072 9010910076 9011910350 9011910350 9011910350 9017910015 9017910015 9017910036 9020110012 9020110203 9020110203 9020110388 9020110388 9020112200 9020113025 9020113025 9020113025 9020116172 9020116172 9044016007 9044016007 9044016007 9044016025 9095001578 9161961230 9161961230 9161961230 9165160825 9359015012 9418401000 9418401001 9418401001 9418461001 9418461200 9418461200 9418461200 9454201000
Part # Description Qty Price
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37020

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,RZU100..02S,05S,06S

 2
52201-37020

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182..02S,05S,06S

 2
52201-37020

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130

 2
52201-37020

RZU100..06S

 2
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37020

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,RZU100..02S,05S,06S

 2
52201-37020

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182..02S,05S,06S

 2
52201-37020

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130

 2
52201-37020

RZU100..06S

 2
52203C - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-36040

BU10#,142,147,212,RZU100..06S,07S

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52203-37010

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,212,RZU100..02S,05S,06S,07S

 2
52203-37010

RZU100..06S

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52203-37010

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,212,RZU100..02S,05S,06S,07S

 2
52203-37010

RZU100..06S

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52203-37010

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,212,RZU100..02S,05S,06S,07S

 2
52203-37010

RZU100..06S

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52203-37010

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,212,RZU100..02S,05S,06S,07S

 2
52203-37010

RZU100..06S

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52203-37010

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,212,RZU100..02S,05S,06S,07S

 2
52203-37010

RZU100..06S

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-36011

BU10#,142,147,212,RZU100..06S,07S

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-36011

BU10#,142,147,212,RZU100..06S,07S

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-36011

BU10#,142,147,212,RZU100..06S,07S

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-36011

BU10#,142,147,212,RZU100..06S,07S

 2
52211G - SPACER, CAB FRONT MOUNTING
52211-36020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
52211-36020

RZU100,140

 1
52222A - SPACER, CAB REAR MOUNTING, UPPER
52222-36030

BU12#;BU10#,142,147,212,297,RZU100..05S,06S,07S

 2
54925 - RETAINER, TILT CAB SPRING
54926-37010

BU132..T3,T4;BU100,102,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

左側

 1
54925-37020

BU132..T3,T4;BU100,102,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

右側

 1
Common parts
90101-10149
90101-10463
90105-12072
90109-10076
90119-10350
90179-10015
90179-10036
90201-10012
90201-10203
90201-10388
90201-12200
90201-13025
90201-16172
90440-16007
90440-16025
90950-01578
91619-61230
91651-60825
93590-15012
94184-01000
94184-01001
94184-61001
94184-61200
94542-01000

(9505- )BU120 ; (9505- )BU132..T3,T4 ; (9505- )BU10#,112,122,137,14#,162,1

Click highlighted areas on diagram

diagram 52201B 52201B 52203D 52203D 52203D 52211G 52216A 52222A 52222D 52306A 52307A 52313 52367 53825B 54907 54910 54915 54916 54920 54925 54970 54970 54980 54990 58954 58959 9010508094 9010510086 9010512072 9010910076 9010910161 9011908885 9015350013 9017008125 9020110012 9020112200 9020113025 9020113025 9020116172 9046816142 9050825002 9050825002 91611G0612 9161561245 9161961230 9161961230 9161961230 9165160825 9418401201 9418401201 9418461001 9453101000
Part # Description Qty Price
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37020

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,RZU100..02S,05S,06S

 2
52201-37020

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182..02S,05S,06S

 2
52201-37020

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130

 2
52201-37020

RZU100..06S

 2
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37020

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,RZU100..02S,05S,06S

 2
52201-37020

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182..02S,05S,06S

 2
52201-37020

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130

 2
52201-37020

RZU100..06S

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52203-37010

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,212,RZU100..02S,05S,06S,07S

 2
52203-37010

RZU100..06S

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52203-37010

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,212,RZU100..02S,05S,06S,07S

 2
52203-37010

RZU100..06S

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52203-37010

BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,212,RZU100..02S,05S,06S,07S

 2
52203-37010

RZU100..06S

 2
52211G - SPACER, CAB FRONT MOUNTING
52211-36020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
52211-36020

RZU100,140

 1
52222A - SPACER, CAB REAR MOUNTING, UPPER
52222-36030

BU12#;BU10#,142,147,212,297,RZU100..05S,06S,07S

 2
54925 - RETAINER, TILT CAB SPRING
54926-37010

BU132..T3,T4;BU100,102,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

左側

 1
54925-37020

BU132..T3,T4;BU100,102,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

右側

 1
Common parts
90105-08094
90105-10086
90105-12072
90109-10076
90109-10161
90119-08885
90153-50013
90170-08125
90201-10012
90201-12200
90201-13025
90201-16172
90468-16142
90508-25002
91611-G0612
91615-61245
91619-61230
91651-60825
94184-01201
94184-61001
94531-01000
