BU297-PKPLW3 (1997)

Toyota Dyna 200/Toyoace G25

Production Jan 1997 - May 1999
Engine 15BFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9701- )BU297

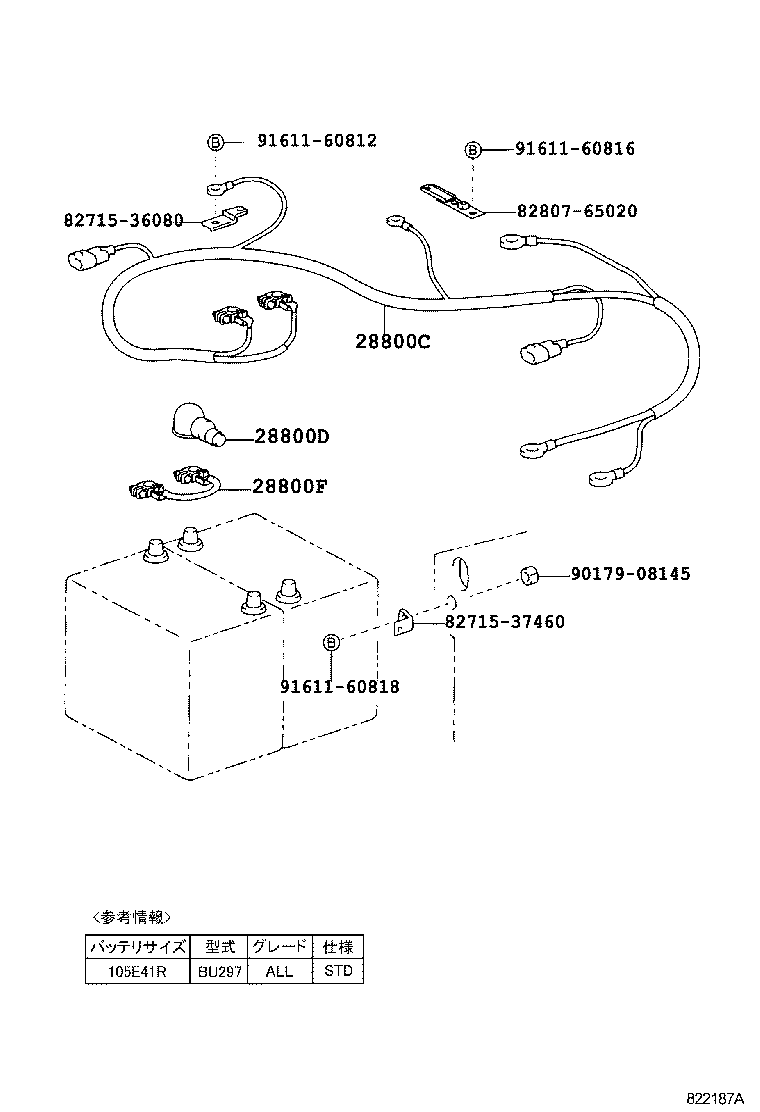

Click highlighted areas on diagram

diagram 28800C 28800D 28800F 8271536080 8271537460 8280765020 9017908145 9161160812 9161160816 9161160818
Part # Description Qty Price
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-37740

15BFT..BU297

ｼﾖｳﾎﾞｳｼﾔ

 1
82021-37730

15BFT..BU297

 1
28800F - CABLE, BATTERY TO BATTERY
82123-37010

J05C,15BFT,15BF,3B..BU10#,112,13#,14#,162,172,182,202,212,222,297,XZU130,140

 1
Common parts
82715-36080
82715-37460
82807-65020
90179-08145
91611-60812
91611-60816
91611-60818
