BU297-PKPLW3 (1997)

Toyota Dyna 200/Toyoace G25

Production Jan 1997 - May 1999
Engine 15BFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

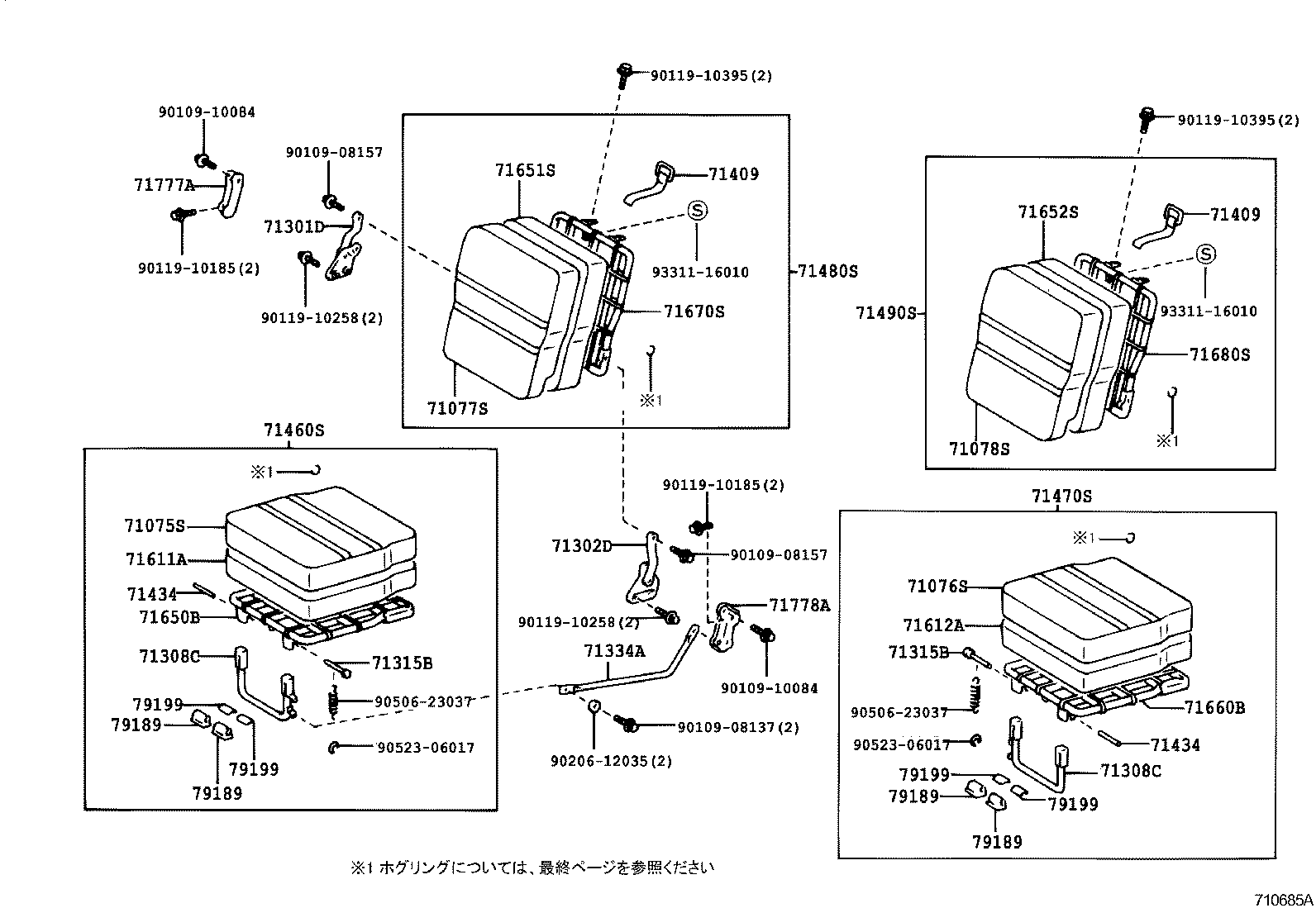

ILLUST NO. 3 OF 3(9701- )BU297

Click highlighted areas on diagram

diagram 71075S 71076S 71077S 71078S 71301D 71302D 71308C 71308C 71315B 71315B 71334A 71409 71409 71434 71434 71460S 71470S 71480S 71490S 71611A 71612A 71650B 71651S 71652S 71660B 71670S 71680S 71777A 71778A 79189 79189 79189 79189 79199 79199 79199 79199 9010908137 9010908157 9010908157 9010910084 9010910084 9011910185 9011910185 9011910258 9011910258 9011910395 9011910395 9020612035 9050623037 9050623037 9052306017 9052306017 9331116010 9331116010
Part # Description Qty Price
71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
71075-37170B0

BU297

BLUISH GRAY,TRIM1#

 1
71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
71075-37170B0

BU297

BLUISH GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-37150B0

BU297

BLUISH GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71077-37150B0

BU297

BLUISH GRAY,TRIM1#

 1
71301D - HINGE SUB-ASSY, REAR SEAT, RH
71301-95401

BU297

 2
71302D - HINGE SUB-ASSY, REAR SEAT, LH
71302-95401

BU297

 2
71308C - LEG SUB-ASSY, REAR SEAT, FRONT
71308-37020

BU297

 2
71308C - LEG SUB-ASSY, REAR SEAT, FRONT
71308-37020

BU297

 2
71315B - PIN, REAR SEAT HINGE
71315-95011

BU102..TW4;BU100,105,107,142,147,172,212,297,RZU100..05S,06S,07S

 2
71315B - PIN, REAR SEAT HINGE
71315-95011

BU102..TW4;BU100,105,107,142,147,172,212,297,RZU100..05S,06S,07S

 2
71334A - STOPPER, REAR SEAT LEG
71334-37010

BU297

 2
71409 - STOPPER SUB-ASSY, REAR SEAT BACK
71409-37010

BU297

 2
71409 - STOPPER SUB-ASSY, REAR SEAT BACK
71409-37010

BU297

 2
71434 - PIN, REAR SEAT CUSHION LEG, REAR
71434-95701

BU297

 2
71434 - PIN, REAR SEAT CUSHION LEG, REAR
71434-95701

BU297

 2
71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)
71460-37210B0

BU297

***,BLUISH GRAY,TRIM1#

 1
71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71460-37210B0

BU297

***,BLUISH GRAY,TRIM1#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-37150B0

BU297

***,BLUISH GRAY,TRIM1#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71480-37150B0

BU297

***,BLUISH GRAY,TRIM1#

 1
71611A - PAD, REAR SEAT CUSHION, RH
71611-37020

BU297

 1
71612A - PAD, REAR SEAT CUSHION, LH
71611-37020

BU297

 1
71650B - SPRING ASSY, REAR SEAT CUSHION, RH
71650-37010

BU297

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-37010

BU297

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71651-37010

BU297

 1
71660B - SPRING ASSY, REAR SEAT CUSHION, LH
71650-37010

BU297

 1
71670S - SPRING ASSY, REAR SEAT BACK, RH(FOR SEPARATE SEAT)
71670-37010

BU297

 1
71680S - SPRING ASSY, REAR SEAT BACK, LH(FOR SEPARATE SEAT)
71670-37010

BU297

 1
71777A - PLATE, REAR SIDE SEAT HINGE, LOWER RH
71777-95400

BU297

 2
71778A - PLATE, REAR SIDE SEAT HINGE, LOWER LH
71778-95400

BU297

 2
79189 - STOPPER, NO.1 SEAT LEG
79189-95J00

BU297

 4
79189 - STOPPER, NO.1 SEAT LEG
79189-95J00

BU297

 4
79189 - STOPPER, NO.1 SEAT LEG
79189-95J00

BU297

 4
79189 - STOPPER, NO.1 SEAT LEG
79189-95J00

BU297

 4
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

BU297

 4
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

BU297

 4
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

BU297

 4
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

BU297

 4
Common parts
90109-08137
90109-08157
90109-10084
90119-10185
90119-10258
90119-10395
90206-12035
90506-23037
90523-06017
93311-16010
