BU297-PKPLW3 (1997)

Toyota Dyna 200/Toyoace G25

Production Jan 1997 - May 1999
Engine 15BFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9701- )BU297

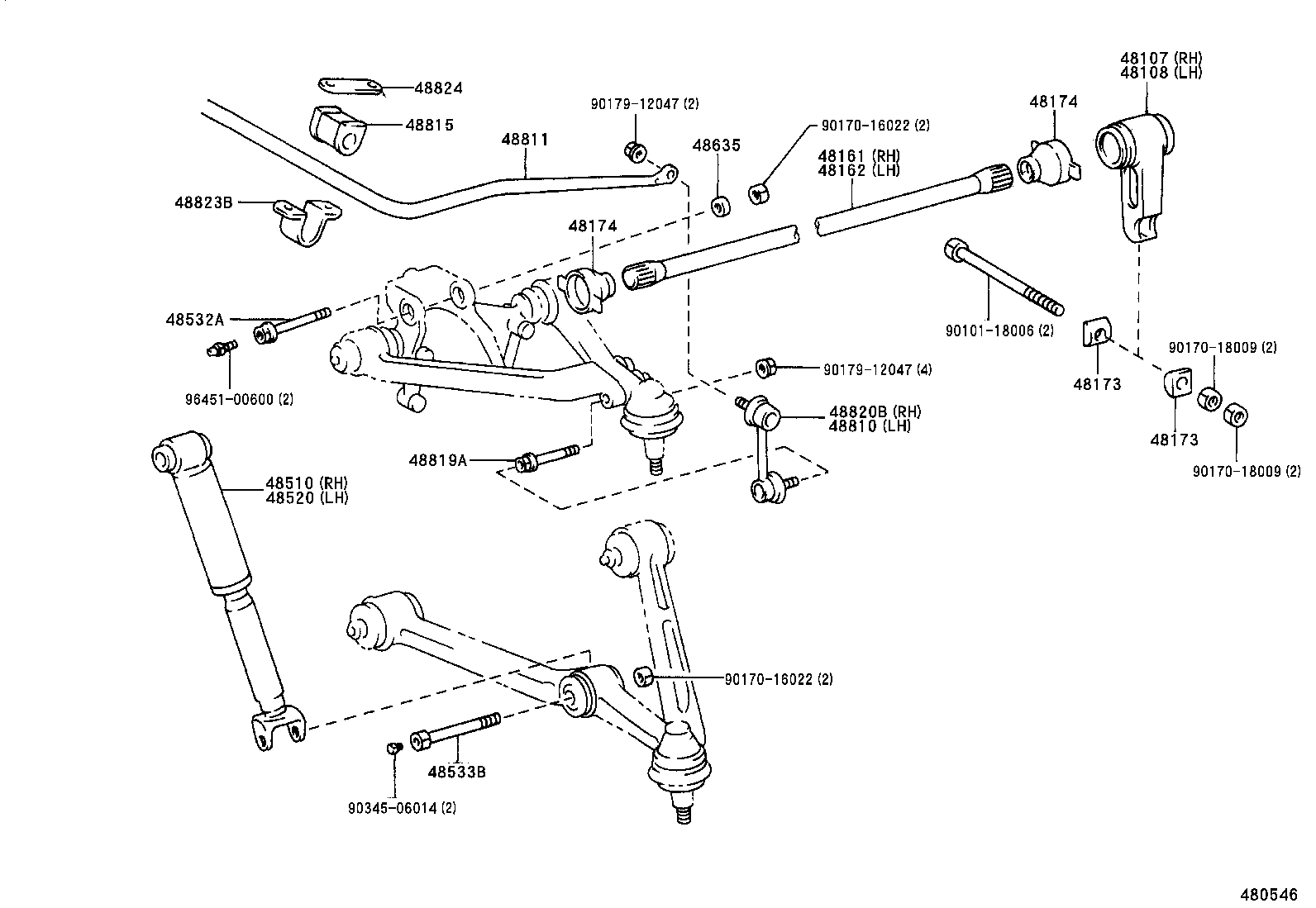

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48173 48173 48174 48174 48510 48520 48532A 48533B 48635 48810 48811 48815 48819A 48820B 48823B 48824 9010118006 9017016022 9017016022 9017018009 9017018009 9017912047 9017912047 9034506014 9645100600
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-65010

BU297

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-65010

BU297

 1
48161 - SPRING, TORSION BAR, RH
48161-37050

BU297

ｱﾘ(ﾊﾟﾜｰ ﾃｲｸ ｵﾌ)

 1
48161-37030

BU297

 1
48162 - SPRING, TORSION BAR, LH
48162-37030

BU297

 1
48162-37050

BU297

ｱﾘ(ﾊﾟﾜｰ ﾃｲｸ ｵﾌ)

 1
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-36010

BU297

 4
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-36010

BU297

 4
48174 - COVER, TORSION BAR DUST
48174-65010

BU297

 4
48174 - COVER, TORSION BAR DUST
48174-65010

BU297

 4
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-65010

BU297

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-65010

BU297

 1
48532A - PIN, FRONT SHOCK ABSORBER UPPER PIVOT
48532-65010

BU297

 2
48533B - PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48533-65010

BU297

 2
48635 - BUSH, UPPER ARM, REAR
48635-65010

BU297

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48840-65010

BU297

 1
48811 - BAR, STABILIZER, FRONT
48811-37030

BU297

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-65020

BU297

 2
48819A - BOLT, FRONT STABILIZER
48819-65010

BU297

 1
48820B - LINK ASSY, FRONT STABILIZER, RH
48830-65010

BU297

 1
48823B - COVER, FRONT STABILIZER BRACKET
48823-65020

BU297

 2
48824 - BRACKET, STABILIZER, FRONT
48824-65020

BU297

 2
Common parts
90101-18006
90170-16022
90170-18009
90179-12047
90345-06014
96451-00600
