BU297-PKPLW3 (1997)

Toyota Dyna 200/Toyoace G25

Production Jan 1997 - May 1999
Engine 15BFT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9701-9905)BU297

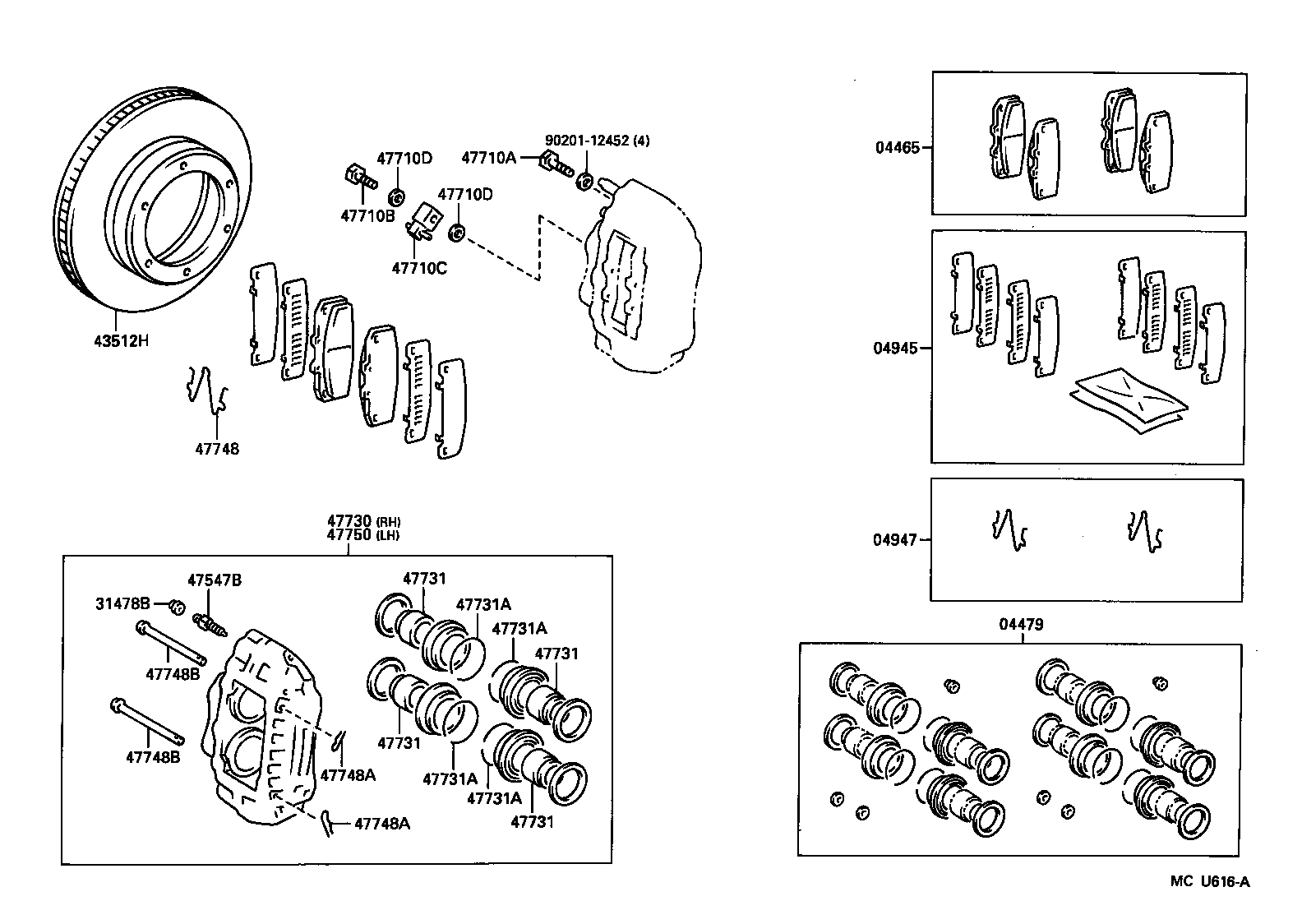

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 43512H 47547B 47710A 47710B 47710C 47710D 47710D 47730 47731 47731 47731 47731 47731A 47731A 47731A 47731A 47748 47748A 47748A 47748B 47748B 47750 9020112452
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-65010

BU297

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-60020

BU297

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-35040

BU297

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-60040

BU297

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

BU212..T3..TD..IV3..5F;BU212..(T4,TW1,TW4)..IV3..5F;BU212..(T3,T4,TW1,TW4)..CBU..5F;BU212..(T3,T4,TW1,TW4)..(4FC,6F);BU105,107,112,13#,145,147,202,222,297,RZU140..T2,T3,T4,TW1,TW4;BU100,102,140,142,RZU100..(DM6,T3,T4,T5,TW1,TW4)..WT..(CBU,IV3)

 2
43512H - DISC, FRONT
43512-65010

BU297

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

BU142..30T..5F;BU142..(T4,TW4)..5F;BU212..T3..TD..IV3..5F;BU142..T3..20T..CBU..5F;BU212..(T4,TW1,TW4)..IV3..5F;BU212..(T3,T4,TW1,TW4)..CBU..5F;BU142,212..(T3,T4,TW1,TW4)..(4FC,6F);BU100,102,140,RZU100..(DM6,T3,T4,T5,TW1,TW4)..WT..(CBU,IV3);BU105,107,112,13#,145,147,202,222,297,RZU140..T2,T3,T4,TW1,TW4

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12144

BU297

*12−1.25PX38−23

 4
47710B - BOLT, UNION(FOR FRONT DISC BRAKE CALIPER)
90401-10047

BU297

 2
47710C - UNION(FOR FRONT DISC BRAKE CALIPER)
90904-05001

BU297

 2
47710D - GASKET(FOR FRONT DISC BRAKE CALIPER UNION)
90430-10074

BU297

 4
47710D - GASKET(FOR FRONT DISC BRAKE CALIPER UNION)
90430-10074

BU297

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-36050

BU297

 1
47731 - PISTON, FRONT DISC BRAKE
47731-60010

BU297

 8
47731 - PISTON, FRONT DISC BRAKE
47731-60010

BU297

 8
47731 - PISTON, FRONT DISC BRAKE
47731-60010

BU297

 8
47731 - PISTON, FRONT DISC BRAKE
47731-60010

BU297

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-50003

BU297

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-50003

BU297

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-50003

BU297

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-50003

BU297

 8
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60020

BU297

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12024

BU297

 4
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12024

BU297

 4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06014

BU297

 4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06014

BU297

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-36050

BU297

 1
Common parts
90201-12452
