BU297-PKPLW3 (1997)
Toyota Dyna 200/Toyoace G25

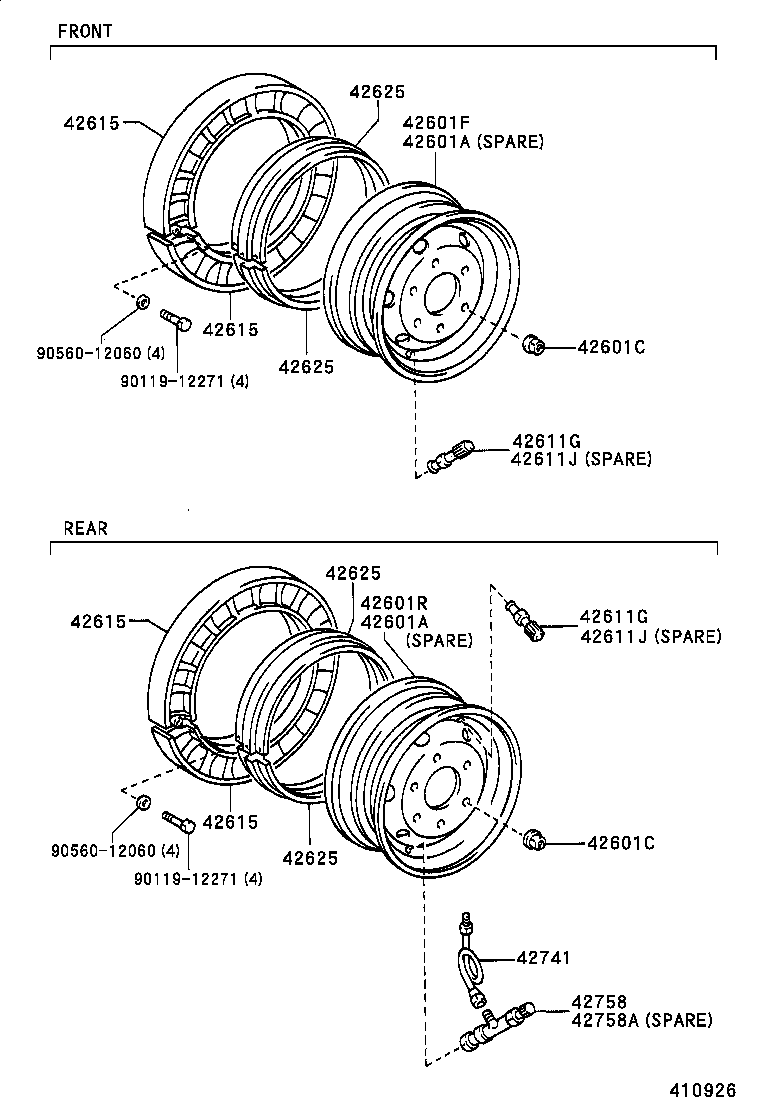

ILLUST NO. 1 OF 4(9701- )BU297
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-65030 |
BU297 17.5X8.25,ｱﾘ(ﾀｲﾔ ｲﾝｻ-ﾄ & ﾘﾔ ﾀｲﾔ ｸｳｷｱﾂ ﾁﾖｳｾｲｿｳﾁ) |
1 | ||
| 42601-65020 |
BU297 17.5X8.25,ｱﾘ(ﾀｲﾔ ｲﾝｻ-ﾄ) |
1 | ||
| 42601-65040 |
BU297 17.5X8.25 |
1 | ||
| 42601-65050 |
BU297 17.5X8.25,ｱﾘ(ﾘﾔ ﾀｲﾔ ｸｳｷｱﾂ ﾁﾖｳｾｲｿｳﾁ) |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-65030 |
BU297 17.5X8.25,ｱﾘ(ﾀｲﾔ ｲﾝｻ-ﾄ & ﾘﾔ ﾀｲﾔ ｸｳｷｱﾂ ﾁﾖｳｾｲｿｳﾁ) |
1 | ||
| 42601-65020 |
BU297 17.5X8.25,ｱﾘ(ﾀｲﾔ ｲﾝｻ-ﾄ) |
1 | ||
| 42601-65040 |
BU297 17.5X8.25 |
1 | ||
| 42601-65050 |
BU297 17.5X8.25,ｱﾘ(ﾘﾔ ﾀｲﾔ ｸｳｷｱﾂ ﾁﾖｳｾｲｿｳﾁ) |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90179-20021 |
BU297 左側 |
12 | ||
| 90179-20020 |
BU297 右側 |
12 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90179-20021 |
BU297 左側 |
12 | ||
| 90179-20020 |
BU297 右側 |
12 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-65040 |
BU297 17.5X8.25 |
2 | ||
| 42601-65020 |
BU297 17.5X8.25,ｱﾘ(ﾀｲﾔ ｲﾝｻ-ﾄ) |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-65040 |
BU297 17.5X8.25 |
2 | ||
| 42601-65030 |
BU297 17.5X8.25,ｱﾘ(ﾀｲﾔ ｲﾝｻ-ﾄ & ﾘﾔ ﾀｲﾔ ｸｳｷｱﾂ ﾁﾖｳｾｲｿｳﾁ) |
2 | ||
| 42601-65050 |
BU297 17.5X8.25,ｱﾘ(ﾘﾔ ﾀｲﾔ ｸｳｷｱﾂ ﾁﾖｳｾｲｿｳﾁ) |
2 | ||
| 42601-65020 |
BU297 17.5X8.25,ｱﾘ(ﾀｲﾔ ｲﾝｻ-ﾄ) |
2 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05023 |
BU297 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05023 |
BU297 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05023 |
BU297 |
1 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05023 |
BU297 |
1 | ||
| 42615 - INSERT, TIRE | ||||
| 42615-65010 |
BU297 |
10 | ||
| 42615 - INSERT, TIRE | ||||
| 42615-65010 |
BU297 |
10 | ||
| 42615 - INSERT, TIRE | ||||
| 42615-65010 |
BU297 |
10 | ||
| 42615 - INSERT, TIRE | ||||
| 42615-65010 |
BU297 |
10 | ||
| 42625 - SPACER, TIRE INSERT | ||||
| 42625-65010 |
BU297 |
10 | ||
| 42625 - SPACER, TIRE INSERT | ||||
| 42625-65010 |
BU297 |
10 | ||
| 42625 - SPACER, TIRE INSERT | ||||
| 42625-65010 |
BU297 |
10 | ||
| 42625 - SPACER, TIRE INSERT | ||||
| 42625-65010 |
BU297 |
10 | ||
| 42741 - TUBE, TIRE AIR CONTROL, NO.1 | ||||
| 42741-65010 |
BU297 |
2 | ||
| 42758 - VALVE, TIRE AIR CONTROL | ||||
| 42758-65010 |
BU297 |
2 | ||
| 42758A - VALVE, TIRE AIR CONTROL | ||||
| 42758-65020 |
BU297 |
1 | ||
| Common parts | ||||
| 90119-12271 | ||||
| 90560-12060 | ||||
