BU202-TQMMS3 (1995)
Toyota Dyna 200/Toyoace G25

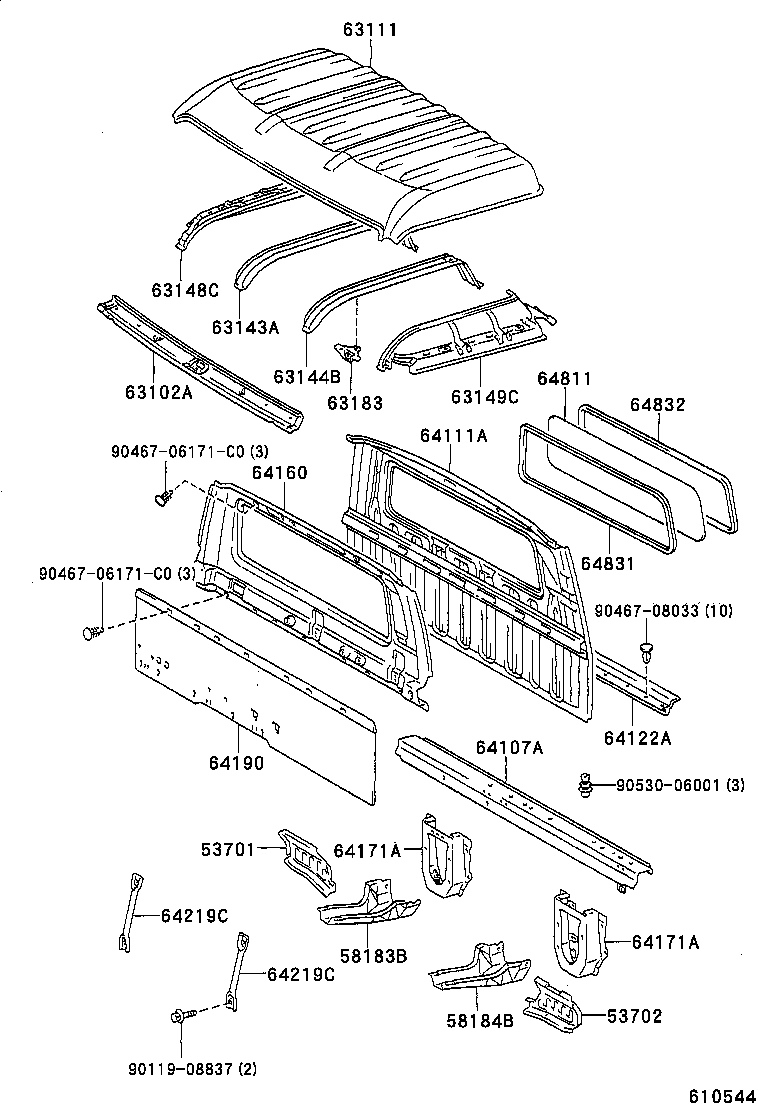

ILLUST NO. 1 OF 2(9505- )BU202,212,222..03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-37030 |
BU202,212,222..03S |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-37030 |
BU202,212,222..03S |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37030 |
BU202,212,222..03S |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37030 |
BU202,212,222..03S |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-37040 |
BU202,212,222,297 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37090 |
BU202,212,222..03S |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-37010 |
BU202,212,222..03S |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-37010 |
BU202,212,222..03S |
1 | ||
| 63148C - REINFORCEMENT, ROOF PANEL SIDE, RH | ||||
| 63148-37010 |
BU202,212,222..03S |
1 | ||
| 63149C - REINFORCEMENT, ROOF PANEL SIDE, LH | ||||
| 63149-37010 |
BU202,212,222..03S |
1 | ||
| 63183 - BRACKET, ROOF CONSOLE, FRONT | ||||
| 63183-37020 |
BU202,212,222..03S |
2 | ||
| 64107A - FRAME SUB-ASSY, BACK | ||||
| 64107-37270 |
BU202,212,222..03S..DSL ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ & ｼﾞﾖｼﾕ ｾｷ) |
1 | ||
| 64107-37171 |
BU202,212,222..03S..DSL |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-37231 |
BU202,212,222..03S..DSL ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ=ﾄﾞﾗｲﾊﾞ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 64100-37340 |
BU202,212,222..03S..DSL |
1 | ||
| 64100-37241 |
BU202,212,222..03S..DSL ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ & ｼﾞﾖｼﾕ ｾｷ & ｼﾂﾅｲ ｹｲｺｳ ﾄｳ) |
1 | ||
| 64100-37232 |
BU202,212,222..03S..DSL ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ=ﾄﾞﾗｲﾊﾞ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 64100-37242 |
BU202,212,222..03S..DSL ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ & ｼﾞﾖｼﾕ ｾｷ & ｼﾂﾅｲ ｹｲｺｳ ﾄｳ) |
1 | ||
| 64100-37032 |
BU202,212,222..03S..DSL ｶｽﾀﾑ B & ｱﾘ(ｼﾂﾅｲ ｹｲｺｳﾄｳ) |
1 | ||
| 64100-37341 |
BU202,212,222..03S..DSL |
1 | ||
| 64100-37351 |
BU202,212,222..03S..DSL ｱﾘ(ｼﾂﾅｲ ｹｲｺｳ ﾄｳ) |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-37050 |
BU202,212,222 |
1 | ||
| 64160 - SILENCER ASSY, BACK PANEL, UPPER | ||||
| 64160-37010B0 |
BU202,212,222..03S ｶｽﾀﾑ B,LT.GRAY,TRIM1# |
1 | ||
| 64160-37070B0 |
BU202,212,222..03S..(4FC,5F) ｶｽﾀﾑ B,LT. GRAY,TRIM1# |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU202,212,222..03S 右側 |
1 | ||
| 64026-37030 |
BU202,212,222..03S 左側 |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU202,212,222..03S 右側 |
1 | ||
| 64026-37030 |
BU202,212,222..03S 左側 |
1 | ||
| 64190 - SILENCER ASSY, BACK PANEL | ||||
| 64190-37170B0 |
BU202,212,222..03S..(4FC,5F) ｶｽﾀﾑ B,BLUISH GRAY,TRIM1# |
1 | ||
| 64190-37180 |
BU202,212,222..03S ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 64190-37110 |
BU202,212,222..03S |
1 | ||
| 64219C - STAY, BACK PANEL | ||||
| 64219-37010 |
BU202,212,222..03S |
2 | ||
| 64219C - STAY, BACK PANEL | ||||
| 64219-37010 |
BU202,212,222..03S |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95410 |
BU202,212,222;BU10#,142,172,RZU100..05S,06S *TEM,厚さ=3.5 |
1 | ||
| 64811-37040 |
BU202,212,222..03S..20T *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37050 |
BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-37040 |
BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| Common parts | ||||
| 90119-08837 | ||||
| 90467-06171C0 | ||||
| 90467-08033 | ||||
| 90530-06001 | ||||
ILLUST NO. 2 OF 2(9505- )BU100,105,107,112,13#,14#,162,172,182,202,212,222,RZU140..ALV,DM6,T1,T2,
ﾄﾖﾀGｶﾞﾀ OR ﾄﾖﾀHｶﾞﾀ OR ﾄﾖﾀJｶﾞﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63072 - DEFLECTOR SET, ROOF AIR | ||||
| 63072-37110 |
BU202,212,222..03S ***,L GATA |
1 | ||
| 63072-37110 |
BU202,212,222..03S ***,L GATA |
1 | ||
| 63072-37080 |
BU202,212,222..03S ***,J2 GATA |
1 | ||
| 63072-37080 |
BU202,212,222..03S ***,J2 GATA |
1 | ||
| 63072-37090 |
BU202,212,222..03S ***,J3 GATA |
1 | ||
| 63072-37090 |
BU202,212,222..03S ***,J3 GATA |
1 | ||
| 63072-37070 |
BU202,212,222..03S ***,J1 GATA |
1 | ||
| 63072-37070 |
BU202,212,222..03S ***,J1 GATA |
1 | ||
| 63760 - PANEL ASSY, ROOF AIR DEFLECTOR | ||||
| 63760-37110 |
BU202,212,222..03S D GATA |
1 | ||
| 63760-37110 |
BU202,212,222..03S D GATA |
1 | ||
| 63760-37090 |
BU202,212,222..03S J3 GATA |
1 | ||
| 63760-37090 |
BU202,212,222..03S J3 GATA |
1 | ||
| 63760-37080 |
BU202,212,222..03S J2 GATA |
1 | ||
| 63760-37080 |
BU202,212,222..03S J2 GATA |
1 | ||
| 63760-37070 |
BU202,212,222..03S J1 GATA |
1 | ||
| 63760-37070 |
BU202,212,222..03S J1 GATA |
1 | ||
| 63763A - BRACKET, ROOF AIR DEFLECTOR, FRONT RH | ||||
| 63763-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63763-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63764A - BRACKET, ROOF AIR DEFLECTOR, FRONT LH | ||||
| 63764-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63764-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63767 - BRACKET, ROOF AIR DEFLECTOR, REAR RH | ||||
| 63767-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63767-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63768A - BRACKET, ROOF AIR DEFLECTOR, REAR LH | ||||
| 63768-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63768-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63769 - BRACKET, ROOF AIR DEFLECTOR CLAMP | ||||
| 63769-37030 |
BU202,212,222..03S |
4 | ||
| 63769-37030 |
BU202,212,222..03S |
4 | ||
| 63773A - HOLDER, ROOF AIR DEFLECTOR, REAR | ||||
| 63773-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..T2,T3,T4 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
4 | ||
| 63773-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..T2,T3,T4 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
4 | ||
| 63782 - SEAL, ROOF AIR DEFLECTOR | ||||
| 63782-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..T2,T3,T4 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 63782-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..T2,T3,T4 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 63787 - PAD, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63787-95400 |
BU212..30T;BU202,212,222,RZU100..TR..03S..(DSL,LPGB,TD)..(4FC,5F) D GATA |
4 | ||
| 63787-95400 |
BU212..30T;BU202,212,222,RZU100..TR..03S..(DSL,LPGB,TD)..(4FC,5F) D GATA |
4 | ||
| 63787-37030 |
BU202,212,222..03S J GATA |
4 | ||
| 63787-37030 |
BU202,212,222..03S J GATA |
4 | ||
| 63789 - PAD, ROOF AIR DEFLECTOR, NO.3 | ||||
| 63789-95400 |
BU212..30T;BU202,212,222,RZU100..TR..03S..(DSL,LPGB,TD)..(4FC,5F) D GATA |
2 | ||
| 63789-95400 |
BU212..30T;BU202,212,222,RZU100..TR..03S..(DSL,LPGB,TD)..(4FC,5F) D GATA |
2 | ||
| 63789-37010 |
BU202,212,222..03S..(4FC,5F) J GATA |
4 | ||
| 63789-37010 |
BU202,212,222..03S..(4FC,5F) J GATA |
4 | ||
| 63789A - PAD, ROOF AIR DEFLECTOR, NO.3 | ||||
| 63789-37020 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
4 | ||
| 63789-37020 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
4 | ||
| 63789B - PAD, ROOF AIR DEFLECTOR, NO.3 | ||||
| 63789-37030 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
4 | ||
| 63789-37030 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
4 | ||
| Common parts | ||||
| 90101-08078 | ||||
| 90269-05004 | ||||
| 91631-60825 | ||||
| 93382-16016 | ||||
| 94110-40800 | ||||
| 94511-40800 | ||||
| 94613-40500 | ||||
| 94613-40800 | ||||
| 94622-10800 | ||||
| Linked diagrams | ||||
| 7551 | ||||
ILLUST NO. 2 OF 2(9505- )BU100,105,107,112,13#,14#,162,172,182,202,212,222,RZU140..ALV,DM6,T1,T2,
ﾄﾖﾀCｶﾞﾀ OR ﾄﾖﾀDｶﾞﾀ OR ﾄﾖﾀLｶﾞﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63072 - DEFLECTOR SET, ROOF AIR | ||||
| 63072-37110 |
BU202,212,222..03S ***,L GATA |
1 | ||
| 63072-37110 |
BU202,212,222..03S ***,L GATA |
1 | ||
| 63072-37080 |
BU202,212,222..03S ***,J2 GATA |
1 | ||
| 63072-37080 |
BU202,212,222..03S ***,J2 GATA |
1 | ||
| 63072-37090 |
BU202,212,222..03S ***,J3 GATA |
1 | ||
| 63072-37090 |
BU202,212,222..03S ***,J3 GATA |
1 | ||
| 63072-37070 |
BU202,212,222..03S ***,J1 GATA |
1 | ||
| 63072-37070 |
BU202,212,222..03S ***,J1 GATA |
1 | ||
| 63701A - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, FRONT | ||||
| 63702-37030 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..02S,03S ｱﾘ(ﾊｲ ﾙ-ﾌ),左側 |
1 | ||
| 63702-37030 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..02S,03S ｱﾘ(ﾊｲ ﾙ-ﾌ),左側 |
1 | ||
| 63701-37030 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..02S,03S ｱﾘ(ﾊｲ ﾙ-ﾌ),右側 |
1 | ||
| 63701-37030 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..02S,03S ｱﾘ(ﾊｲ ﾙ-ﾌ),右側 |
1 | ||
| 63706 - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, REAR | ||||
| 63706-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
2 | ||
| 63706-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
2 | ||
| 63707B - HOLDER SUB-ASSY, ROOF AIR DEFLECTOR, FRONT RH | ||||
| 63707-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
1 | ||
| 63707-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
1 | ||
| 63708B - HOLDER SUB-ASSY, ROOF AIR DEFLECTOR, FRONT LH | ||||
| 63708-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
1 | ||
| 63708-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
1 | ||
| 63709A - HOLDER SUB-ASSY, ROOF DEFLECTOR, REAR | ||||
| 63709-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
2 | ||
| 63709-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
2 | ||
| 63760 - PANEL ASSY, ROOF AIR DEFLECTOR | ||||
| 63760-37110 |
BU202,212,222..03S D GATA |
1 | ||
| 63760-37110 |
BU202,212,222..03S D GATA |
1 | ||
| 63760-37090 |
BU202,212,222..03S J3 GATA |
1 | ||
| 63760-37090 |
BU202,212,222..03S J3 GATA |
1 | ||
| 63760-37080 |
BU202,212,222..03S J2 GATA |
1 | ||
| 63760-37080 |
BU202,212,222..03S J2 GATA |
1 | ||
| 63760-37070 |
BU202,212,222..03S J1 GATA |
1 | ||
| 63760-37070 |
BU202,212,222..03S J1 GATA |
1 | ||
| 63781 - STAY, ROOF AIR DEFLECTOR | ||||
| 63781-37020 |
BU102..275T,30T;BU132,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) ｱﾘ(ﾊｲ ﾙ-ﾌ) |
2 | ||
| 63781-37020 |
BU102..275T,30T;BU132,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) ｱﾘ(ﾊｲ ﾙ-ﾌ) |
2 | ||
| 63781-37020 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
2 | ||
| 63781-37020 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
2 | ||
| 63785A - PAD, ROOF AIR DEFLECTOR, FRONT RH | ||||
| 63785-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
1 | ||
| 63785-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
1 | ||
| 63786A - PAD, ROOF AIR DEFLECTOR, FRONT LH | ||||
| 63786-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
1 | ||
| 63786-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
1 | ||
| 63787 - PAD, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63787-95400 |
BU212..30T;BU202,212,222,RZU100..TR..03S..(DSL,LPGB,TD)..(4FC,5F) D GATA |
4 | ||
| 63787-95400 |
BU212..30T;BU202,212,222,RZU100..TR..03S..(DSL,LPGB,TD)..(4FC,5F) D GATA |
4 | ||
| 63787-37030 |
BU202,212,222..03S J GATA |
4 | ||
| 63787-37030 |
BU202,212,222..03S J GATA |
4 | ||
| 63788 - PAD, ROOF AIR DEFLECTOR, NO.2 | ||||
| 63788-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
2 | ||
| 63788-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
2 | ||
| 63789 - PAD, ROOF AIR DEFLECTOR, NO.3 | ||||
| 63789-95400 |
BU212..30T;BU202,212,222,RZU100..TR..03S..(DSL,LPGB,TD)..(4FC,5F) D GATA |
2 | ||
| 63789-95400 |
BU212..30T;BU202,212,222,RZU100..TR..03S..(DSL,LPGB,TD)..(4FC,5F) D GATA |
2 | ||
| 63789-37010 |
BU202,212,222..03S..(4FC,5F) J GATA |
4 | ||
| 63789-37010 |
BU202,212,222..03S..(4FC,5F) J GATA |
4 | ||
| Common parts | ||||
| 90101-08078 | ||||
| 90101-08106 | ||||
| 90170-08026 | ||||
| 90176-06040 | ||||
| 90179-05032 | ||||
| 90179-06091 | ||||
| 90201-08055 | ||||
| 90269-03025 | ||||
| 90950-01258 | ||||
| 90959-01214 | ||||
| 93219-15020 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8604 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
