BU182-TKMQS (1995)
Toyota Dyna 200/Toyoace G25

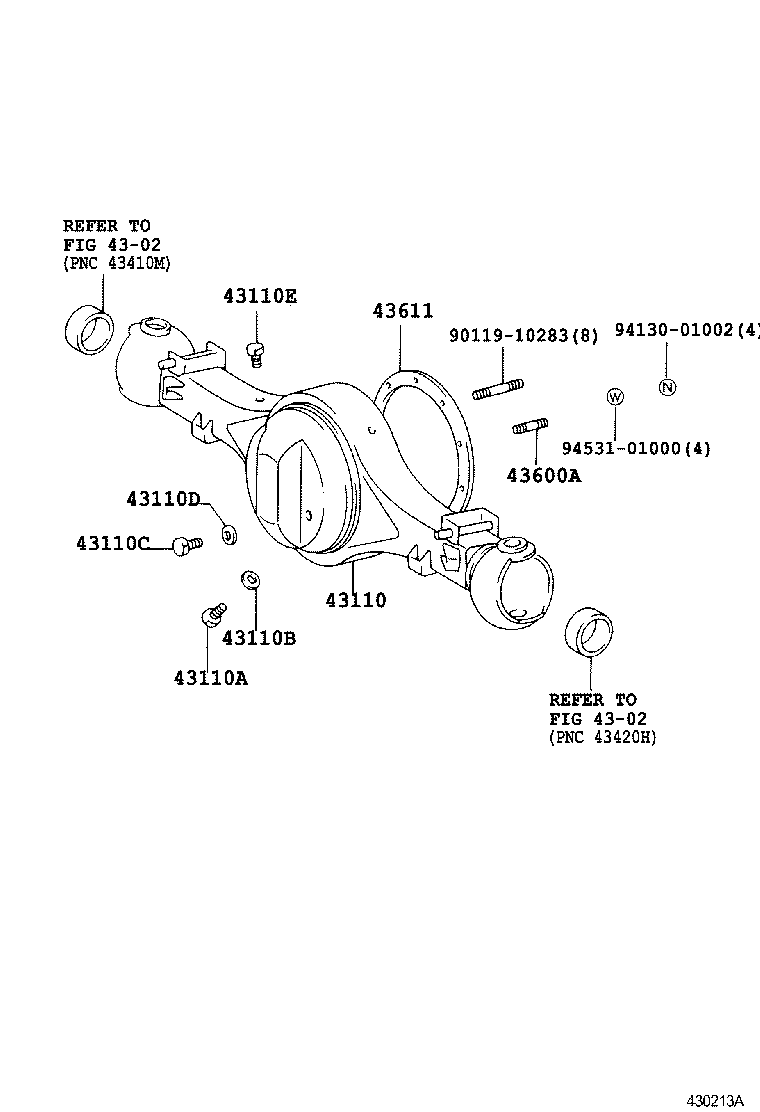

ILLUST NO. 2 OF 2(9505- )BU162,172,182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43110 - HOUSING ASSY, FRONT AXLE | ||||
| 43110-36050 |
BU162,172,182 |
1 | ||
| 43110A - PLUG SUB-ASSY, DRAIN | ||||
| 90341-18057 |
BU162,172,182 |
1 | ||
| 43110B - GASKET, DRAIN | ||||
| 12157-10010 |
BU162,172,182 |
1 | ||
| 43110C - PLUG (FOR FRONT AXLE HOUSING) | ||||
| 90341-18006 |
BU162,172,182 |
1 | ||
| 43110D - GASKET (FOR FRONT AXLE HOUSING PLUG) | ||||
| 12157-10010 |
BU162,172,182 |
1 | ||
| 43110E - PLUG, BREATHER (FOR FRONT AXLE HOUSING) | ||||
| 90930-03031 |
BU162,172,182 |
1 | ||
| 43600A - BOLT, STUD (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING | ||||
| 90116-10082 |
BU162,172,182 ﾈｼﾞ部長さ=19&12.5,長さ43.5 |
4 | ||
| 43611 - GASKET, FRONT AXLE DIFFERENTIAL CARRIER | ||||
| 42181-36060 |
BU162,172,182 |
1 | ||
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 4302 | ||||

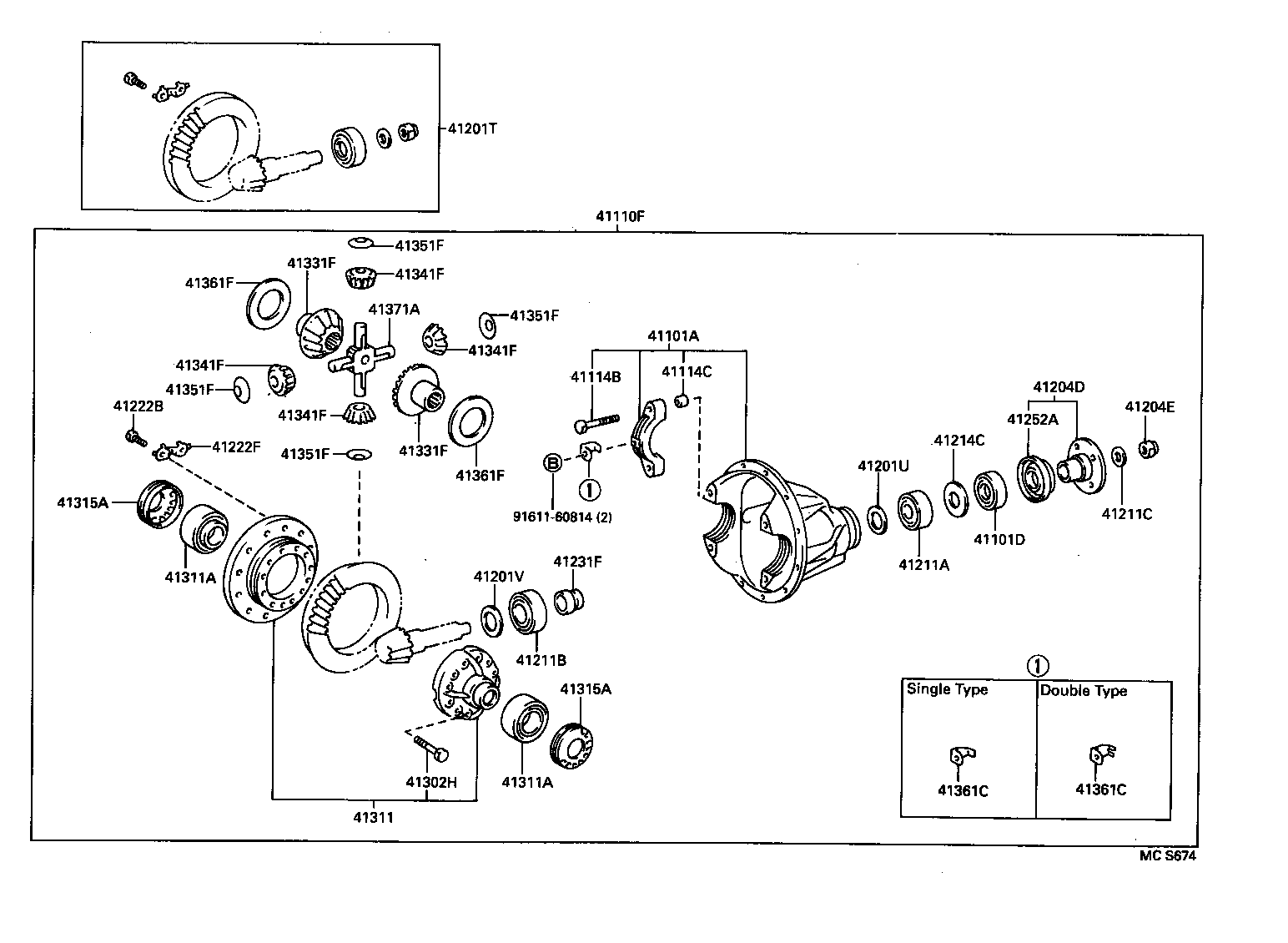

ILLUST NO. 1 OF 2(9505- )BU162,172,182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-36030 |
BU162,172,182 |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-48135 |
BU162,172,182 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-36540 |
BU162..DM7;BU172,182..30T *FGR=37:6=6.167 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-16022 |
BU162,172,182 |
4 | ||
| 41114C - PIN, RING, FRONT DIFFERENTIAL BEARING CAP BOLT | ||||
| 90253-21001 |
BU162,172,182 |
4 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-39785 |
BU162..DM7;BU172,182..30T *FGR=37:6=6.167 |
1 | ||
| 41201U - SHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35019 |
BU162,172,182 厚さ=1.80 |
1 | ||
| 90564-35020 |
BU162,172,182 厚さ=1.82 |
1 | ||
| 90564-35022 |
BU162,172,182 厚さ=1.86 |
1 | ||
| 90564-35021 |
BU162,172,182 厚さ=1.84 |
1 | ||
| 90564-35030 |
BU162,172,182 厚さ=2.50 |
1 | ||
| 90564-35023 |
BU162,172,182 厚さ=1.88 |
1 | ||
| 90564-35031 |
BU162,172,182 厚さ=2.60 |
1 | ||
| 90564-35024 |
BU162,172,182 厚さ=1.90 |
1 | ||
| 90564-35025 |
BU162,172,182 厚さ=2.00 |
1 | ||
| 90564-35029 |
BU162,172,182 厚さ=2.40 |
1 | ||
| 90564-35026 |
BU162,172,182 厚さ=2.10 |
1 | ||
| 90564-35028 |
BU162,172,182 厚さ=2.30 |
1 | ||
| 90564-35036 |
BU162,172,182 厚さ=1.81 |
1 | ||
| 90564-35027 |
BU162,172,182 厚さ=2.20 |
1 | ||
| 90564-35033 |
BU162,172,182 厚さ=2.80 |
1 | ||
| 90564-35035 |
BU162,172,182 厚さ=3.00 |
1 | ||
| 90564-35034 |
BU162,172,182 厚さ=2.90 |
1 | ||
| 90564-35032 |
BU162,172,182 厚さ=2.70 |
1 | ||
| 90564-35040 |
BU162,172,182 厚さ=1.89 |
1 | ||
| 90564-35038 |
BU162,172,182 厚さ=1.85 |
1 | ||
| 90564-35039 |
BU162,172,182 厚さ=1.87 |
1 | ||
| 90564-35037 |
BU162,172,182 厚さ=1.83 |
1 | ||
| 41201V - SHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90201-40551 |
BU162,172,182 厚さ=1.05 |
1 | ||
| 90201-40559 |
BU162,172,182 厚さ=1.45 |
1 | ||
| 90201-40552 |
BU162,172,182 厚さ=1.10 |
1 | ||
| 90201-40553 |
BU162,172,182 厚さ=1.15 |
1 | ||
| 90201-40557 |
BU162,172,182 厚さ=1.35 |
1 | ||
| 90201-40556 |
BU162,172,182 厚さ=1.30 |
1 | ||
| 90201-40554 |
BU162,172,182 厚さ=1.20 |
1 | ||
| 90201-40558 |
BU162,172,182 厚さ=1.40 |
1 | ||
| 90201-40555 |
BU162,172,182 厚さ=1.25 |
1 | ||
| 90201-40560 |
BU162,172,182 厚さ=1.50 |
1 | ||
| 90201-40561 |
BU162,172,182 厚さ=1.55 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-36050 |
BU162,172,182 |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-22003 |
BU162,172,182,297 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35023 |
BU162,172,182 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-40001 |
BU162,172,182 |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-23002 |
BU162,172,182 厚さ=4.5 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-36030 |
BU162,172,182 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-14315 |
BU162,172,182 |
12 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36020 |
BU162,172,182 |
6 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36040 |
BU162,172,182 |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-36010 |
BU162,172,182 |
1 | ||
| 41302H - BOLT(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-12087 |
BU162,172,182 |
12 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-36030 |
BU162,172,182 |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-52043 |
BU162,172,182 |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-52043 |
BU162,172,182 |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
BU162,172,182 |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
BU162,172,182 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-36020 |
BU162,172,182 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-36020 |
BU162,172,182 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-55012 |
BU162,172,182 |
4 | ||
| 41341-55013 |
BU162,172,182 |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-55012 |
BU162,172,182 |
4 | ||
| 41341-55013 |
BU162,172,182 |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-55012 |
BU162,172,182 |
4 | ||
| 41341-55013 |
BU162,172,182 |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-55012 |
BU162,172,182 |
4 | ||
| 41341-55013 |
BU162,172,182 |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BU162,172,182 |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BU162,172,182 |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BU162,172,182 |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BU162,172,182 |
4 | ||
| 41361C - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36011 |
BU162,172,182 DOUBLE TYPE |
2 | ||
| 41316-36011 |
BU162,172,182 SINGLE TYPE |
2 | ||
| 41361C - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36011 |
BU162,172,182 DOUBLE TYPE |
2 | ||
| 41316-36011 |
BU162,172,182 SINGLE TYPE |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60020 |
BU162,172,182 厚さ=1.75 |
2 | ||
| 41361-60030 |
BU162,172,182 厚さ=1.90 |
2 | ||
| 41361-60040 |
BU162,172,182 厚さ=2.05 |
2 | ||
| 41361-60010 |
BU162,172,182 厚さ=1.60 |
2 | ||
| 41361-60480 |
BU162,172,182 厚さ=1.55 |
2 | ||
| 41361-60031 |
BU162,172,182 厚さ=1.90 |
2 | ||
| 41361-60500 |
BU162,172,182 厚さ=1.70 |
2 | ||
| 41361-60011 |
BU162,172,182 厚さ=1.60 |
2 | ||
| 41361-60021 |
BU162,172,182 厚さ=1.75 |
2 | ||
| 41361-60490 |
BU162,172,182 厚さ=1.65 |
2 | ||
| 41361-60540 |
BU162,172,182 厚さ=2.00 |
2 | ||
| 41361-60550 |
BU162,172,182 厚さ=2.10 |
2 | ||
| 41361-60530 |
BU162,172,182 厚さ=1.95 |
2 | ||
| 41361-60041 |
BU162,172,182 厚さ=2.05 |
2 | ||
| 41361-60510 |
BU162,172,182 厚さ=1.80 |
2 | ||
| 41361-60520 |
BU162,172,182 厚さ=1.85 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60020 |
BU162,172,182 厚さ=1.75 |
2 | ||
| 41361-60030 |
BU162,172,182 厚さ=1.90 |
2 | ||
| 41361-60040 |
BU162,172,182 厚さ=2.05 |
2 | ||
| 41361-60010 |
BU162,172,182 厚さ=1.60 |
2 | ||
| 41361-60480 |
BU162,172,182 厚さ=1.55 |
2 | ||
| 41361-60031 |
BU162,172,182 厚さ=1.90 |
2 | ||
| 41361-60500 |
BU162,172,182 厚さ=1.70 |
2 | ||
| 41361-60011 |
BU162,172,182 厚さ=1.60 |
2 | ||
| 41361-60021 |
BU162,172,182 厚さ=1.75 |
2 | ||
| 41361-60490 |
BU162,172,182 厚さ=1.65 |
2 | ||
| 41361-60540 |
BU162,172,182 厚さ=2.00 |
2 | ||
| 41361-60550 |
BU162,172,182 厚さ=2.10 |
2 | ||
| 41361-60530 |
BU162,172,182 厚さ=1.95 |
2 | ||
| 41361-60041 |
BU162,172,182 厚さ=2.05 |
2 | ||
| 41361-60510 |
BU162,172,182 厚さ=1.80 |
2 | ||
| 41361-60520 |
BU162,172,182 厚さ=1.85 |
2 | ||
| 41371A - SPIDER, FRONT DIFFERENTIAL | ||||
| 41371-36011 |
BU162,172,182 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
