BU182-TKMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU162,172,182

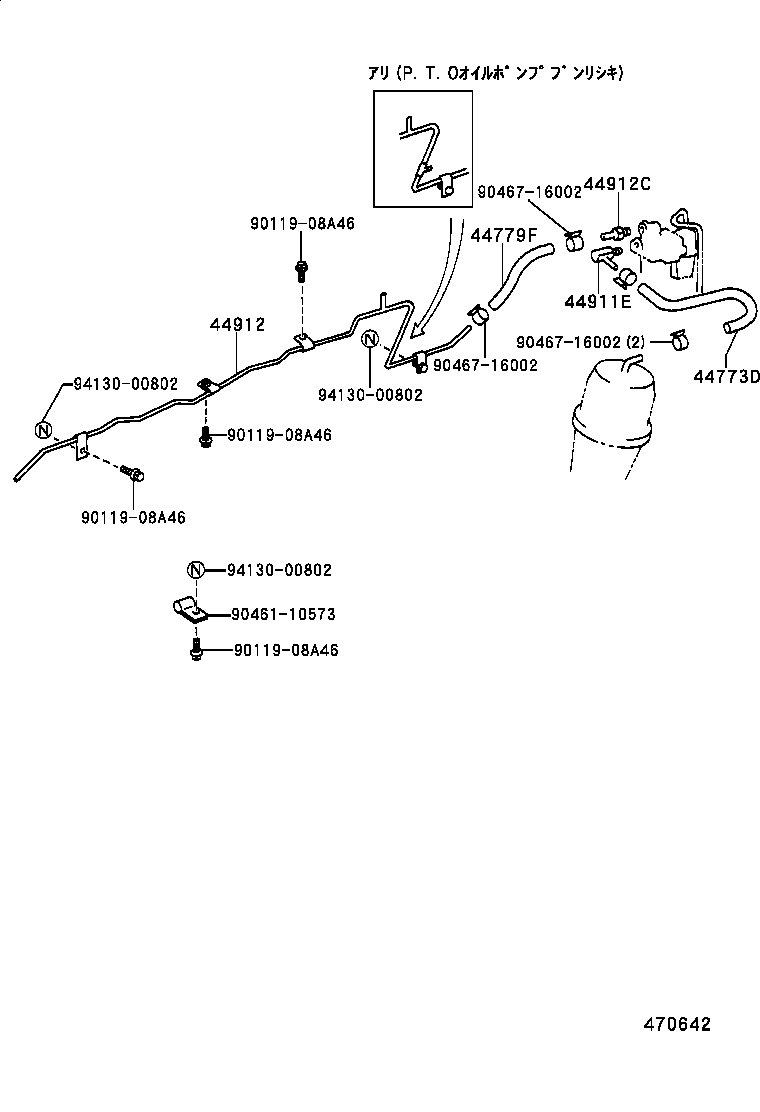

Click highlighted areas on diagram

diagram 44773D 44779F 44911E 44912 44912C 9011908A46 9011908A46 9011908A46 9011908A46 9046110573 9046716002 9046716002 9046716002 9413000802 9413000802 9413000802
Part # Description Qty Price
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36130

BU162,172,182

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36080

BU162,172,182

 1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU10#,112,12#,13#,14#,162,172,182,297..DSL,TD

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37080

BU162,172,182

 1
44912-37130

BU162..03S;BU172,182..T3

ｱﾘ(P.T.O ｵｲﾙ ﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU10#,112,12#,13#,14#,162,172,182..DSL

 1
Common parts
90119-08A46
90461-10573
90467-16002
94130-00802
