BU172-TQMMS3 (1997)
Toyota Dyna 200/Toyoace G25
(9505-9905)WT ; (9905- )T4..LPGB ; (9905-)BU10#,142,162,182,212
ｱﾘ(ｵ-ﾄｱｼﾞﾔｽﾀ)

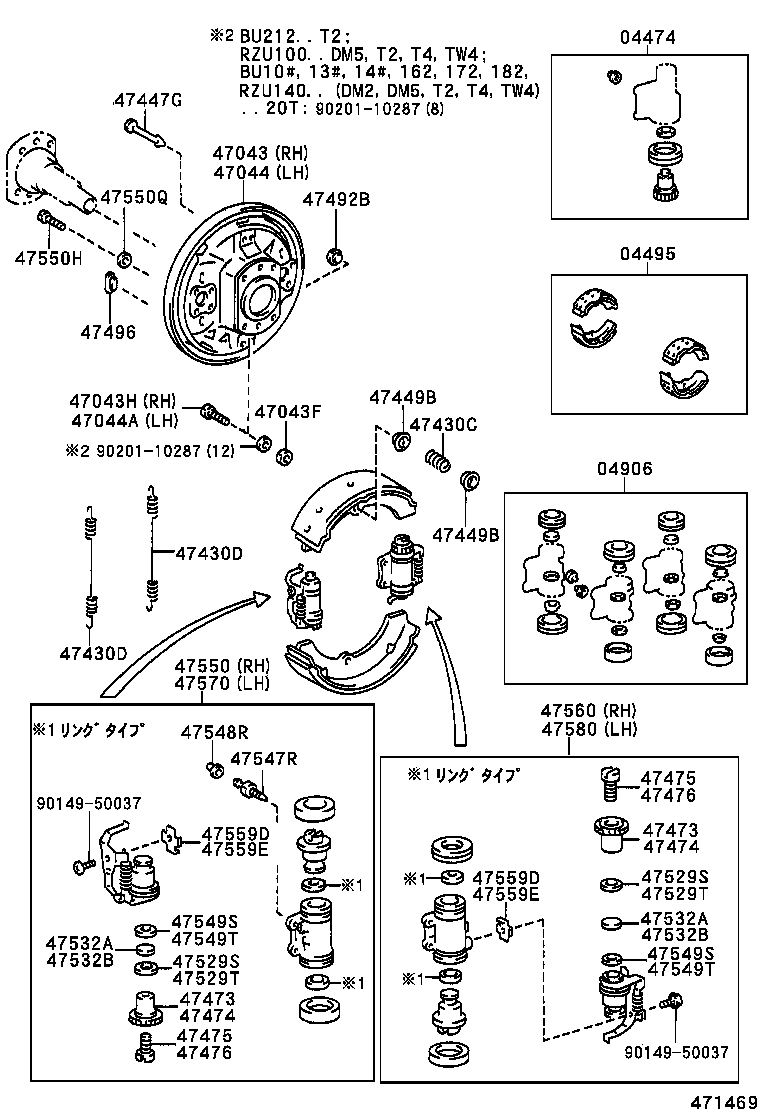

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36080 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F 右側 |
2 | ||
| 04474-36090 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F 左側 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36150 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
1 | ||
| 04496-36090 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T REBUILT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36200 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
8 | ||
| 90170-10178 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10019 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10019 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
BU212..T2;BU10#,13#,14#,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
BU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;BU10#,14#,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;BU10#,14#,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36191 |
BU212..T2..MTM;BU100,102,132,140,142,162,172,182,RZU100,140..(DM2,DM5,T2,T4,TW4)..20T..5F |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
