BU172-TKMQS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU162,172,182

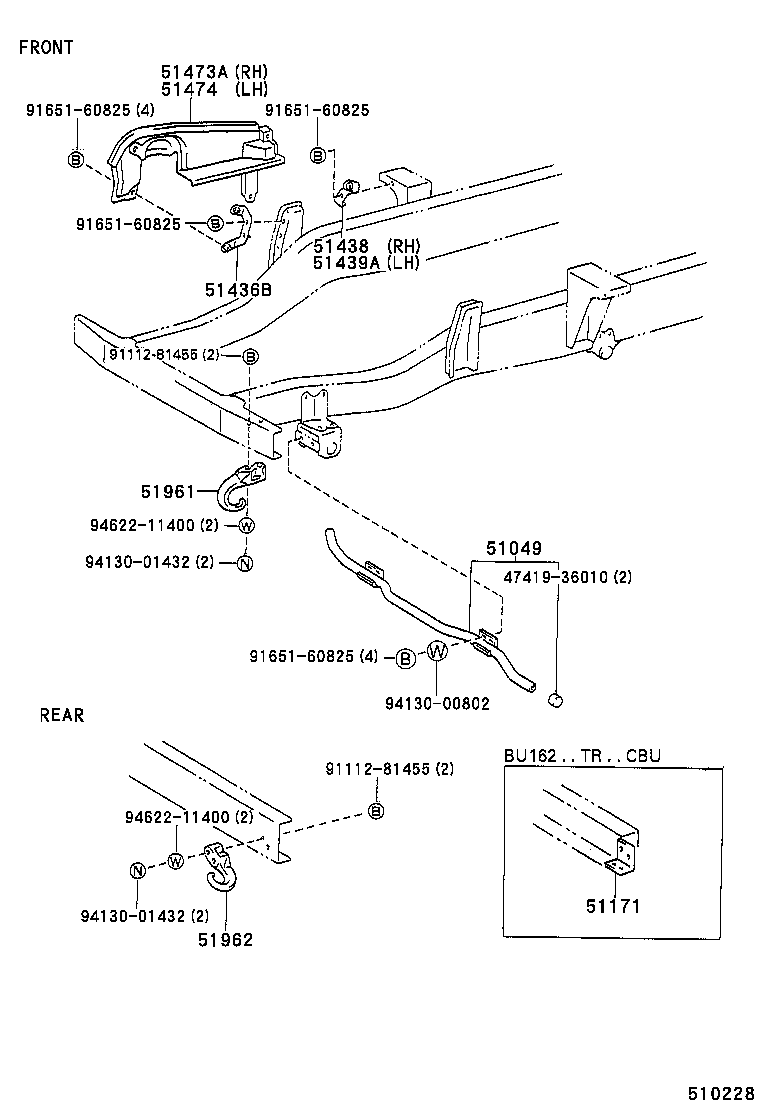

Click highlighted areas on diagram

diagram 4741936010 51049 51171 51436B 51438 51439A 51473A 51474 51961 51962 9111281455 9165160825 9165160825 9165160825 9165160825 9413000802 9413001432 9413001432 9462211400 9462211400
Part # Description Qty Price
51049 - BAR SUB-ASSY, UNDER GUARD, FRONT
51040-37010

BU162,172,182

 1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37020

BU162,172,182

 2
51438 - BRACKET, ENGINE SIDE COVER, NO.2 RH
51438-37010

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,RZU100,140,XZU130,140..02S,03S,06S

 1
51439A - BRACKET, ENGINE SIDE COVER, NO.2 LH
51439-37010

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,RZU100,140,XZU130,140..02S,03S,06S

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51043-37020

BU162,172,182..02S,03S

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51044-37020

BU162,172,182..02S,03S

 1
51961 - HOOK, NO.1
51961-36040

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,RZU100,140,XZU130,140

 1
51962 - HOOK, NO.2
51961-36040

BU182..T3..IV3;BU10#,112,13#,162,172,RZU100,XZU130

 1
Common parts
47419-36010
91112-81455
91651-60825
94130-00802
94130-01432
94622-11400
