BU172-TKMQS (1995)
Toyota Dyna 200/Toyoace G25
Production
May 1995
-
May 1999
Engine
15BF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

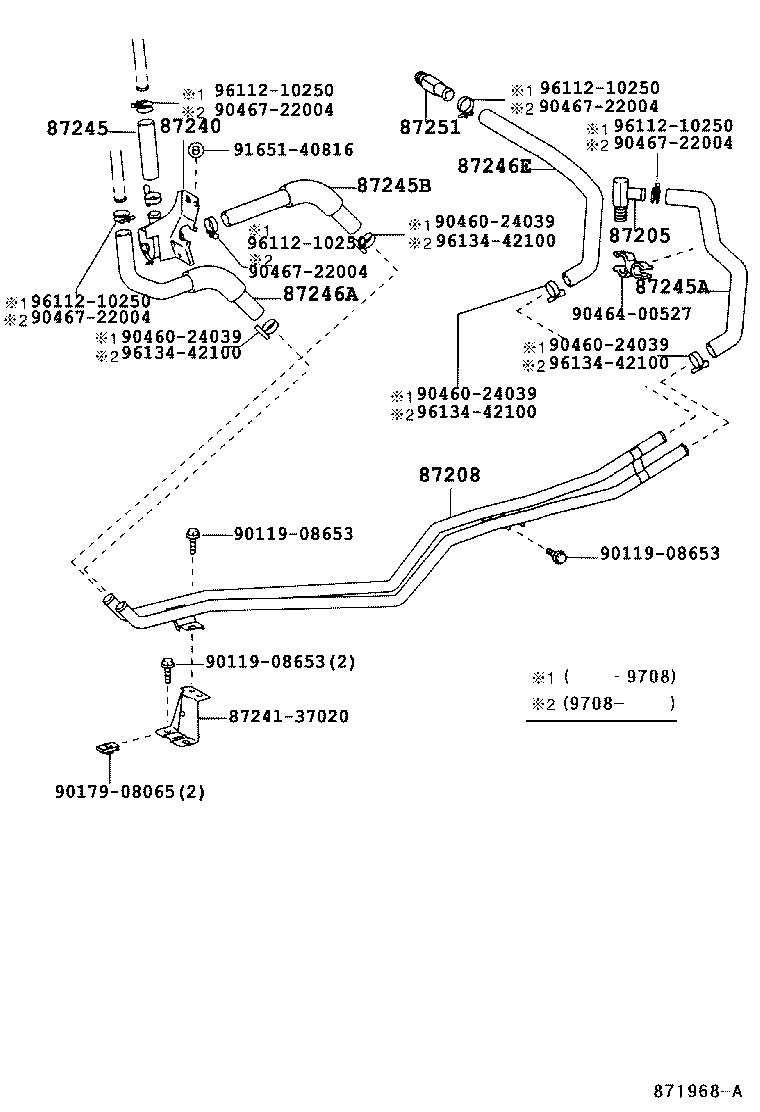

ILLUST NO. 1 OF 2(9505- )BU162,172,182..02S,03S
Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30230 |
BU162,172,182 |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-37060 |
BU162,172,182..02S,03S |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 99556-30100 |
BU297;BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..02S,03S,06S,07S |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-37180 |
BU162,172,182..02S,03S |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30300 |
BU162,172,182..02S,03S *H,L=260 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30500 |
BU162,172,182..02S,03S *H,L=350 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-37190 |
BU162,172,182..02S,03S |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-22010 |
BU162,172,182 |
1 | ||
| 87251-30200 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| Common parts | ||||
| 87241-37020 | ||||
| 90119-08653 | ||||
| 90179-08065 | ||||
| 90460-24039 | ||||
| 90464-00527 | ||||
| 90467-22004 | ||||
| 91651-40816 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||

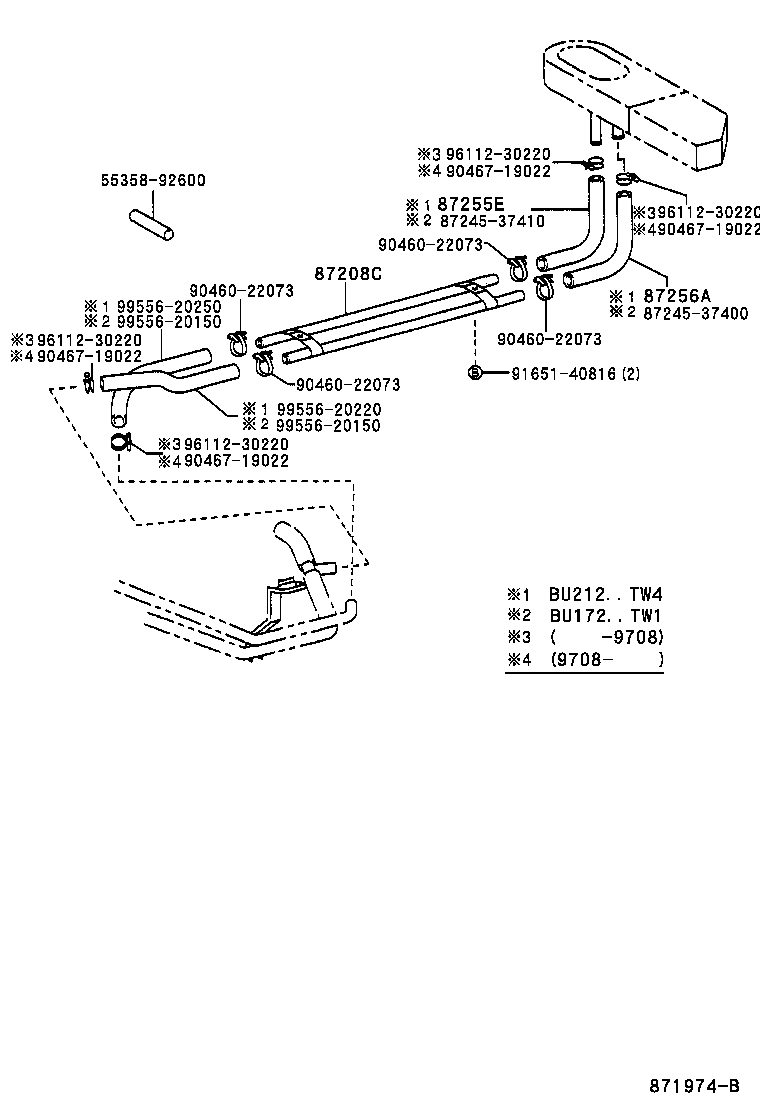

ILLUST NO. 2 OF 2(9505- )BU172,212
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55358-92600 | ||||
| 87245-37400 | ||||
| 87245-37410 | ||||
| 90460-22073 | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||
| 96112-30220 | ||||
| 99556-20150 | ||||
| 99556-20220 | ||||
| 99556-20250 | ||||
