BU172-TKMQS (1995)
Toyota Dyna 200/Toyoace G25
ILLUST NO. 2 OF 2(9505-9508)BU10#..TW4 ; (9505-9609)BU162..03S..IV3 ; (9505-9710)RZU100..T4,TW4 ; (9
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B672 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48110-3B672 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48101-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48101-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48101-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48112-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48112-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48112-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B682 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48110-3B682 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B670 |
BU162,172,182..DM7,T3 |
2 | ||
| 48147-3B670 |
BU162,172,182..DM7,T3 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48254-3B730 |
BU162,172,182..DM7,T3 |
4 | ||
| 48254-3B730 |
BU162,172,182..DM7,T3 |
4 | ||
| Common parts | ||||
| 90179-10043 | ||||
ILLUST NO. 2 OF 2(9710- )BU100,102,RZU100..T4,TW4..20T ; (9805- )T4..LPG..IV3 ; (9805- )BU1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B672 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48101-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48112-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B682 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B670 |
BU162,172,182..DM7,T3 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48254-3B730 |
BU162,172,182..DM7,T3 |
4 | ||
| Common parts | ||||
| 90179-10043 | ||||

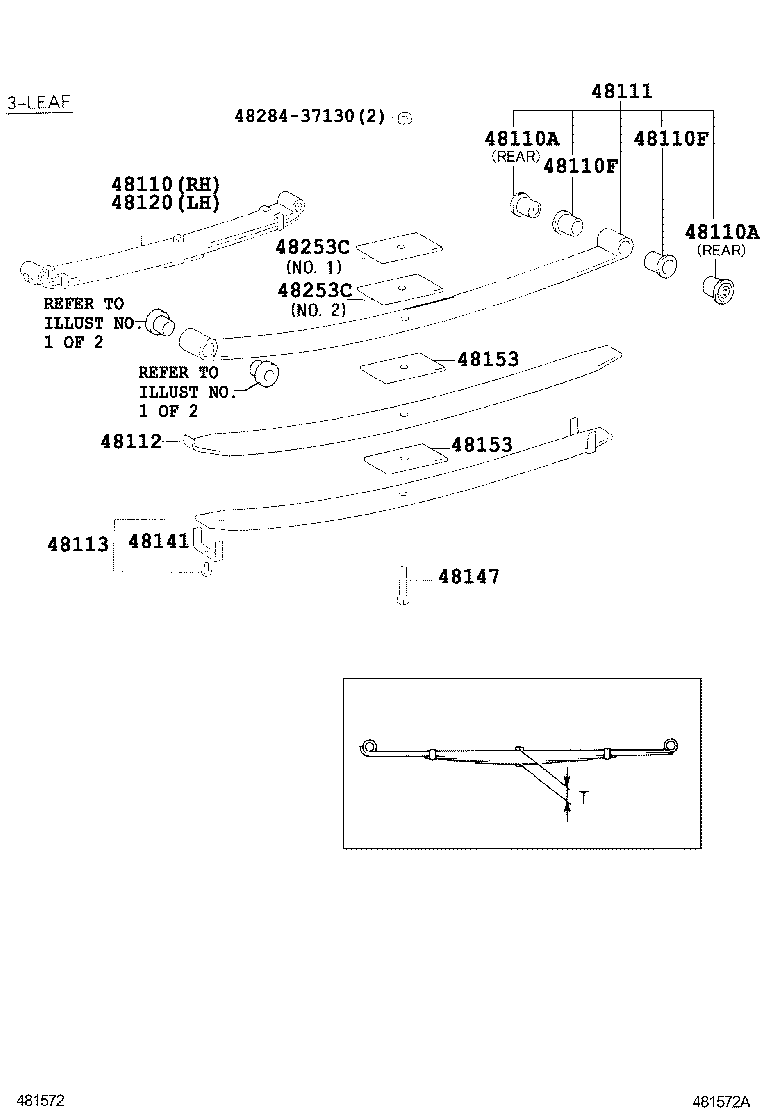

ILLUST NO. 2 OF 2(9505- )BU202,212,222..IV3..4FC,5F ; (9708-)BU212,222..IV3..6F ; (9712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B672 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48101-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48112-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48102-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B682 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B670 |
BU162,172,182..DM7,T3 |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9505-9609)BU162,172,182..DM7,T3 ; (9609- )BU172..T3 ; (9609- )BU162,182..DM7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B672 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23005 |
BU162,172,182 ﾘﾔ |
4 | ||
| 90385-23037 |
BU162,172,182 ﾌﾛﾝﾄ |
4 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23005 |
BU162,172,182 ﾘﾔ |
4 | ||
| 90385-23037 |
BU162,172,182 ﾌﾛﾝﾄ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48101-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48112-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48102-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B682 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B670 |
BU162,172,182..DM7,T3 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48254-3B730 |
BU162,172,182..DM7,T3 |
4 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48254-3B730 |
BU162,172,182..DM7,T3 |
4 | ||
| Common parts | ||||
| 48284-37130 | ||||

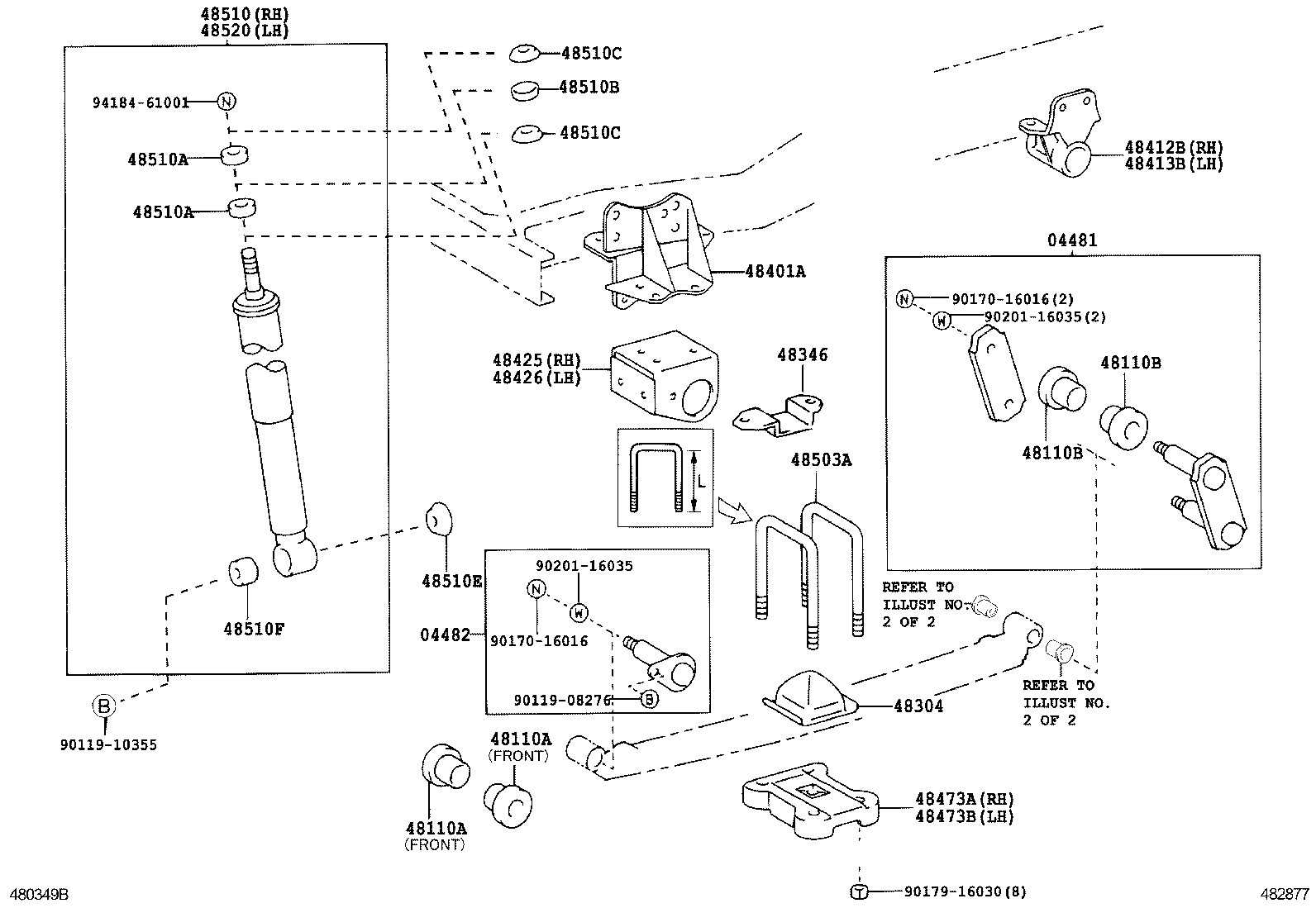

ILLUST NO. 1 OF 2(9505- )BU162,172,182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36090 |
BU100,102,112,12#,132,140,142,162,172,182,RZU100,140,XZU130,140 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36030 |
BU100,102,112,12#,132,140,142,162,172,182,RZU100,140,XZU130,140 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23005 |
BU162,172,182 ﾘﾔ |
4 | ||
| 90385-23037 |
BU162,172,182 ﾌﾛﾝﾄ |
4 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23005 |
BU162,172,182 ﾘﾔ |
4 | ||
| 90385-23037 |
BU162,172,182 ﾌﾛﾝﾄ |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-23037 |
BU100,102,112,12#,132,140,142,162,172,182,RZU100,140,XZU130,140 |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-23037 |
BU100,102,112,12#,132,140,142,162,172,182,RZU100,140,XZU130,140 |
4 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36130 |
BU172..T3;BU172..IV4;BU162,182..(DM7,T3,T4)..02S |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-36070 |
BU162,172,182,XZU130 |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-36160 |
BU162,172,182 右側 |
1 | ||
| 48412-36160 |
BU162,172,182 左側 |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48413-36070 |
BU162,172,182 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48413-36070 |
BU162,172,182 |
1 | ||
| 48425 - BRACKET, SPRING, NO.1 LOWER RH | ||||
| 48425-36010 |
BU162,172,182 |
1 | ||
| 48426 - BRACKET, SPRING, NO.1 LOWER LH | ||||
| 48426-36010 |
BU162,172,182 |
1 | ||
| 48473A - SEAT, SPRING U BOLT, RH | ||||
| 48473-36160 |
BU162,172,182 |
1 | ||
| 48473B - SEAT, SPRING U BOLT, LH | ||||
| 48473-36160 |
BU162,172,182 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16034 |
BU162,172,182 長さ=190 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80017 |
BU162,172,182 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU202,212,222..20T..IV3;BU100,102,112,12#,140,142,162,172,182,RZU140,XZU130,140;BU132,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..(DSL,EFI,LPG) ｱﾘ(ﾘﾔ ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ) |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16011 |
BU162,172,182 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80017 |
BU162,172,182 |
1 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 94184-61001 | ||||
ILLUST NO. 2 OF 2(9505- )BU162,172
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B672 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23005 |
BU162,172,182 ﾘﾔ |
4 | ||
| 90385-23037 |
BU162,172,182 ﾌﾛﾝﾄ |
4 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23005 |
BU162,172,182 ﾘﾔ |
4 | ||
| 90385-23037 |
BU162,172,182 ﾌﾛﾝﾄ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
8 | ||
| 48299-36010 |
BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48101-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B681 |
BU162,172,182..DM7,T3 助手席側 |
1 | ||
| 48112-3B671 |
BU162,172,182..DM7,T3 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B682 |
BU162,172,182..DM7,T3 3枚ﾘｰﾌ,T=33 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B670 |
BU162,172,182..DM7,T3 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48254-3B730 |
BU162,172,182..DM7,T3 |
4 | ||
| Common parts | ||||
| 48284-37130 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
