BU172-TKMQS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9905)15B#,3B..BU10#,112,12#,13#,14#,202,212,222 ; (9905-9906)15BF,3B..BU10#,1

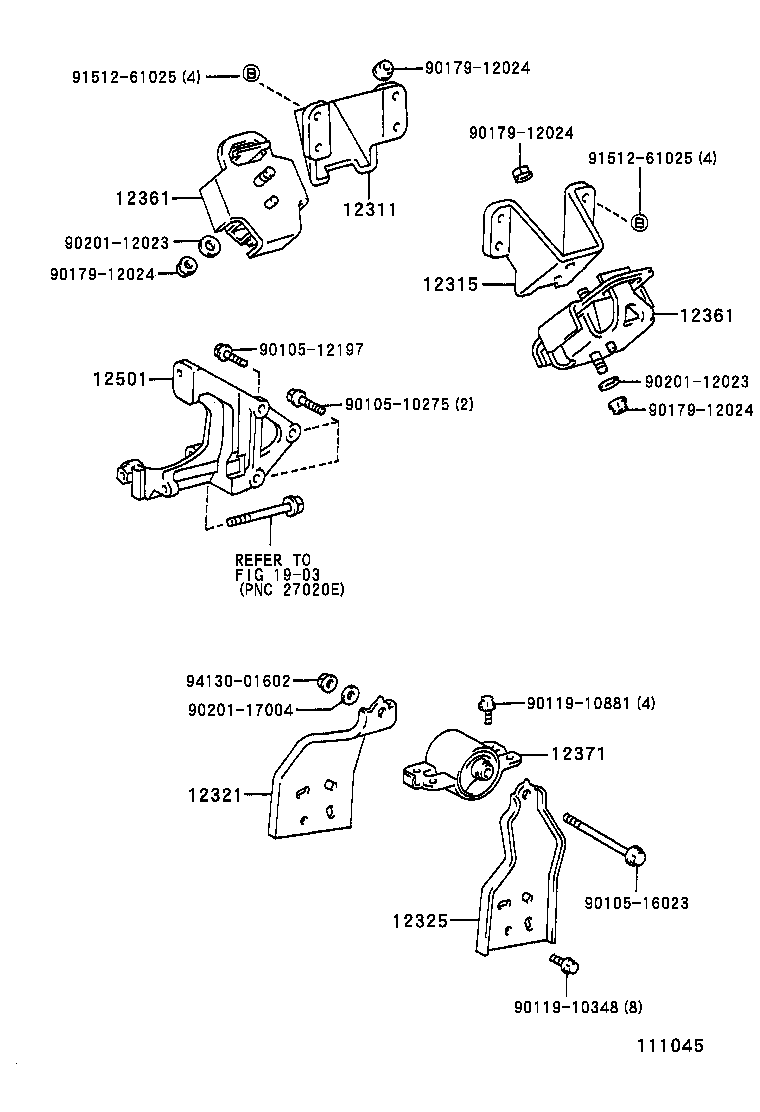

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12325 12325 12361 12361 12361 12361 12371 12501 12512A 16603C 16636C 16639A 16649A 16659A 16659A 1903 9010508335 9010510361 9010512085 9010516023 9011908B05 9011910348 9011910348 9011910881 9017910201 9017912024 9017912024 9017912024 9017912024 9020112023 9020112023 9020112023 9020117004 9151261025 9151261025 9164281020 9164281225 9413001602
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-58070

15BF..BU162,172,182

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12311-58070

15BF..BU162,172,182

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-56090

15BF..BU162,172,182

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-56090

15BF..BU162,172,182

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-56080

15BF..BU162,172,182

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-56080

15BF..BU162,172,182

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-56071

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

右側

 1
12362-56011

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

左側

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-56071

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

右側

 1
12362-56011

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

左側

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-56071

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

右側

 1
12362-56011

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

左側

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-56071

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

右側

 1
12362-56011

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

左側

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-56050

15BF..BU162,172,182

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-58021

15BF..BU162,172,182

 1
Common parts
90105-08335
90105-10361
90105-12085
90105-16023
90119-08B05
90119-10348
90119-10881
90179-10201
90179-12024
90201-12023
90201-17004
91512-61025
91642-81020
91642-81225
94130-01602
Linked diagrams
1903

(9505-9906)15BF..BU162,172,182

Click highlighted areas on diagram

diagram 12311 12315 12321 12325 12361 12361 12371 12501 1903 9010510275 9010512197 9010516023 9011910348 9011910881 9017912024 9017912024 9017912024 9017912024 9020112023 9020112023 9020117004 9151261025 9151261025 9413001602
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-58070

15BF..BU162,172,182

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12311-58070

15BF..BU162,172,182

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-56090

15BF..BU162,172,182

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-56080

15BF..BU162,172,182

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-56071

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

右側

 1
12362-56011

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

左側

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-56071

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

右側

 1
12362-56011

15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182

左側

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-56050

15BF..BU162,172,182

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-58021

15BF..BU162,172,182

 1
Common parts
90105-10275
90105-12197
90105-16023
90119-10348
90119-10881
90179-12024
90201-12023
90201-17004
91512-61025
94130-01602
Linked diagrams
1903
