BU172-TKMMS3 (1995)
Toyota Dyna 200/Toyoace G25

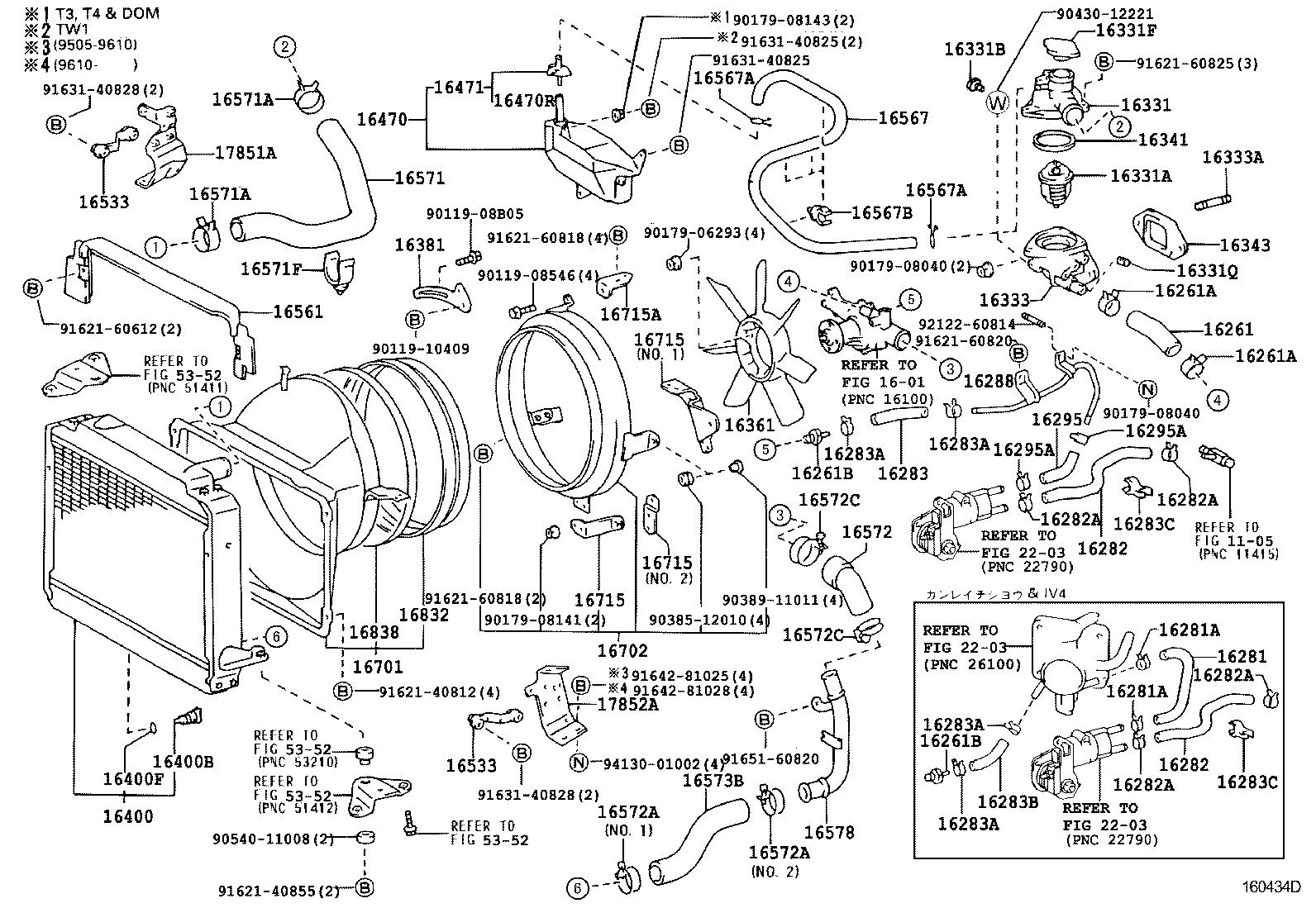

ILLUST NO. 1 OF 3(9505-9906)15BF..BU162,172,182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56012 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 90467-28004 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 90467-28005 |
15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 90467-28004 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 90467-28005 |
15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-52028 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90404-52028 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-52028 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90404-52028 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-58050 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-15022 |
15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-15022 |
15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-58010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 16282-58010 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-58010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 16282-58010 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 90467-15022 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 90467-15022 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 90467-15022 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 90467-15022 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-56010 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222..CBU,IV3 |
1 | ||
| 16283-56010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297..CBU,IV3 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-15022 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-15022 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-15022 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-15022 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 90445-16049 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90464-00518 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90464-00518 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-58020 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297..CBU,IV3 |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-56010 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297..CBU,IV3 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-15022 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222..CBU,IV3 |
2 | ||
| 90467-15022 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297..CBU,IV3 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-15022 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222..CBU,IV3 |
2 | ||
| 90467-15022 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297..CBU,IV3 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-58041 |
15BF..BU162,172,182 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03102 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-12006 |
15BF..BU102..WT;15BF,15BFT,3B..BU100,107,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90341-12006 |
15BF..BU102..WT;15B#,3B..BU100,107,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-71010 |
15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222 |
1 | ||
| 16401-54750 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90345-54005 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-58080 |
15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16333-58050 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16333-58080 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 92112-60832 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-56030 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56023 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
15BF..BU162,172,182 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-58070 |
15BF..BU162,172,182..CBU,IV3 |
1 | ||
| 16381-58080 |
15BF..BU162,172,182 ｵﾙﾀﾈ-ﾀ(24V-50A) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-58440 |
15BF..BU162,172,182..CBU,IV3 |
1 | ||
| 16400-58441 |
15BF..BU162,172,182..CBU,IV3 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-58070 |
15B#,3B..BU10#,112,13#,14#,162,172,182,202,212,222..02S,03S,05S |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
15B#,3B..BU10#,112,132,14#,162,172,182,202,212,222..02S,03S,05S |
1 | ||
| 90445-12078 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-58050 |
15B#,3B..BU10#,112,132,14#,162,172,182,202,212,222..02S,03S,05S |
1 | ||
| 16405-58050 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-58010 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-58010 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-58010 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-58030 |
15BF..BU162,172,182 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222 |
2 | ||
| 90467-11085 |
15BF,15BFT..BU212..03S;15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,222 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222 |
2 | ||
| 90467-11085 |
15BF,15BFT..BU212..03S;15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,222 |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90469-12009 |
15B#,3B..BU10#,112,132,14#,162,172,182,202,212,222..02S,03S,05S |
4 | ||
| 90469-12009 |
15BFT..BU212;15BF..BU212..07S..5F;15B#,3B..BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TW1)..(02S,03S,05S) |
4 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-58090 |
15BF..BU162,172,182 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 90469-45001 |
15BF,15BFT,3B..BU105,107,137,145,147,162,172,182,297 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56091 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41005 |
15BF..BU172;15B#,3B..BU100,102,112,120,132,140,142,162,182,202,212,222..CBU,IV3 |
2 | ||
| 96111-10510 |
15BF..BU172;15B#,3B..BU100,102,112,12#,132,140,142,162,182,202,212,222..CBU,IV3 |
2 | ||
| 96111-10510 |
15B#,3B..BU100,102,112,120,132,140,142,162,172,182,202,212,222..CBU,IV3 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41005 |
15BF..BU172;15B#,3B..BU100,102,112,120,132,140,142,162,182,202,212,222..CBU,IV3 |
2 | ||
| 96111-10510 |
15BF..BU172;15B#,3B..BU100,102,112,12#,132,140,142,162,182,202,212,222..CBU,IV3 |
2 | ||
| 96111-10510 |
15B#,3B..BU100,102,112,120,132,140,142,162,172,182,202,212,222..CBU,IV3 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10490 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE |
1 | ||
| 96111-10570 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE |
1 | ||
| 96111-10490 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE |
1 | ||
| 90467-48003 |
15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE |
1 | ||
| 90467-41007 |
15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE |
1 | ||
| 90467-41004 |
15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE |
1 | ||
| 96111-10570 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10490 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE |
1 | ||
| 96111-10570 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE |
1 | ||
| 96111-10490 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE |
1 | ||
| 90467-48003 |
15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE |
1 | ||
| 90467-41007 |
15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE |
1 | ||
| 90467-41004 |
15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE |
1 | ||
| 96111-10570 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-58050 |
15BF..BU162,172,182..CBU,IV3 |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-56010 |
15BF..BU162,172,182 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-58160 |
15BF..BU162,172,182 |
1 | ||
| 16702 - SHROUD SUB-ASSY, FAN, NO.2 | ||||
| 16702-58010 |
15BF..BU162,172,182 |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 16715-56100 |
15BF..BU162,172,182 NO.2 |
1 | ||
| 16715-56060 |
15BF..BU162,172,182 |
1 | ||
| 16715-56090 |
15BF..BU162,172,182 NO.1 |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 16715-56100 |
15BF..BU162,172,182 NO.2 |
1 | ||
| 16715-56060 |
15BF..BU162,172,182 |
1 | ||
| 16715-56090 |
15BF..BU162,172,182 NO.1 |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 16715-56100 |
15BF..BU162,172,182 NO.2 |
1 | ||
| 16715-56060 |
15BF..BU162,172,182 |
1 | ||
| 16715-56090 |
15BF..BU162,172,182 NO.1 |
1 | ||
| 16715A - BRACKET, FAN SHROUD, NO.2 | ||||
| 16715-56080 |
15BF..BU162,172,182 |
1 | ||
| 16832 - SEAL, FAN SHROUD | ||||
| 16832-56010 |
15BF..BU162,172,182 |
1 | ||
| 16838 - CLAMP, FAN SHROUD | ||||
| 16838-56010 |
15BF..BU162,172,182 |
1 | ||
| 17851A - BRACKET, RADIATOR SUPPORT, NO.1 | ||||
| 17851-58011 |
15BF,15BFP,3B..BU100,102,112,12#,132,140,142,162,172,182 |
1 | ||
| 17852A - BRACKET, RADIATOR SUPPORT, NO.2 | ||||
| 17852-58011 |
15BF,15BFP,3B..BU100,102,112,12#,132,140,142,162,172,182 |
1 | ||
| Common parts | ||||
| 90119-08546 | ||||
| 90119-08B05 | ||||
| 90119-10409 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 90179-08141 | ||||
| 90179-08143 | ||||
| 90385-12010 | ||||
| 90389-11011 | ||||
| 90430-12221 | ||||
| 90540-11008 | ||||
| 91621-40812 | ||||
| 91621-40855 | ||||
| 91621-60612 | ||||
| 91621-60818 | ||||
| 91621-60820 | ||||
| 91621-60825 | ||||
| 91631-40825 | ||||
| 91631-40828 | ||||
| 91642-81025 | ||||
| 91642-81028 | ||||
| 91651-60820 | ||||
| 92122-60814 | ||||
| 94130-01002 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1601 | ||||
| 2203 | ||||
| 5352 | ||||
ILLUST NO. 3 OF 4(9505-9905)15B#,3B ; (9905-9906)15BF,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-58440 |
15BF..BU162,172,182..CBU,IV3 |
1 | ||
| 16400-58441 |
15BF..BU162,172,182..CBU,IV3 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-58440 |
15BF..BU162,172,182 |
1 | ||
| 16403-58441 |
15BF..BU162,172,182..CBU,IV3 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-58420 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-58420 |
15BF,15BFP..BU102,112,122,132,142,162,172,182 |
2 | ||
| 16443-58420 |
15BF..BU102,112,122,132,142,162,172,182 |
2 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-58440 |
15BF..BU162,172,182 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-58440 |
15BF..BU162,172,182 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-58420 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16443-58420 |
15BF,15BFP..BU102,112,122,132,142,162,172,182 |
2 | ||
| 16443-58420 |
15BF..BU102,112,122,132,142,162,172,182 |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
