BU172-PKMMS3 (1995)
Toyota Dyna 200/Toyoace G25

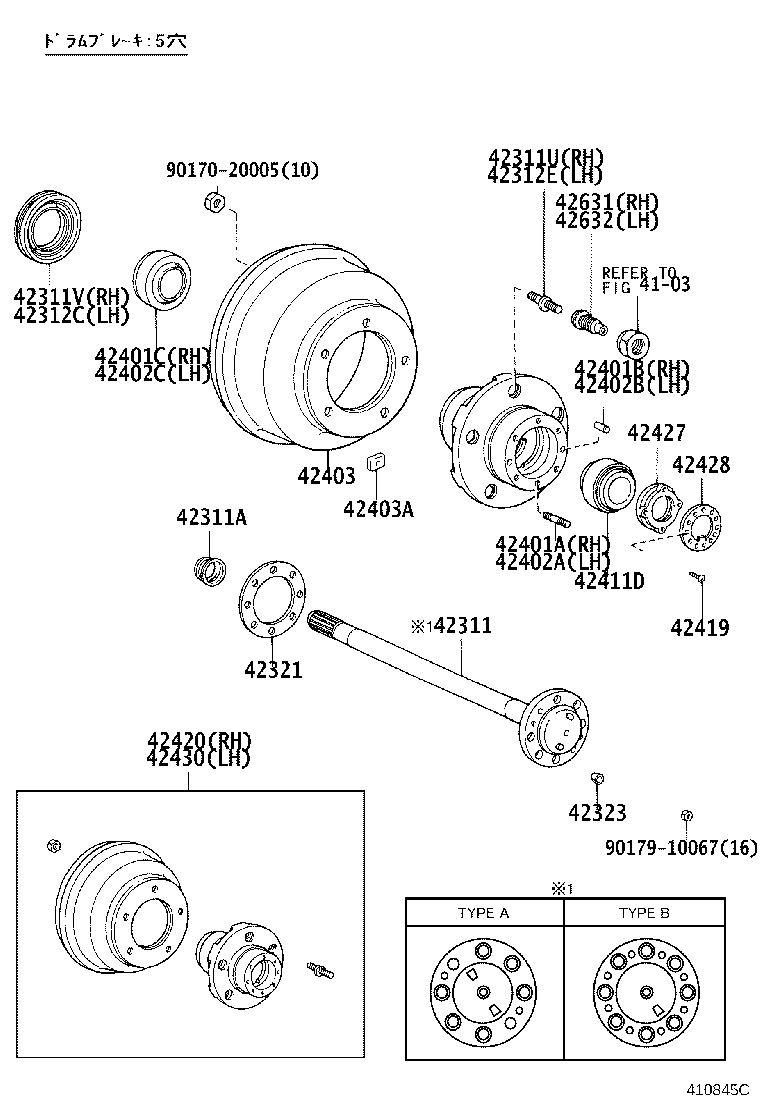

(9505- )WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36181 |
BU102..IV4;BU142..30T;BU142..T3..20T;BU102..T3..(275T,30T);BU132,147,172,182,XZU130,140..DM7,T3,TL4,TW1 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-40001 |
BU172,182..T3,TW1;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212,222,RZU100..LPGB,TD;BU102,132,142,212,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
2 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02045 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-75003 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-75003 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02046 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
5 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36050 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU222..TD;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU102,132,142,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(ABS) |
16 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
BU222..TD;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU102,132,142,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(ABS) |
8 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90368-57010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
BU222..TD;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU102,132,142,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(ABS) |
8 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90368-57010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-37030 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01122 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT 60G |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-37901 |
BU172,182..T3,TW1;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212,222,RZU100..LPGB,TD;BU102,132,142,212,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-37901 |
BU172,182..T3,TW1;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212,222,RZU100..LPGB,TD;BU102,132,142,212,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
5 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||

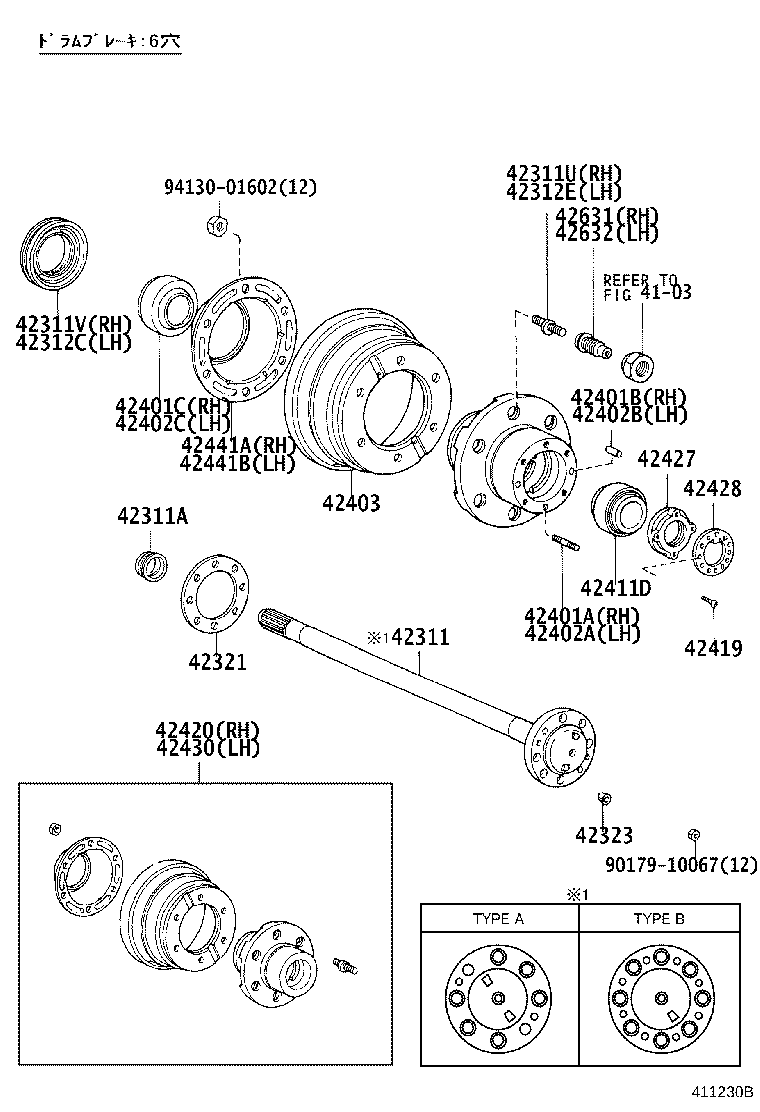

(9505- )WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36181 |
BU102..IV4;BU142..30T;BU142..T3..20T;BU102..T3..(275T,30T);BU132,147,172,182,XZU130,140..DM7,T3,TL4,TW1 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-40001 |
BU172,182..T3,TW1;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212,222,RZU100..LPGB,TD;BU102,132,142,212,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
2 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02045 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-75003 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-75003 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02046 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
5 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36050 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU222..TD;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU102,132,142,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(ABS) |
16 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
BU222..TD;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU102,132,142,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(ABS) |
8 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90368-57010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
BU222..TD;BU172,182..T3,TW1;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU102,132,142,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 ｱﾘ(ABS) |
8 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90368-57010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-37030 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-37901 |
BU172,182..T3,TW1;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212,222,RZU100..LPGB,TD;BU102,132,142,212,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-37901 |
BU172,182..T3,TW1;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212,222,RZU100..LPGB,TD;BU102,132,142,212,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
5 | ||
| Common parts | ||||
| 90179-10067 | ||||
| 94130-01602 | ||||
| Linked diagrams | ||||
| 4103 | ||||
