Toyota Dyna 200/toyoace g25 BU172 FUEL TANK & TUBE

BU172-PKMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999

Engine 15BF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9505- )BU142..06S..CBU ; (9505- )BU10#,112,13#,14#,162,172,182,202,212,222,X

Click highlighted areas on diagram

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36340	BU10#,162,172,182..(DM2,DM5,T1,T2,T4,TW1)..20T 75L	05/1995 - 06/1999	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37080	BU102,172..TW1	05/1995 - 05/1999	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06030	BU102,172..TW1 *H,L=260	05/1995 - 05/1999	1
95333-08030	BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6	05/1995 - 05/2000	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06030	BU102,172..TW1 *H,L=260	05/1995 - 05/1999	1
95333-08030	BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6	05/1995 - 05/2000	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06030	BU102,172..TW1 *H,L=260	05/1995 - 05/1999	1
95333-08030	BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6	05/1995 - 05/2000	2
77100 - TANK ASSY, FUEL
77001-3B200	BU102,172..TW1 69L,L=883,W=355,H=265	05/1995 - 05/1999	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..DSL,EFI,TD	05/1995 - 05/2000	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..DSL,EFI,TD	05/1995 - 05/2000	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD	05/1995 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36090	RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙﾀﾝｸ = W=355,H=265	05/1995 - 08/1997	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36090	RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙﾀﾝｸ = W=355,H=265	05/1995 - 08/1997	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36090	RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙﾀﾝｸ = W=355,H=265	05/1995 - 08/1997	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	BU142,147,212,RZU100..DSL,EFI,TD;BU10#,112,13#,140,162,172,182,202,222,297,XZU130..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW1	05/1995 - 08/1997	2
77629-36010	RZU100..03S..EFI;BU10#..(DM2,DM3,DM5,DM6,T1,T2,T3,T4,TW1)..DSL;BU112,13#,14#,162,172,182,202,212,222,297,RZU140,XZU130,140..DSL,EFI,TD	08/1997 - 12/2999	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	BU142,147,212,RZU100..DSL,EFI,TD;BU10#,112,13#,140,162,172,182,202,222,297,XZU130..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW1	05/1995 - 08/1997	2
77629-36010	RZU100..03S..EFI;BU10#..(DM2,DM3,DM5,DM6,T1,T2,T3,T4,TW1)..DSL;BU112,13#,14#,162,172,182,202,212,222,297,RZU140,XZU130,140..DSL,EFI,TD	08/1997 - 12/2999	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	BU142,147,212,RZU100..DSL,EFI,TD;BU10#,112,13#,140,162,172,182,202,222,297,XZU130..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW1	05/1995 - 08/1997	2
77629-36010	RZU100..03S..EFI;BU10#..(DM2,DM3,DM5,DM6,T1,T2,T3,T4,TW1)..DSL;BU112,13#,14#,162,172,182,202,212,222,297,RZU140,XZU130,140..DSL,EFI,TD	08/1997 - 12/2999	2
77633 - STAY, FUEL TANK
77501-36121	BU172..05S FRONT	05/1995 - 05/1999	1
77502-36061	BU172..05S REAR	05/1995 - 05/1999	1
77633 - STAY, FUEL TANK
77501-36121	BU172..05S FRONT	05/1995 - 05/1999	1
77502-36061	BU172..05S REAR	05/1995 - 05/1999	1
77633 - STAY, FUEL TANK
77501-36121	BU172..05S FRONT	05/1995 - 05/1999	1
77502-36061	BU172..05S REAR	05/1995 - 05/1999	1
77633 - STAY, FUEL TANK
77501-36121	BU172..05S FRONT	05/1995 - 05/1999	1
77502-36061	BU172..05S REAR	05/1995 - 05/1999	1
77651A - CUSHION, FUEL TANK, NO.1
77651-36110	BU102..4FC;BU100..T2..CBU;BU102..DM2,DM5,TW1;RZU100..(T2,TW1,TW4)..CBU;BU107,162,172..DM5,T2,T4,TW1	05/1995 - 08/1997	2
77651-36110	RZU100..(DM5,T2,T4)..EFI;BU10#,162,172,182..(DM2,DM5,T1,T2,T4,TW1)..20T	08/1997 - 12/2999	2
77651A - CUSHION, FUEL TANK, NO.1
77651-36110	BU102..4FC;BU100..T2..CBU;BU102..DM2,DM5,TW1;RZU100..(T2,TW1,TW4)..CBU;BU107,162,172..DM5,T2,T4,TW1	05/1995 - 08/1997	2
77651-36110	RZU100..(DM5,T2,T4)..EFI;BU10#,162,172,182..(DM2,DM5,T1,T2,T4,TW1)..20T	08/1997 - 12/2999	2
77651A - CUSHION, FUEL TANK, NO.1
77651-36110	BU102..4FC;BU100..T2..CBU;BU102..DM2,DM5,TW1;RZU100..(T2,TW1,TW4)..CBU;BU107,162,172..DM5,T2,T4,TW1	05/1995 - 08/1997	2
77651-36110	RZU100..(DM5,T2,T4)..EFI;BU10#,162,172,182..(DM2,DM5,T1,T2,T4,TW1)..20T	08/1997 - 12/2999	2
Common parts
77169-14020
90105-10362
90119-08697
90119-10533
90159-40155
90179-10015
90467-13007
91611-60616
91626-40616
91642-81025
91645-C1032
94130-00802
94130-01002
94612-11001
96132-30600

ILLUST NO. 2 OF 2(9505- )BU162,172,182

Click highlighted areas on diagram

Part #	Description	Period	Qty

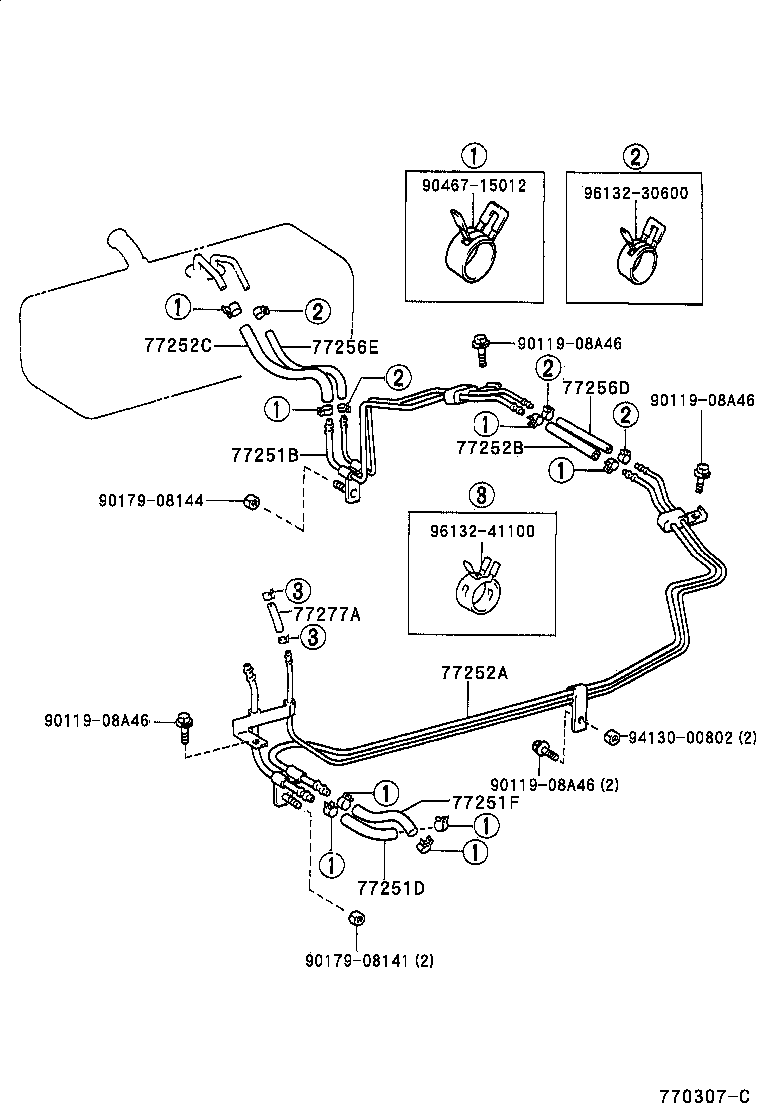

77251B - TUBE, FUEL MAIN
77205-36670	BU172..05S	05/1995 - 05/1999	1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77259-36061	BU102,172..TW1	05/1995 - 05/1999	1
77251F - HOSE, FUEL
95332-10030	BU112,172..03S,05S	05/1995 - 05/1999	1
77252A - TUBE, FUEL MAIN, NO.2
77206-37100	BU172..05S	05/1995 - 05/1999	1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95332-10014	BU100,102,12#,132,140,142,162,172,182..DSL *H,L=140	05/1995 - 12/2999	1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-10030	BU162..DM5,T4;BU140,142..(T2,T4)..CBU;BU140,142..03S..DSL..IV3;BU100,102..(DM2,DM3,DM5,DM6,T3)..WT..20T;BU132,172,202,212,222..(03S,05S,06S,07S)..20T	05/1995 - 08/1997	1
95332-10030	BU100..T1;BU142..30T..DSL;BU172,182..T4,TW1;BU142..03S..20T..IV3;BU102..30T..IV3..4FC;BU102..(DM2,DM3,DM5,T4)..CBU;BU100,102..03S..WT..DSL..IV3..5F;BU132,140,162,202,212,222..DM5,T2,T3,T4,TW1,TW4 80L	08/1997 - 12/1997	1
95332-10030	BU100..T1;BU172,182..T4,TW1;BU142..03S..DSL..IV3;BU102..30T..IV3..4FC;BU102,142..(DM2,DM3,DM5,T4)..CBU;BU100,102..03S..WT..DSL..IV3..5F;BU132,140,162,202,212,222..ALV,DM5,T2,T3,T4,TW1,TW4 80L	12/1997 - 12/2999	1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-06020	BU100,102,12#,132,140,142,162,172,182,202,212..DSL,TD	05/1995 - 12/2999	1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-06030	BU100..T1;BU147..06S;BU140,142..DSL..IV3;BU140,142..(T2,T4,TW4)..CBU;BU132,172,202,212,222..(03S,05S,06S,07S)..20T;BU100,102,162..(DM2,DM3,DM5,DM6,T2,T3,T4,TW1)..WT..20T	05/1995 - 08/1997	1
95333-06030	BU100..T1;BU142..30T..DSL;BU142..20T..IV3;BU142..DSL..CBU..5F;BU102..(DM2,DM3,DM5,T4)..CBU;BU147,172,182..(T4,TW1,TW4)..(02S,05S,06S);BU132,140,162,202,212,222..DM5,T2,T3,T4,TW1,TW4;BU100,102..(DM2,DM5,DM6,T2,T3,T4,TW1)..WT..DSL..(IV3,IV4) 100L	08/1997 - 12/1997	1
95333-06030	BU212;BU100..T1;BU142..T4..CBU;BU142..DSL..IV3;BU102..T3..WT..20T;BU102..T3..IV3..4FC;BU142..DSL..CBU..5F;BU102..(DM2,DM3,DM5,DM6,T2,T4,TW1)..DSL;BU147,172,182..(T4,TW1,TW4)..(02S,05S,06S);BU100,132,140,162,202,222..(DM5,DM6,T2,T3,T4)..WT..20T 100L	12/1997 - 12/2999	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-56010	BU10#,112,12#,13#,14#,162,172,182,202,212,222..DSL,TD 長さ=220	05/1995 - 12/2999	1
Common parts
90119-08A46
90179-08141
90179-08144
90467-15012
94130-00802
96132-30600
96132-41100

ILLUST NO. 1 OF 2(9505- )BU12# ; (9505- )BU142..06S..IV3 ;(9505- )BU10#,147,172,212..05S,0

Click highlighted areas on diagram

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36340	BU10#,162,172,182..(DM2,DM5,T1,T2,T4,TW1)..20T 75L	05/1995 - 06/1999	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37080	BU102,172..TW1	05/1995 - 05/1999	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06030	BU102,172..TW1 *H,L=260	05/1995 - 05/1999	1
95333-08030	BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6	05/1995 - 05/2000	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06030	BU102,172..TW1 *H,L=260	05/1995 - 05/1999	1
95333-08030	BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6	05/1995 - 05/2000	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06030	BU102,172..TW1 *H,L=260	05/1995 - 05/1999	1
95333-08030	BU147..T3..IV3;BU147..T2,T4,TW4;BU105,107..T2,T4;BU102..T4..20T..5F;BU132,147..T3..CBU..5F;BU142,222..T3..IV3..6F;BU212..(03S,07S)..IV3..6F;BU132,145..(T3,T4,TL4)..IV3;BU137,RZU100..(DSL,EFI)..5F;BU212..(T2,T4,TW4)..CBU..6F;BU142,212..(DSL,TD)..(4FC,5F);BU102,222..(T2,T4)..20T..(4FC,6F);BU102..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1)..DSL..5F;BU100,112,140,162,172,182,202,222,297,RZU140,XZU130..(02S,03S,05S)..(4FC,5F) *H,L=280,内径=7.6	05/1995 - 05/2000	2
77100 - TANK ASSY, FUEL
77001-3B200	BU102,172..TW1 69L,L=883,W=355,H=265	05/1995 - 05/1999	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..DSL,EFI,TD	05/1995 - 05/2000	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140..DSL,EFI,TD	05/1995 - 05/2000	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD	05/1995 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36090	RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙﾀﾝｸ = W=355,H=265	05/1995 - 08/1997	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36090	RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙﾀﾝｸ = W=355,H=265	05/1995 - 08/1997	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36090	RZU100..(T2,T4,TW1,TW4)..EFI;BU10#,162,172..DM2,DM5,T1,T2,T4,TW1 ﾌﾕ-ｴﾙﾀﾝｸ = W=355,H=265	05/1995 - 08/1997	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	BU142,147,212,RZU100..DSL,EFI,TD;BU10#,112,13#,140,162,172,182,202,222,297,XZU130..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW1	05/1995 - 08/1997	2
77629-36010	RZU100..03S..EFI;BU10#..(DM2,DM3,DM5,DM6,T1,T2,T3,T4,TW1)..DSL;BU112,13#,14#,162,172,182,202,212,222,297,RZU140,XZU130,140..DSL,EFI,TD	08/1997 - 12/2999	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	BU142,147,212,RZU100..DSL,EFI,TD;BU10#,112,13#,140,162,172,182,202,222,297,XZU130..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW1	05/1995 - 08/1997	2
77629-36010	RZU100..03S..EFI;BU10#..(DM2,DM3,DM5,DM6,T1,T2,T3,T4,TW1)..DSL;BU112,13#,14#,162,172,182,202,212,222,297,RZU140,XZU130,140..DSL,EFI,TD	08/1997 - 12/2999	2
77633 - STAY, FUEL TANK
77501-36121	BU172..05S FRONT	05/1995 - 05/1999	1
77502-36061	BU172..05S REAR	05/1995 - 05/1999	1
77633 - STAY, FUEL TANK
77501-36121	BU172..05S FRONT	05/1995 - 05/1999	1
77502-36061	BU172..05S REAR	05/1995 - 05/1999	1
77651A - CUSHION, FUEL TANK, NO.1
77651-36110	BU102..4FC;BU100..T2..CBU;BU102..DM2,DM5,TW1;RZU100..(T2,TW1,TW4)..CBU;BU107,162,172..DM5,T2,T4,TW1	05/1995 - 08/1997	2
77651-36110	RZU100..(DM5,T2,T4)..EFI;BU10#,162,172,182..(DM2,DM5,T1,T2,T4,TW1)..20T	08/1997 - 12/2999	2
77651A - CUSHION, FUEL TANK, NO.1
77651-36110	BU102..4FC;BU100..T2..CBU;BU102..DM2,DM5,TW1;RZU100..(T2,TW1,TW4)..CBU;BU107,162,172..DM5,T2,T4,TW1	05/1995 - 08/1997	2
77651-36110	RZU100..(DM5,T2,T4)..EFI;BU10#,162,172,182..(DM2,DM5,T1,T2,T4,TW1)..20T	08/1997 - 12/2999	2
Common parts
77169-14020
90159-40155
90159-60047
90179-10015
90464-00148
90467-13007
91626-40616
91645-C1032
91651-40614
93319-15012
94130-00802
94130-01002
94612-11001
96132-30600
