BU172-PKMMS (1995)
Toyota Dyna 200/Toyoace G25
ILLUST NO. 2 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| Common parts | ||||
| 90105-08075 | ||||
| 90119-08134 | ||||
(9505- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
ILLUST NO. 1 OF 3(9505- )BU212..30T ; (9505- )BU162,172,182,XZU130,140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-37040 |
BU162;BU172,182,XZU130..(DM7,T3,TW1)..(02S,05S) |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-37070 |
BU162,172,182,XZU130,140 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-37060 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-37020 |
BU162,172,182,XZU130,140 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37250B0 |
BU162,172,182,XZU130,140 BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-37440B0 |
BU162,172,182,XZU130,140 BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-37380B0 |
BU172..05S BLUISH GRAY,TRIM1# |
1 | ||
| 71073-37380B0 |
BU172..05S E ｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-37420B0 |
BU172..05S BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-37590B0 |
BU172..05S BLUISH GRAY,TRIM1# |
1 | ||
| 71189 - LEG, FRONT SEAT, LH | ||||
| 71189-37010 |
BU162,172,182,XZU130,140 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-37290B0 |
BU162,172,182,XZU130,140 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-37440B0 |
BU162,172,182,XZU130,140 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-37470B0 |
BU172..05S ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-37450B0 |
BU172..05S ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-37510B0 |
BU172..05S ***,E ｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-37670B0 |
BU172..05S ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37030 |
BU162,172,182,XZU130,140 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-37090 |
BU162,172,182,XZU130,140 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-37050 |
BU162,172,182,XZU130 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-37010 |
BU162,172,182,XZU130,140 |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J00B0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLUISH GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95J00B0 |
BU162,172,182,XZU130,140 GRAY,TRIM1# |
1 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J00B0 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130 GRAY,TRIM1# |
1 | ||
| 71816A - COVER, FRONT SEAT CUSHION HINGE, LH | ||||
| 71816-95J00B0 |
BU162,172,182,XZU130,140 GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-37010B0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLUISH GRAY,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-37020B0 |
BU162,172,182,XZU130,140 BLUISH GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J01B0 |
BU162,172,182,202,212,222,XZU130,140..02S,03S,05S BLUISH GRAY,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-37040 |
BU162,172,182,XZU130 |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20030B0 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10116 | ||||
| 90119-10185 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90333-20001 | ||||
| 90386-12041 | ||||
| 90386-12051 | ||||
| 90520-01274 | ||||
| 90523-08001 | ||||
| 91611-61020 | ||||
| 91662-60614 | ||||

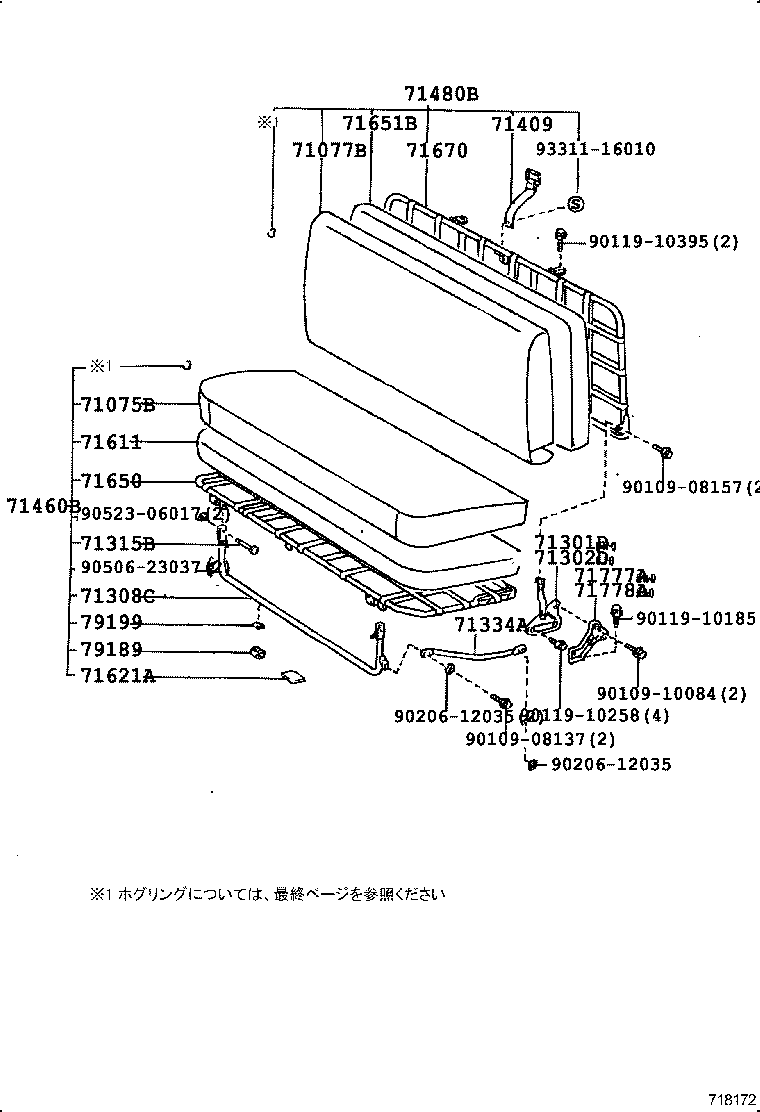

ILLUST NO. 3 OF 3(9505- )BU102..TW4 ; (9505- )BU100,105,107,142,147,172,RZU100..05S,06S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-37080B0 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S BLUISH GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-37080B0 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S BLUISH GRAY,TRIM1# |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-95401 |
BU102..TW4;BU100,105,107,142,147,172,212,RZU100..05S,06S,07S |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-95401 |
BU102..TW4;BU100,105,107,142,147,172,212,RZU100..05S,06S,07S |
1 | ||
| 71308C - LEG SUB-ASSY, REAR SEAT, FRONT | ||||
| 71308-37010 |
BU172..05S |
1 | ||
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95011 |
BU102..TW4;BU100,105,107,142,147,172,212,297,RZU100..05S,06S,07S |
2 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-92600 |
BU172..05S |
1 | ||
| 71409 - STOPPER SUB-ASSY, REAR SEAT BACK | ||||
| 71409-95A31 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-37130B0 |
BU172..05S ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-37080B0 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-95401 |
BU102..TW4;BU100,142,172,RZU100..05S,06S |
1 | ||
| 71611-37010 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-95701 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S |
6 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-95404 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-95400 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-95402 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S |
1 | ||
| 71777A - PLATE, REAR SIDE SEAT HINGE, LOWER RH | ||||
| 71206-92600 |
BU172..05S |
1 | ||
| 71778A - PLATE, REAR SIDE SEAT HINGE, LOWER LH | ||||
| 71207-92600 |
BU172..05S |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 79189-95J00 |
BU102..TW4;BU100,105,107,142,147,172,212,RZU100..05S,06S,07S |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
BU102..TW4;BU100,105,107,142,147,172,212,RZU100..05S,06S,07S |
2 | ||
| Common parts | ||||
| 90109-08137 | ||||
| 90109-08157 | ||||
| 90109-10084 | ||||
| 90119-10185 | ||||
| 90119-10258 | ||||
| 90119-10395 | ||||
| 90206-12035 | ||||
| 90506-23037 | ||||
| 90523-06017 | ||||
| 93311-16010 | ||||
