BU172-PKMMS (1995)
Toyota Dyna 200/Toyoace G25
(9505-9905)15B# ; (9905-9906)15BF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

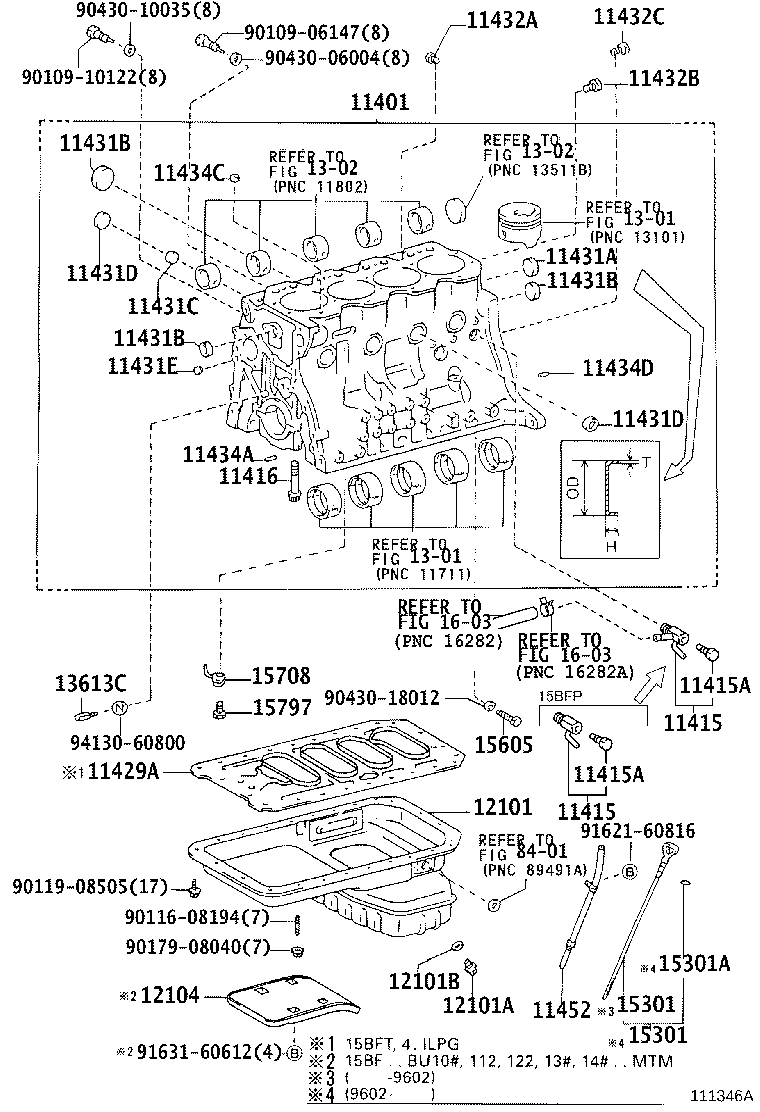

| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59585 |
15BF..BU162,172,182 ｵﾙﾀﾈ-ﾀ(24V-50A) |
1 | ||
| 11401-59575 |
15BF..BU172..CBU,IV3;15BF..BU102,107,112,122,13#,142,147,162,182,202,212,222 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09078 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09078 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90910-09087 |
15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90910-09087 |
15BF,15BFT,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02082 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 *16−2.0PX93.5−32 |
5 | ||
| 90910-02083 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 *16−2.0PX129.5−32 |
5 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-14500 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.6,高さ=12 |
3 | ||
| 96411-65000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=12 |
1 | ||
| 90331-50003 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=9 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.6,高さ=12 |
3 | ||
| 96411-65000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=12 |
1 | ||
| 90331-50003 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=9 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.6,高さ=12 |
3 | ||
| 96411-65000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=12 |
1 | ||
| 90331-50003 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 外径=50,厚さ=1.2,高さ=9 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-63000 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90331-14006 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
3 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51007 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
4 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-53004 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11432C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90345-52001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=18,外径=8 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15008 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=9.0,外径=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08120 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=18,外径=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-58010 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-58112 |
15BF..BU162,172,182..CBU,IV3 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13613C - NOZZLE, OIL | ||||
| 90915-01015 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-58040 |
15B#..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 15301-58060 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-58040 |
15B#..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 15301-58060 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-56010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-58040 |
15BF,15BFP..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
4 | ||
| 15797 - BOLT, OIL NOZZLE UNION | ||||
| 15797-58020 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
4 | ||
| Common parts | ||||
| 90109-06147 | ||||
| 90109-10122 | ||||
| 90116-08194 | ||||
| 90119-08505 | ||||
| 90179-08040 | ||||
| 90430-06004 | ||||
| 90430-10035 | ||||
| 90430-18012 | ||||
| 91621-60816 | ||||
| 91631-60612 | ||||
| 94130-60800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
| 1603 | ||||
| 8401 | ||||
