BU162D-TWMMS3 (1995)
Toyota Dyna 200/Toyoace G25

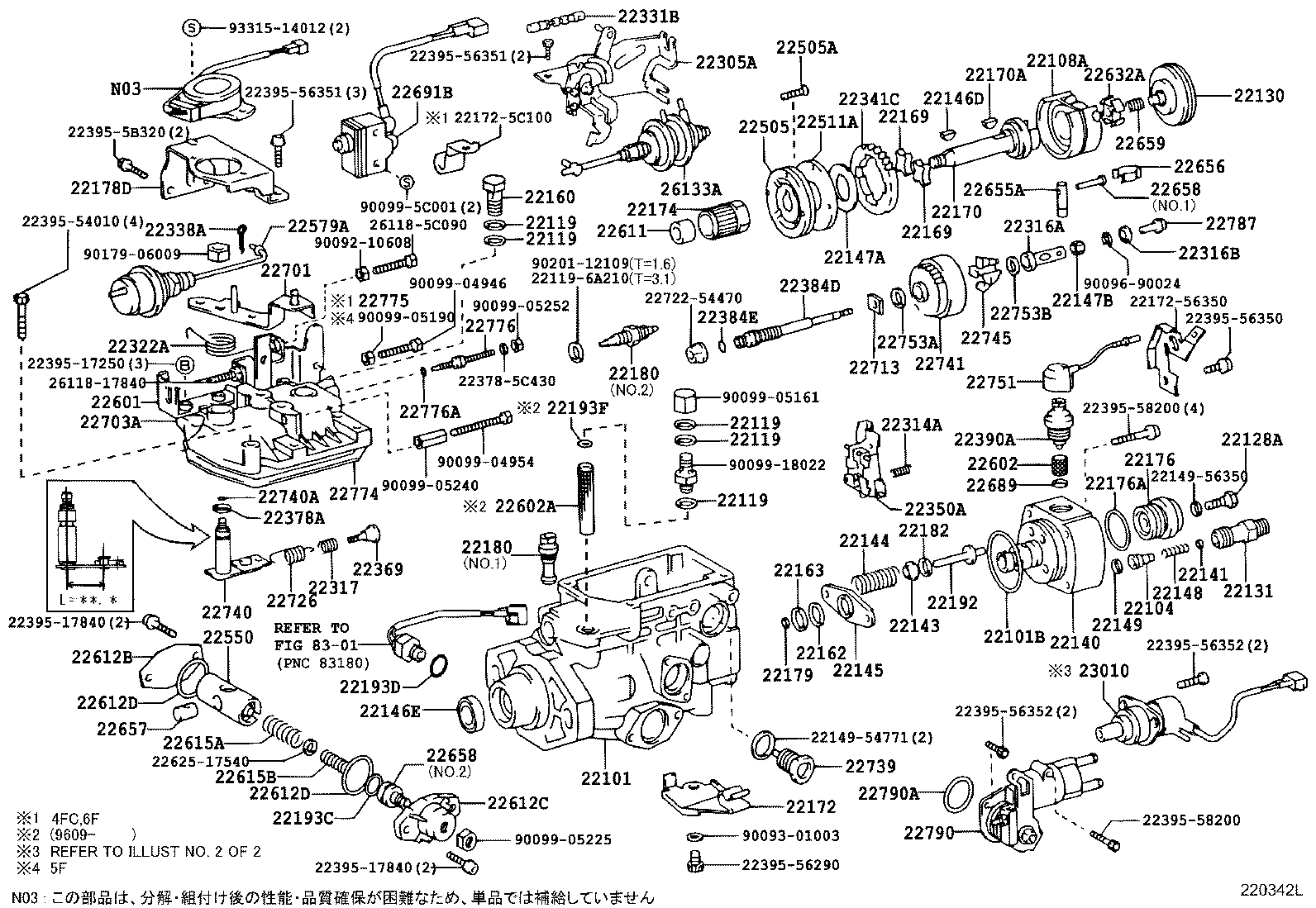

ILLUST NO. 1 OF 2(9505- )15BF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-5C090 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22101-5C090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90099-14053 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-17840 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
4 | ||
| 22104-17840 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-5C090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22108-5C090 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 厚さ=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 厚さ=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 厚さ=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 厚さ=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 厚さ=1.6 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-56330 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22128-56330 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-5C090 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22130-5C090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-17420 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
4 | ||
| 22131-17420 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-5C090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22140-5C090 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
4 | ||
| 22141-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-56350 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
2 | ||
| 22143-56350 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-17840 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
2 | ||
| 22144-17840 |
15BFT..BU297;15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
2 | ||
| 22144-17840 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-56350 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22145-56350 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90099-13018 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22544-64740 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22161-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22147-54290 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-5B250 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
4 | ||
| 22148-5B250 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
4 | ||
| 22149-56351 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-56350 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22160-56350 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22162-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22163-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22169-54180 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22169-54180 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-17840 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22170-17840 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90099-13017 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5C090 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22172-5C090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-58270 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22174-58270 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22176-54020 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 22193-54772 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22193-54772 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 90099-14052 |
15BF,15BFT,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222 |
1 | ||
| 22178D - BRACKET, IDLE UP | ||||
| 22178-5C090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 22178-5C090 |
15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54011 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.0 |
1 | ||
| 22179-54017 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.6 |
1 | ||
| 22179-54013 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.2 |
1 | ||
| 22179-54015 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.4 |
1 | ||
| 22179-54012 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.1 |
1 | ||
| 22179-54019 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.8 |
1 | ||
| 22179-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=1.9 |
1 | ||
| 22179-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=1.9 |
1 | ||
| 22179-54018 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.7 |
1 | ||
| 22179-54014 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.3 |
1 | ||
| 22179-54012 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.1 |
1 | ||
| 22179-54016 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.5 |
1 | ||
| 22179-54020 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.9 |
1 | ||
| 22179-54011 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.0 |
1 | ||
| 22179-54013 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.2 |
1 | ||
| 22179-54014 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.3 |
1 | ||
| 22179-54015 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.4 |
1 | ||
| 22179-54016 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.5 |
1 | ||
| 22179-54019 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.8 |
1 | ||
| 22179-54018 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.7 |
1 | ||
| 22179-54020 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.9 |
1 | ||
| 22179-54017 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.6 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-5C090 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 NO.2 |
1 | ||
| 22180-56351 |
15BF..BU212..30T;15BF..BU102,107,112,13#,142,147,162,172,182,202,212..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..(4FC,5F) NO.1 |
1 | ||
| 22180-56351 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 NO.1 |
1 | ||
| 22180-5C090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 NO.2 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-5C090 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 NO.2 |
1 | ||
| 22180-56351 |
15BF..BU212..30T;15BF..BU102,107,112,13#,142,147,162,172,182,202,212..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..(4FC,5F) NO.1 |
1 | ||
| 22180-56351 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 NO.1 |
1 | ||
| 22180-5C090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 NO.2 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22188-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=2.0 |
2 | ||
| 22182-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=0.5 |
2 | ||
| 22186-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=1.5 |
2 | ||
| 22183-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=0.8 |
2 | ||
| 22184-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=1.0 |
2 | ||
| 22185-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=1.2 |
2 | ||
| 22187-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=1.8 |
2 | ||
| 22183-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=0.8 |
2 | ||
| 22185-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=1.2 |
2 | ||
| 22186-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=1.5 |
2 | ||
| 22188-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=2.0 |
2 | ||
| 22187-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=1.8 |
2 | ||
| 22184-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=1.0 |
2 | ||
| 22182-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=0.5 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-56350 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
2 | ||
| 22192-56350 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
2 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-17020 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22193-17020 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22193D - RING, O(FOR REVOLUTION DETECTOR) | ||||
| 22193-64750 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22193-64750 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22193F - RING, O(FOR FUEL INJECTION PUMP FILTER) | ||||
| 22193-5B320 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 22193-5B320 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-5C090 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222..(ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..MTM |
1 | ||
| 22305-5C090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22314-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-55030 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 ﾏｰｸ 45 |
1 | ||
| 22316-55030 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 ﾏｰｸ 45 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90099-10148 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-56350 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22317-56350 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54020 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22322-54020 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 22338A - PIN, LEVER CONNECTING | ||||
| 22338-54410 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 22338-54410 |
15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22341-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-5C090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 22350-5C090 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..(ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..MTM |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22369-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22378-64010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22384-54010 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 90099-14049 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-56290 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22390-56291 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22505-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 90099-00723 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22511-58650 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22550 - PISTON ASSY, TIMER | ||||
| 22550-5C090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 22550-5C090 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..(4FC,5F) |
1 | ||
| 22579A - ACTUATOR SET, IDLE UP | ||||
| 26133-5C091 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 26133-5C091 |
15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-5C090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 22601-5C090 |
15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22602-56350 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22602A - FILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2 | ||||
| 22602-5B320 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22602-5B320 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22611-58200 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-17840 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22612-17840 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17020 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22612-17020 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22193-17840 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22193-17840 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17030 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 ﾊﾞﾈ定数=1.70,長さ=27.9 |
1 | ||
| 22615-17030 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 ﾊﾞﾈ定数=1.70,長さ=27.9 |
1 | ||
| 22615B - SPRING, TIMER INNER | ||||
| 22615-5C122 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 ﾊﾞﾈ定数=0.16,長さ=34.6 |
1 | ||
| 22615-5C121 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 ﾊﾞﾈ定数=0.15,長さ=34.6 |
1 | ||
| 22615-5C152 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 ﾊﾞﾈ定数=0.13,長さ=36.4 |
1 | ||
| 22615-5C153 |
15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 ﾊﾞﾈ定数=0.12,長さ=35.9 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-17840 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22632-17840 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-17840 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22655-17840 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-17840 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22656-17840 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22657-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17020 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 NO.2 |
1 | ||
| 22658-17840 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 NO.1 |
1 | ||
| 22658-17840 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 NO.1 |
1 | ||
| 22658-17020 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17020 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 NO.2 |
1 | ||
| 22658-17840 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 NO.1 |
1 | ||
| 22658-17840 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 NO.1 |
1 | ||
| 22658-17020 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 NO.2 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-17840 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22659-17840 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22689-56350 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22691B - SWITCH SUB-ASSY, CONTROL | ||||
| 22691-5C090 |
15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F |
1 | ||
| 22691-5C090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-5C090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F MARK"561" |
1 | ||
| 22701-5C091 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F MARK"562" |
1 | ||
| 22701-5C090 |
15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F MARK"561" |
1 | ||
| 22701-5C092 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F MARK"563" |
1 | ||
| 22701-5C092 |
15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F MARK"563" |
1 | ||
| 22701-5C091 |
15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F MARK"562" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-5C090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 22703-5C090 |
15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22713-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=1.05 |
1 | ||
| 22716-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=1.65 |
1 | ||
| 22715-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=1.45 |
1 | ||
| 22713-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=1.05 |
1 | ||
| 22714-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=1.25 |
1 | ||
| 22717-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 厚さ=1.85 |
1 | ||
| 22716-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=1.65 |
1 | ||
| 22714-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=1.25 |
1 | ||
| 22717-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=1.85 |
1 | ||
| 22715-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 厚さ=1.45 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-58470 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..(ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..(CBU,IV3) |
1 | ||
| 22726-58470 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..CBU,IV3 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22739-54020 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-58480 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..CBU,IV3 長さ=17.5 |
1 | ||
| 22740-54010 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..CBU,IV3 長さ=15.5 |
1 | ||
| 22740-5C090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..CBU,IV3 長さ=16.3 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22193-54770 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22741-54020 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-5C090 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
4 | ||
| 22745-5C090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-58880 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 22751-58880 |
15BF..BU132..IV3;15BF..BU107..T2,T4;15BF..BU107..06S..5F;15BF..BU132..CBU..5F;15BF..BU102..20T..4FC;15BF..BU147..T2,T4,TW4;15BF..BU102,137..T4..20T..5F;15BF..BU112,142,162,202,212..4FC,5F;15BF..BU102,172,182..(DM2,DM3,DM5,T2,T3,TW1,TW4)..5F ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22753-54010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22753-54020 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22774-54270 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-55030 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 22776-55030 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
15BF,15BFT,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222 |
1 | ||
| 22193-54771 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 22193-54771 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-64642 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 長さ=3.1 |
1 | ||
| 22787-64643 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 長さ=3.2 |
1 | ||
| 22787-64641 |
15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222 長さ=3.0 |
1 | ||
| 22787-17141 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=4.6 |
1 | ||
| 22787-17146 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=5.2 |
1 | ||
| 22787-17147 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=5.3 |
1 | ||
| 22787-17142 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=4.8 |
1 | ||
| 22787-17144 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=5.0 |
1 | ||
| 22787-17145 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=5.1 |
1 | ||
| 22787-17148 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=5.4 |
1 | ||
| 22787-17152 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=5.8 |
1 | ||
| 22787-17143 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=4.9 |
1 | ||
| 22787-17150 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=5.6 |
1 | ||
| 22787-17140 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=4.4 |
1 | ||
| 22787-17151 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=5.7 |
1 | ||
| 22787-54032 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=3.9 |
1 | ||
| 22787-54030 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=3.7 |
1 | ||
| 22787-54029 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=3.6 |
1 | ||
| 22787-54026 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=3.3 |
1 | ||
| 22787-54033 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=4.0 |
1 | ||
| 22787-54031 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=3.8 |
1 | ||
| 22787-56354 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=6.3 |
1 | ||
| 22787-17149 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=5.5 |
1 | ||
| 22787-54028 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=3.5 |
1 | ||
| 22787-54036 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=4.7 |
1 | ||
| 22787-56355 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=6.4 |
1 | ||
| 22787-56350 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=5.9 |
1 | ||
| 22787-54035 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=4.5 |
1 | ||
| 22787-56353 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=6.2 |
1 | ||
| 22787-64640 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=4.1 |
1 | ||
| 22787-56351 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=6.0 |
1 | ||
| 22787-56356 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=6.5 |
1 | ||
| 22787-64680 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=4.2 |
1 | ||
| 22787-56352 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=6.1 |
1 | ||
| 22787-54027 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=3.4 |
1 | ||
| 22787-64641 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=3.0 |
1 | ||
| 22787-54034 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=4.3 |
1 | ||
| 22787-64642 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=3.1 |
1 | ||
| 22787-64643 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 長さ=3.2 |
1 | ||
| 22787-56357 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 長さ=6.6 |
1 | ||
| 22787-17148 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=5.4 |
1 | ||
| 22787-17144 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=5.0 |
1 | ||
| 22787-17142 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=4.8 |
1 | ||
| 22787-17147 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=5.3 |
1 | ||
| 22787-17140 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=4.4 |
1 | ||
| 22787-17141 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=4.6 |
1 | ||
| 22787-17146 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=5.2 |
1 | ||
| 22787-54027 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 長さ=3.4 |
1 | ||
| 22787-17149 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=5.5 |
1 | ||
| 22787-17151 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=5.7 |
1 | ||
| 22787-17152 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=5.8 |
1 | ||
| 22787-17145 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=5.1 |
1 | ||
| 22787-17143 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=4.9 |
1 | ||
| 22787-54028 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=3.5 |
1 | ||
| 22787-54034 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=4.3 |
1 | ||
| 22787-54029 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=3.6 |
1 | ||
| 22787-17150 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=5.6 |
1 | ||
| 22787-54035 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=4.5 |
1 | ||
| 22787-54033 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=4.0 |
1 | ||
| 22787-54030 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=3.7 |
1 | ||
| 22787-54032 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=3.9 |
1 | ||
| 22787-56351 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=6.0 |
1 | ||
| 22787-56354 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=6.3 |
1 | ||
| 22787-56353 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=6.2 |
1 | ||
| 22787-54031 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=3.8 |
1 | ||
| 22787-54026 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 長さ=3.3 |
1 | ||
| 22787-54036 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=4.7 |
1 | ||
| 22787-56357 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=6.6 |
1 | ||
| 22787-56355 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=6.4 |
1 | ||
| 22787-56352 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=6.1 |
1 | ||
| 22787-64680 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=4.2 |
1 | ||
| 22787-64641 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 長さ=3.0 |
1 | ||
| 22787-56350 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=5.9 |
1 | ||
| 22787-56356 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=6.5 |
1 | ||
| 22787-64642 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 長さ=3.1 |
1 | ||
| 22787-64643 |
15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297 長さ=3.2 |
1 | ||
| 22787-64640 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 長さ=4.1 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-5C090 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..(ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..MTM |
1 | ||
| 22790-5C090 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
1 | ||
| 22193-17840 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 |
1 | ||
| 23010 - VALVE ASSY, TIMING CONTROL | ||||
| 23010-5C091 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 L=1.275 |
1 | ||
| 23010-5C091 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 L=1.275 |
1 | ||
| 23010-5C092 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 L=1.575 |
1 | ||
| 23010-5C092 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 L=1.575 |
1 | ||
| 23010-5C093 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 L=1.775 |
1 | ||
| 23010-5C094 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 L=1.975 |
1 | ||
| 23010-5C094 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 L=1.975 |
1 | ||
| 23010-5C093 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 L=1.775 |
1 | ||
| 26133A - ACTUATOR SET, IDLE-UP | ||||
| 26133-5C090 |
15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F |
1 | ||
| 26133-5C090 |
15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222..(ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..MTM |
1 | ||
| Common parts | ||||
| 22119-6A210 | ||||
| 22149-54771 | ||||
| 22149-56350 | ||||
| 22172-56350 | ||||
| 22172-5C100 | ||||
| 22378-5C430 | ||||
| 22395-17250 | ||||
| 22395-17840 | ||||
| 22395-54010 | ||||
| 22395-56290 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22395-5B320 | ||||
| 22625-17540 | ||||
| 22722-54470 | ||||
| 26118-17840 | ||||
| 26118-5C090 | ||||
| 90092-10608 | ||||
| 90093-01003 | ||||
| 90096-90024 | ||||
| 90099-04946 | ||||
| 90099-04954 | ||||
| 90099-05161 | ||||
| 90099-05190 | ||||
| 90099-05225 | ||||
| 90099-05240 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90099-5C001 | ||||
| 90179-06009 | ||||
| 90201-12109 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8301 | ||||

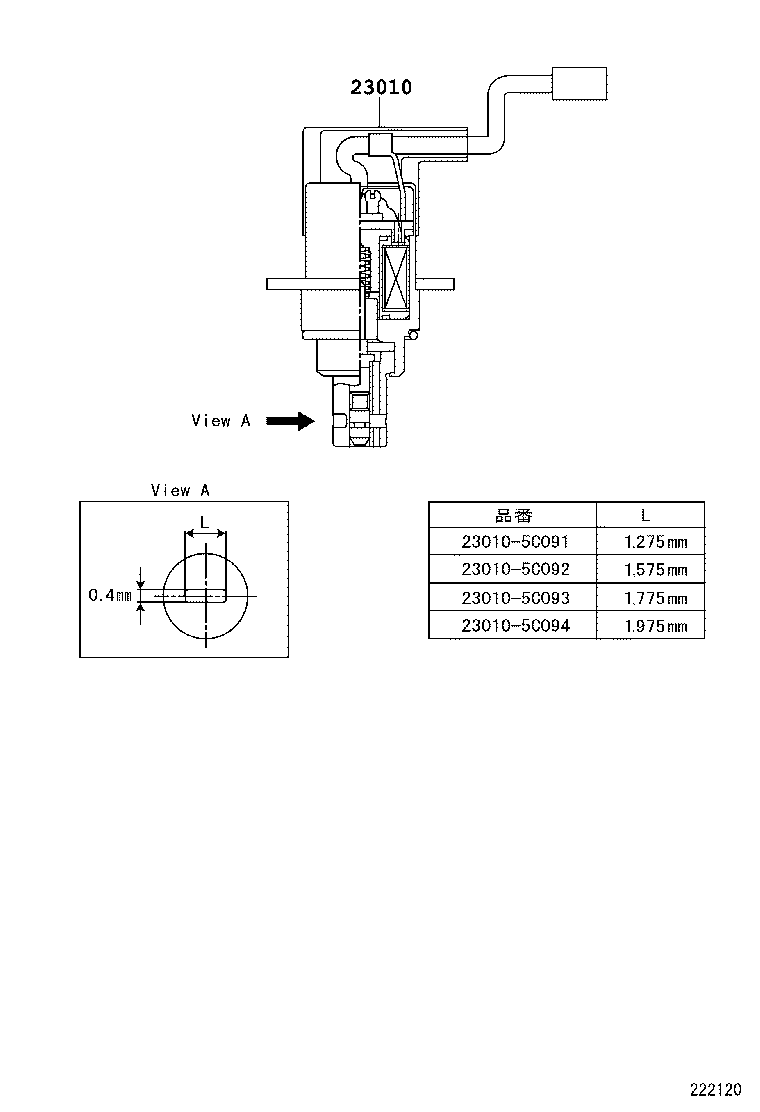

ILLUST NO. 2 OF 2(9505- )15BF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23010 - VALVE ASSY, TIMING CONTROL | ||||
| 23010-5C091 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 L=1.275 |
1 | ||
| 23010-5C091 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 L=1.275 |
1 | ||
| 23010-5C092 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 L=1.575 |
1 | ||
| 23010-5C092 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 L=1.575 |
1 | ||
| 23010-5C093 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 L=1.775 |
1 | ||
| 23010-5C094 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 L=1.975 |
1 | ||
| 23010-5C094 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 L=1.975 |
1 | ||
| 23010-5C093 |
15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4 L=1.775 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
