BU162D-TWMMS3 (1995)
Toyota Dyna 200/Toyoace G25
(9505-9906)15BF..BU162,172,182..02S,03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58450 |
15BF..BU162,172,182..02S,03S |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-58300 |
15BF..BU132..T3,T4;15B#,3B..BU10#,112,12#,137,14#,162,172,182,202,212,222 |
1 | ||
| 17705-58340 |
15BF..BU162,172,182..02S,03S |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-95401 |
15BF,15BFT..BU162,172,182,202,212,222..02S,03S |
1 | ||
| 17709J - BRACKET, AIR CLEANER INLET, NO.3 | ||||
| 53764-95406 |
15BF..BU162,172,182..02S,03S |
1 | ||
| 17709K - BRACKET, AIR CLEANER INLET, NO.4 | ||||
| 53765-37010 |
15BF..BU162,172,182..02S,03S |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56041 |
15BF..BU162,172,182..02S,03S |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
15BF..BU162,172,182..02S,03S |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-68020 |
15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58020 |
15BFT..BU297;15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58240 |
15BF..BU162,172,182..02S,03S |
1 | ||
| 17881-58241 |
15BF..BU162,172,182..02S,03S |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
15BF..BU162,172,182..02S,03S ID=75,ﾌﾞﾗﾂｸ |
1 | ||
| 96111-10750 |
15BFT..BU212,222,297;15BF..BU162,172,182..02S,03S ID=75,ﾌﾞﾗﾂｸ |
1 | ||
| 96111-10880 |
15BF..BU102,107,112,122,13#,142,147,162,172,182 ID=88,ﾌﾞﾙｰ |
1 | ||
| 96111-10750 |
15BFT..BU212,222;15BF..BU162,172,182..02S,03S ID=75,ﾌﾞﾗﾂｸ |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
15BF..BU162,172,182..02S,03S ID=75,ﾌﾞﾗﾂｸ |
1 | ||
| 96111-10750 |
15BFT..BU212,222,297;15BF..BU162,172,182..02S,03S ID=75,ﾌﾞﾗﾂｸ |
1 | ||
| 96111-10880 |
15BF..BU102,107,112,122,13#,142,147,162,172,182 ID=88,ﾌﾞﾙｰ |
1 | ||
| 96111-10750 |
15BFT..BU212,222;15BF..BU162,172,182..02S,03S ID=75,ﾌﾞﾗﾂｸ |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37120 |
BU162,172,182..02S,03S |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-95401 |
BU162,172,182,202,212,222..02S,03S |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-95402 |
BU162,172,182..02S,03S |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 90179-08068 | ||||
| 90179-08104 | ||||
| 90480-22006 | ||||
| 90560-08044 | ||||
| 91631-60825 | ||||
| 91632-60828 | ||||
| 91651-40825 | ||||
| 94612-10800 | ||||
| 96111-10880 | ||||

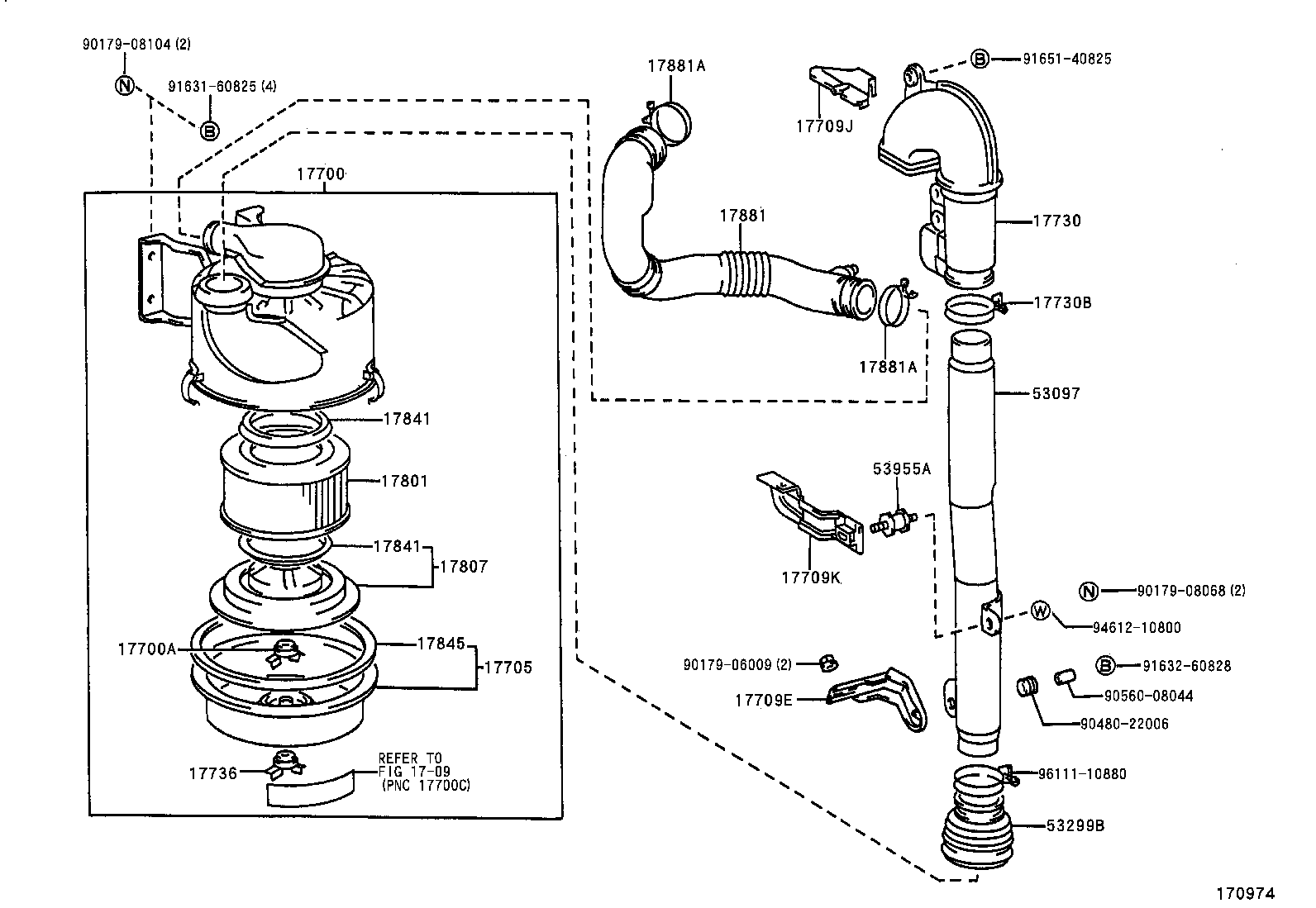

| Linked diagrams | ||||
| 1709 | ||||
