BU162D-TWMMS (1995)
Toyota Dyna 200/Toyoace G25
Production
May 1995
-
May 1999
Engine
15BF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

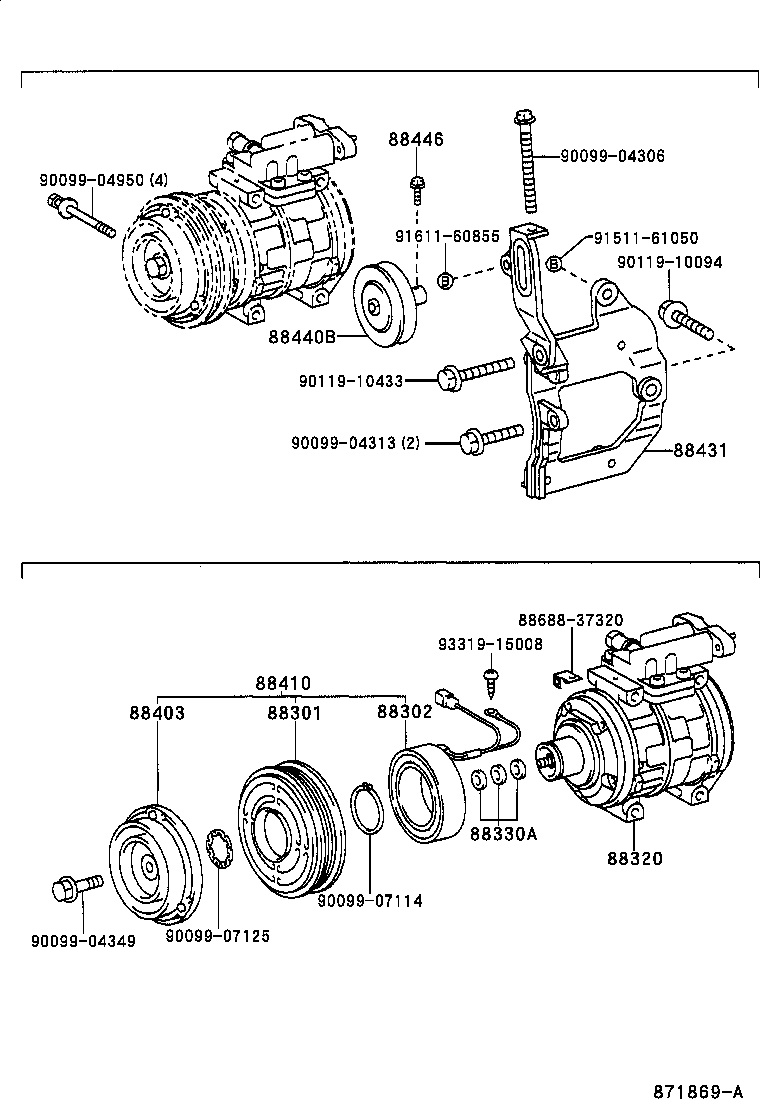

(9505- )BU162,172,182
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-26030 |
BU162,172,182,297 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-60090 |
BU162,172,182,297 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-36380 |
BU162,172,182 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
BU162,172,182,297,RZU100,140..DSL,EFI,LPG,TD |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
BU162,172,182,297,RZU100,140..DSL,EFI,LPG,TD |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-37020 |
BU162,172,182,297 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-36500 |
BU162,172,182 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-12160 |
BU162,172,182 NO.1 |
1 | ||
| Common parts | ||||
| 88688-37320 | ||||
| 90099-04306 | ||||
| 90099-04313 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-10094 | ||||
| 90119-10433 | ||||
| 91511-61050 | ||||
| 91611-60855 | ||||
| 93319-15008 | ||||

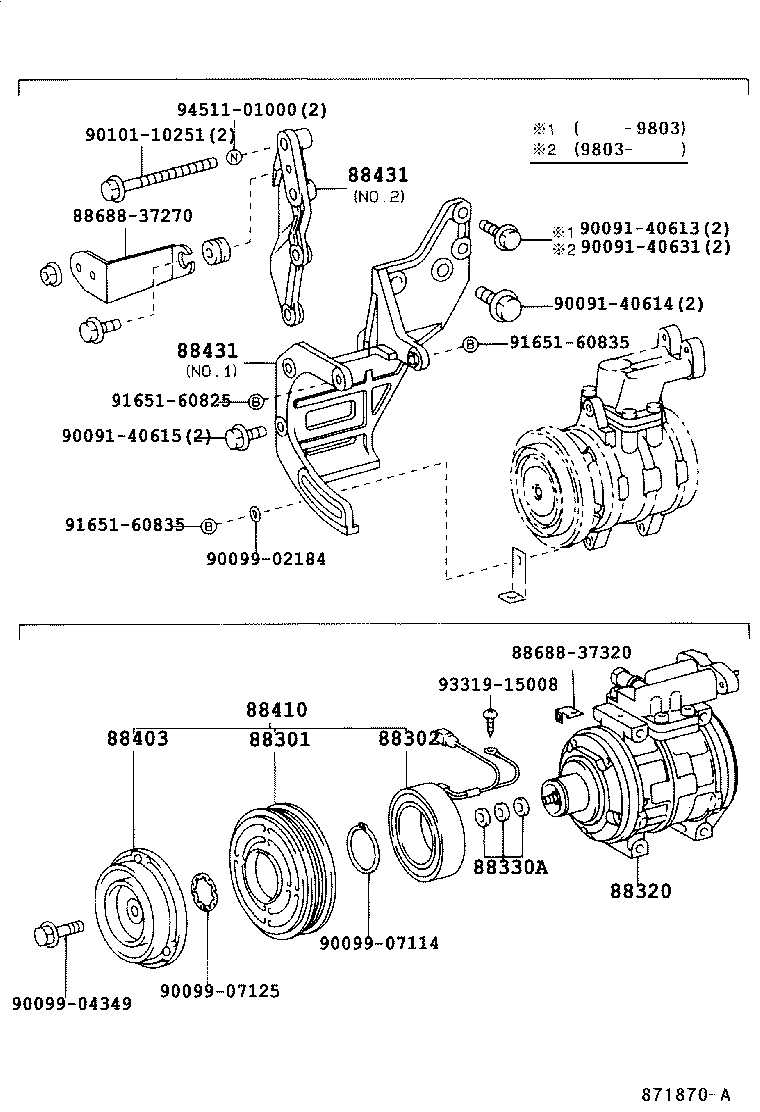

(9505- )BU162,182
Click highlighted areas on diagram
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-26030 |
BU162,172,182,297 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-60090 |
BU162,172,182,297 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-36380 |
BU162,172,182 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
BU162,172,182,297,RZU100,140..DSL,EFI,LPG,TD |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
BU162,172,182,297,RZU100,140..DSL,EFI,LPG,TD |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-37020 |
BU162,172,182,297 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-36500 |
BU162,172,182 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-36500 |
BU162,172,182 |
1 | ||
| Common parts | ||||
| 88688-37270 | ||||
| 88688-37320 | ||||
| 90091-40613 | ||||
| 90091-40614 | ||||
| 90091-40615 | ||||
| 90091-40631 | ||||
| 90099-02184 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90101-10251 | ||||
| 91651-60825 | ||||
| 91651-60835 | ||||
| 93319-15008 | ||||
| 94511-01000 | ||||
