BU162D-TWMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

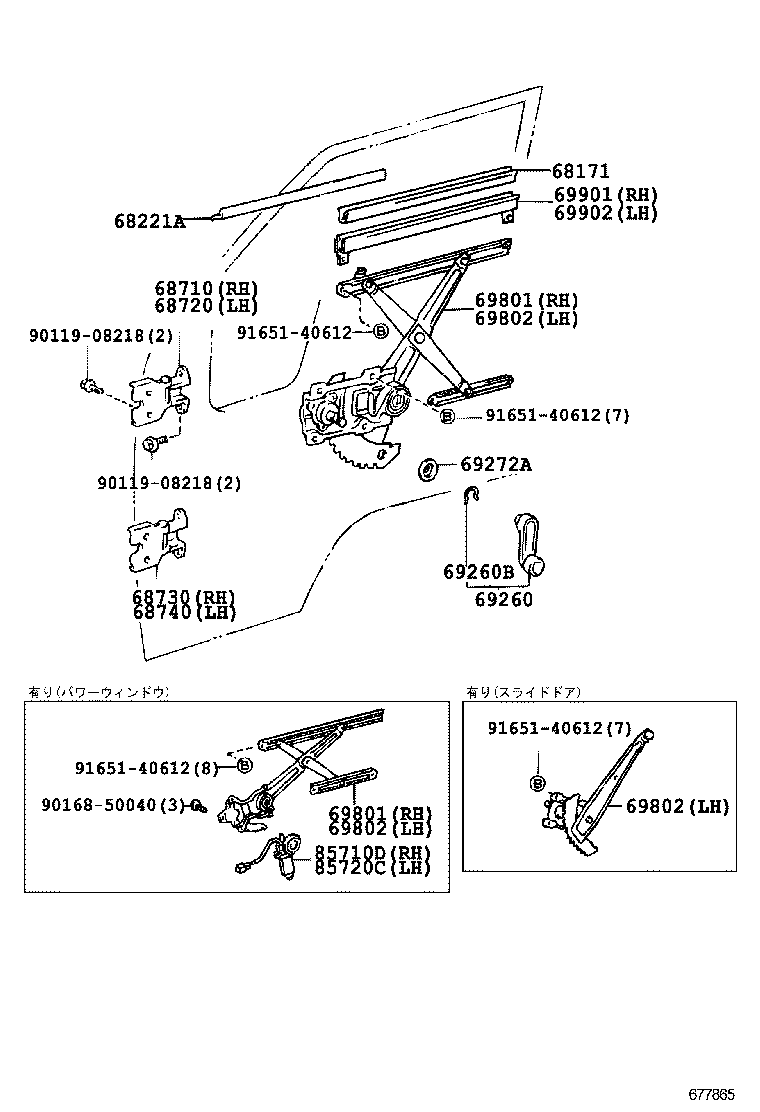

Click highlighted areas on diagram

diagram 68171 68221A 68710 68720 68730 68740 69260 69260B 69272A 69801 69801 69802 69802 69802 69901 69902 85710D 85720C 9011908218 9011908218 9016850040 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-22010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95403

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-95403

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-95404

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-95404

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
Common parts
90119-08218
90168-50040
91651-40612
