BU162A-TMMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )BU132..T3,T4 ; (9708- )BU10#,112,120,137,14#,162,172,182,202,212,222,

Click highlighted areas on diagram

ｱﾘ(*80)

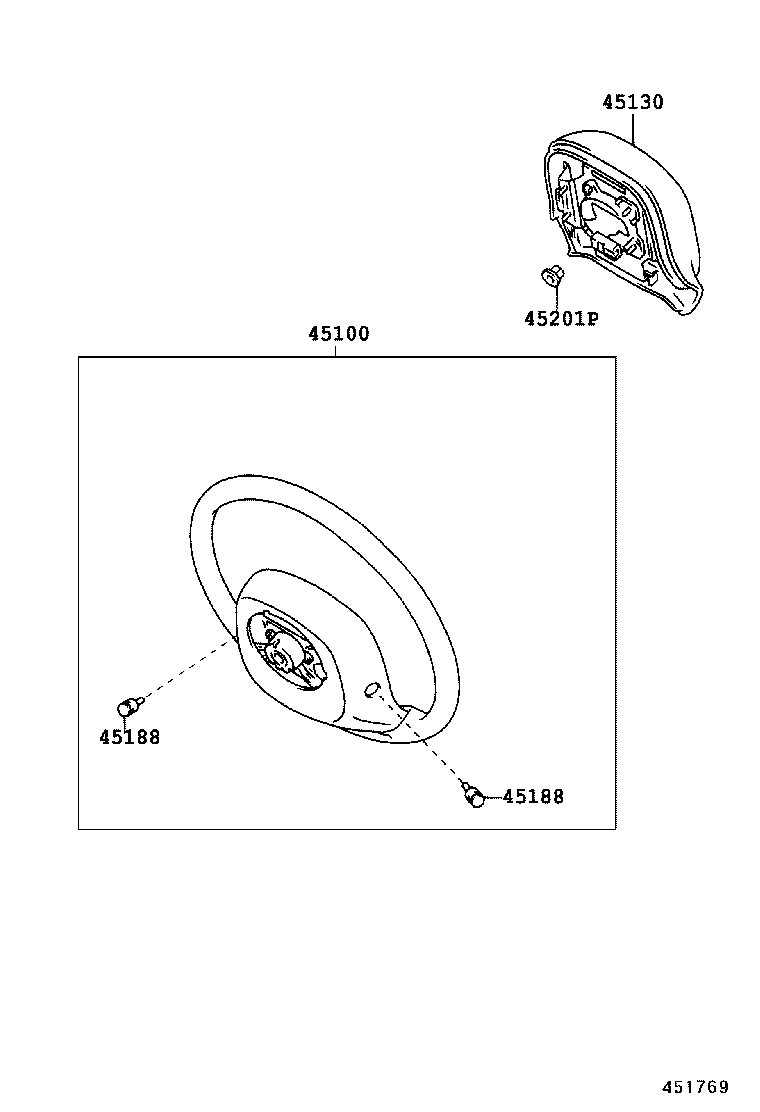

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36130B0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-36110B0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

BLUISH GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

BU132..T3,T4;BU10#,112,120,137,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

BU132..T3,T4;BU10#,112,120,137,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1

(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

Click highlighted areas on diagram

diagram 45100 45105 45130 45180 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36130B0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130

 1
45105-36020

BU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

ﾅｼ(*80)

 1
45130 - BUTTON ASSY, HORN
45130-36110B0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

BLUISH GRAY,TRIM1#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-36020B0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

BLUISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
