BU162A-TMMMS3 (1995)
Toyota Dyna 200/Toyoace G25
Production
May 1995
-
May 1999
Engine
15BF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

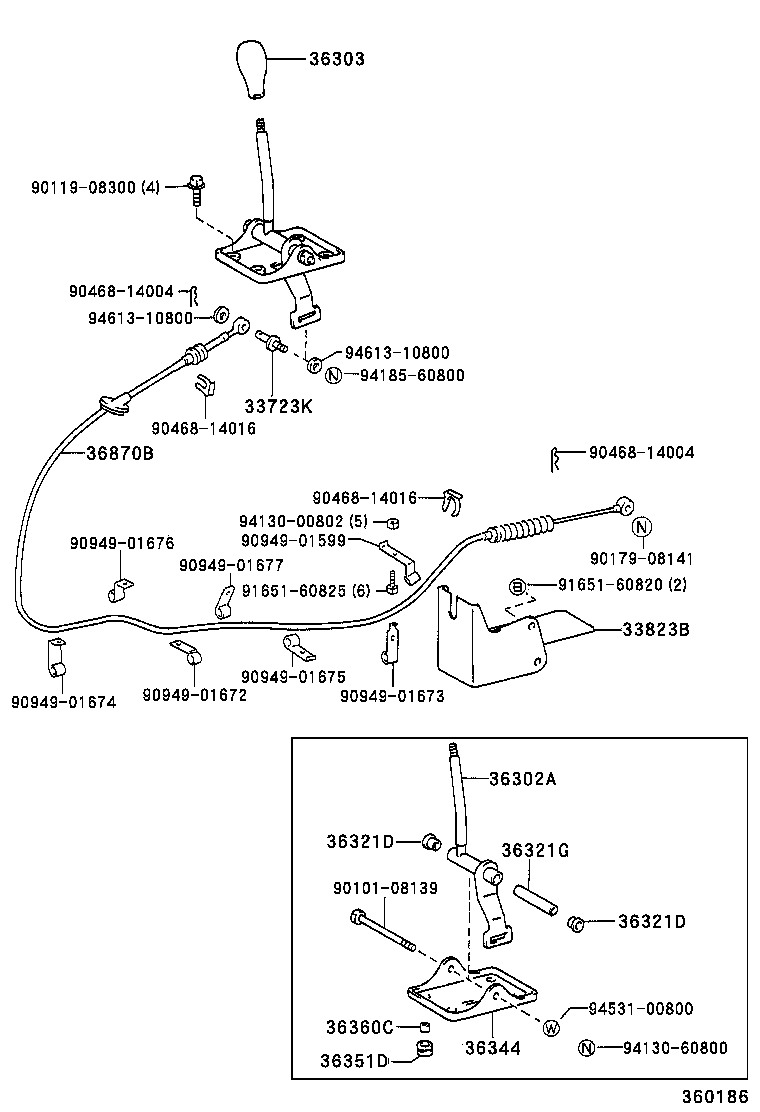

ILLUST NO. 1 OF 2(9505- )BU162,172,182
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33723K - SWIVEL, CONNECTING ROD | ||||
| 33723-28010 |
BU162,172,182,297 |
1 | ||
| 33823B - BRACKET, TRANSFER CONTROL CABLE | ||||
| 33823-37140 |
BU162,172,182 |
1 | ||
| 36302A - LEVER SUB-ASSY, TRANSFER SHIFT, NO.1 | ||||
| 36302-37020 |
BU162,172,182,297 |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-37010B0 |
BU162,172,182 BLUISH GRAY,TRIM1# |
1 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11006 |
BU162,172,182,297 |
2 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11006 |
BU162,172,182,297 |
2 | ||
| 36321G - COLLER (FOR TRANSFER SHIFT LEVER) | ||||
| 90387-08115 |
BU162,172,182,297 |
1 | ||
| 36344 - RETAINER, TRANSFER CONTROL SHIFT LEVER | ||||
| 36344-36010 |
BU162,172,182,297 |
1 | ||
| 36351D - GROMMET (FOR HIGH & LOW SHIFT ROD) | ||||
| 90480-13012 |
BU162,172,182,297 |
4 | ||
| 36360C - COLLAR (FOR TRANSFER SHIFT LEVER RETAINER) | ||||
| 90387-09011 |
BU162,172,182,297 |
4 | ||
| 36870B - CABLE ASSY, TRANSFER CONTROL | ||||
| 36870-37020 |
BU162,172,182..02S,03S |
1 | ||
| Common parts | ||||
| 90101-08139 | ||||
| 90119-08300 | ||||
| 90179-08141 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01599 | ||||
| 90949-01672 | ||||
| 90949-01673 | ||||
| 90949-01674 | ||||
| 90949-01675 | ||||
| 90949-01676 | ||||
| 90949-01677 | ||||
| 91651-60820 | ||||
| 91651-60825 | ||||
| 94130-00802 | ||||
| 94130-60800 | ||||
| 94185-60800 | ||||
| 94531-00800 | ||||
| 94613-10800 | ||||
ILLUST NO. 2 OF 2(9505- )BU162,172,182
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33281C - PIN, LEVER LOCK | ||||
| 33281-16020 |
BU162,172,182,297 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12008 |
BU162,172,182 |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12008 |
BU162,172,182 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14134 |
BU162,172,182 長さ=27.1 |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
BU162,172,182,297 外径=9.52,ｽﾁｰﾙ |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05016 |
BU162,172,182,297 長さ=25.5 |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-36010 |
BU162,172,182 |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13004 |
BU162,172,182,297 |
3 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13004 |
BU162,172,182,297 |
3 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13004 |
BU162,172,182,297 |
3 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-60050 |
BU162,172,182,297 |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-36010 |
BU162,172,182 |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-36010 |
BU162,172,182 |
1 | ||
| 36361 - LEVER, TRANSFER SHIFT, INNER | ||||
| 36361-36010 |
BU162,172,182 |
1 | ||
| 36362A - LEVER, TRANSFER SHIFT, OUTER | ||||
| 36362-60030 |
BU162,172,182,297 |
1 | ||
| 36410J - ACTUATOR ASSY, TRANSFER SHIFT | ||||
| 36410-36014 |
BU162,172,182 |
1 | ||
| Common parts | ||||
| 90253-11001 | ||||
| 90949-01794 | ||||
| 90949-01951 | ||||
| 91611-60830 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-11600 | ||||
| Linked diagrams | ||||
| 3609 | ||||
