BU162A-TMMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

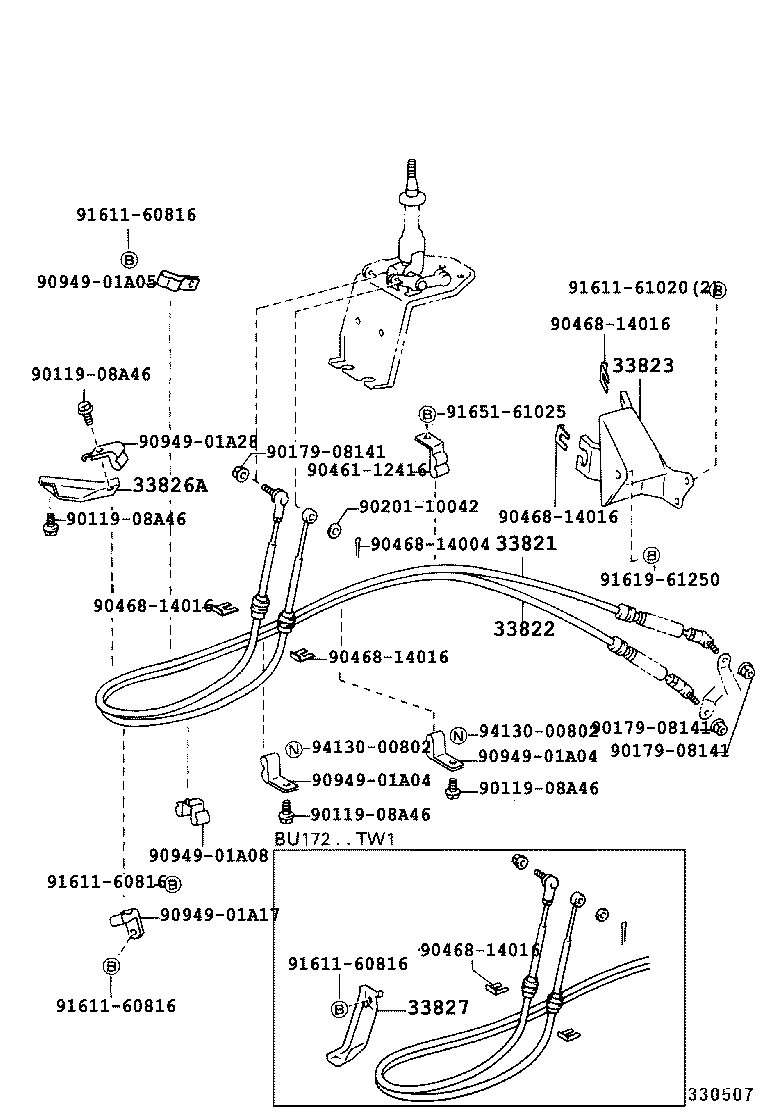

ILLUST NO. 2 OF 2(9505- )BU162,172,182

Click highlighted areas on diagram

diagram 33821 33822 33823 33826A 33827 9011908A46 9011908A46 9011908A46 9011908A46 9017908141 9017908141 9017908141 9020110042 9046112416 9046814004 9046814016 9046814016 9046814016 9046814016 9046814016 9094901A04 9094901A04 9094901A05 9094901A08 9094901A17 9094901A28 9161160816 9161160816 9161160816 9161160816 9161161020 9161961250 9165161025 9413000802 9413000802
Part # Description Qty Price
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-37171

BU162,172,182..02S,03S

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33820-37181

BU162,172,182..02S,03S

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37060

BU162,172,182

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37110

BU162,172,182

 1
Common parts
90119-08A46
90179-08141
90201-10042
90461-12416
90468-14004
90468-14016
90949-01A04
90949-01A05
90949-01A08
90949-01A17
90949-01A28
91611-60816
91611-61020
91619-61250
91651-61025
94130-00802

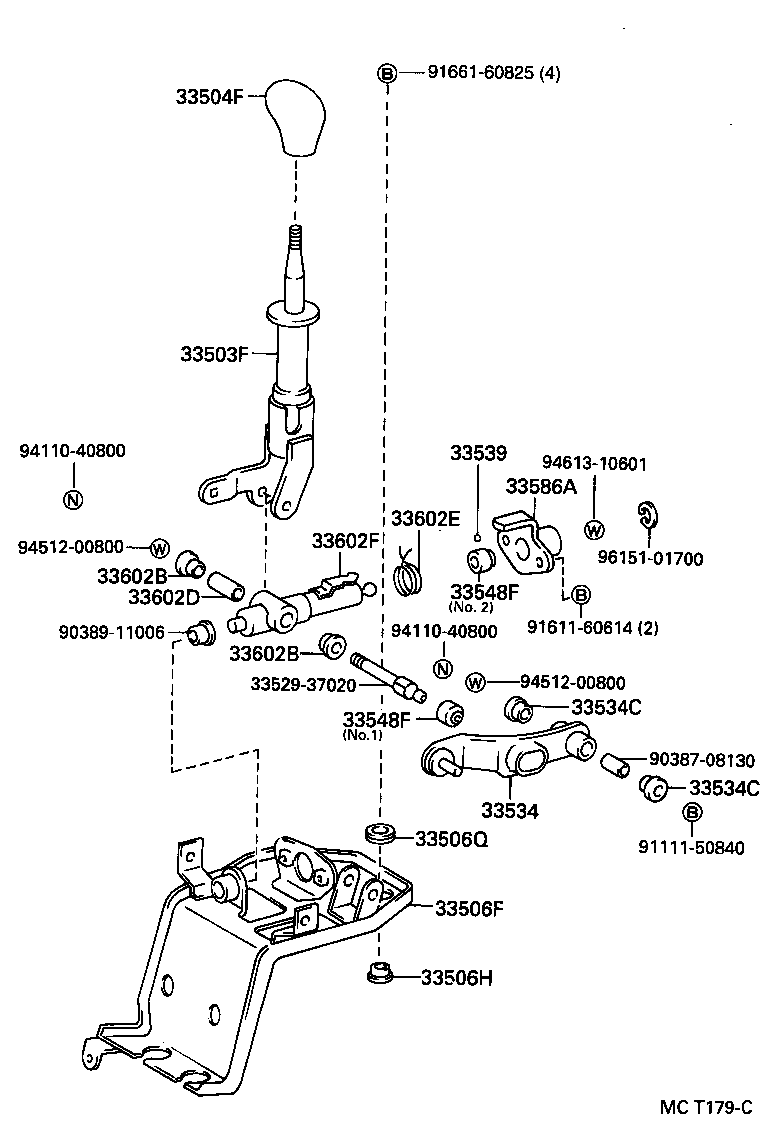

ILLUST NO. 1 OF 2(9505- )MTM

Click highlighted areas on diagram

diagram 33503F 33504F 33506F 33506H 33506Q 3352937020 33534 33534C 33534C 33539 33548F 33548F 33586A 33602B 33602B 33602D 33602E 33602F 9038708130 9038911006 9111150840 9161160614 9166160825 9411040800 9411040800 9451200800 9451200800 9461310601 9615101700
Part # Description Qty Price
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-37020

BU162,172,182

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36051B0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F

GRAY,TRIM1#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

 1
33506H - BUSH (FOR SHIFT LEVER RETAINER)
90386-12056

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 4
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
90480-19008

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 4
33534 - BELLCRANK, SELECTING
33534-37030

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

 1
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F

 2
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F

 2
33539 - CUSHION, SHIFT LEVER ANTI-RATTLE
33539-12010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

NO.1

 1
33548-12040

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

NO.2

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

NO.1

 1
33548-12040

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

NO.2

 1
33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT)
33586-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

 1
33602B - BUSHING (FOR SELECT LEVER)
90386-13007

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

 2
33602B - BUSHING (FOR SELECT LEVER)
90386-13007

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

 2
33602D - COLLAR (FOR SELECT LEVER)
90387-08063

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

 1
33602E - SPRING, TORSION (FOR SELECT LEVER)
90949-03034

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

 1
33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33602-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM

 1
Common parts
33529-37020
90387-08130
90389-11006
91111-50840
91611-60614
91661-60825
94110-40800
94512-00800
94613-10601
96151-01700
