BU162A-TMMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )MTM

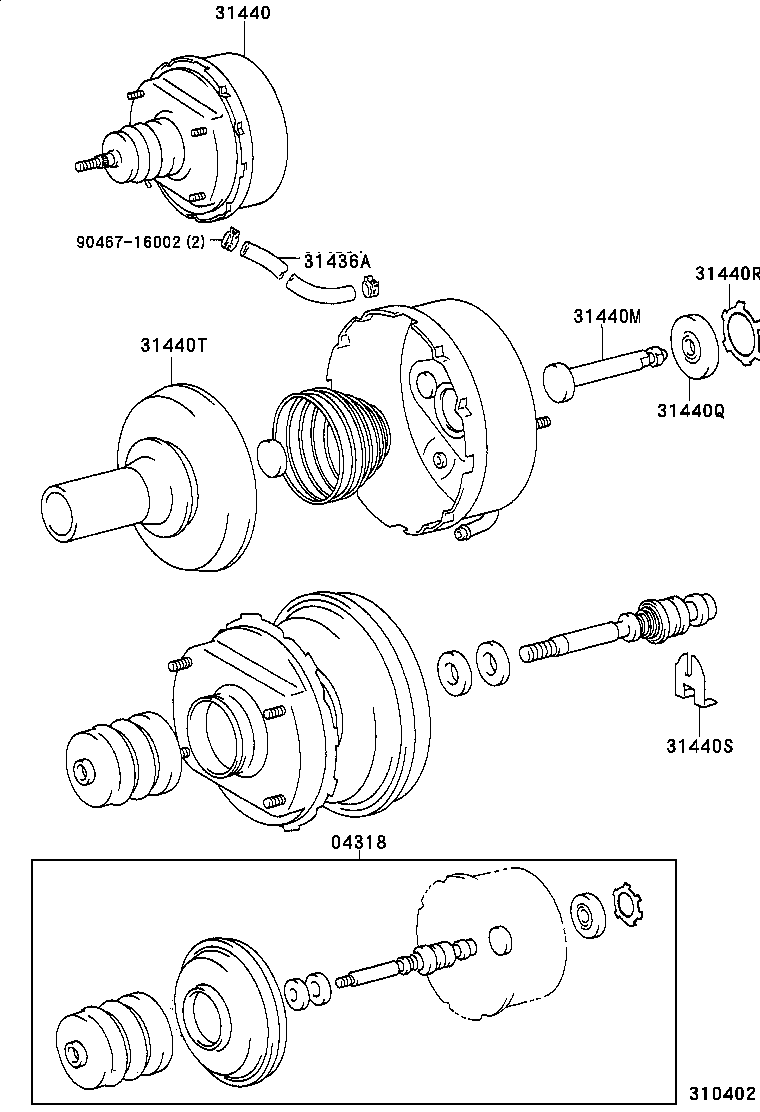

Click highlighted areas on diagram

diagram 04318 31436A 31440 31440M 31440Q 31440R 31440S 31440T 9046716002
Part # Description Qty Price
04318 - BOOSTER KIT, CLUTCH
04318-36040

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)
31436-37010

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
31440 - BOOSTER ASSY, CLUTCH W/AIR CLEANER
31440-37020

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
31440M - ROD SUB-ASSY, CLUTCH BOOSTER PISTON
44606-12520

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
31440Q - GASKET, BRAKE BOOSTER BRACKET
44621-28120

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
31440R - RING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE)
44628-28120

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
31440S - KEY, VALVE STOPPER(FOR CLUTCH BOOSTER)
44635-36010

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
31440T - PISTON, BOOSTER(FOR CLUTCH BOOSTER)
44642-10070

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)

 1
Common parts
90467-16002
