BU162A-TMMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

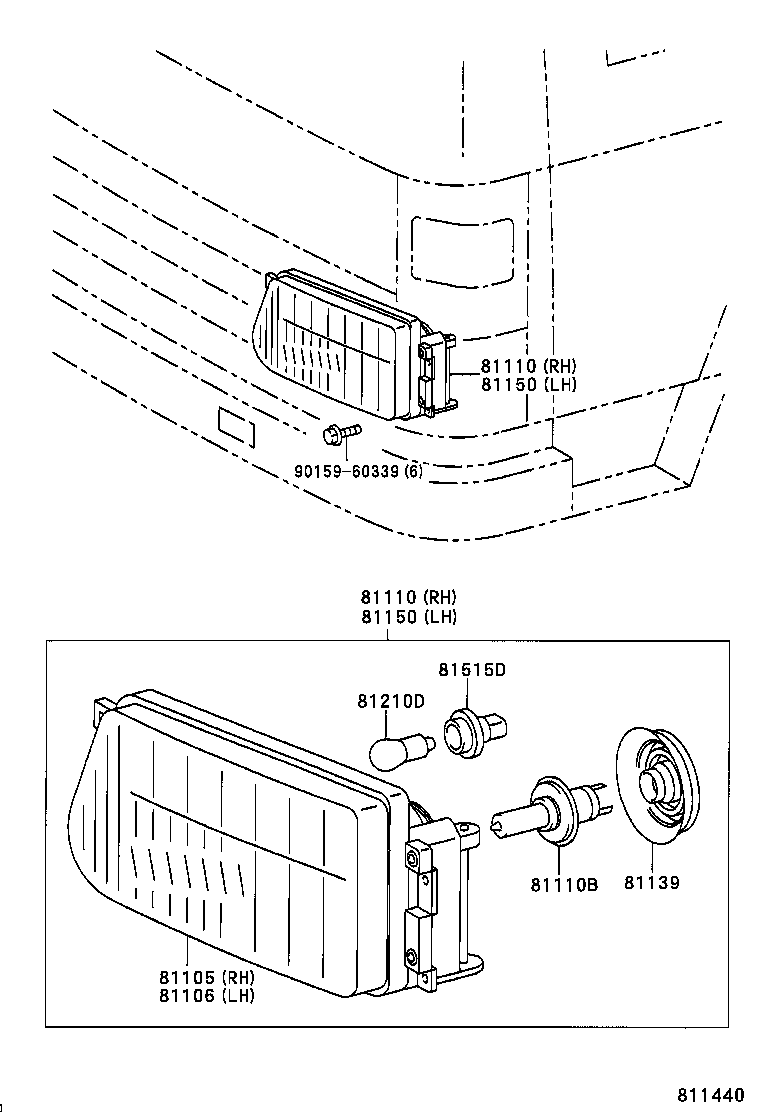

Click highlighted areas on diagram

diagram 81105 81106 81110 81110 81110B 81139 81150 81150 81210D 81515D 9015960339
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD

 1
81110 - HEADLAMP ASSY, RH
81110-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD

 1
81110 - HEADLAMP ASSY, RH
81110-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17019

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

24V 75/70W,*HAL *WH

 2
81139 - COVER, HEADLAMP SOCKET
81139-87641

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
81150 - HEADLAMP ASSY, LH
81150-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD

 1
81150 - HEADLAMP ASSY, LH
81150-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD

 1
81210D - BULB, FOG LAMP
99134-11250

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

24V 25W

 2
81515D - SOCKET, FOG LAMP
81515-12520

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
Common parts
90159-60339
