BU162A-TMMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9505- )

Click highlighted areas on diagram

diagram 72110A 72130A 73800 73888 9010508075 9011908134
Part # Description Qty Price
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
73800 - SUSPENSION ASSY, SEAT, RH
73800-37030B0

BU162;BU172,182,XZU130..(DM7,T3)..02S

ｶｽﾀﾑ ｼﾖｳ-*104,BLUISH GRAY,TRIM1#

 1
73888 - HANDLE, SEAT SUSPENSION CONTROL
73888-37010B0

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

BLUISH GRAY,TRIM1#

 1
Common parts
90105-08075
90119-08134

(9505- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008

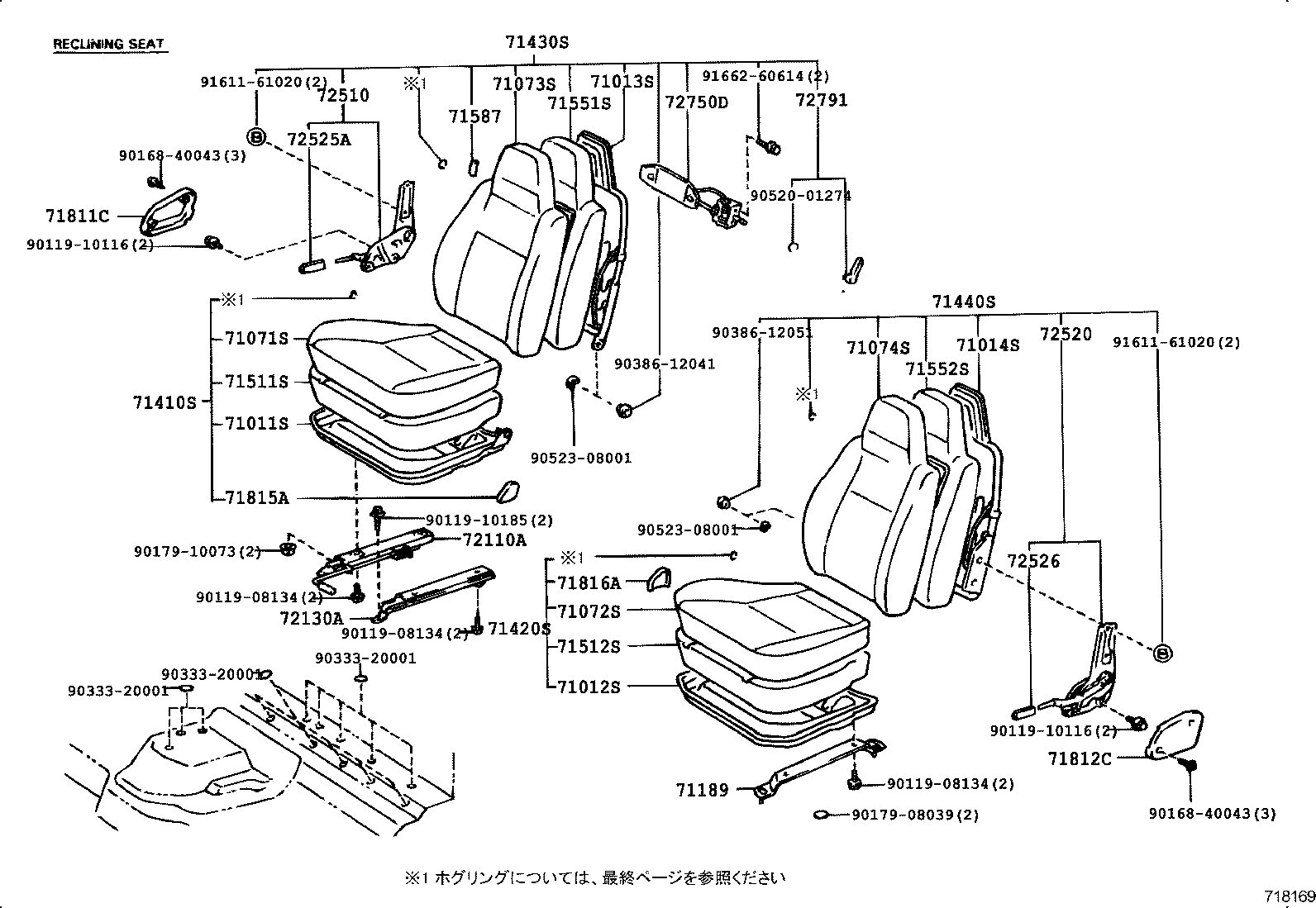

ILLUST NO. 1 OF 3(9505- )BU212..30T ; (9505- )BU162,172,182,XZU130,140

Click highlighted areas on diagram

diagram 71011S 71012S 71013S 71014S 71071S 71072S 71073S 71074S 71189 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71811C 71812C 71815A 71816A 72110A 72130A 72510 72520 72525A 72526 72750D 72791 9011908134 9011908134 9011908134 9011910116 9011910116 9011910185 9016840043 9016840043 9017908039 9017910073 9033320001 9033320001 9033320001 9038612041 9038612051 9052001274 9052308001 9052308001 9161161020 9161161020 9166260614
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-37040

BU162;BU172,182,XZU130..(DM7,T3,TW1)..(02S,05S)

 1
71011-37050

BU162,172,182,XZU130..02S,03S

ｶｽﾀﾑ ｼﾖｳ-*104

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-37070

BU162,172,182,XZU130,140

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-37070

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

ｶｽﾀﾑ ｼﾖｳ-*104

 1
71013-37060

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-37020

BU162,172,182,XZU130,140

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37250B0

BU162,172,182,XZU130,140

BLUISH GRAY,TRIM1#

 1
71071-37280B0

BU162,172,182,XZU130..02S,03S

ｶｽﾀﾑ ｼﾖｳ-*104,DK. BLUE,TRIM1#

 1
71071-37260B0

BU162..02S;BU172..IV4

ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71071-37260B0

BU162..02S

ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37450B0

BU162..02S;BU172..IV4

ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71072-37450B0

BU162..02S

ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71072-37470B0

BU162,172,182,XZU130..02S,03S

ｶｽﾀﾑ ｼﾖｳ-*104,DK. BLUE,TRIM1#

 1
71072-37440B0

BU162,172,182,XZU130,140

BLUISH GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-37300B0

BU162,172,182,XZU130,140..02S,03S

E ｼﾖｳ,BLUISH GRAY,TRIM1#

 1
71073-37310B0

BU162..02S

ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71073-37520B0

BU162..02S

ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,DK. BLUE,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37530B0

BU162,172,182,XZU130..02S,03S

ｶｽﾀﾑ ｼﾖｳ-*104,DK. BLUE,TRIM1#

 1
71074-37500B0

BU162,172,182,XZU130,140..02S,03S

BLUISH GRAY,TRIM1#

 1
71074-37510B0

BU162..02S

ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71189 - LEG, FRONT SEAT, LH
71189-37010

BU162,172,182,XZU130,140

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-37300B0

BU162..02S;BU172..IV4

***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71410-37300B0

BU162..02S

***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71410-37320B0

BU162,172,182,XZU130..02S,03S

***,ｶｽﾀﾑ ｼﾖｳ-*104,DK. BLUE,TRIM1#

 1
71410-37290B0

BU162,172,182,XZU130,140

***,BLUISH GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-37450B0

BU162..02S;BU172..IV4

***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71420-37470B0

BU162,172,182,XZU130..02S,03S

***,ｶｽﾀﾑ ｼﾖｳ-*104,DK. BLUE,TRIM1#

 1
71420-37440B0

BU162,172,182,XZU130,140

***,BLUISH GRAY,TRIM1#

 1
71420-37450B0

BU162..02S

***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-37340B0

BU162..02S

***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71430-37350B0

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

***,ｶｽﾀﾑ ｼﾖｳ-*104,DK. BLUE,TRIM1#

 1
71430-37330B0

BU162,172,182,XZU130..02S,03S

***,BLUISH GRAY,TRIM1#

 1
71430-37620B0

BU162..02S

***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,DK. BLUE,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-37560B0

BU162,172,182,XZU130,140..02S,03S

***,BLUISH GRAY,TRIM1#

 1
71440-37590B0

BU162,172,182,XZU130..02S,03S

***,ｶｽﾀﾑ ｼﾖｳ-*104,DK. BLUE,TRIM1#

 1
71440-37570B0

BU162..02S

***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ)-*104,BLUISH GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-37030

BU162,172,182,XZU130,140

 1
71511-37050

BU162,172,182,XZU130..02S,03S

ｶｽﾀﾑ ｼﾖｳ-*104

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-37090

BU162,172,182,XZU130,140

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37060

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

ｶｽﾀﾑ ｼﾖｳ-*104

 1
71551-37050

BU162,172,182,XZU130

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37010

BU162,172,182,XZU130,140

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-95J00

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

 2
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J00B0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

BLUISH GRAY,TRIM1#

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0

BU162,172,182,XZU130,140

GRAY,TRIM1#

 1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J00B0

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

GRAY,TRIM1#

 1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71816-95J00B0

BU162,172,182,XZU130,140

GRAY,TRIM1#

 1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-37010B0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

BLUISH GRAY,TRIM1#

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-37020B0

BU162,172,182,XZU130,140

BLUISH GRAY,TRIM1#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

BLUISH GRAY,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-95J01B0

BU162,172,182,202,212,222,XZU130,140..02S,03S,05S

BLUISH GRAY,TRIM1#

 1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-37040

BU162,172,182,XZU130

 1
72750-37030

BU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S

ｶｽﾀﾑ ｼﾖｳ-*104

 1
72791 - LEVER, LUMBAR SUPPORT
72791-20030B0

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

GRAY,TRIM1#

 1
Common parts
90119-08134
90119-10116
90119-10185
90168-40043
90179-08039
90179-10073
90333-20001
90386-12041
90386-12051
90520-01274
90523-08001
91611-61020
91662-60614
